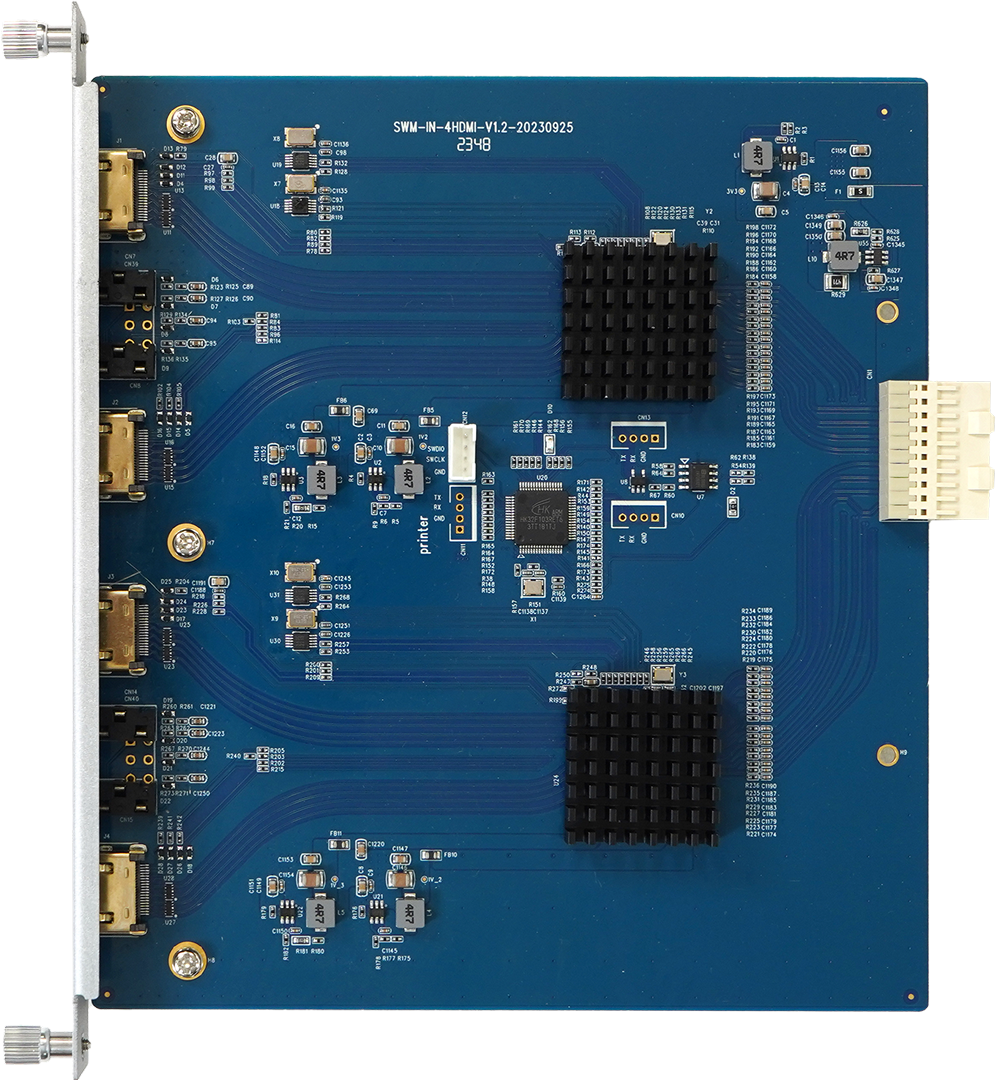

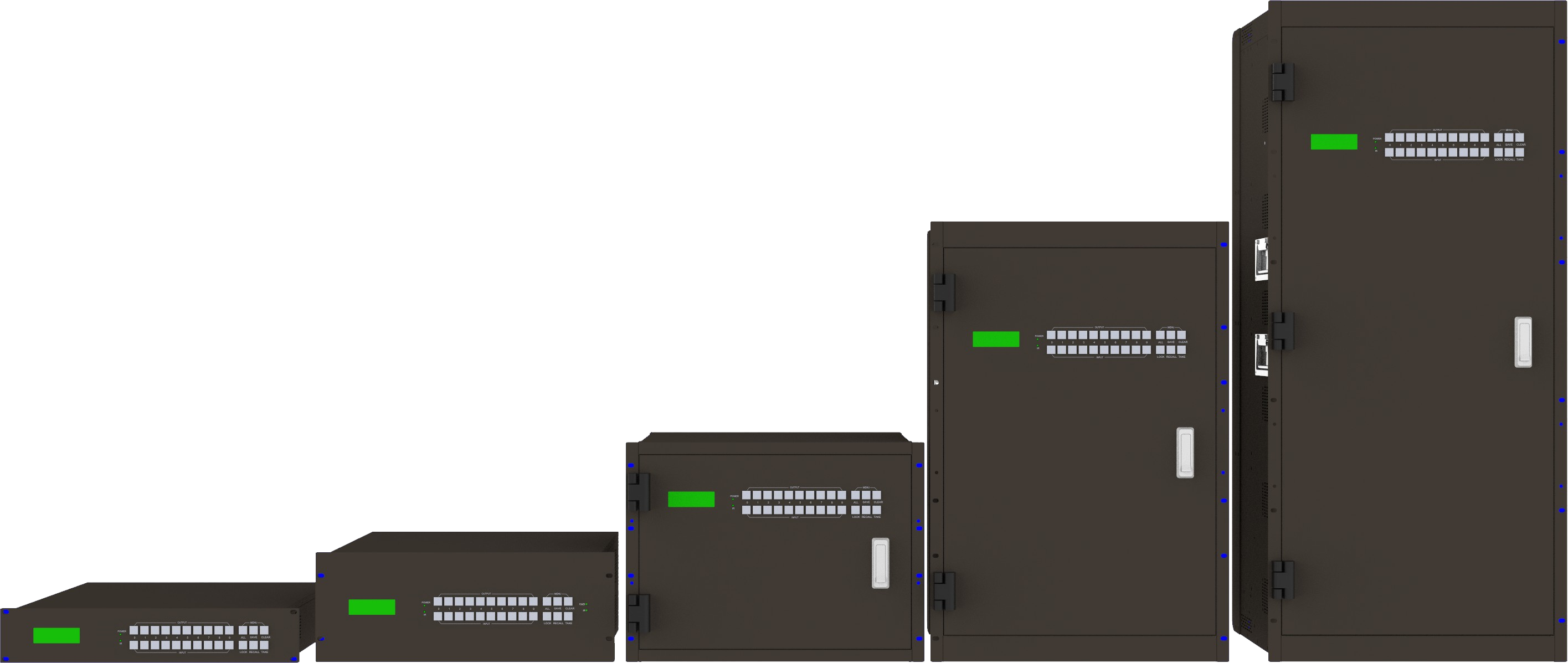

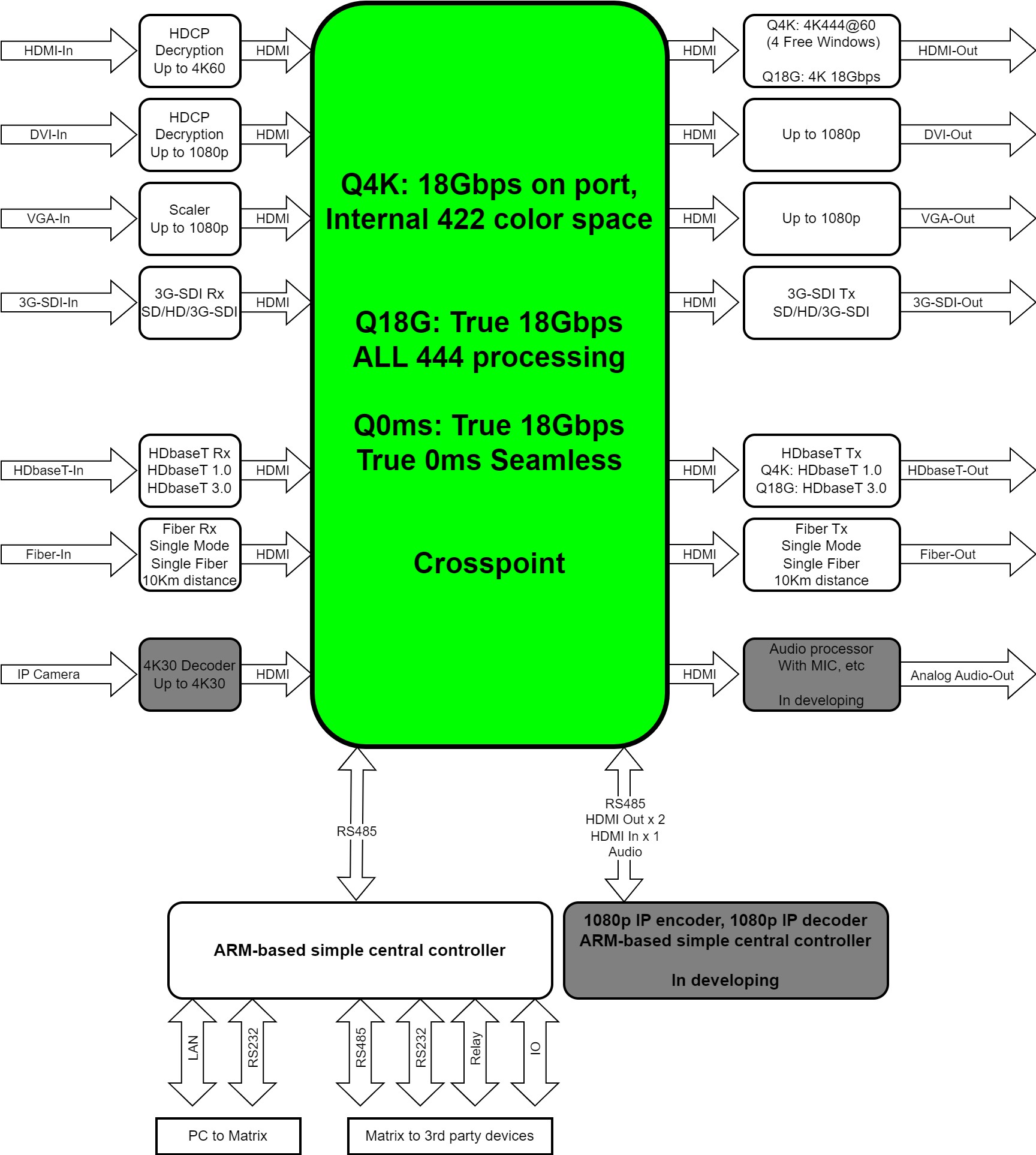

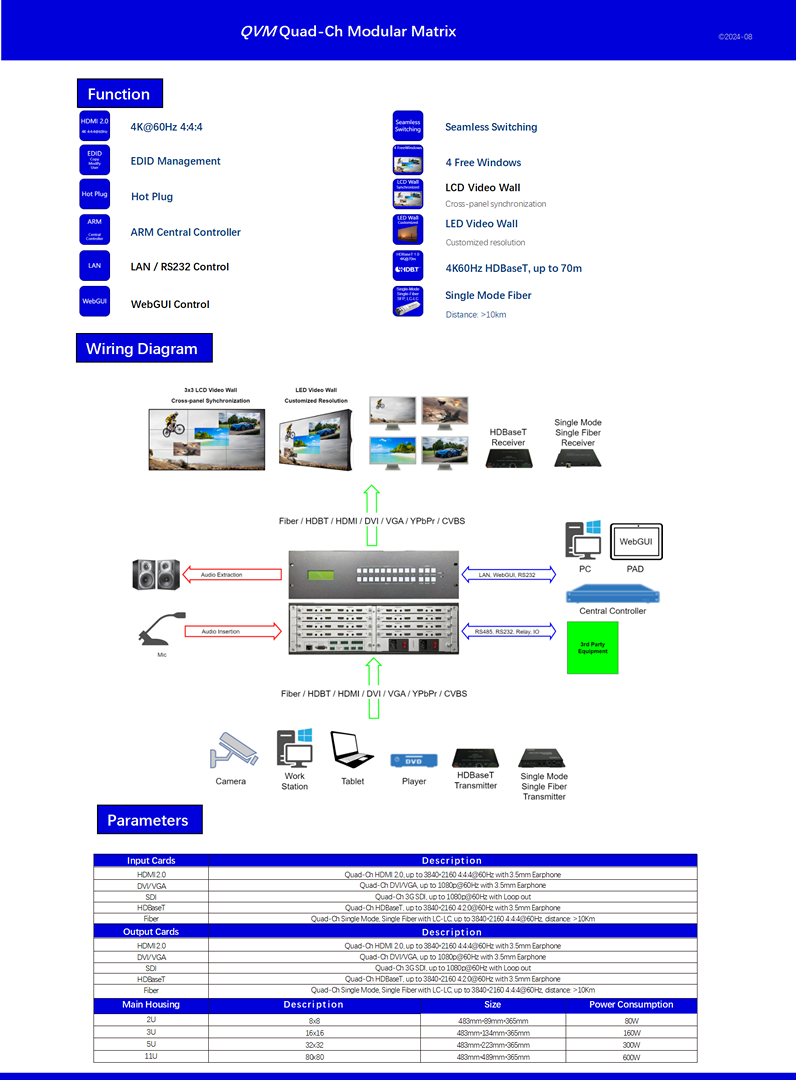

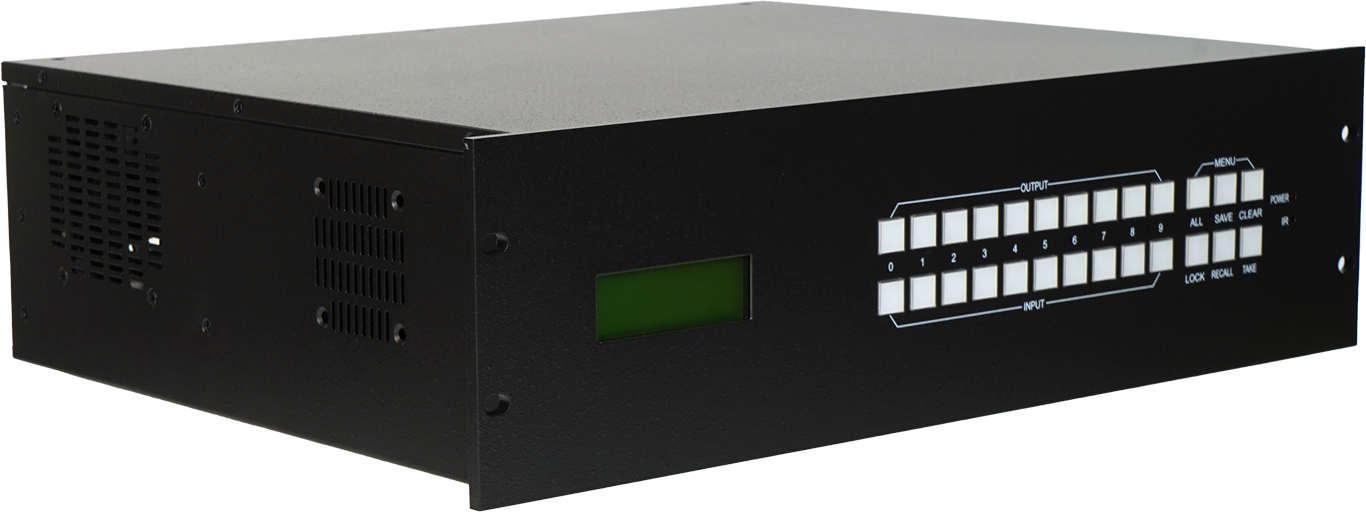

【QVM: 0808 / 1616 / 3232 / 8080: 8x8~80x80 Quad-Ch Modular Matrix】
|
||||||||||||||||||||
|

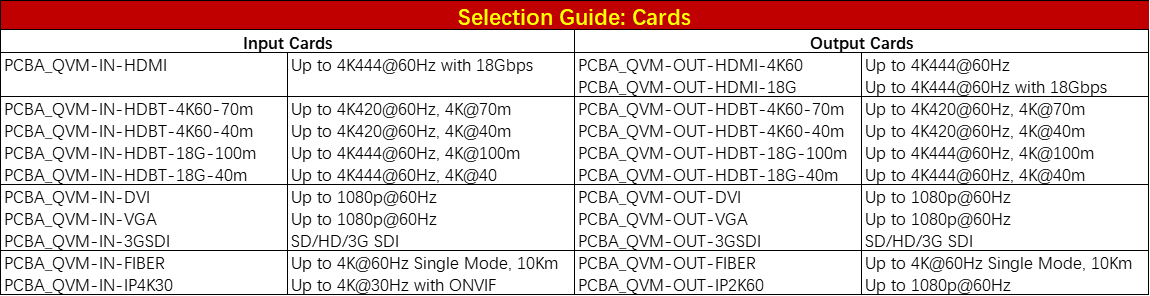

User Manual, Parameter, Photo User Manual: QVM Parameter (Excel)
 |

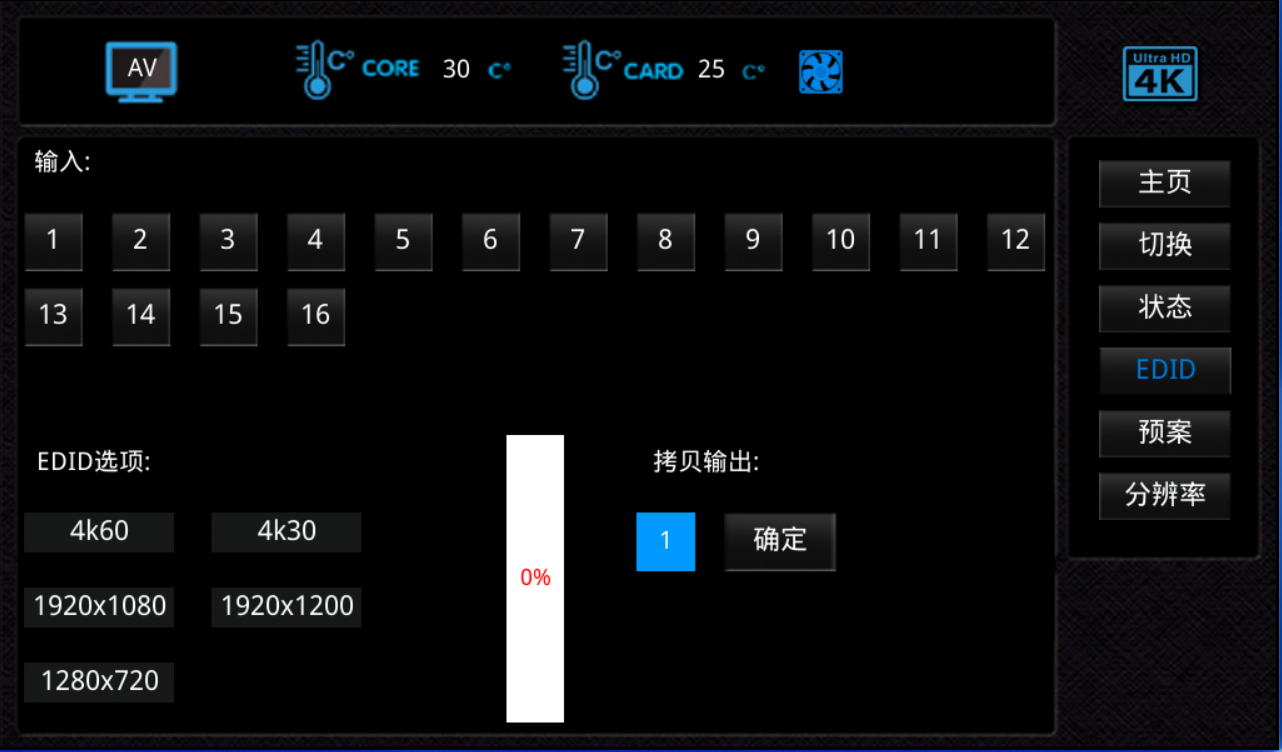

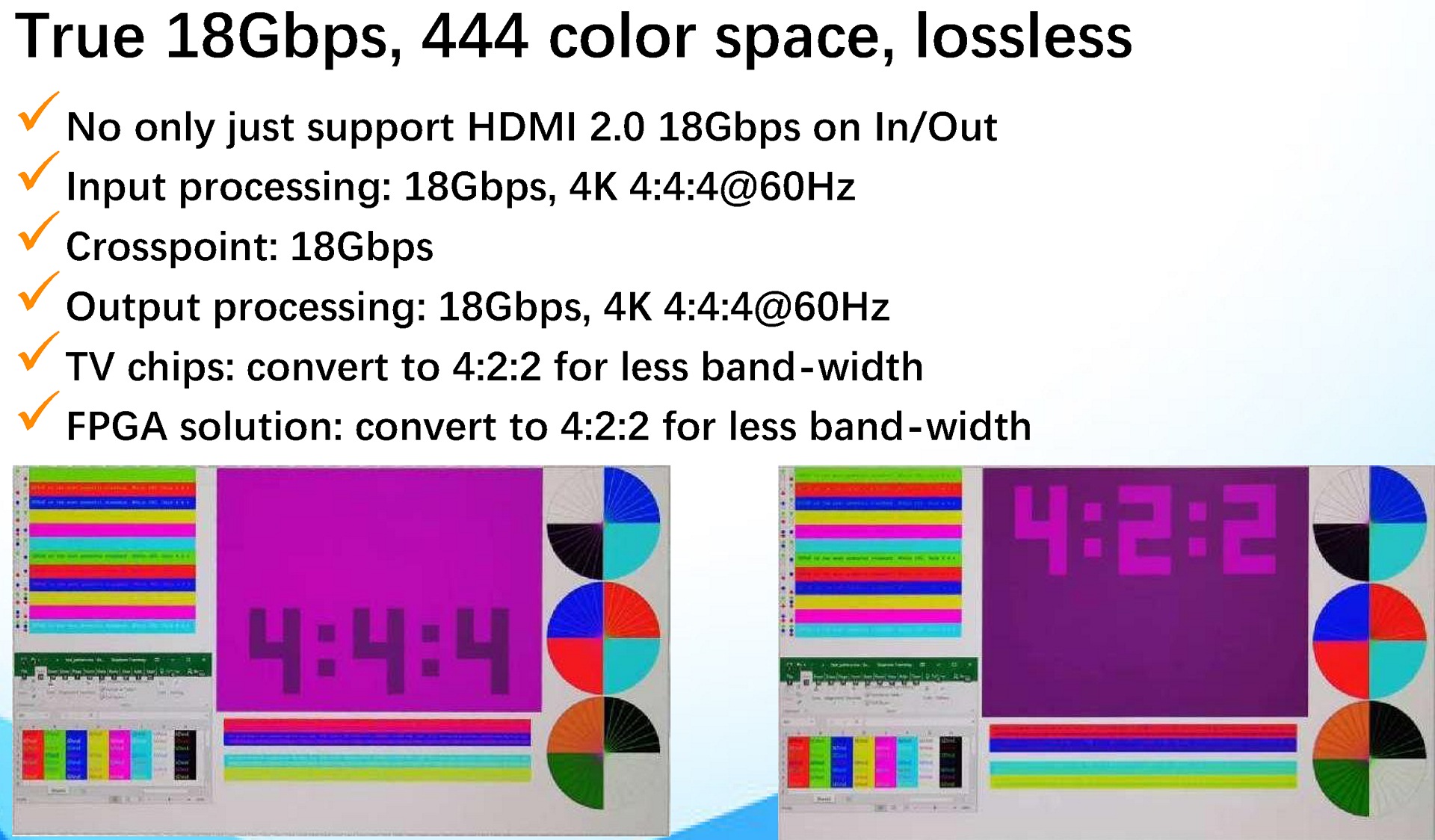

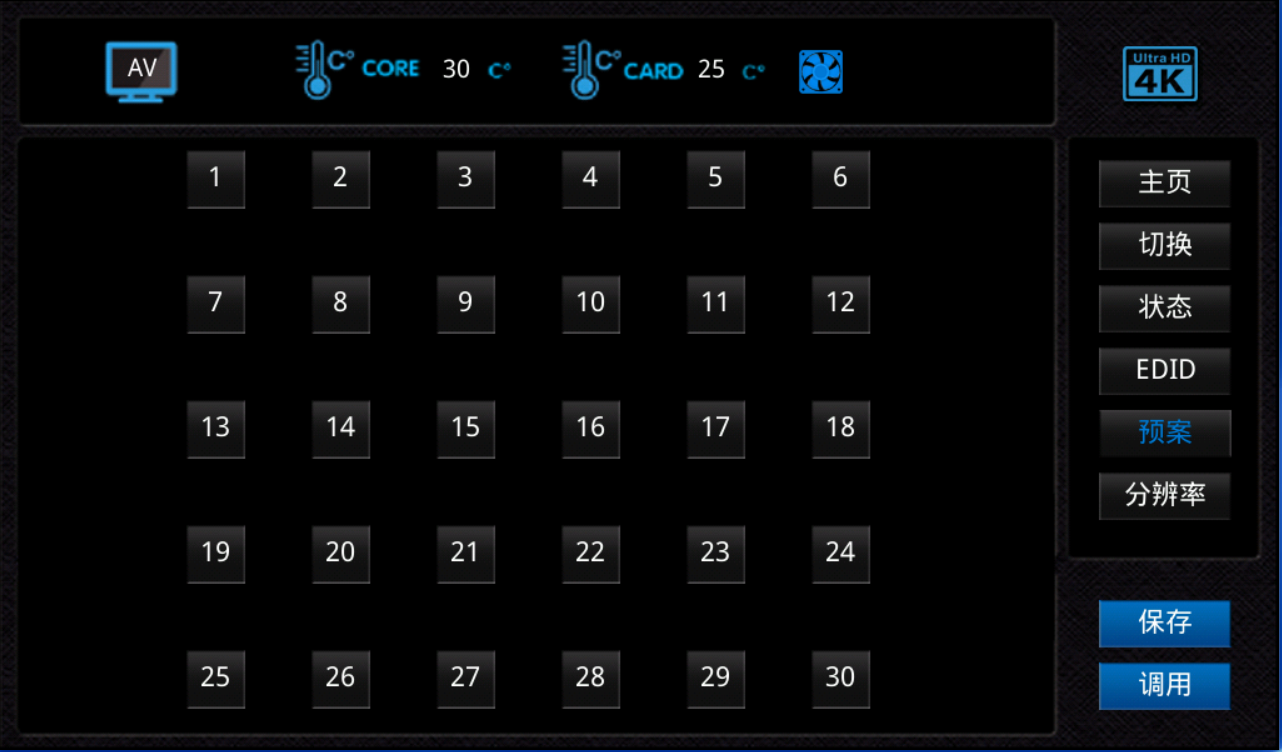

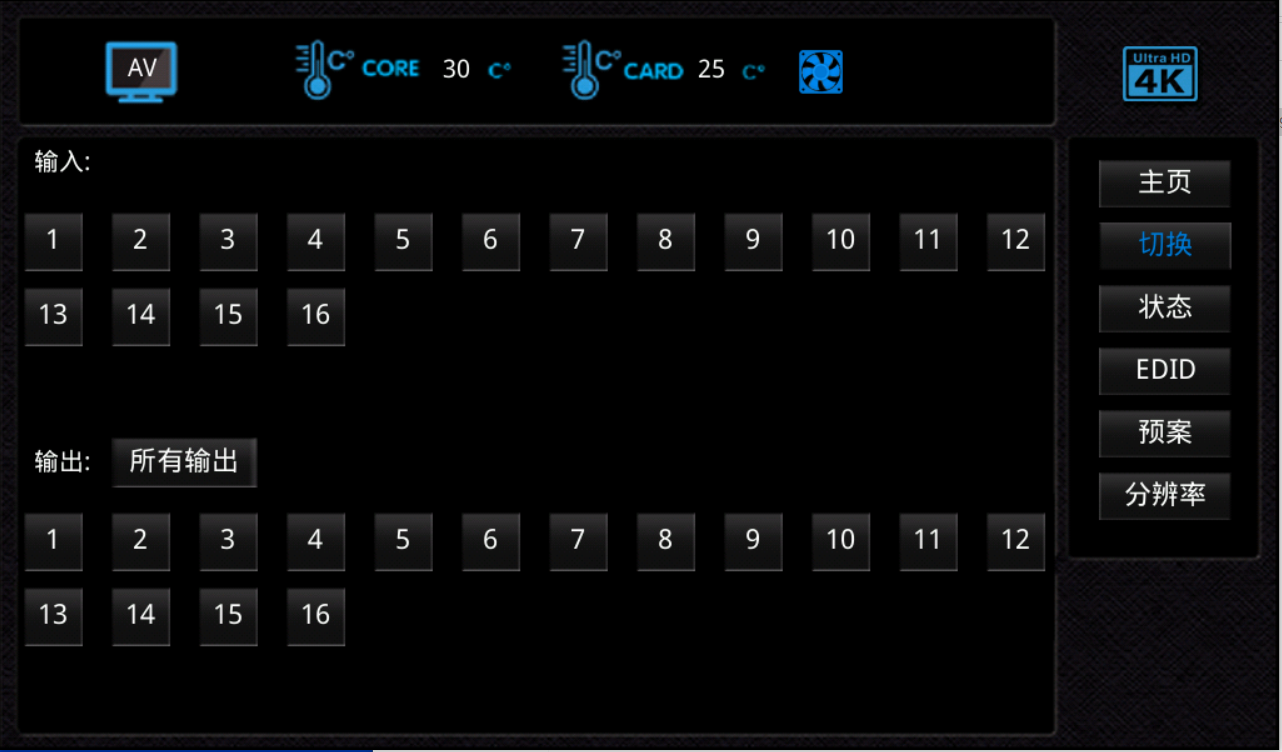

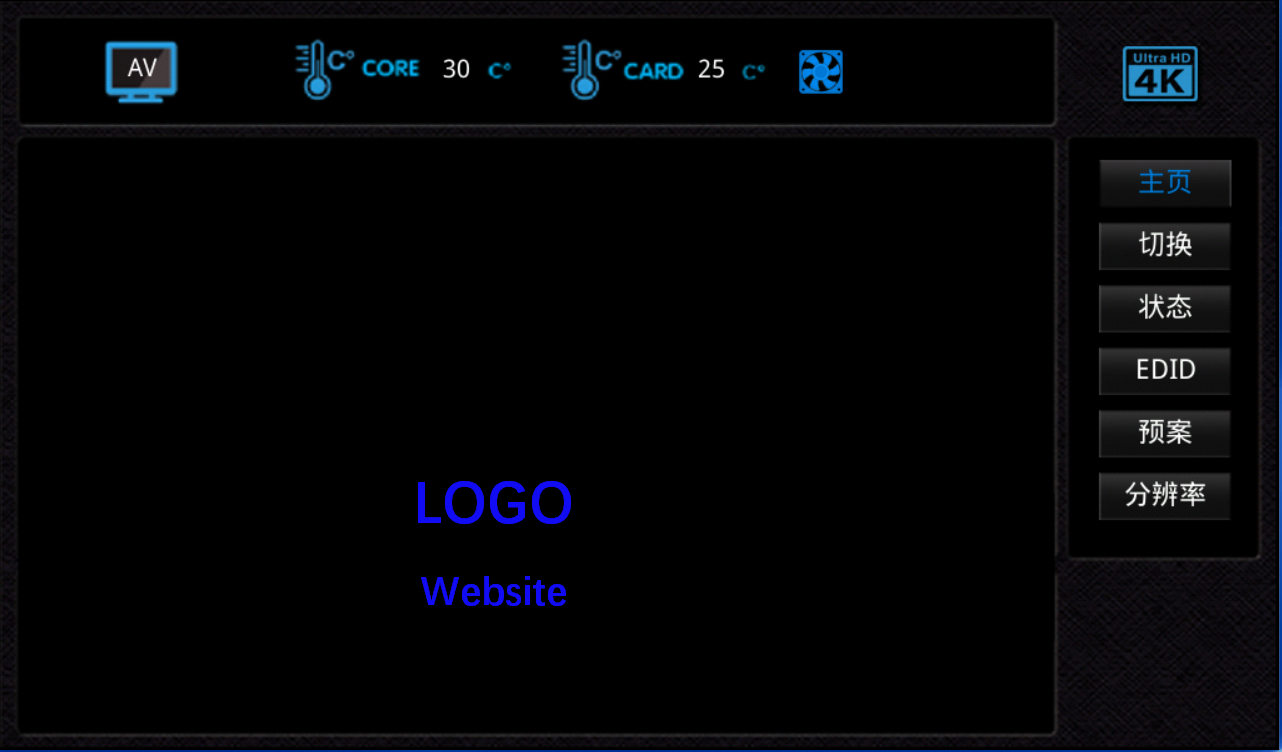

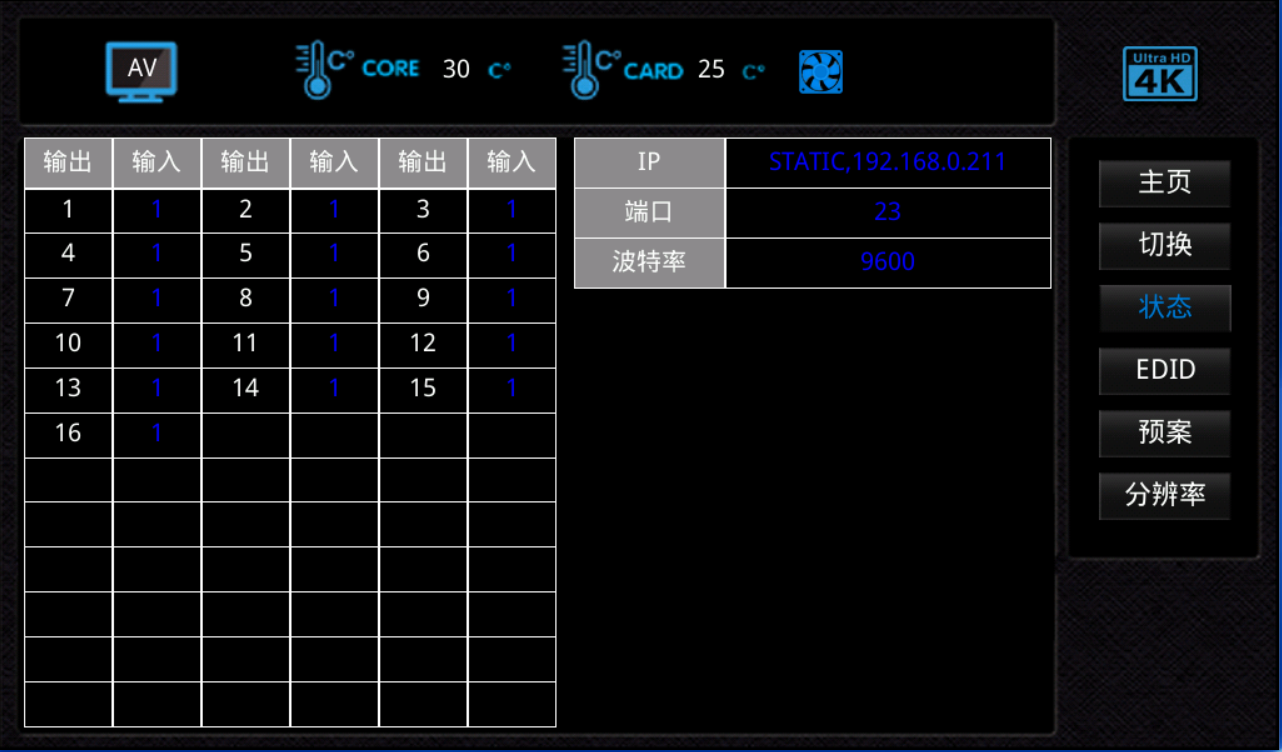

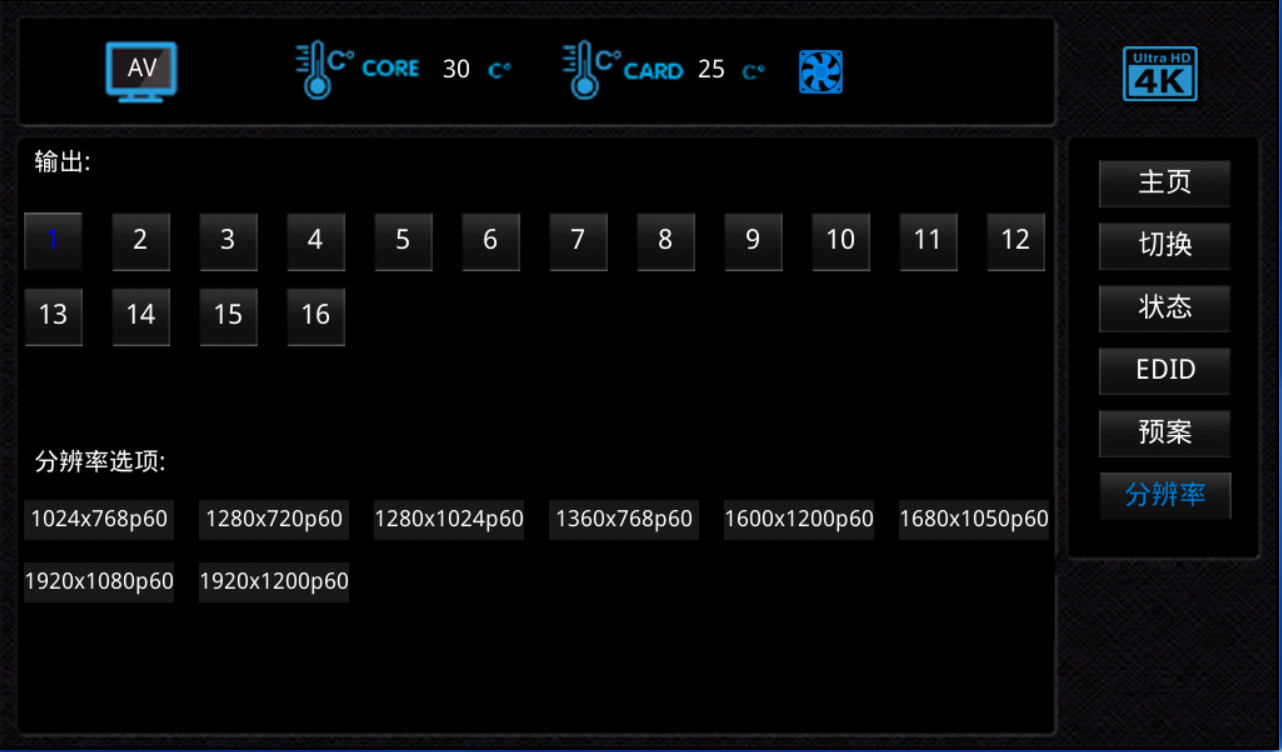

QVM Seamless Matrix with Video Processor Download zip: QVM Network Disconnect Error PoC of HDbaseT products Fiber products USB to RS232, driver: PL2303 CH340E Highlights: 1. Lossless video processing 2. 4K444@60Hz, 18Gbps 3. Option: HDbaseT 3.0 4. Seamless Switching 5. 4 Free-Windows 6. LCD video wall 7. Customized resolution for LED 8. Option: 7" Touch Panel 9. Redundant power supply
|

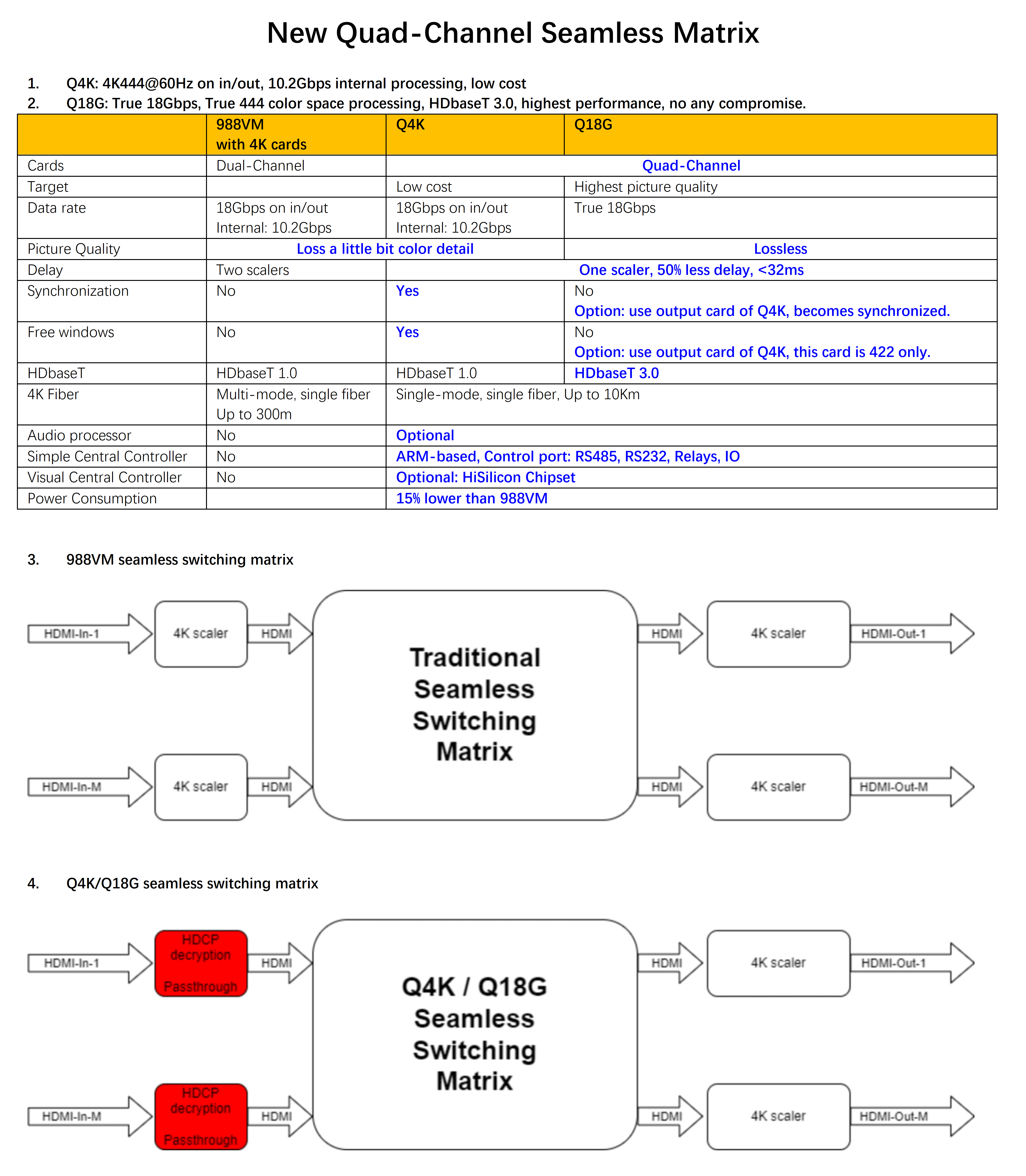

True 18Gbps with HDBT 3.0 QVM-18G modular matrix VM4K88H/4K44H PS913/KVM913 PS512/SWB512MV/SWB41MV
|
||||||||||||||||||
| 【Seamless Switching Matrix, Video Processor】 | ||||||||||||||||||||
|

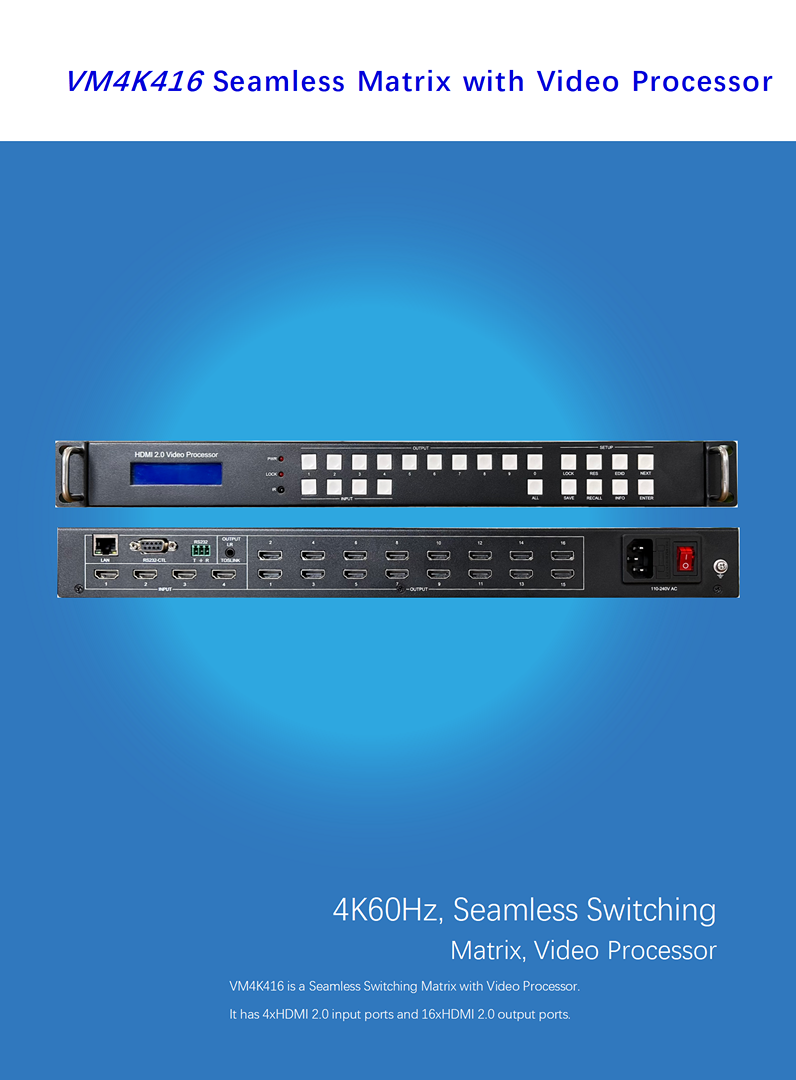

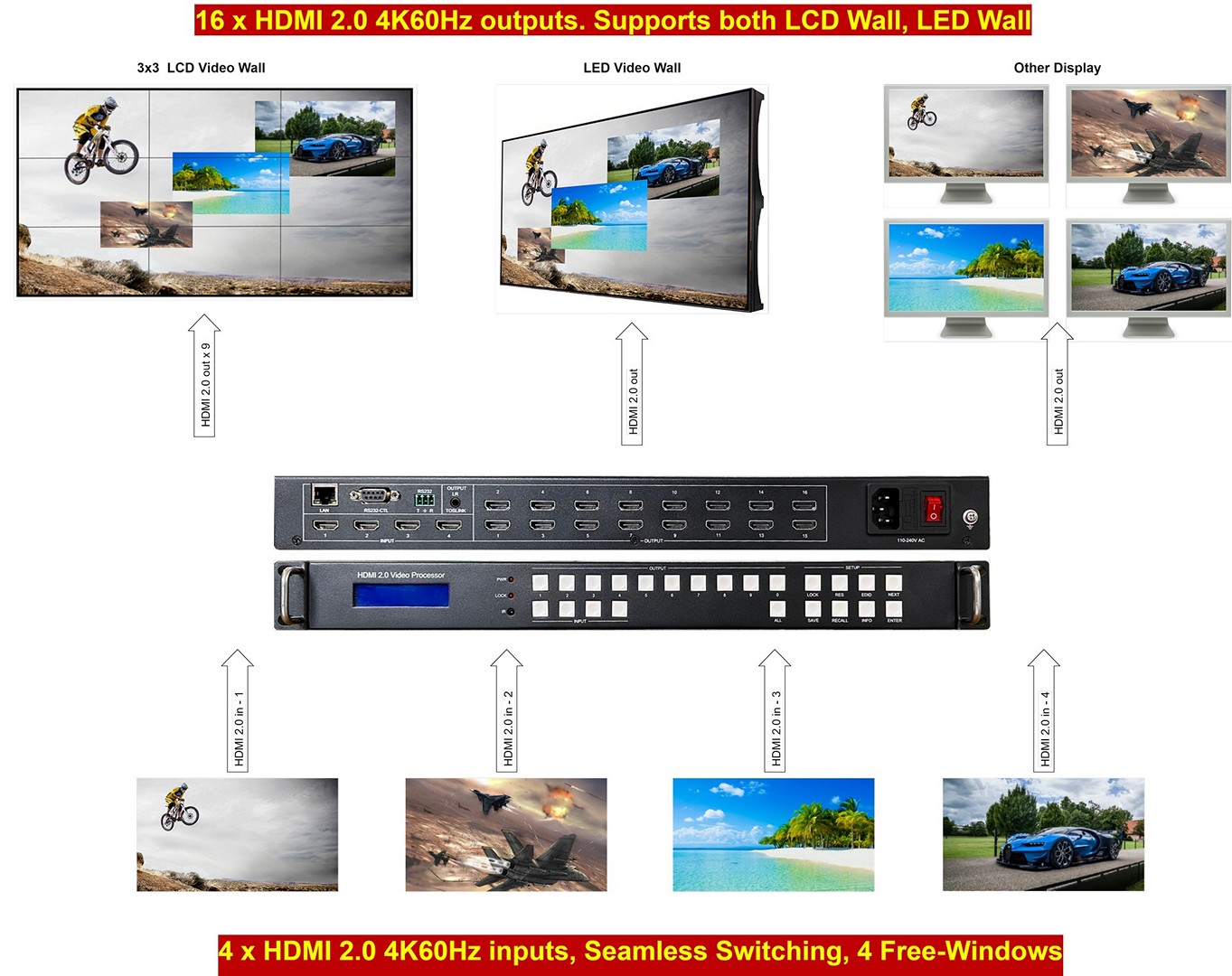

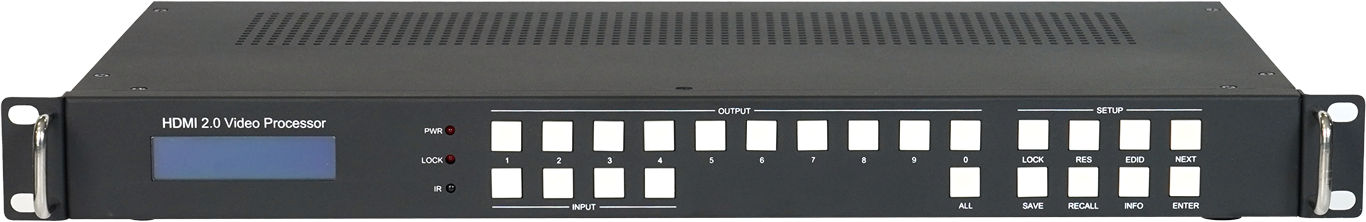

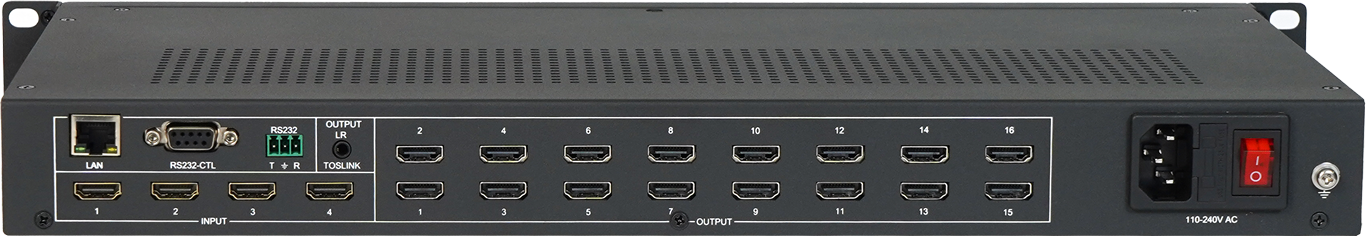

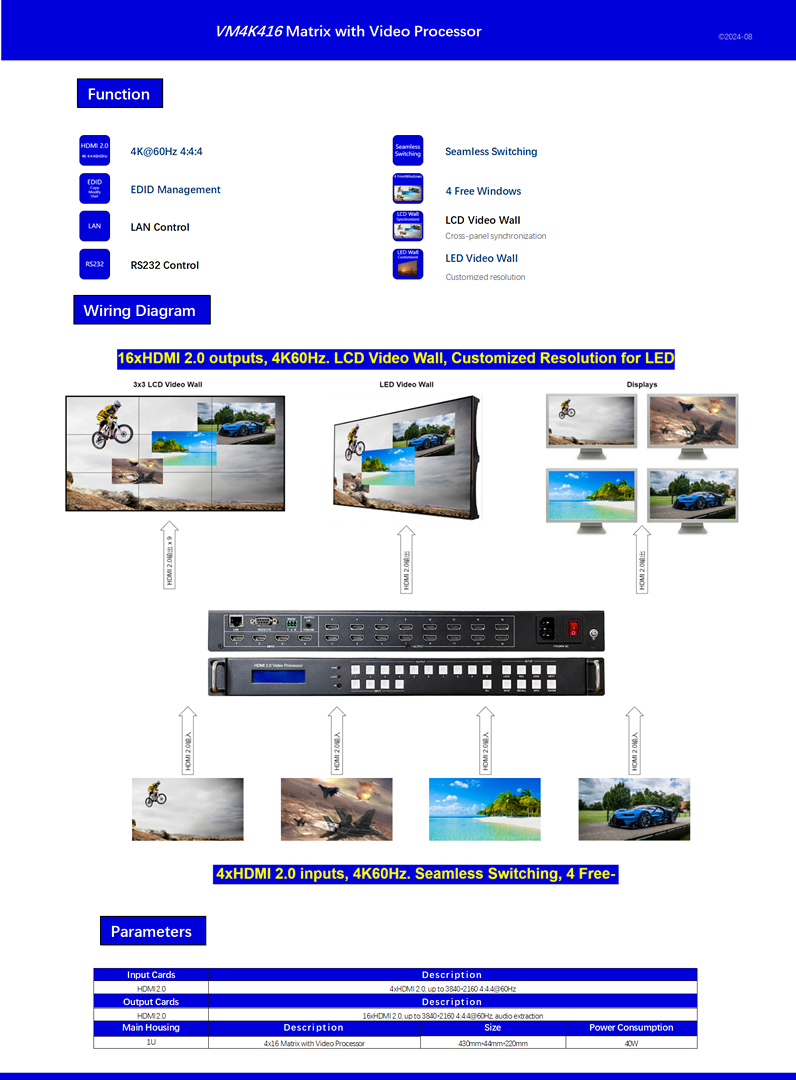

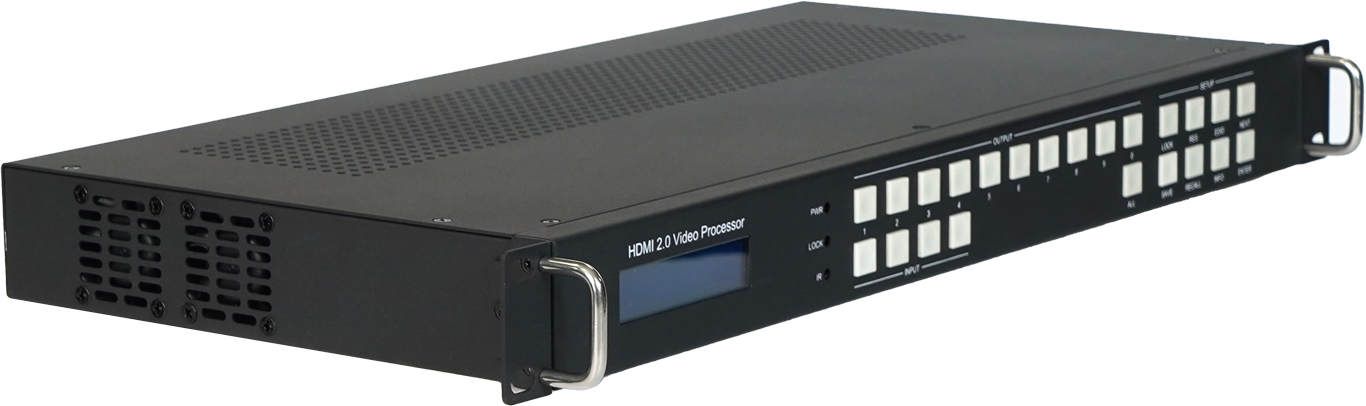

VM4K416: 4x16 Seamless Switching Matrix UserManual: VM4K416 Download zip: VM4K416 1. 1U housing, HDMI 2.0 In/Out 2. In: 4xHDMI 2.0, Up to 4K444@60Hz 3. Out: 16xHDMI2.0, Up to 4K444@60Hz 4. Audio out: 3.5mm L/R + TOSLINK 5. Video processing: A. 4x16 Seamless Switching Matrix with Video Processor B. Support LCD video wall, cross-panel synchronization C. Support small pitch LED video wall, customized resolution on both In/Out

|

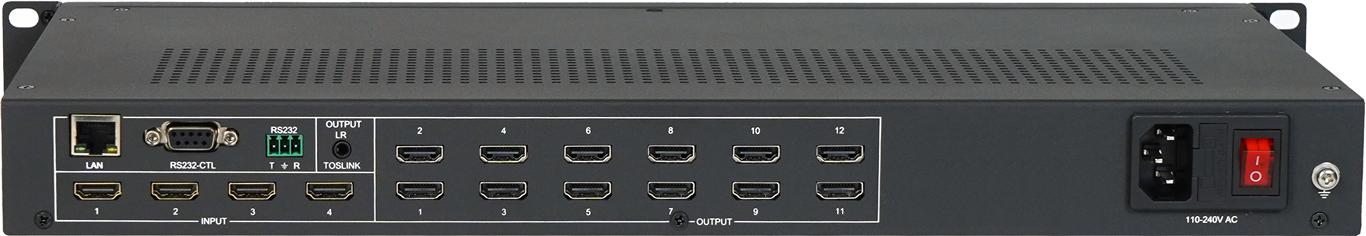

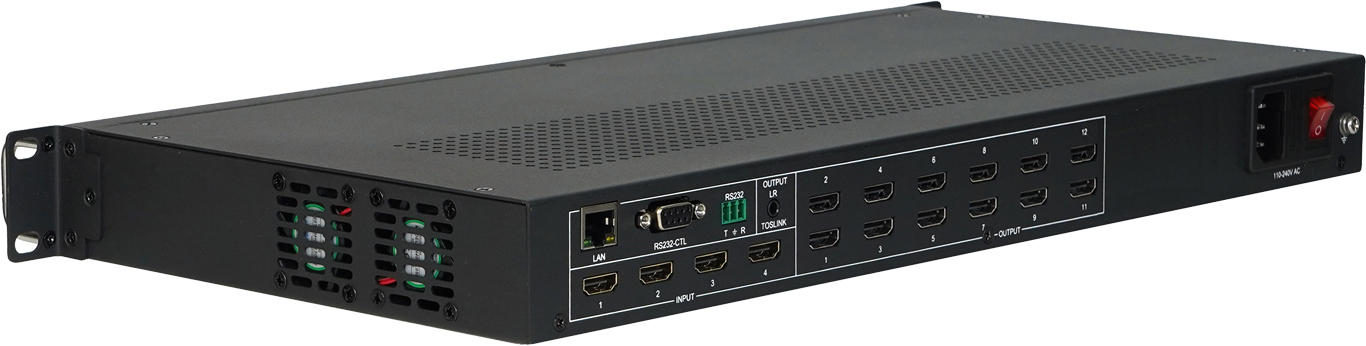

VM4K412：4x12

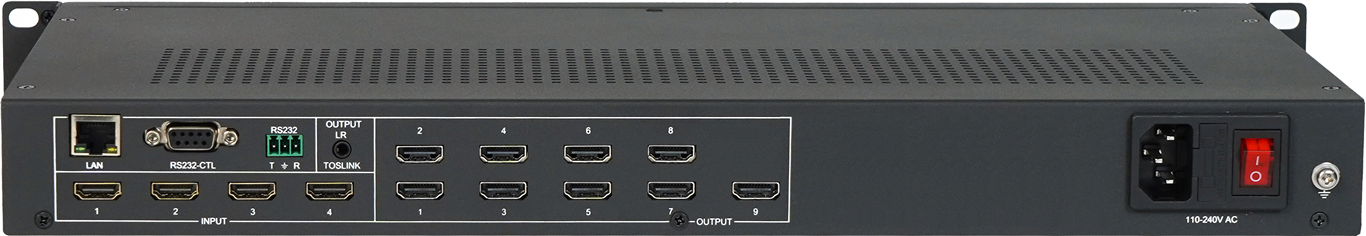

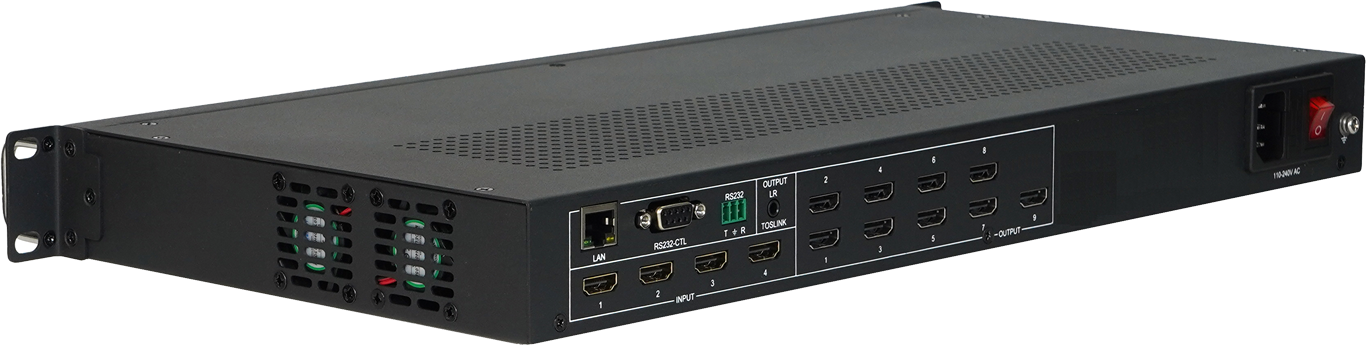

VM4K49：4x9

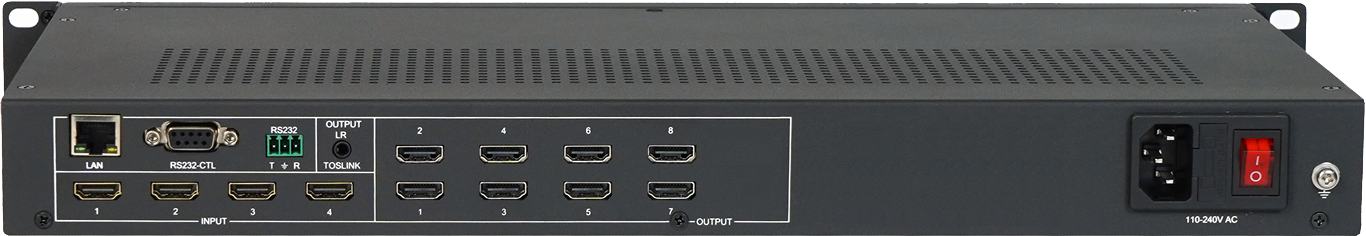

VM4K48：4x8

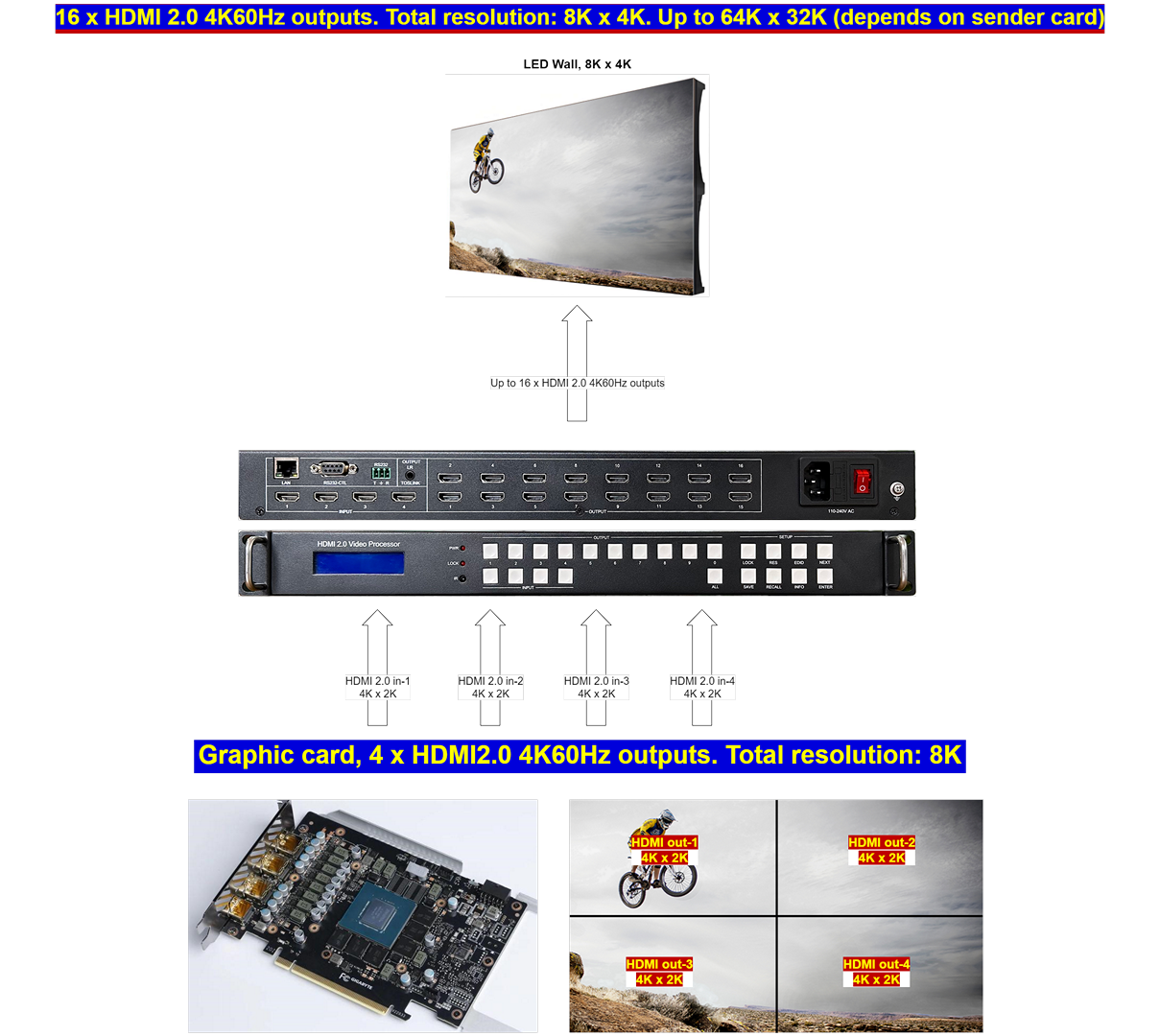

VM4K416: 8K x 4K LED Wall
|
VW4K24: 4K@60Hz Video Processor User Manual: VW4K24 PC Tool: VW4K24 RS232 protocol: VW4K24/4K29 1. Inputs: 2xHDMI 2.0 2. Outputs-bypass: 2xHDMI 2.0 3. Outputs-VideoWall: 2xHDMI 2.0
|
||||||||||||||||||
| 【HDMI2.0 / HDMI1.4 MediaHub】 | ||||||||||||||||||||
|

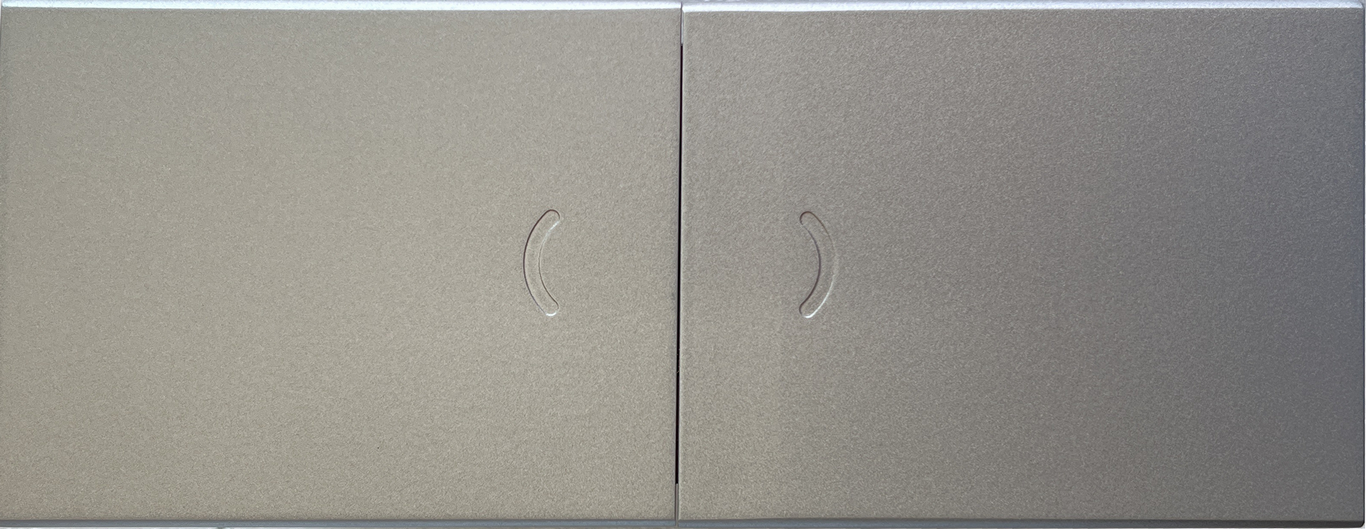

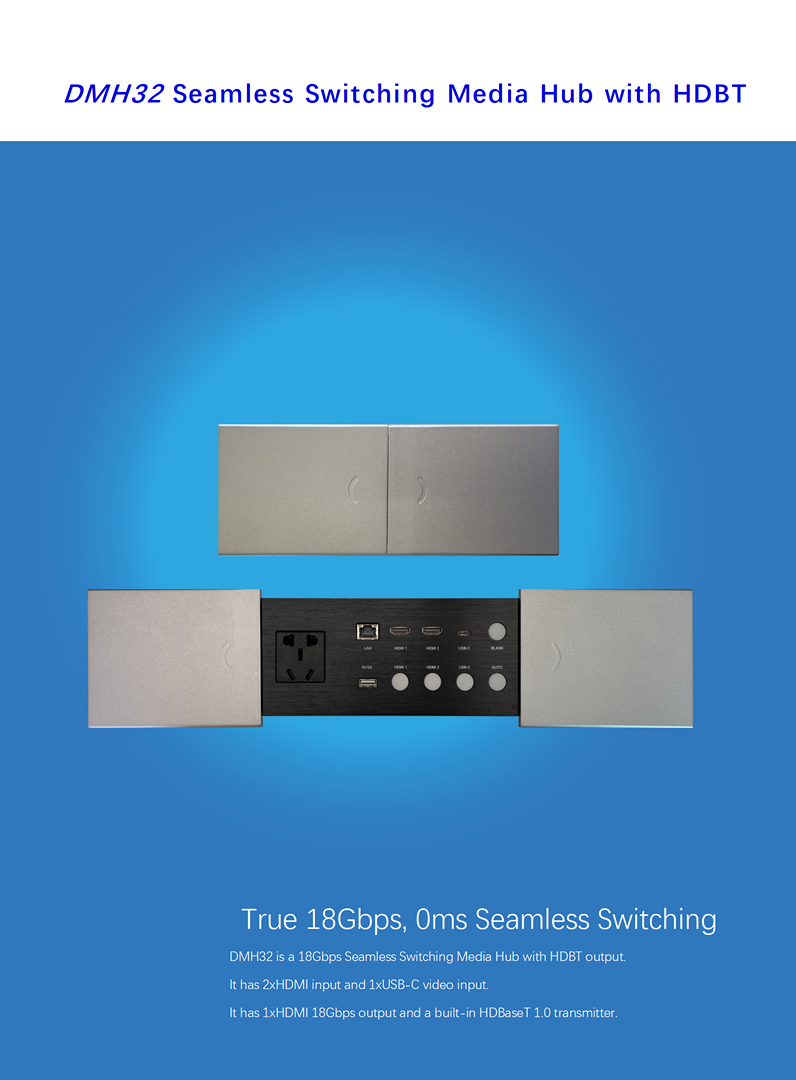

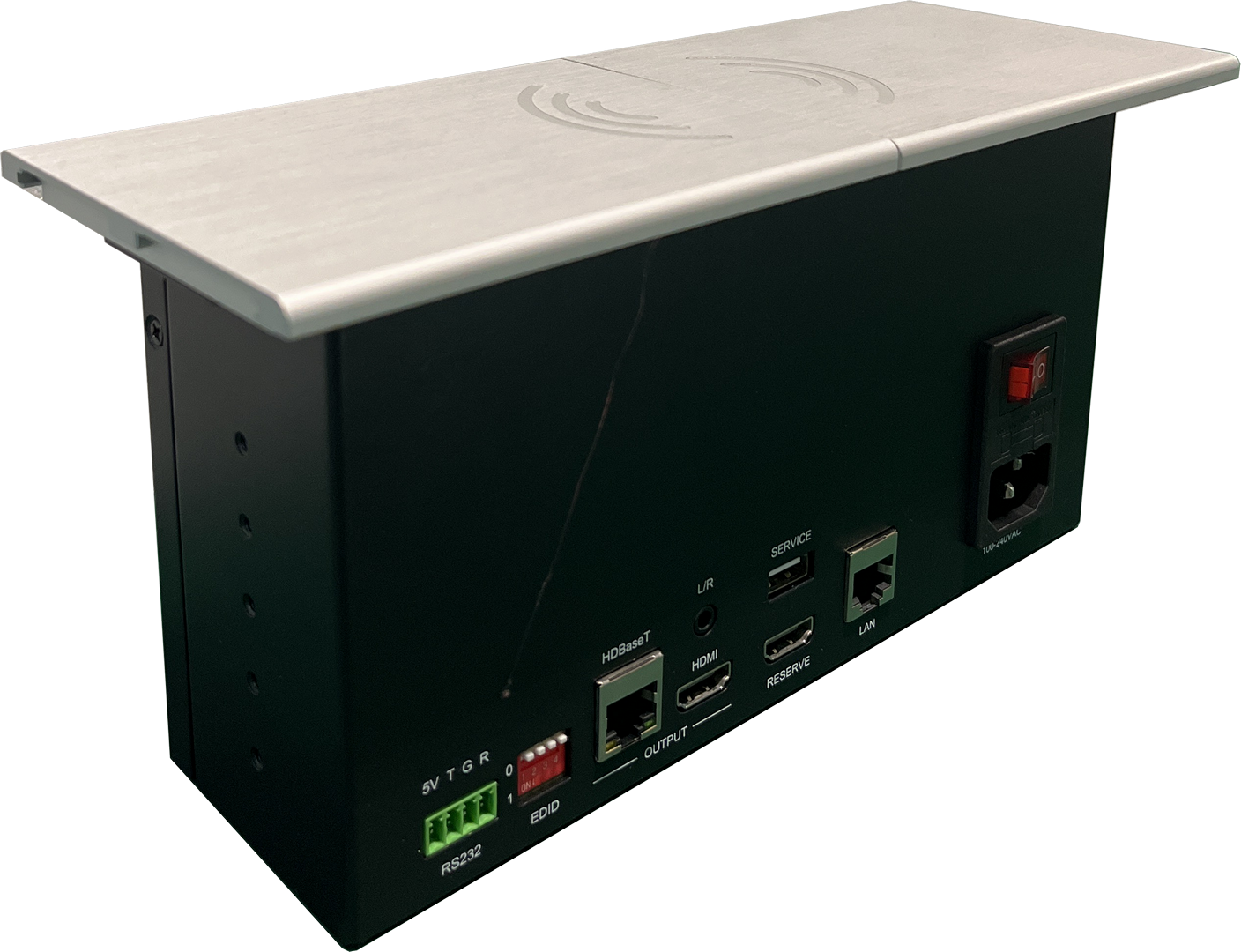

4K@60Hz Seamless Media Hub DMH32T: HDMI out + HDbaseT out User Manual: DMH32T 1. Input/output: 4K@60Hz HDMI2.0 2. 0ms Seamless switching 3. Inputs-front: 2xHDMI2.0, 1xUSB-C 4. Input-rear: 1xBYOD port Input: HDMI2.0 Power Supply: USB 5V/2A 5. DMH32T output: 1xHDMI2.0+1xHDbaseT 4K@40m 6. DMH32H output: 2xHDMI2.0 7. LAN pass through，USB charger |

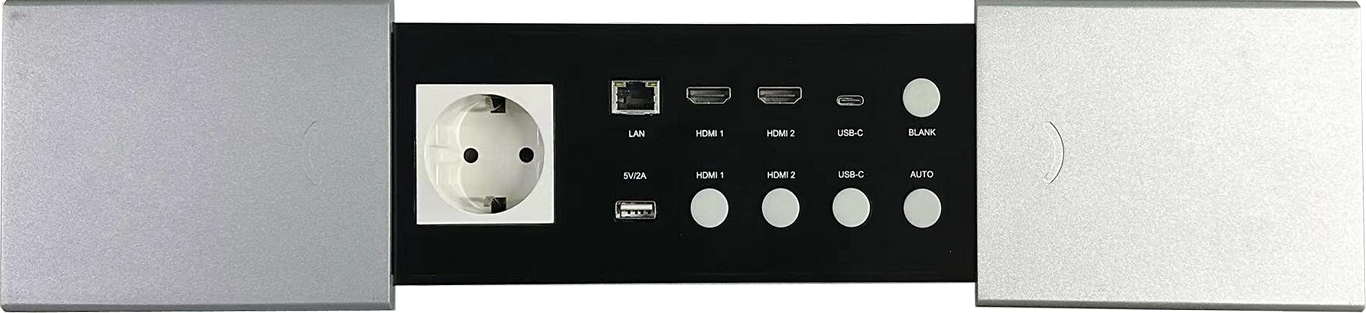

DMH32T: EU type, white
DMH32T: GE type, black  |

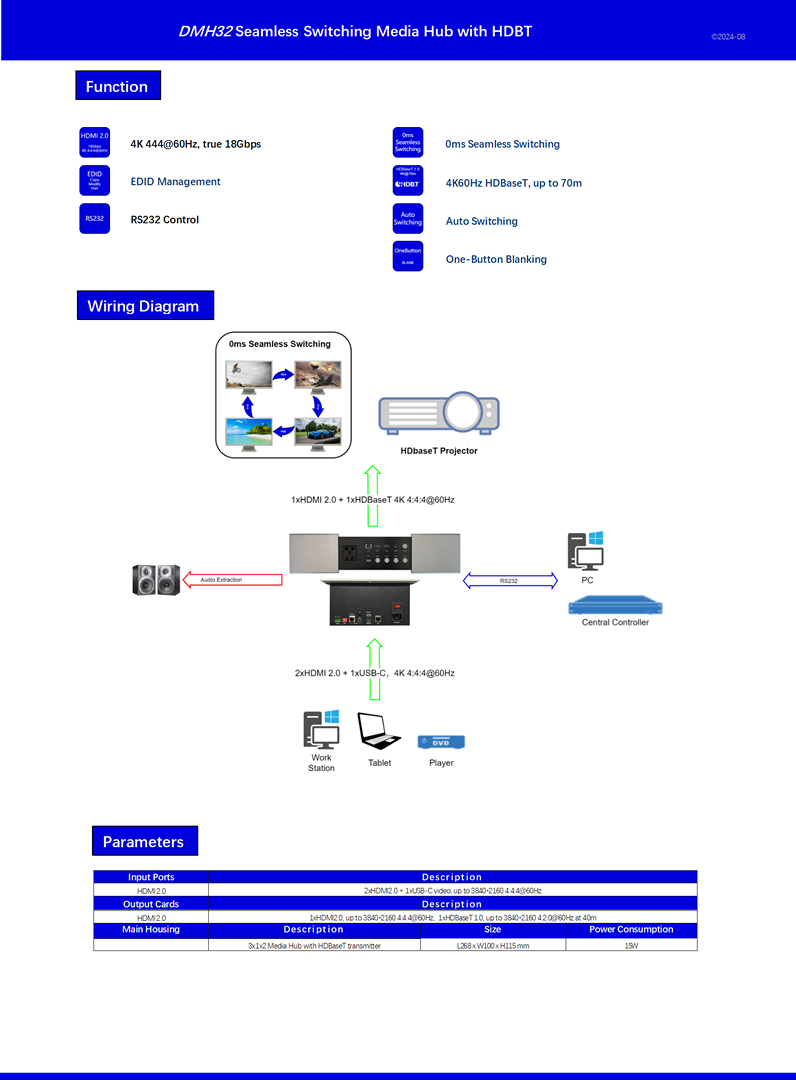

DMH32T: wiring diagram
|
||||||||||||||||||
| 【Extenders】 | ||||||||||||||||||||
|

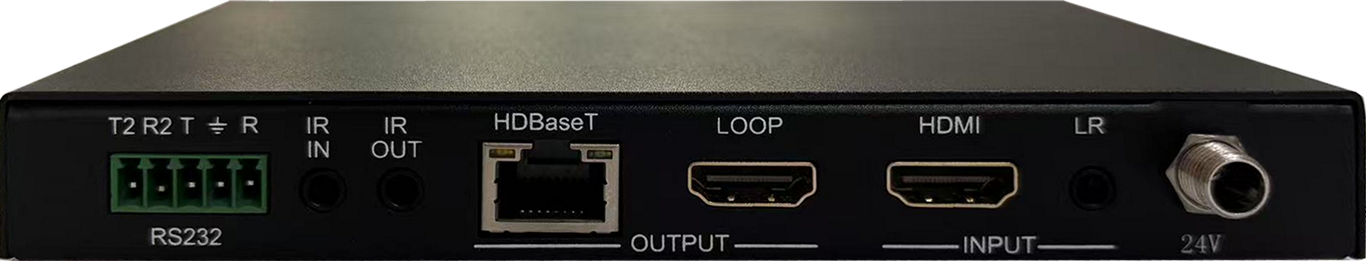

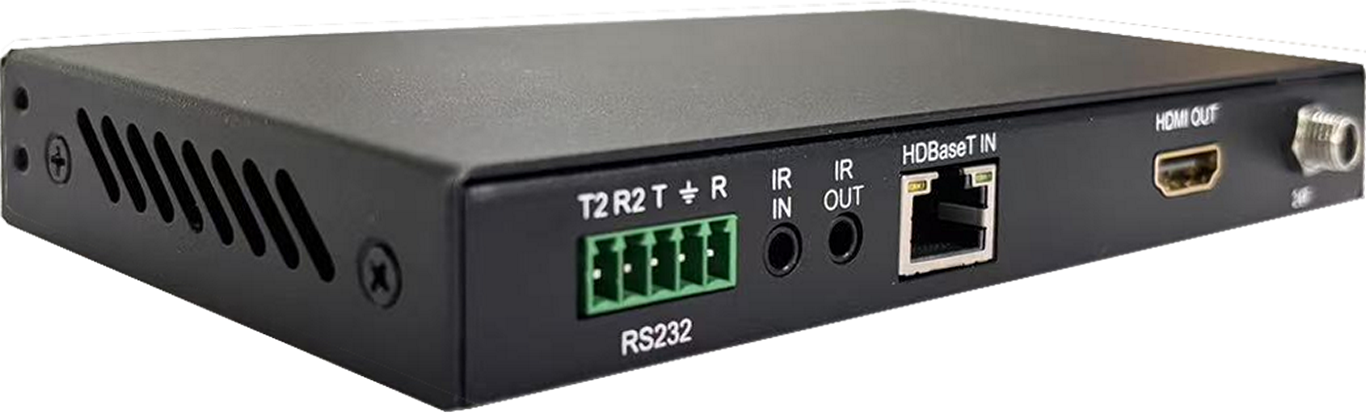

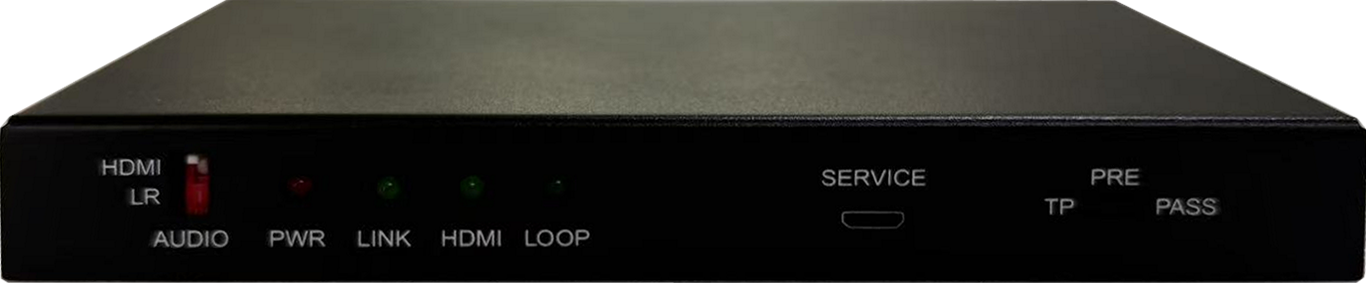

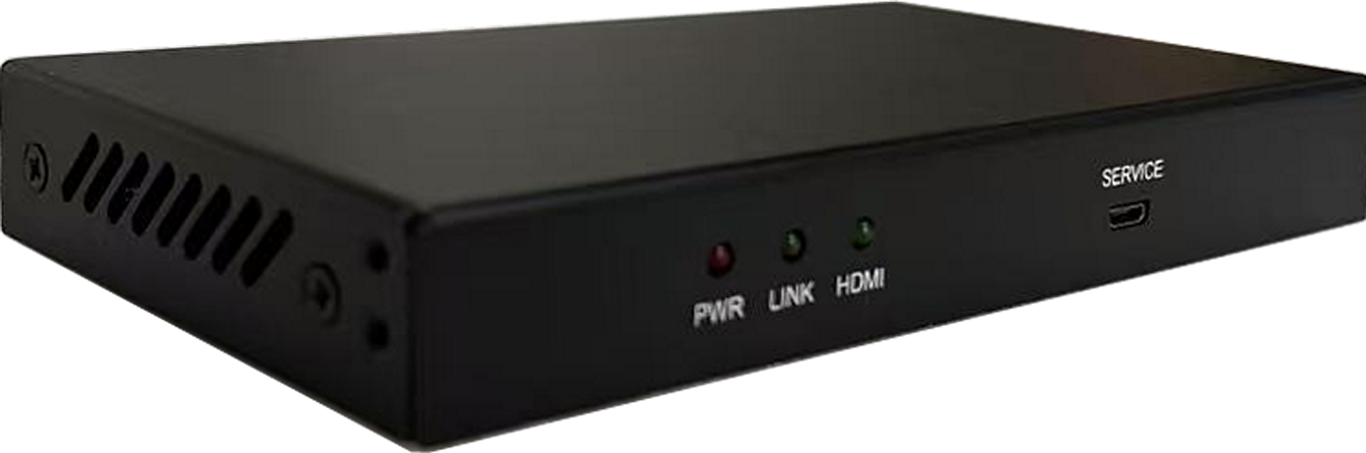

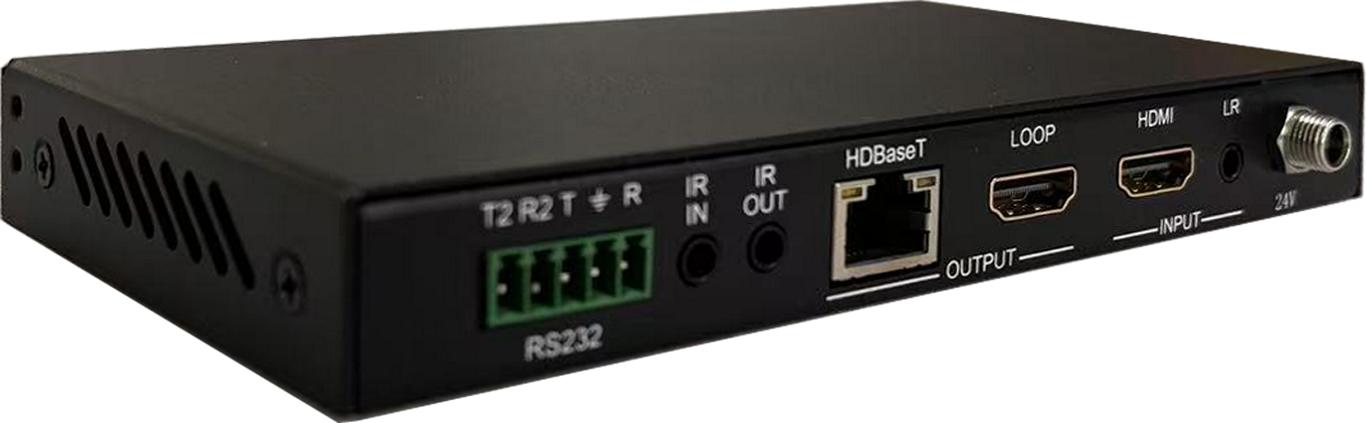

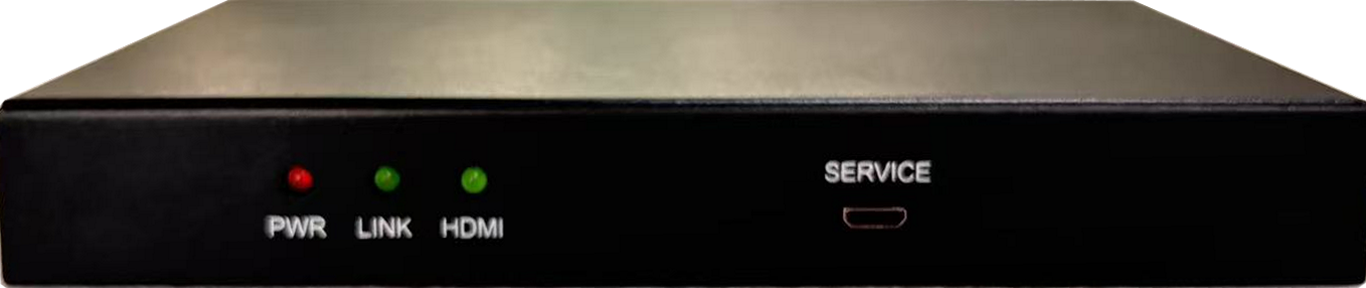

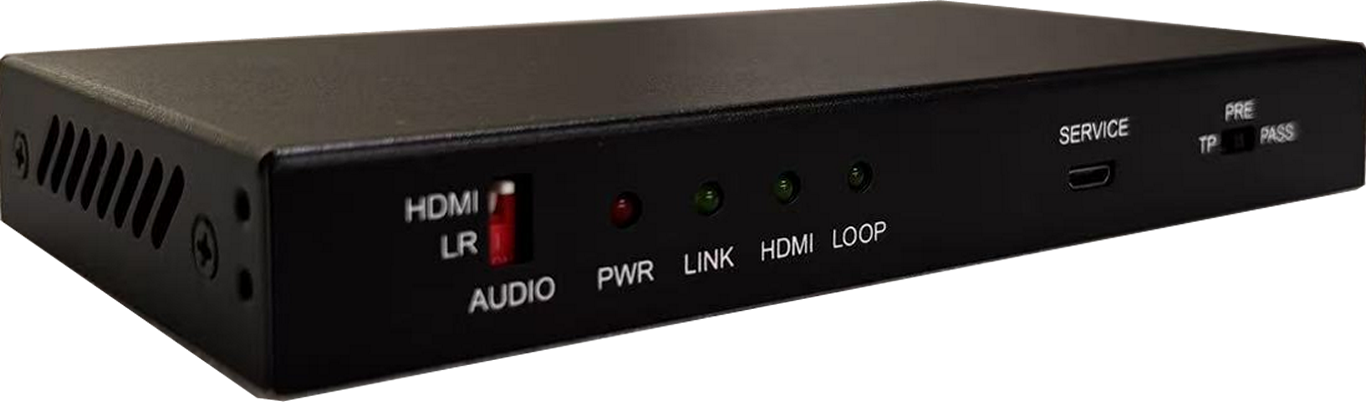

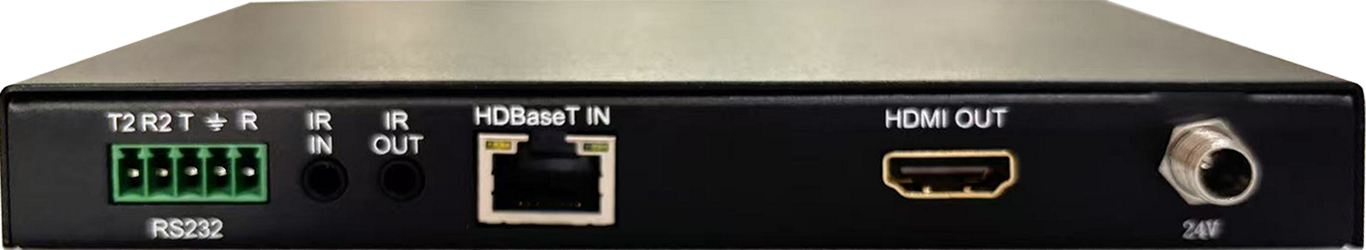

SS2H70/SS2H100: HDMI 2.0 Extender UserManual: SS2H70/SS2H100 Download zip: SS2H70/SS2H100 1. In/Out: HDMI 2.0 4K60Hz 2. HDMI loopout on TX 3. Built-in test pattern for easy installation SS2H70: 1080p@70m, 4K60Hz@40m SS2H100: 1080p@100m, 4K60Hz@70m
|

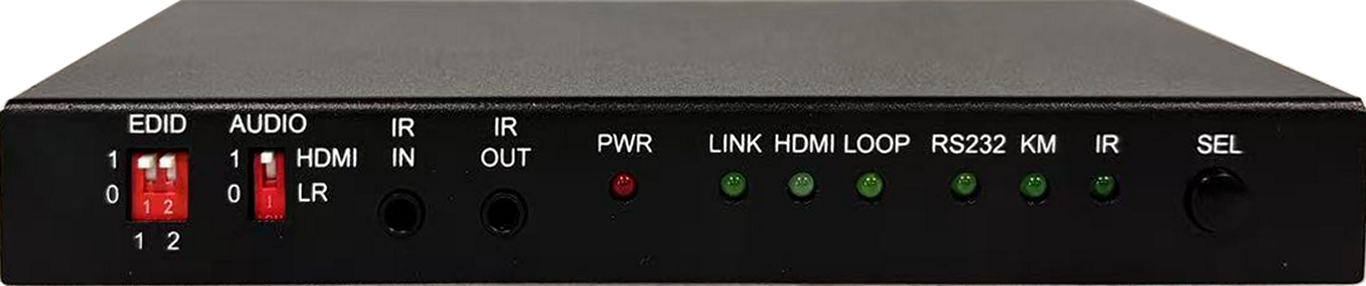

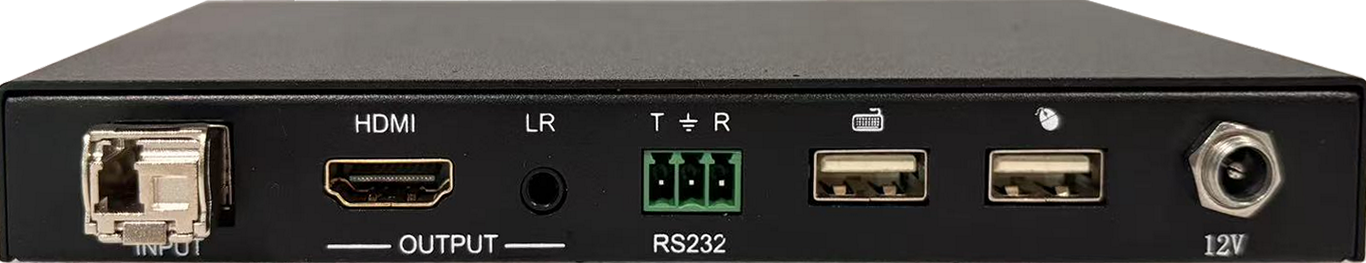

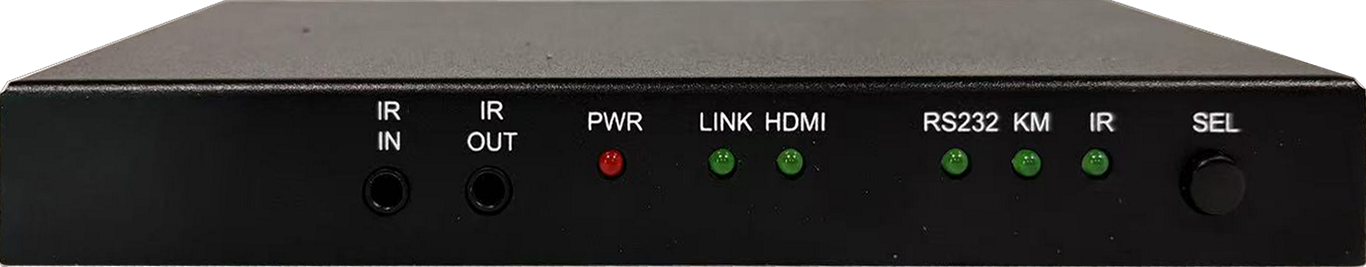

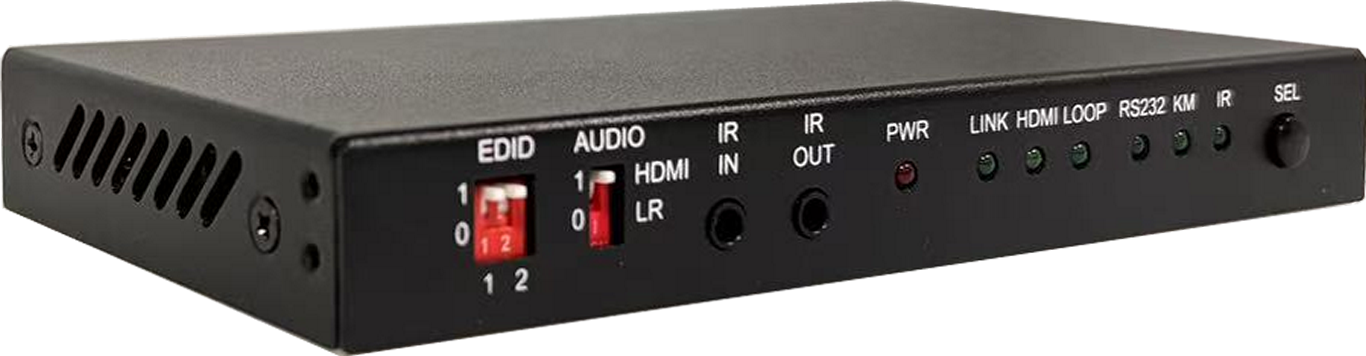

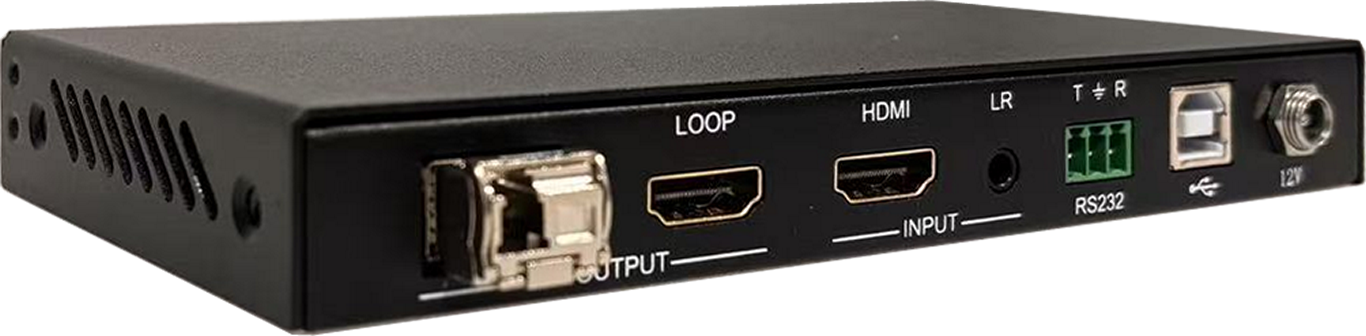

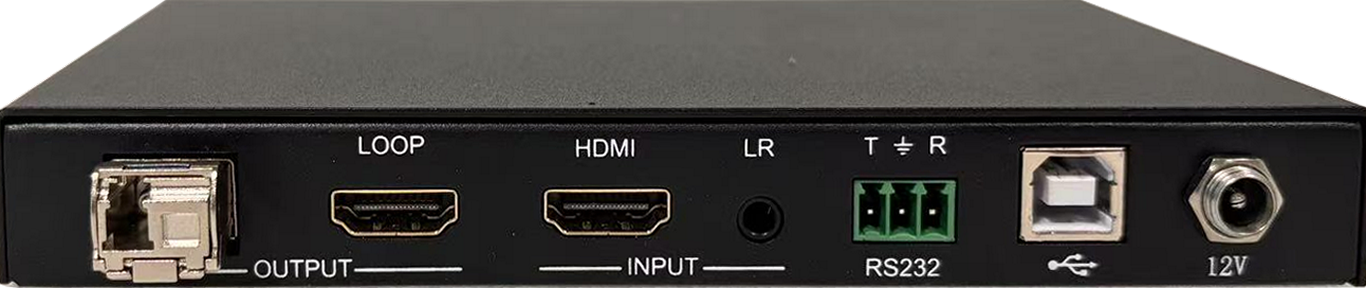

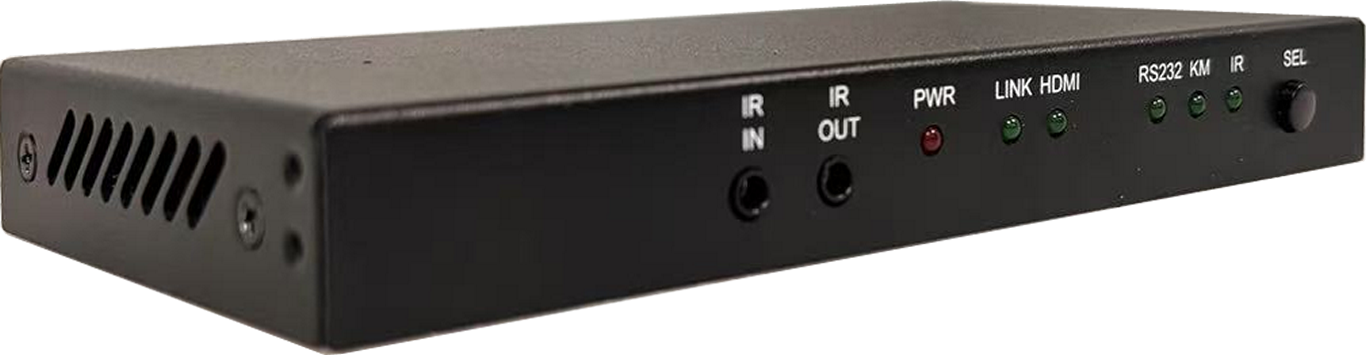

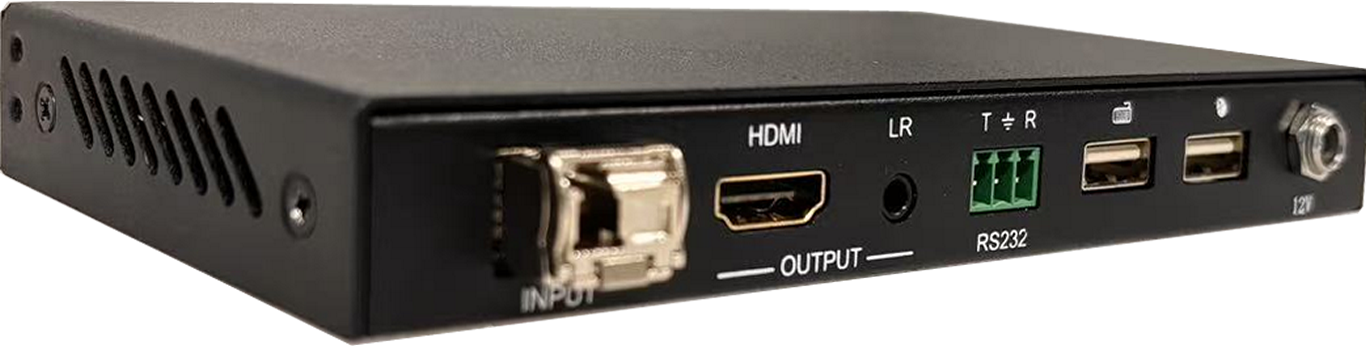

SMF4K60DU: HDMI2.0 Fiber KVM Extender User Manual: SMF4K60DU Download zip: SMF4K60DU Single-Mode, Single-Fiber with LC In/out: 4K444@60Hz HDMI 2.0 USB-HID, RS232, IR Distance: >10Km Support HDCP/EDID

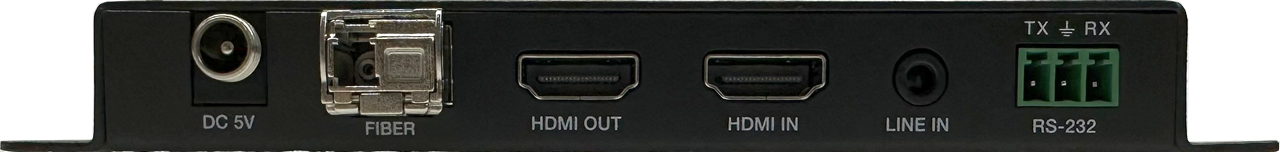

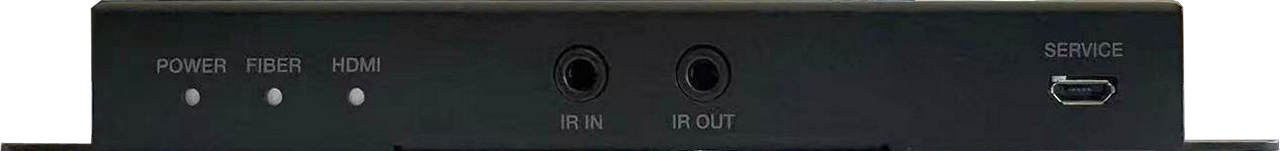

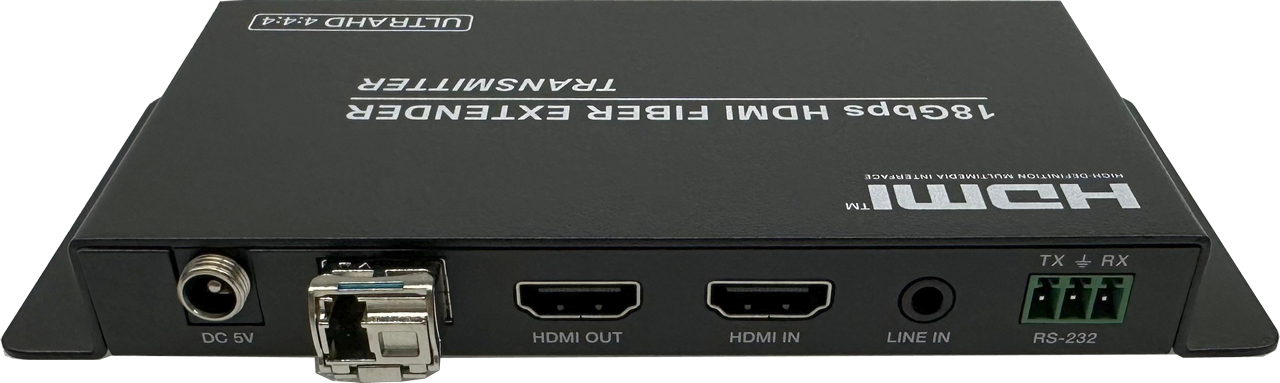

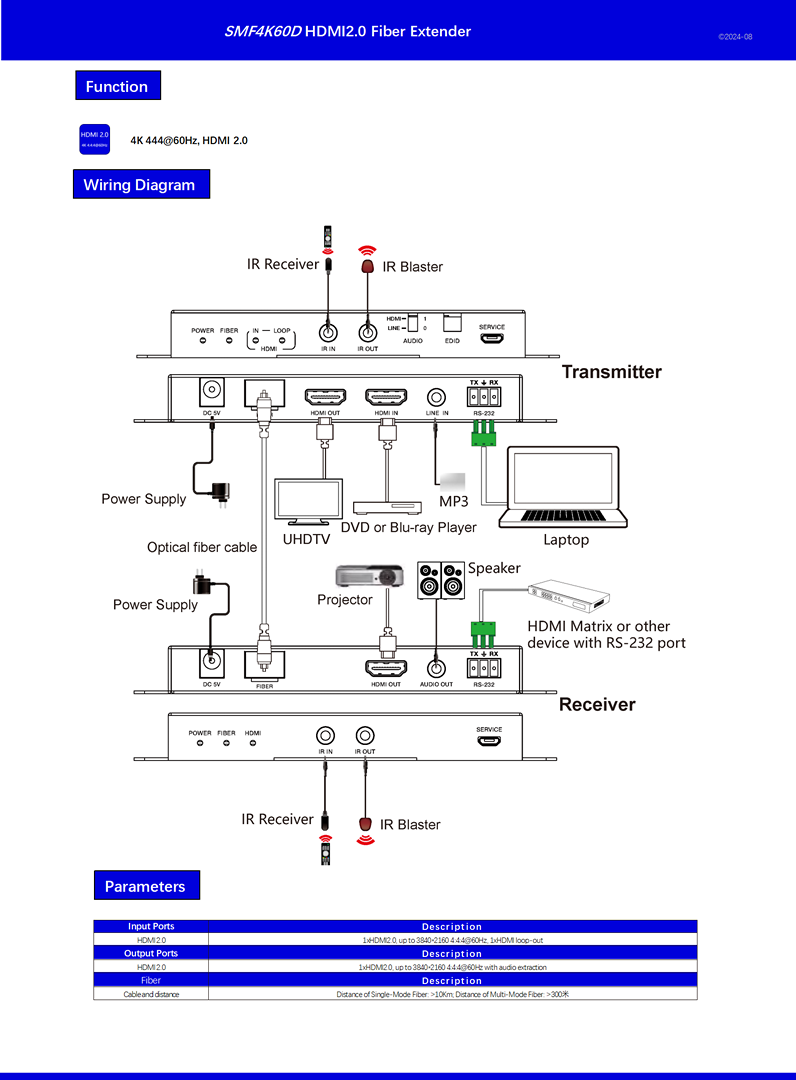

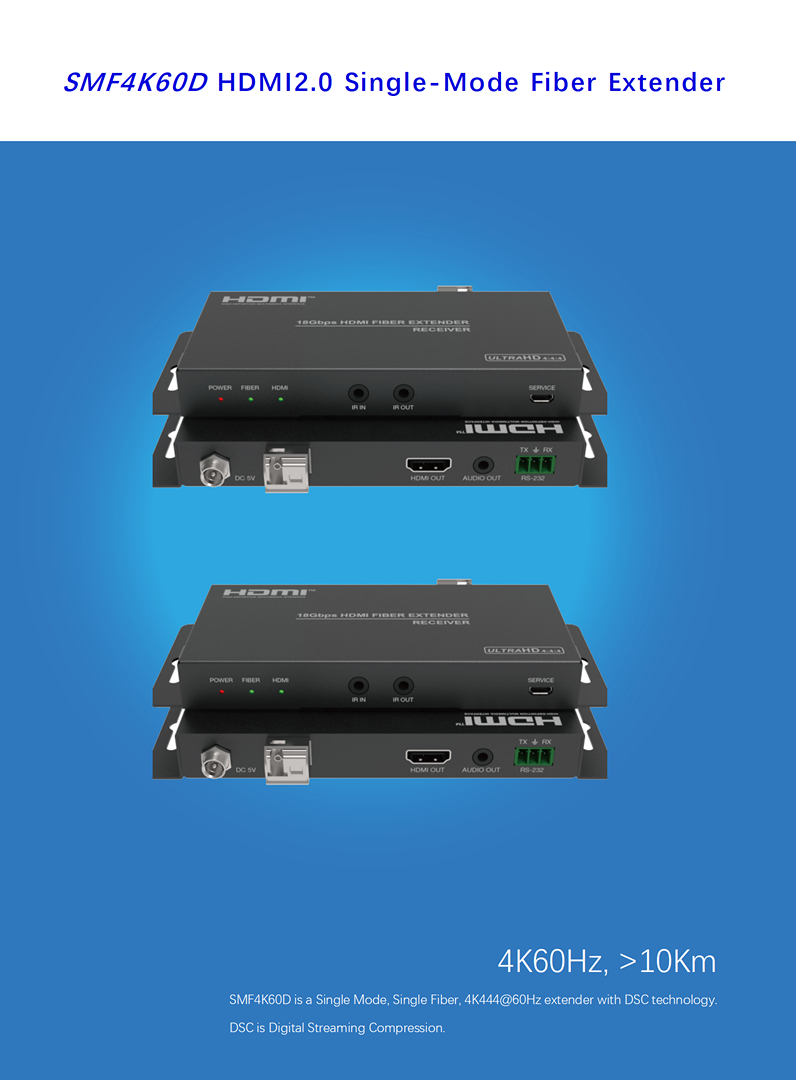

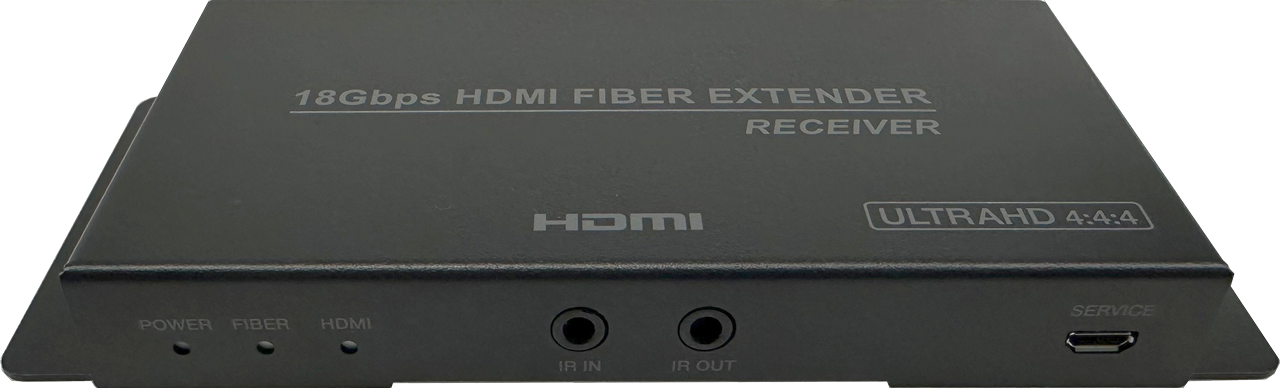

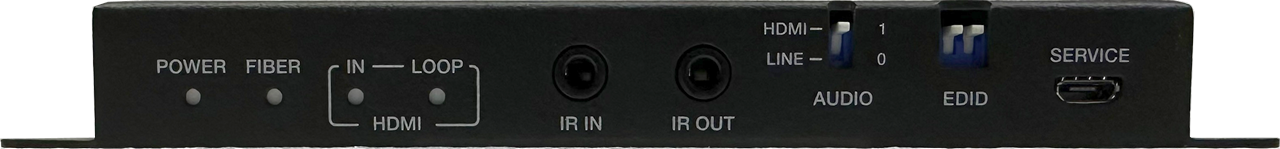

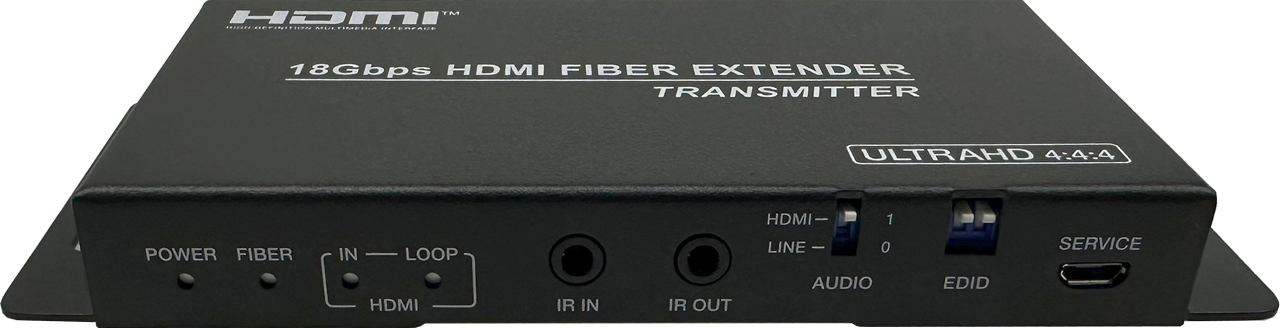

SMF4K60D：HDMI2.0 Fiber Extender EOL at March of 2025 User Manual: SMF4K60D Single-Mode, Single-Fiber with LC In/out: 4K444@60Hz HDMI 2.0 Distance: >10Km Support HDCP/EDID |

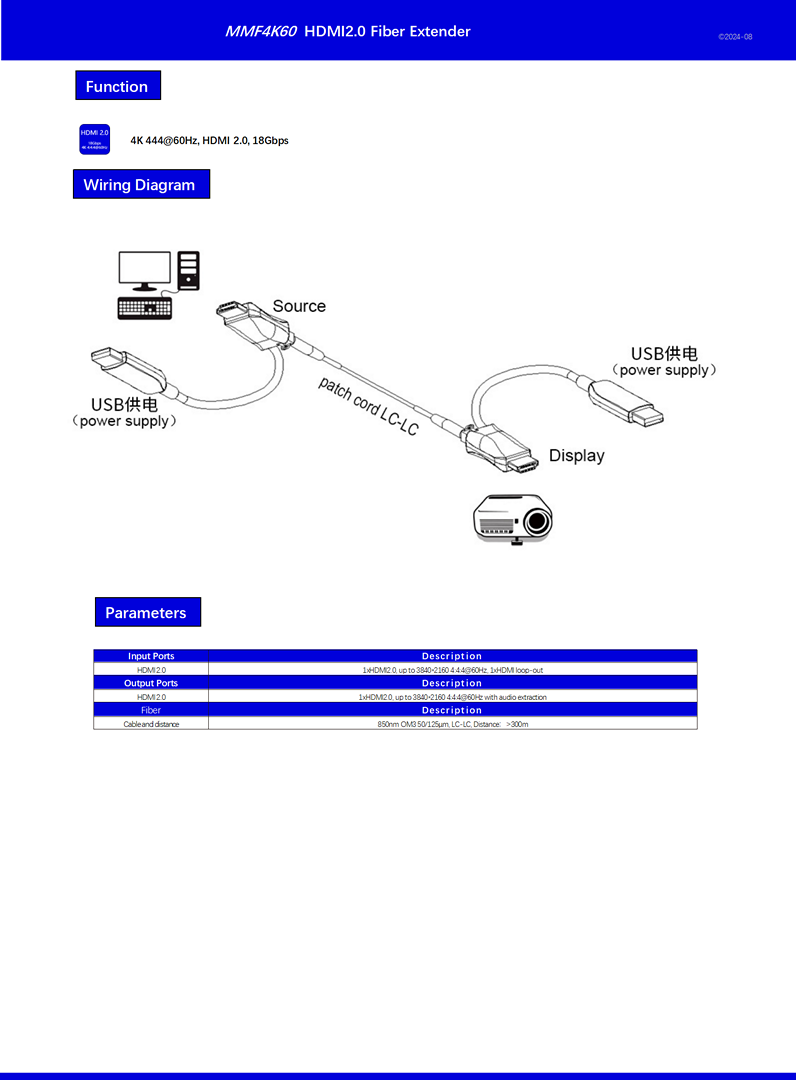

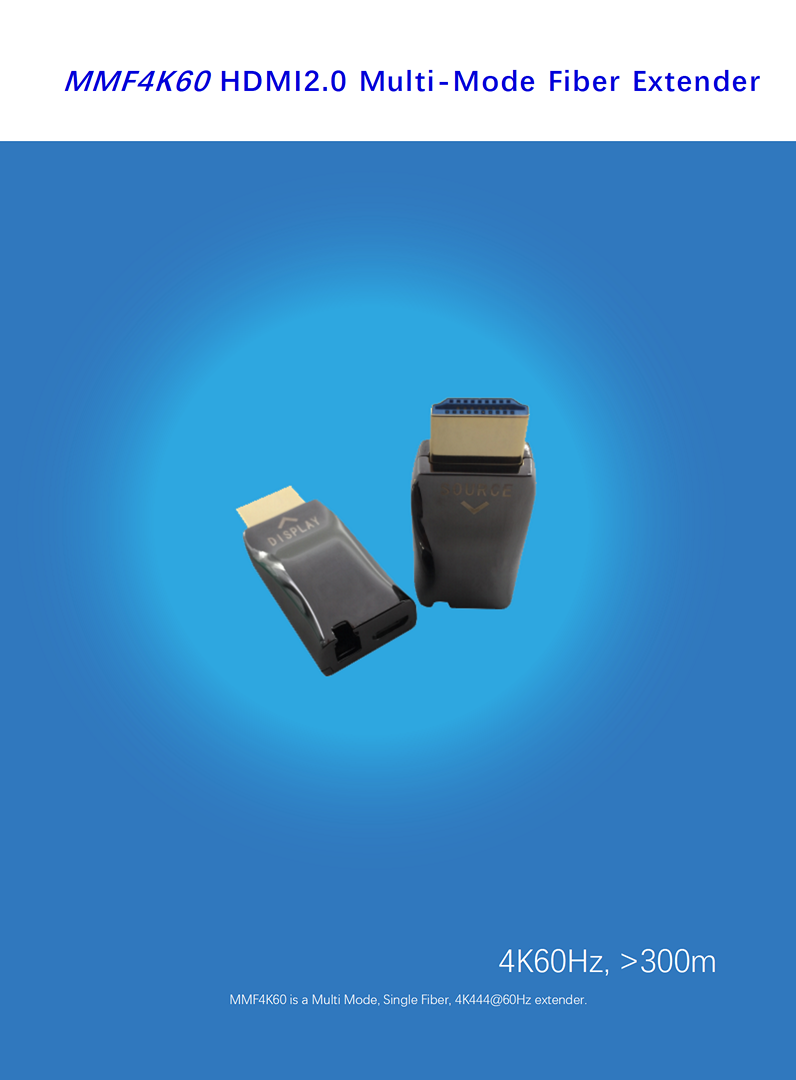

MMF4K60: HDMI2.0 Fiber Extender User Manual: MMF4K60 Download zip: MMF4K60 Multi-Mode, Single-Fiber with LC In/out: 4K444@60Hz HDMI 2.0 Distance: >300m Support HDCP/EDID

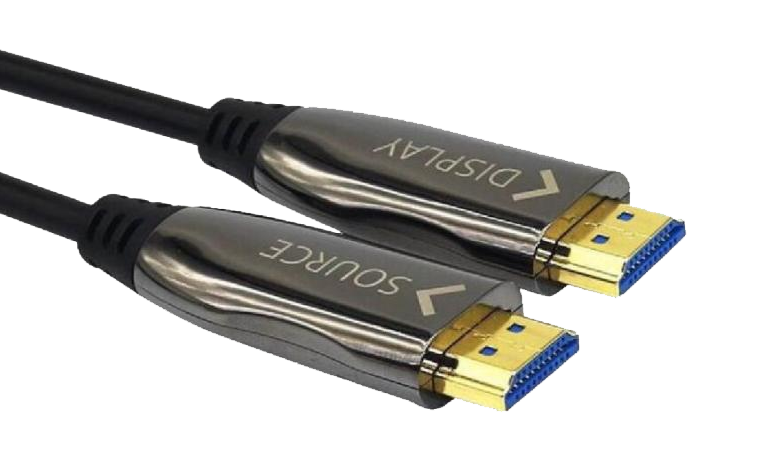

AOC multi-mode cable AOC cable: HDMI2.1-8K

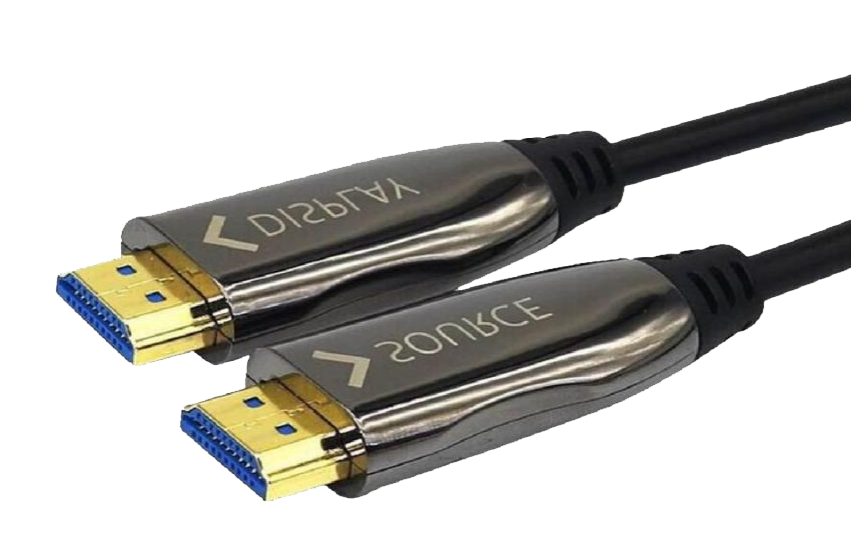

AOC cable: HDMI2.0-4K

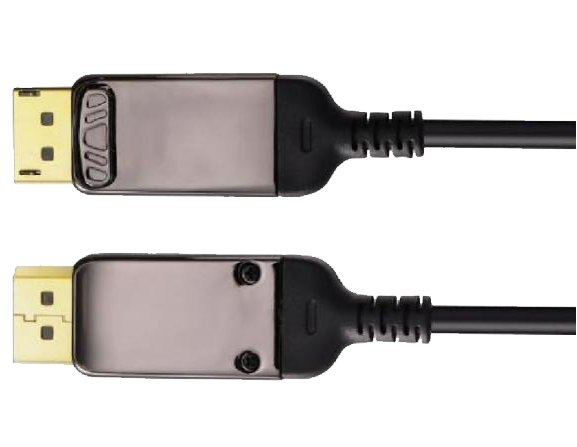

AOC cable: DP1.4
|
||||||||||||||||||
|
【Small Pitch LED Projects】 |
||||||||||||||||||||
|

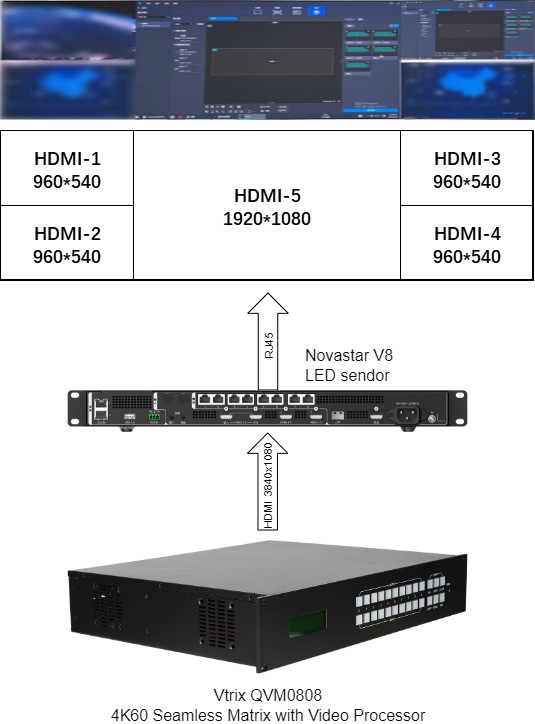

QLR0808 + Novastar V8 Date: May 16, 2025 QVM0808: 4K60Hz seamless switching, pixel to pixel processing, 1x3840x1080 output Novastar V8: sender Resolution of LED: 3840x1080
|

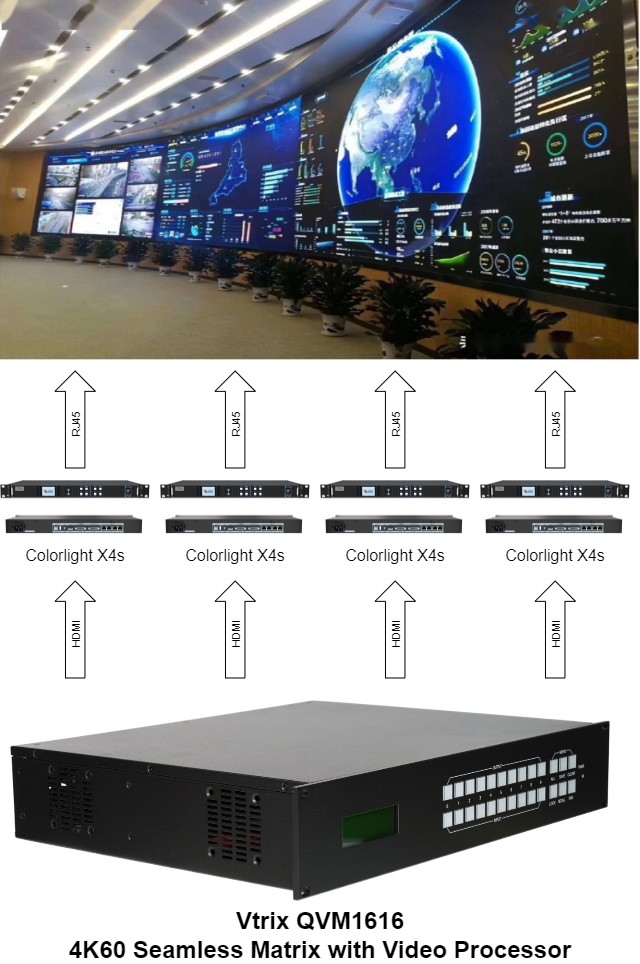

QLR1616 + Colorlight X4s x 4 Date: Oct 22, 2024 QVM1616: 4K60Hz seamless switching, pixel to pixel processing, 4x1920x1080 output Colorlight X4s x 4: sender Resolution of LED: 3840x2160
|
|||||||||||||||||||
