【Seamless Switcher / MultiViewer / KVM: 4K@60Hz 18Gbps HDMI 2.0】
|
||
|
Seamless switcher + Multiviewer SW18G41MV, SW18G512MV PS18G512, PS18G913 KVM18G41DP, KVM18G913 PC tool: ViewMate 2.2 Firmware Update 1. Input/output: 4K@60Hz HDMI2.0 2. Single-Window Mode: 0ms Seamless switching 3. Multi-Window Mode: fast switching 4. Multiviewer: 1/2/3/4 windows 5. Audio out-HDMI: Up to 7.1ch 6. Audio out-SPDIF: Up to 5.1ch 7. Audio out-L/R: input with PCM format Customized Resolution for LED
|

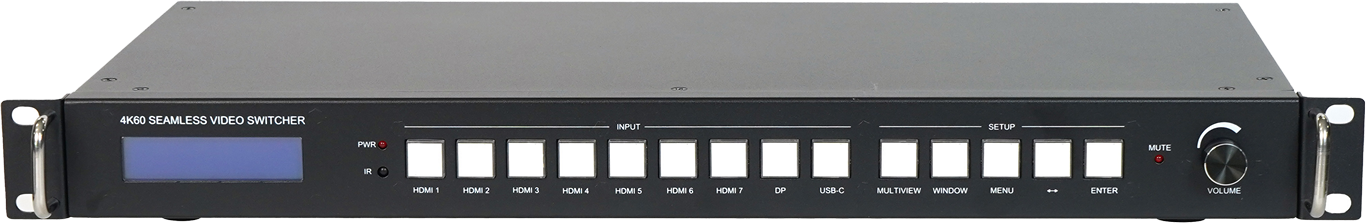

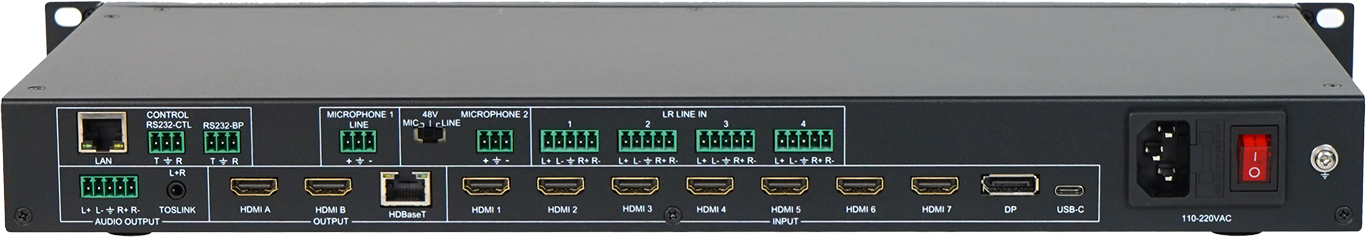

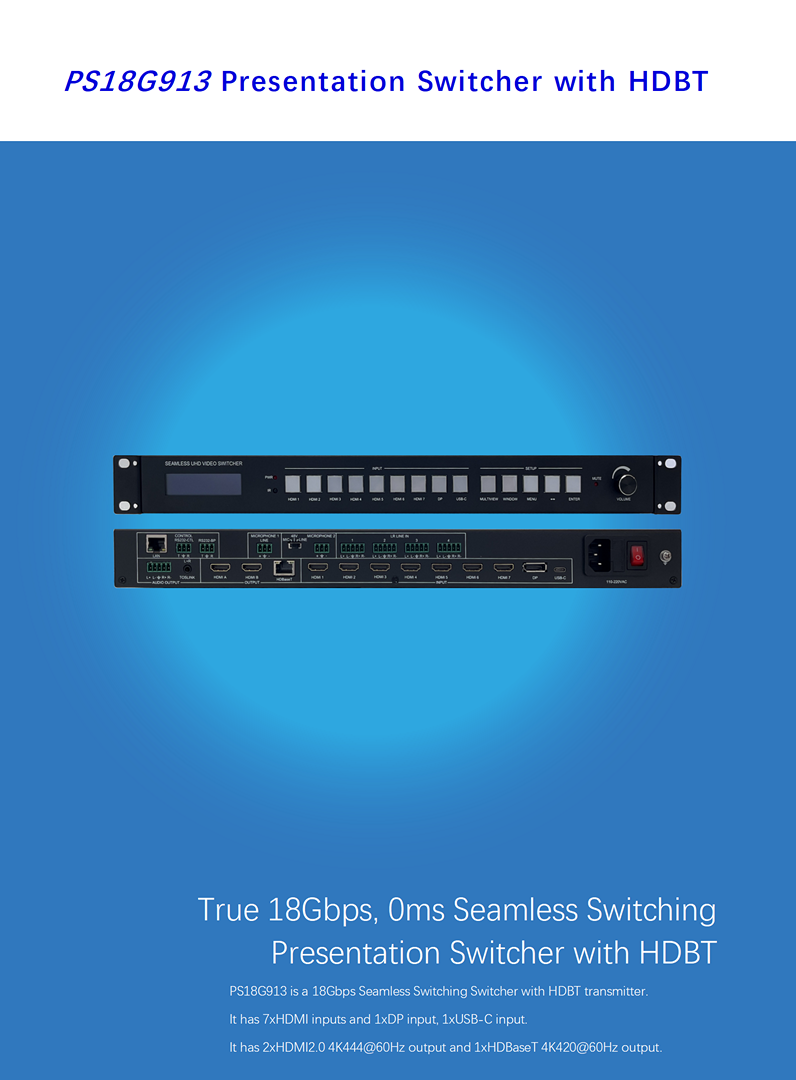

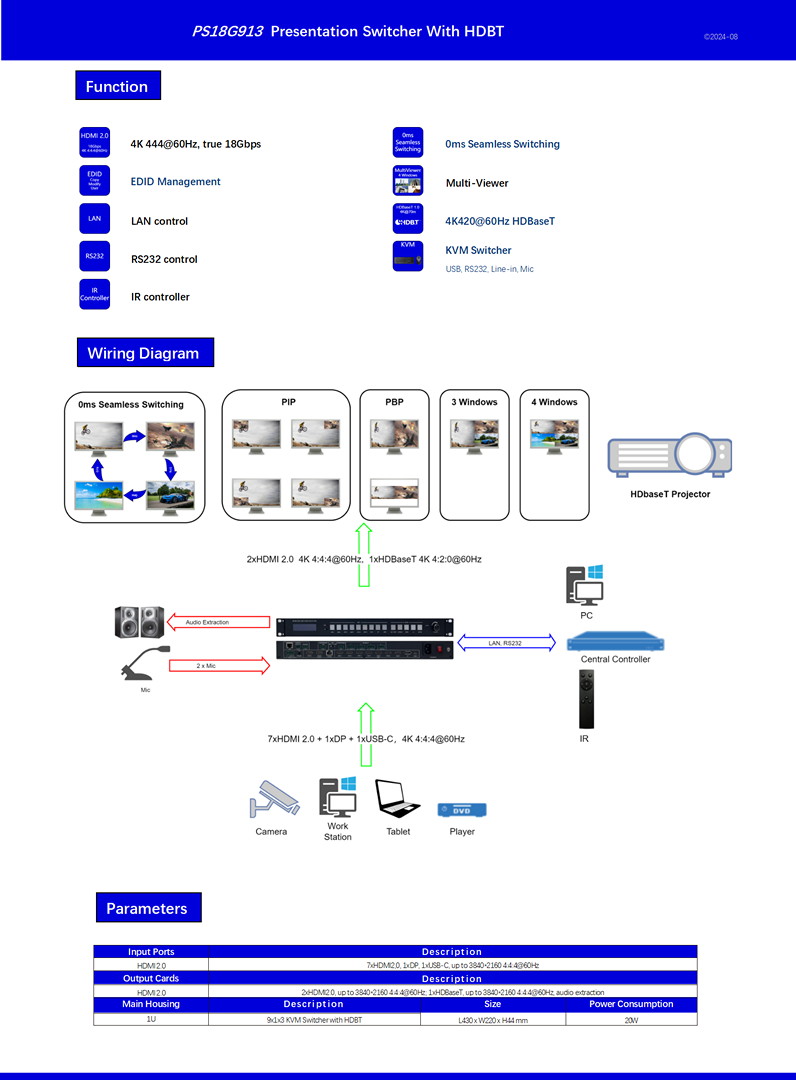

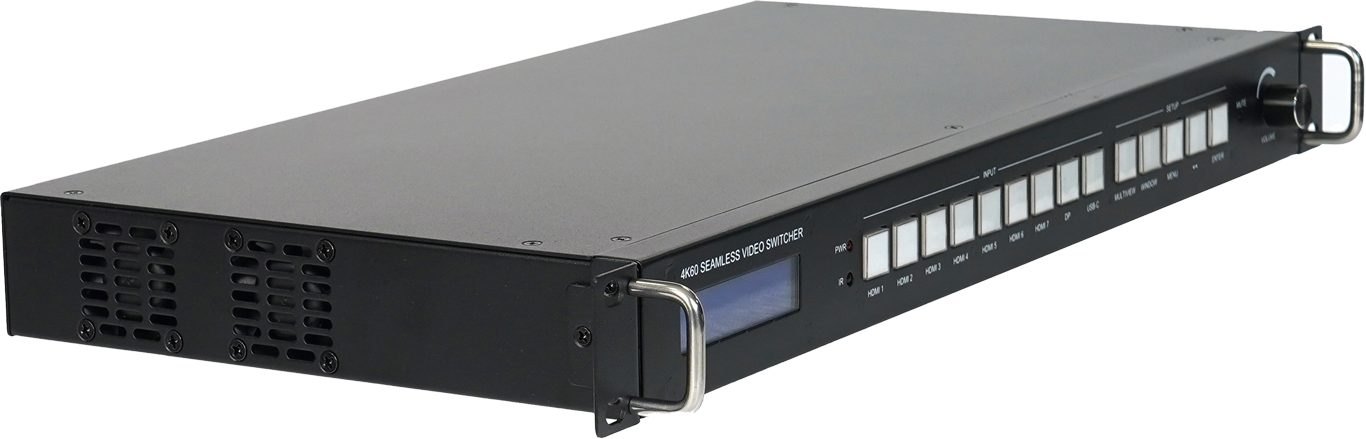

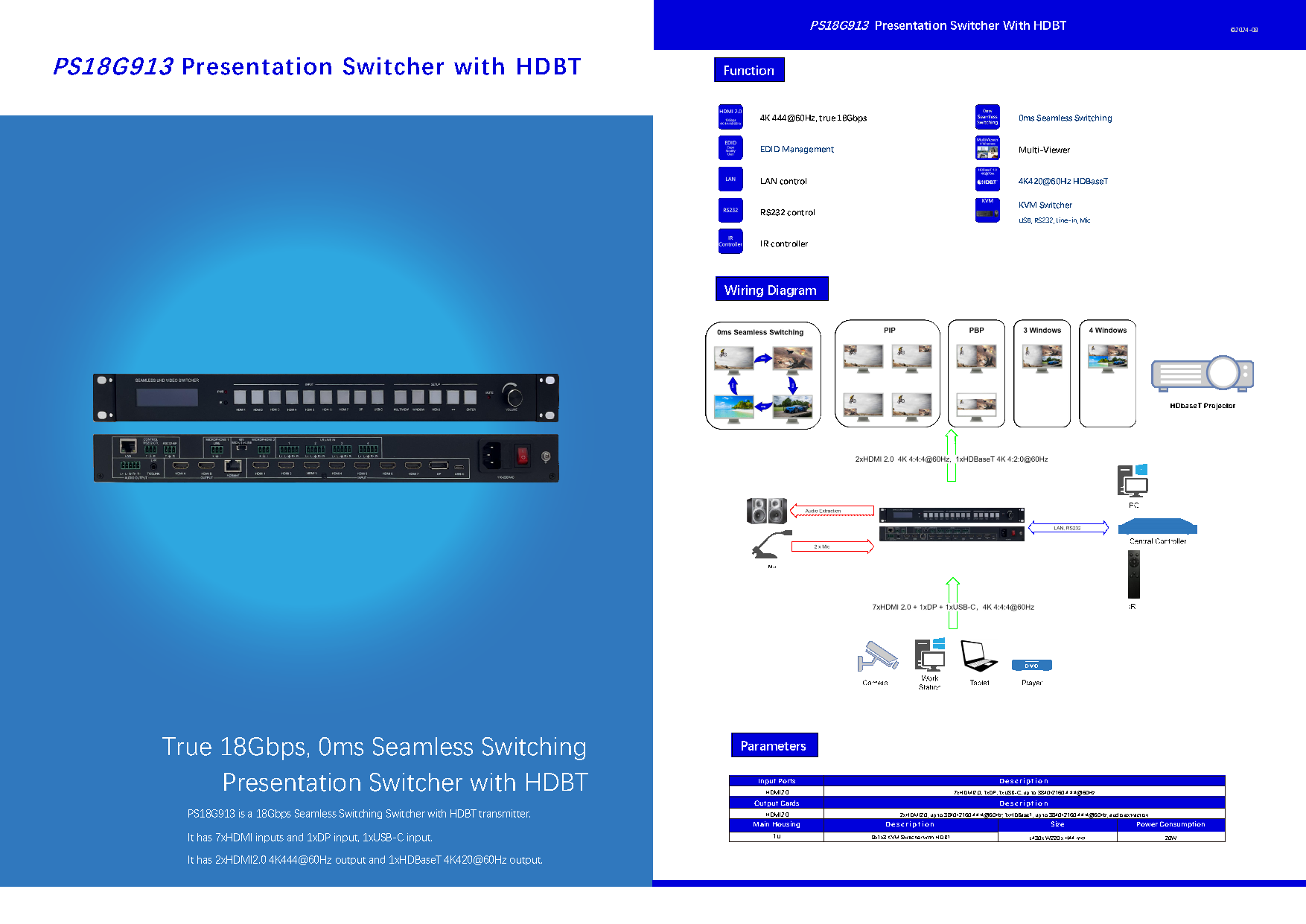

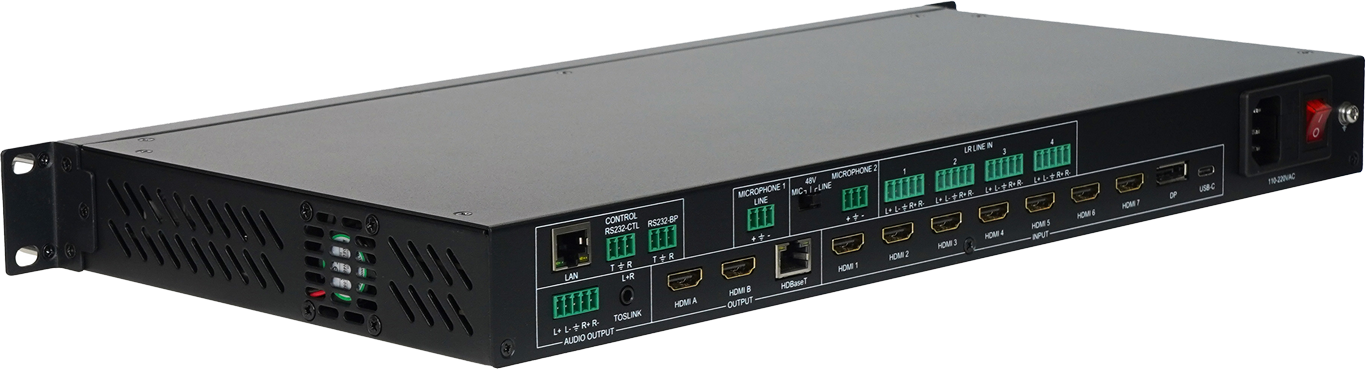

PS18G913: 4K@60Hz 9x1x3 User Manual: PS18G913 1. Inputs: 7xHDMI 2.0, 1xDP, 1xUSB-C 2. Outputs: 2x HDMI 2.0, HDbaseT (mirror) 3. Built-in HDbaseT TX, 4K@40m 4. 2 microphone inputs 5. Balanced stereo audio output 6. Control: LAN, RS-232, Buttons 7. 1U housing
|

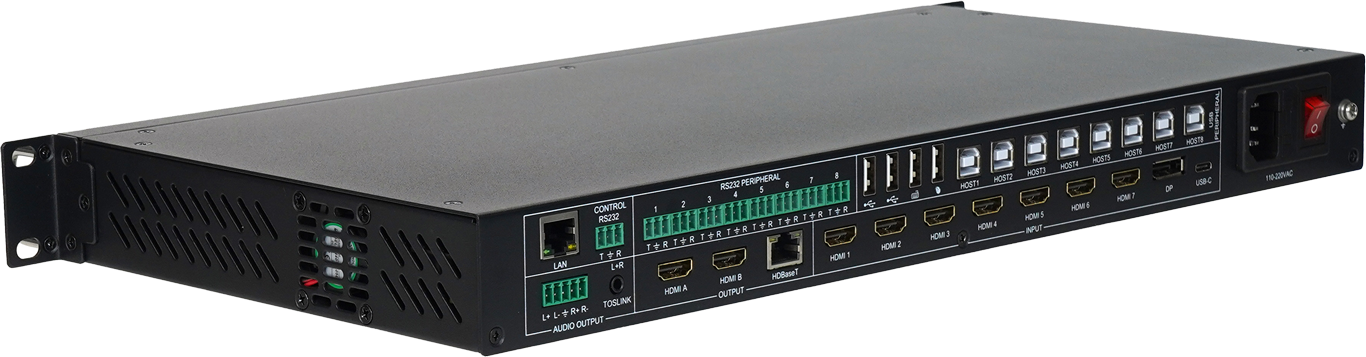

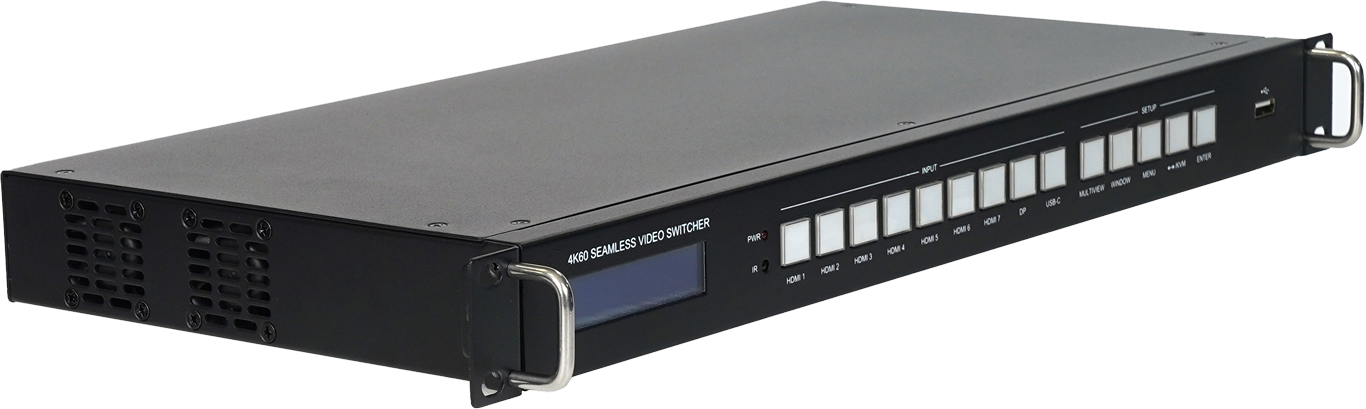

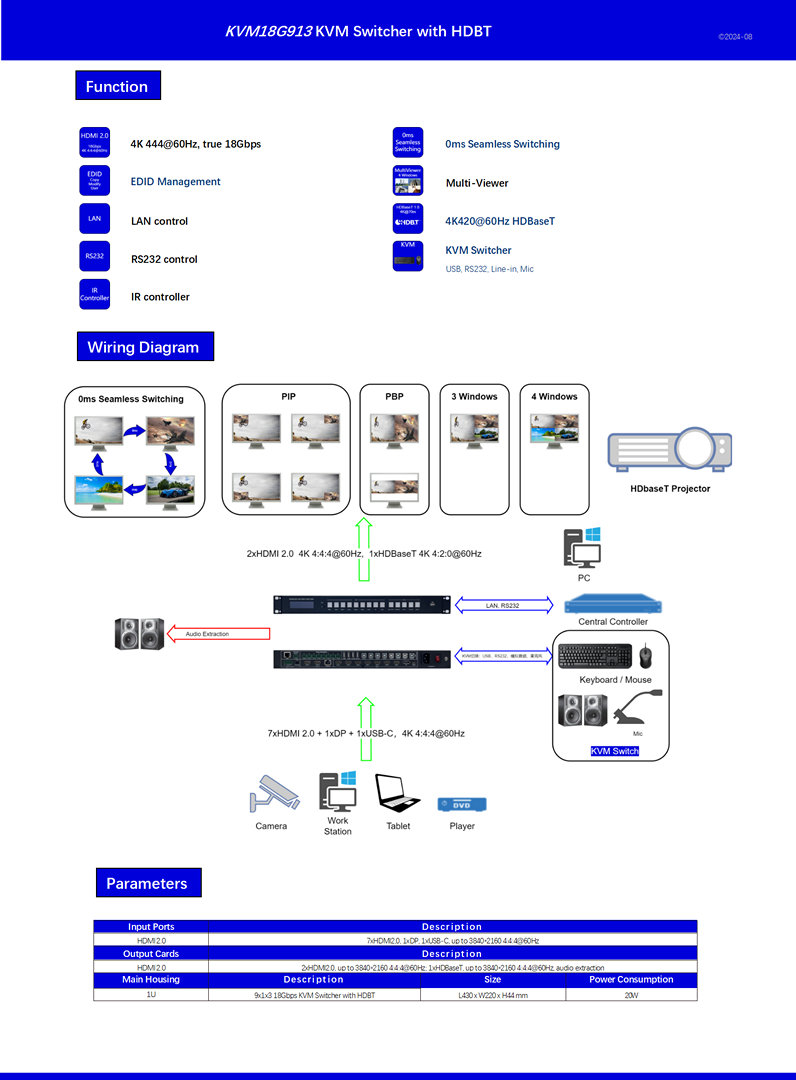

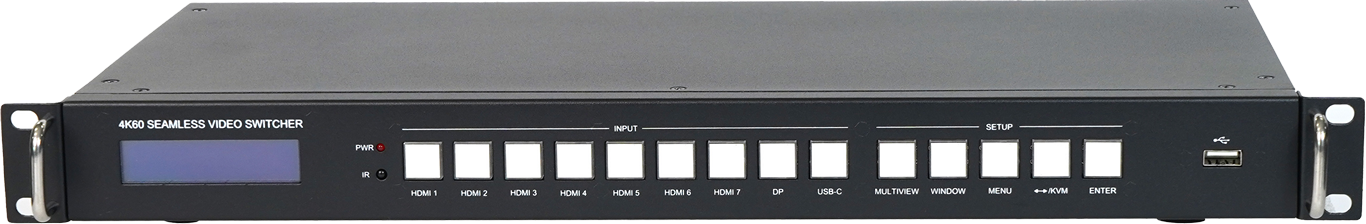

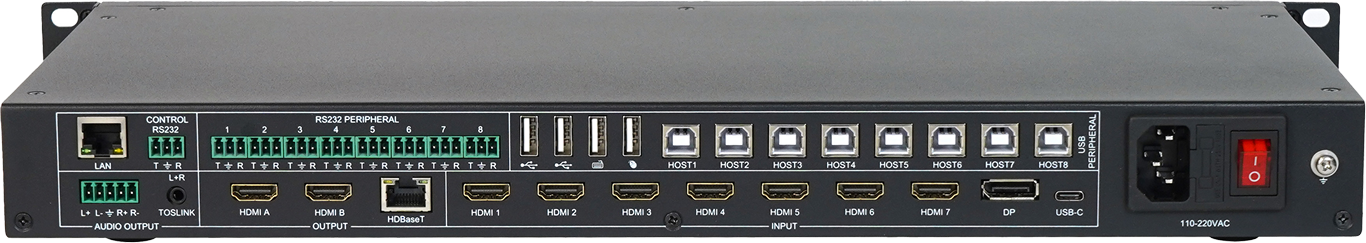

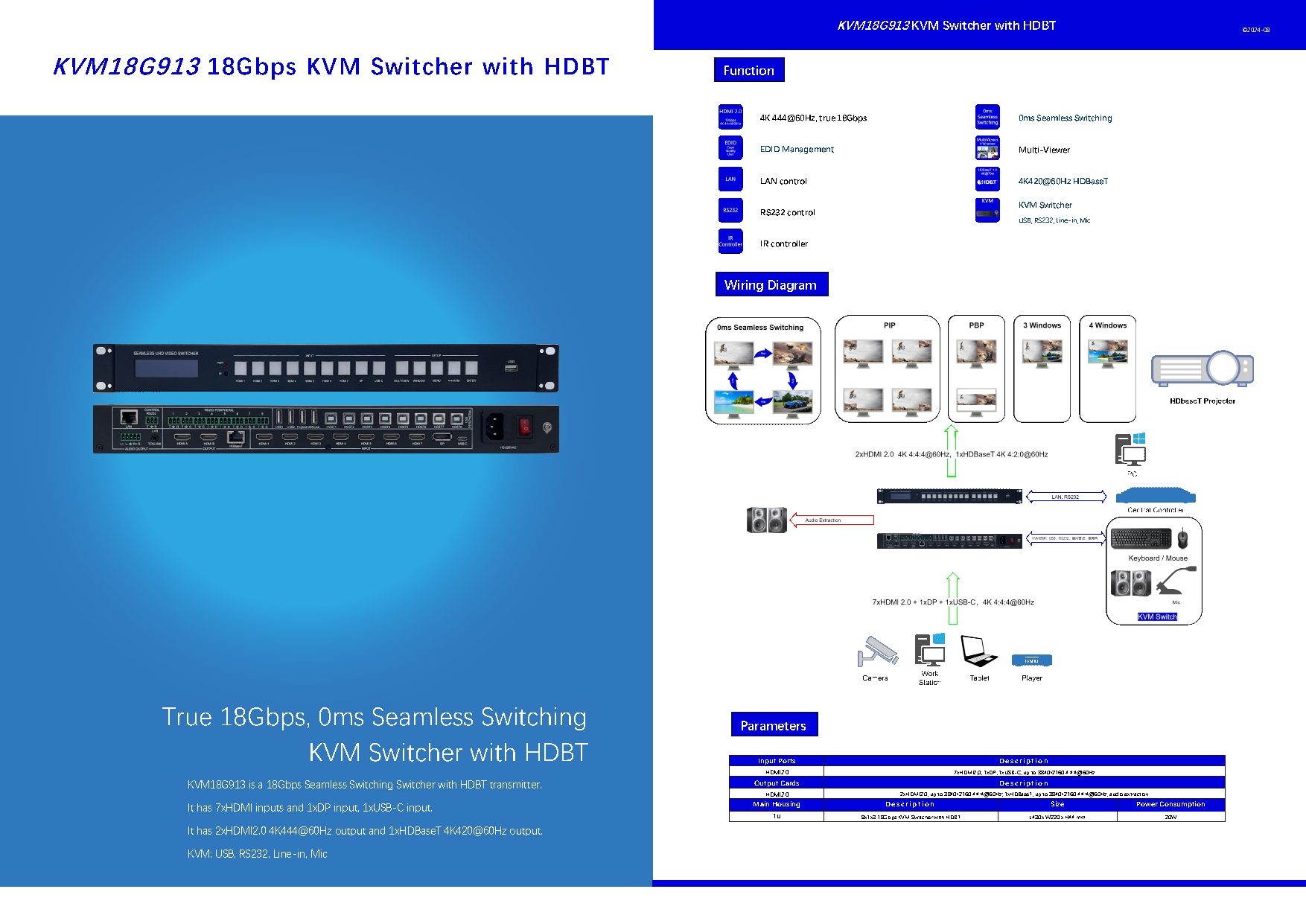

KVM18G913: 4K@60Hz 9x1x3 User Manual: KVM18G913 1. Inputs: 7xHDMI 2.0, 1xDP, 1xUSB-C 2. Outputs: 2x HDMI 2.0, HDbaseT (mirror) 3. Built-in HDbaseT TX, 4K@40m 4. USB2.0, RS232 5. Control: LAN, RS-232, Buttons 6. 1U housing
|
|

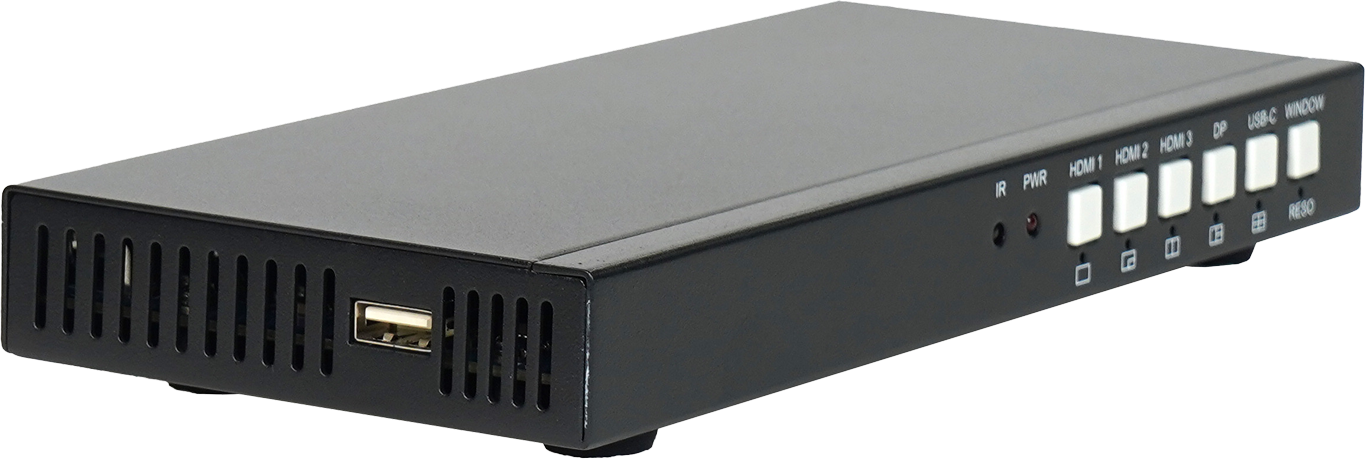

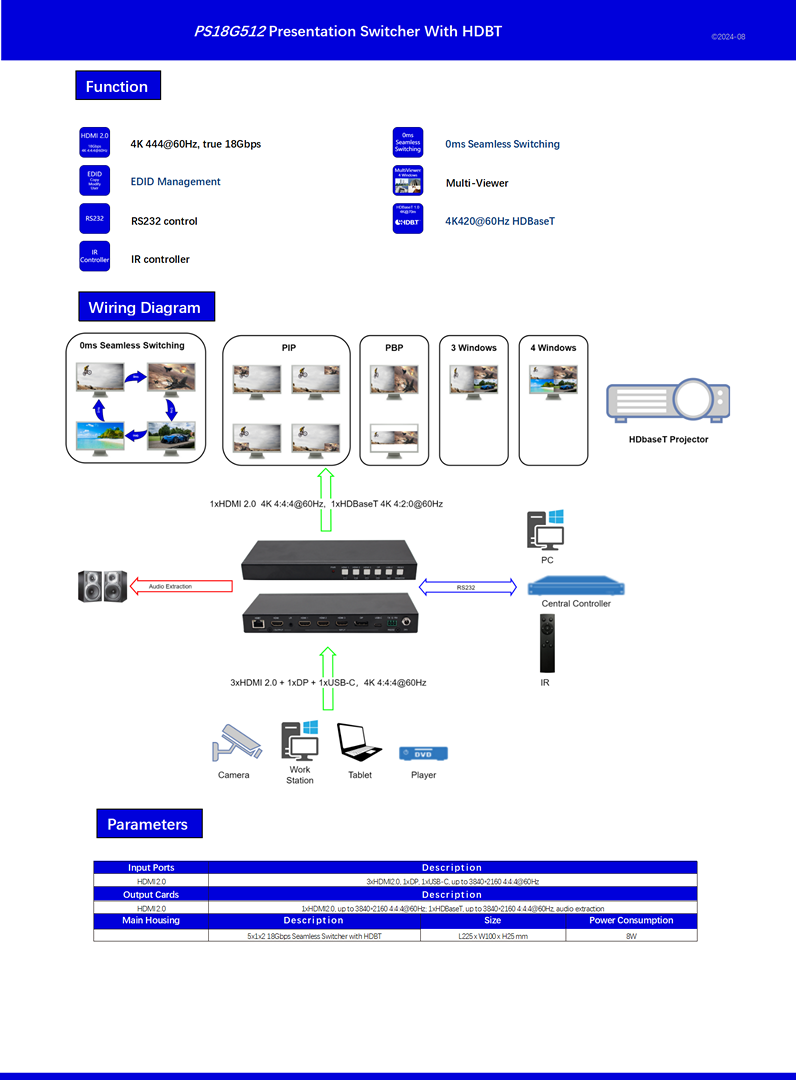

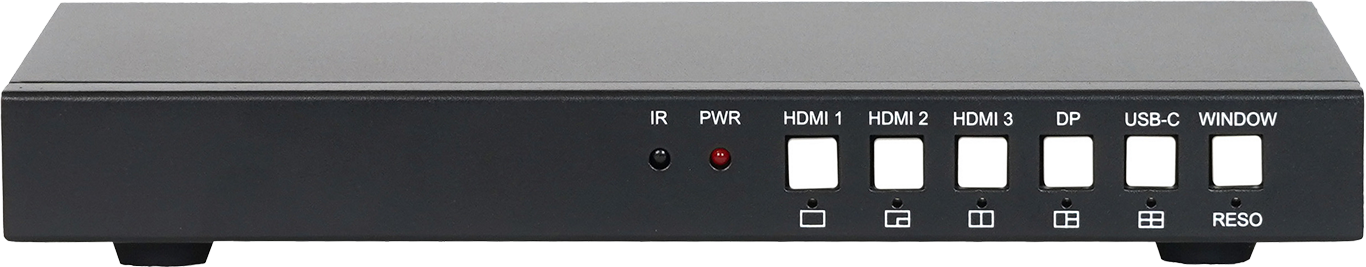

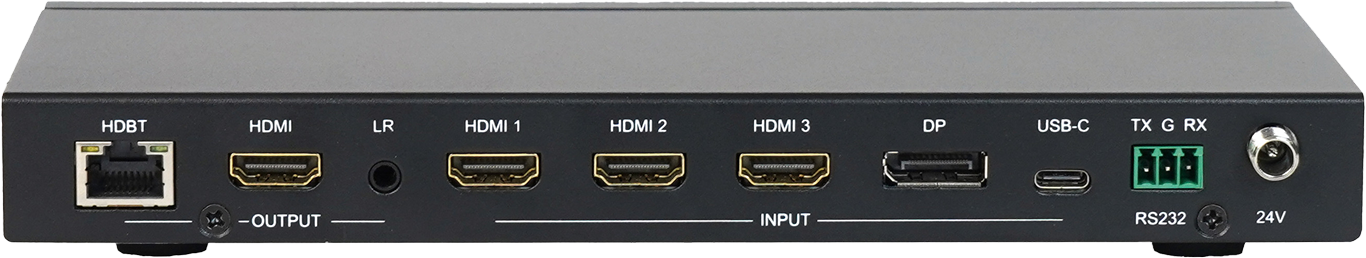

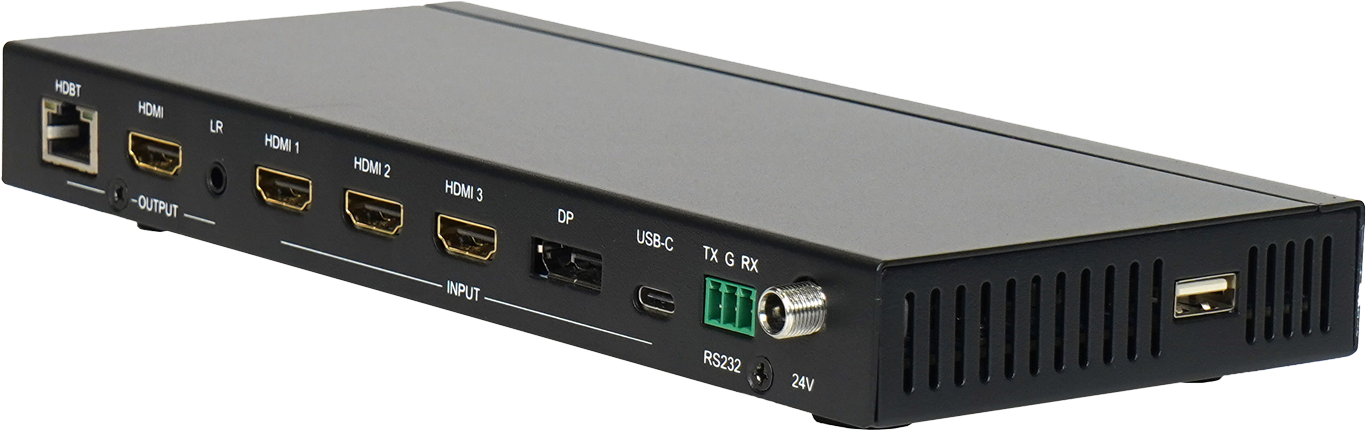

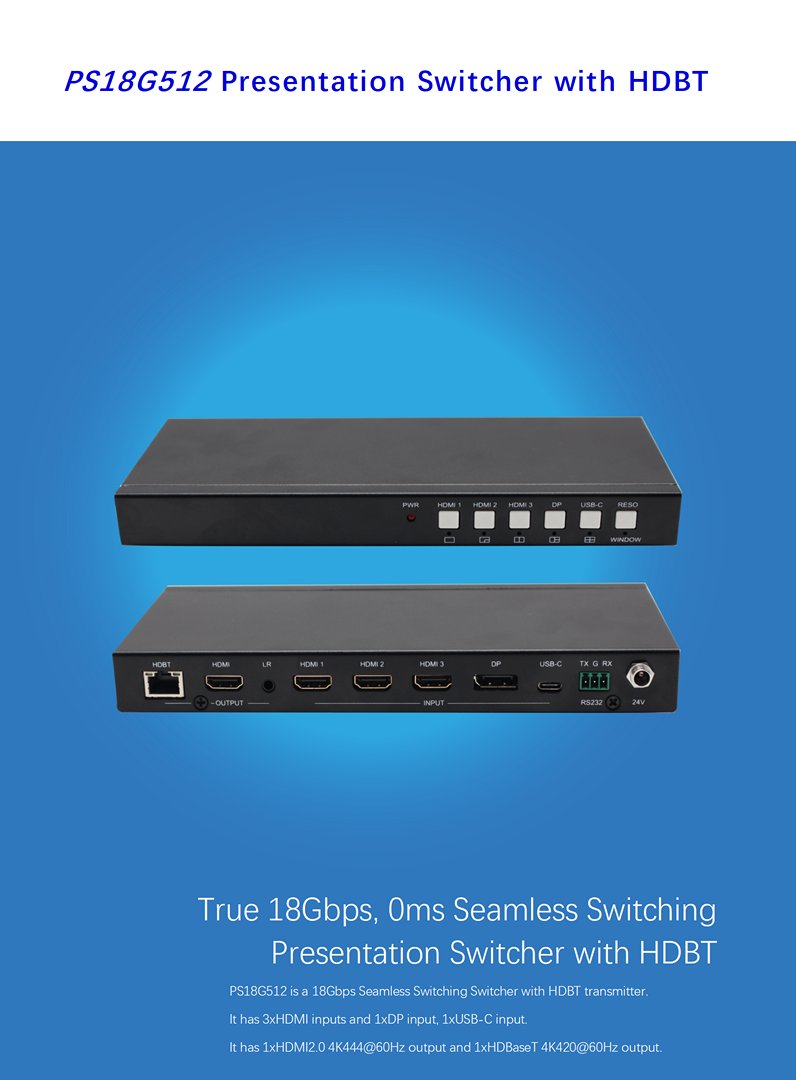

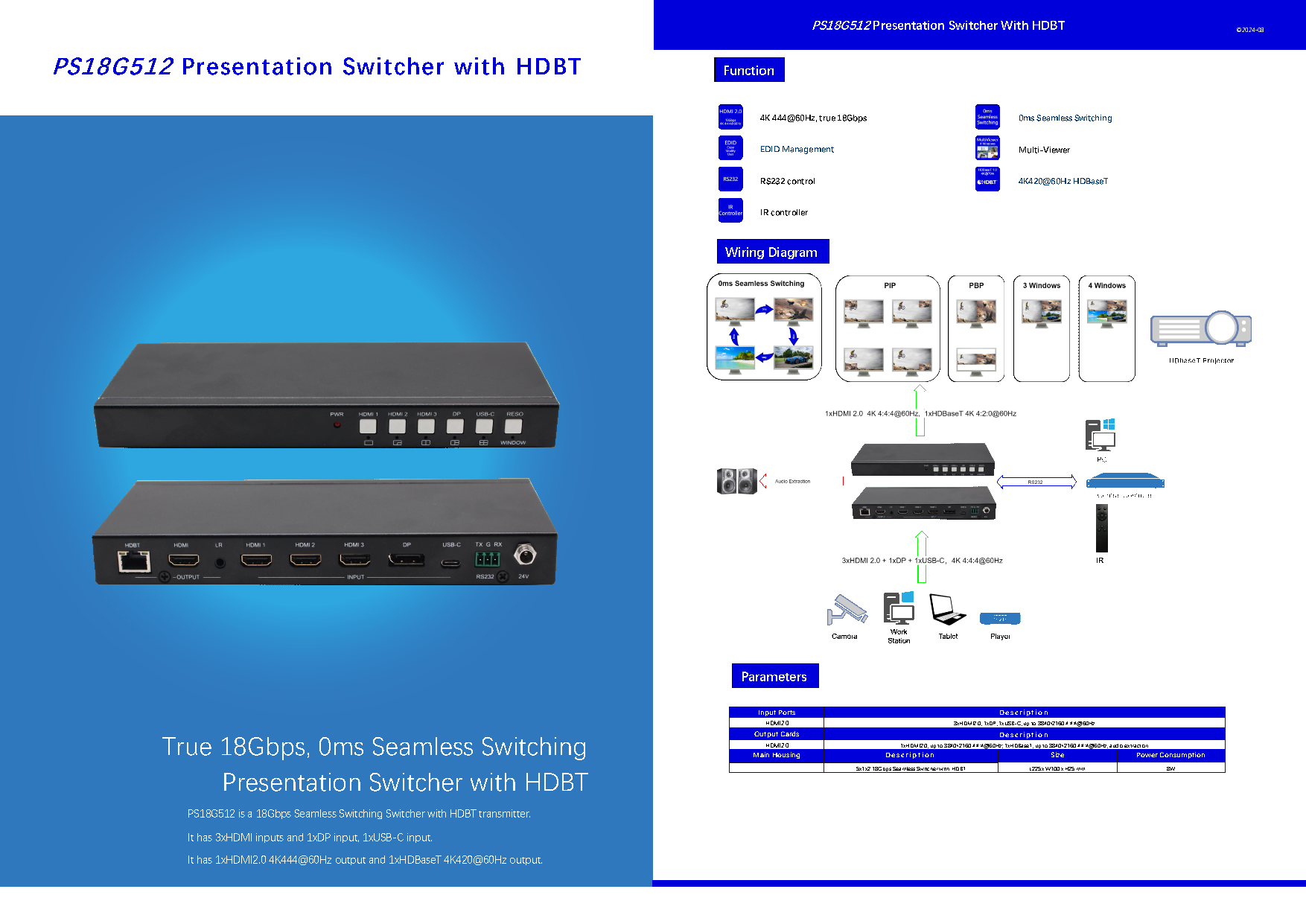

PS18G512: 4K@60Hz 5x1x2 User Manual: PS18G512 1. Inputs: 3xHDMI 2.0, 1xDP, 1xUSB-C 2. Outputs: 1x HDMI 2.0, HDbaseT (mirror) 3. Built-in HDbaseT TX, 4K@40m
|

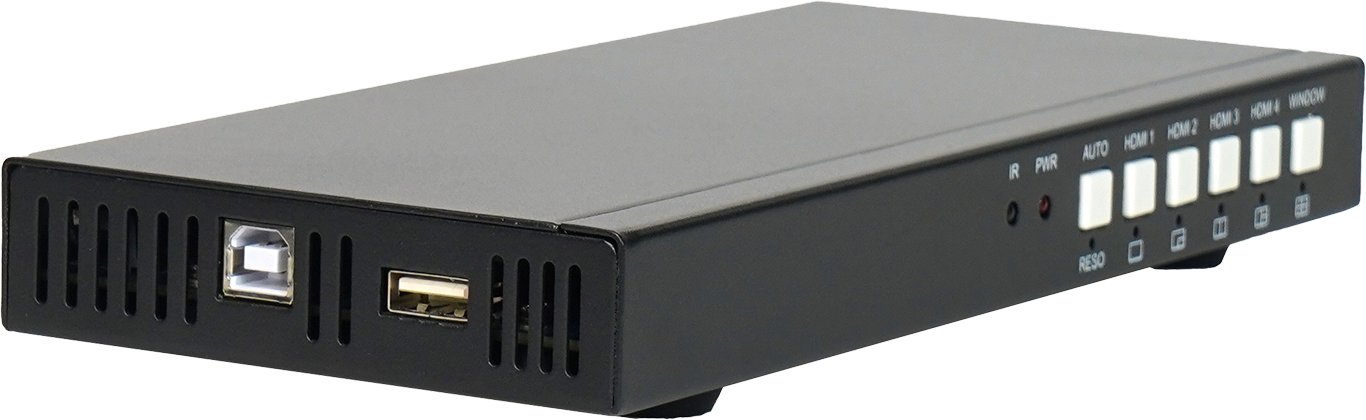

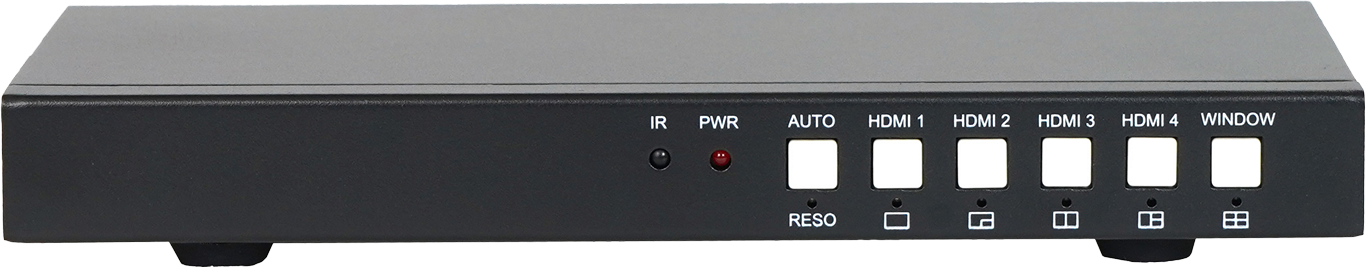

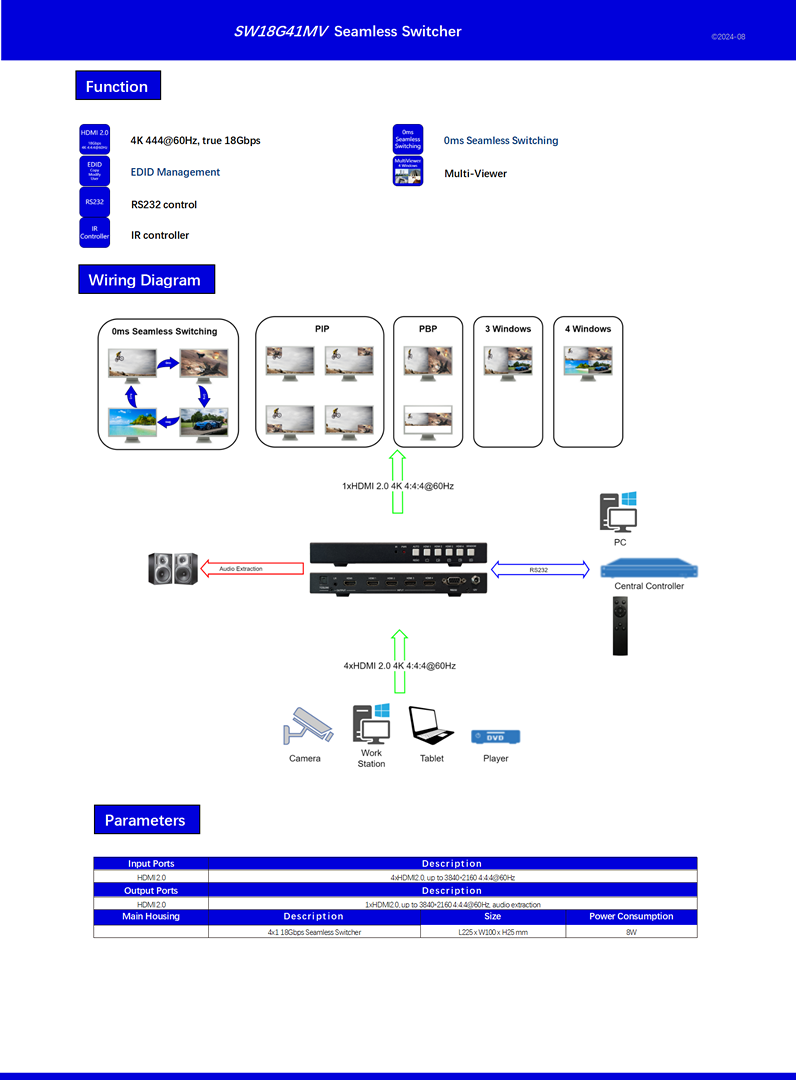

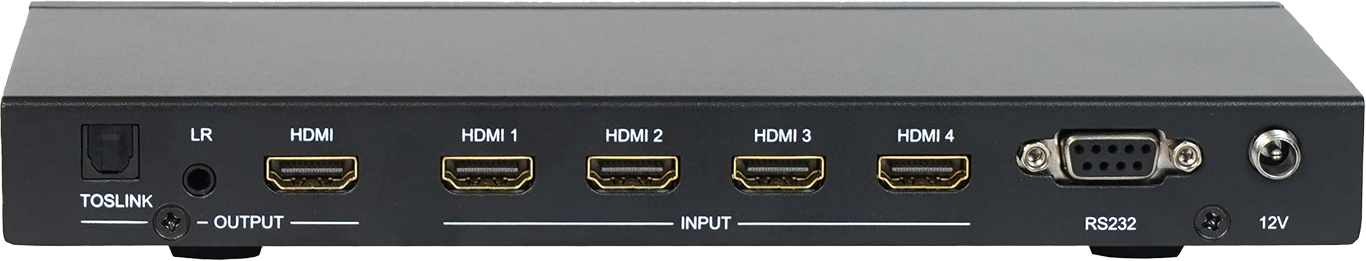

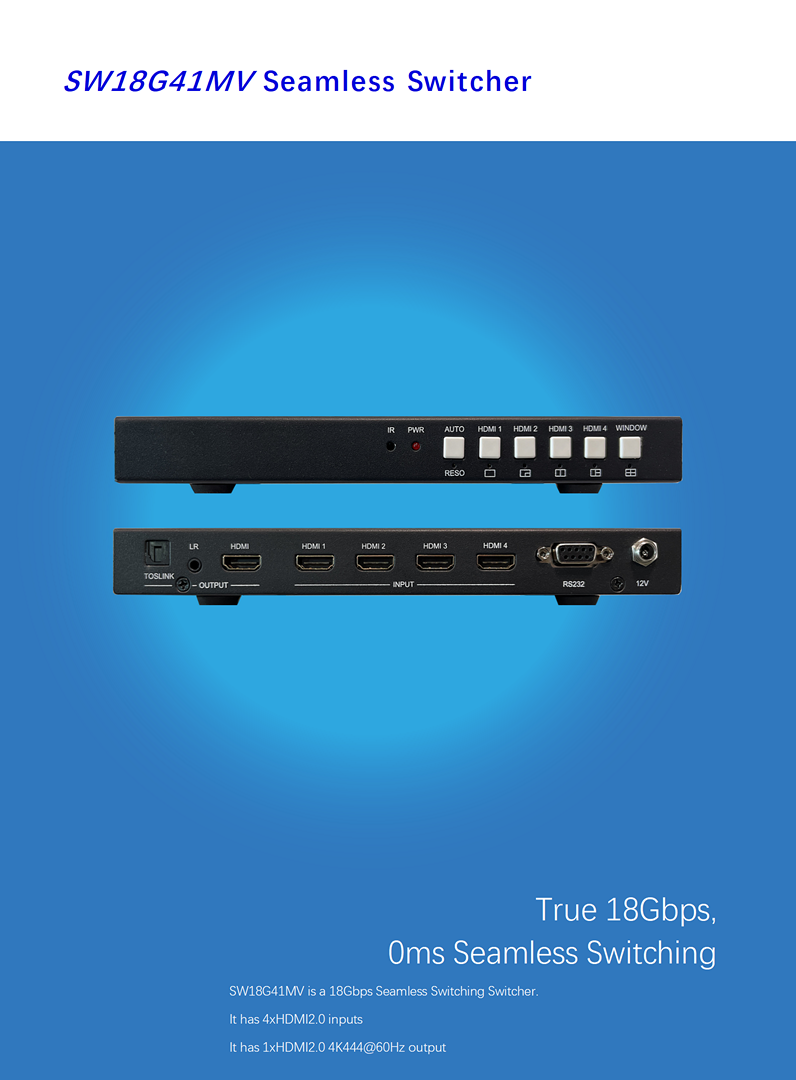

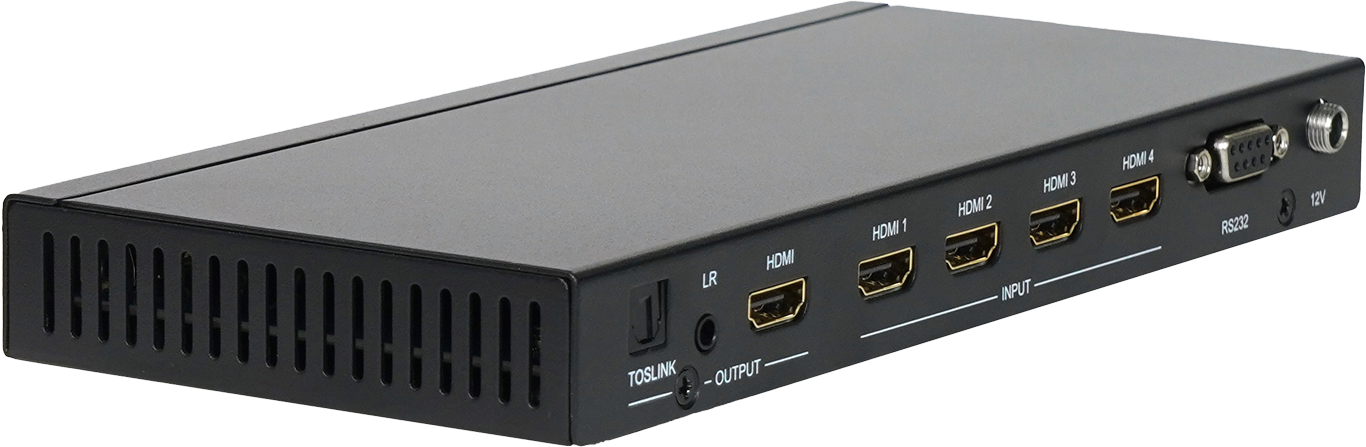

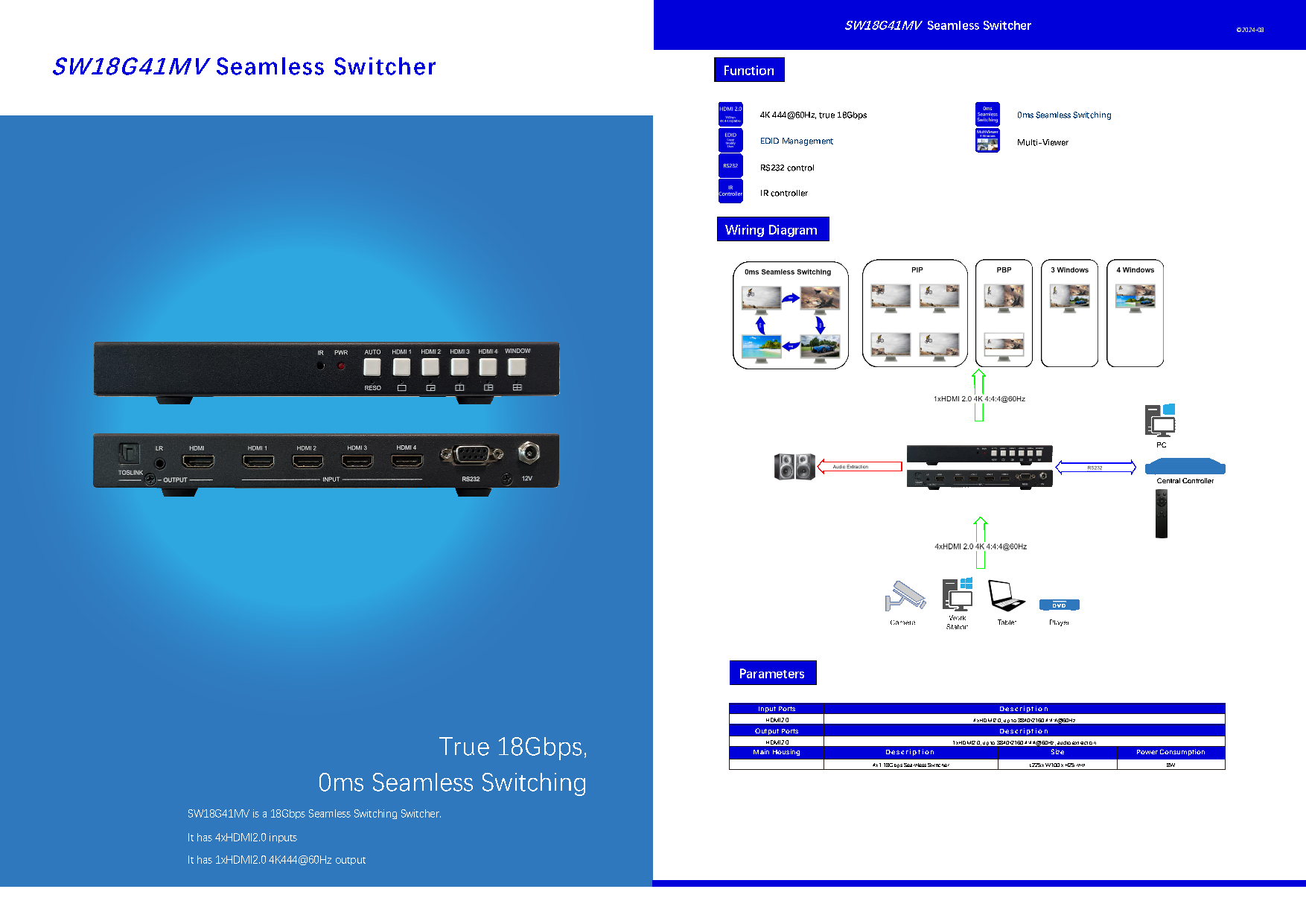

SW18G41MV: 4x1 User Manual: SW18G41MV 1. Inputs: 4xHDMI 2.0 2. Outputs: 1x HDMI 2.0
|

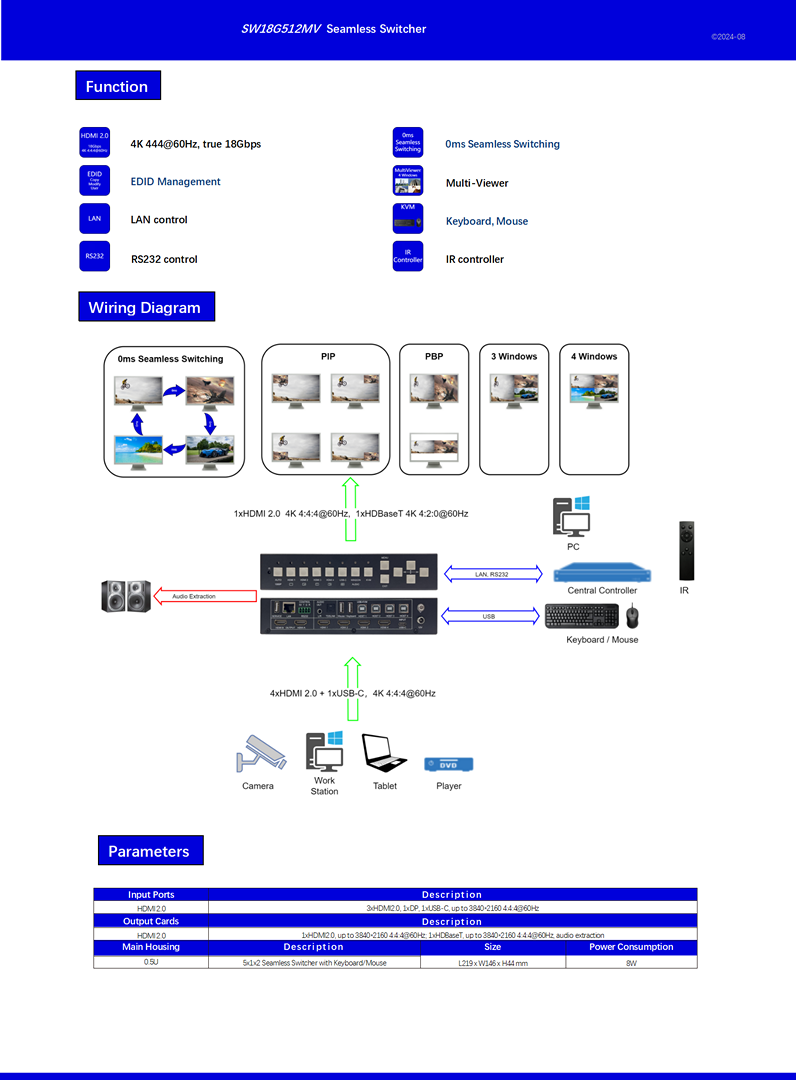

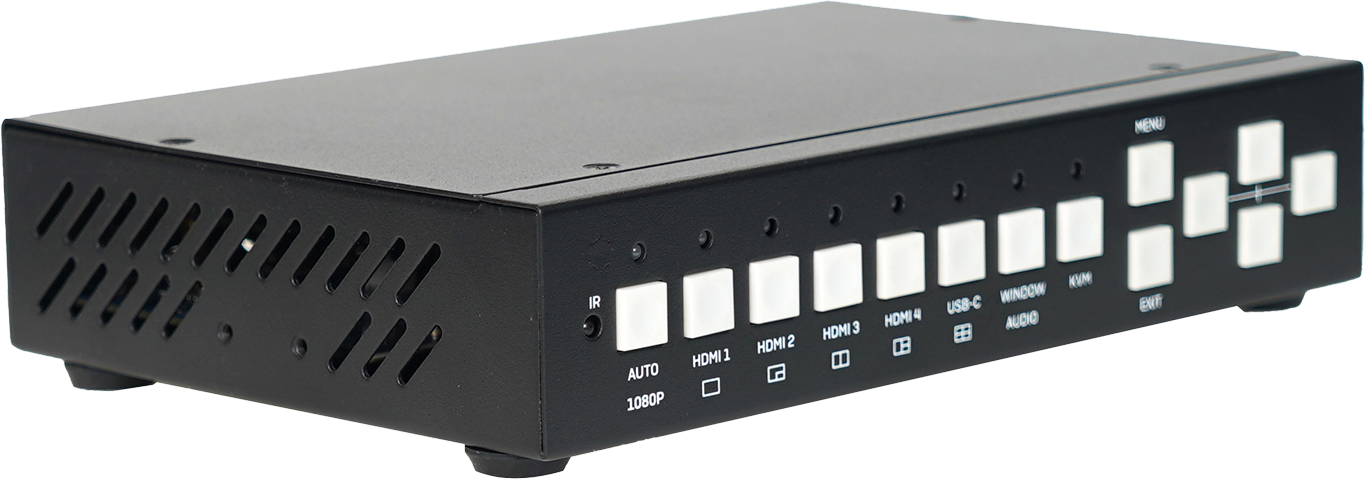

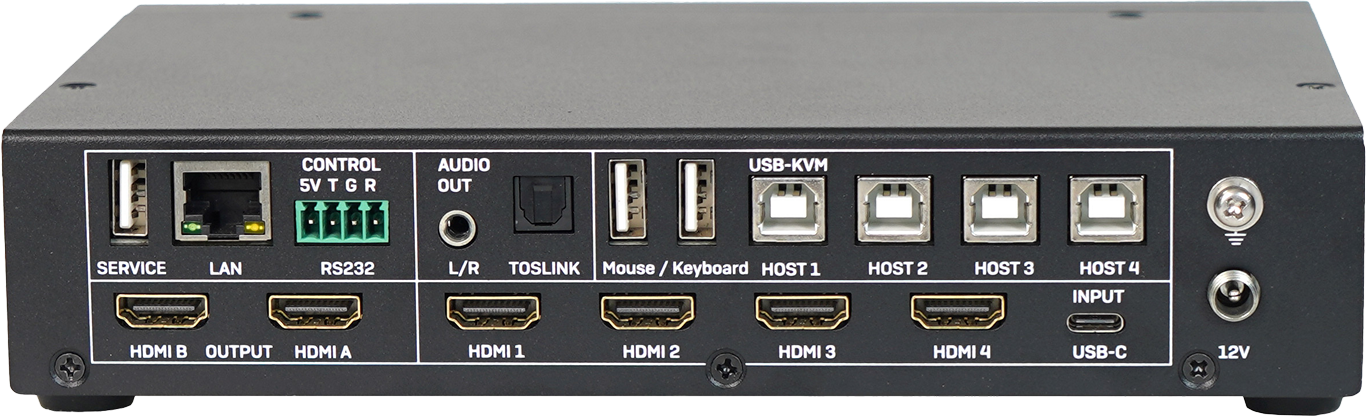

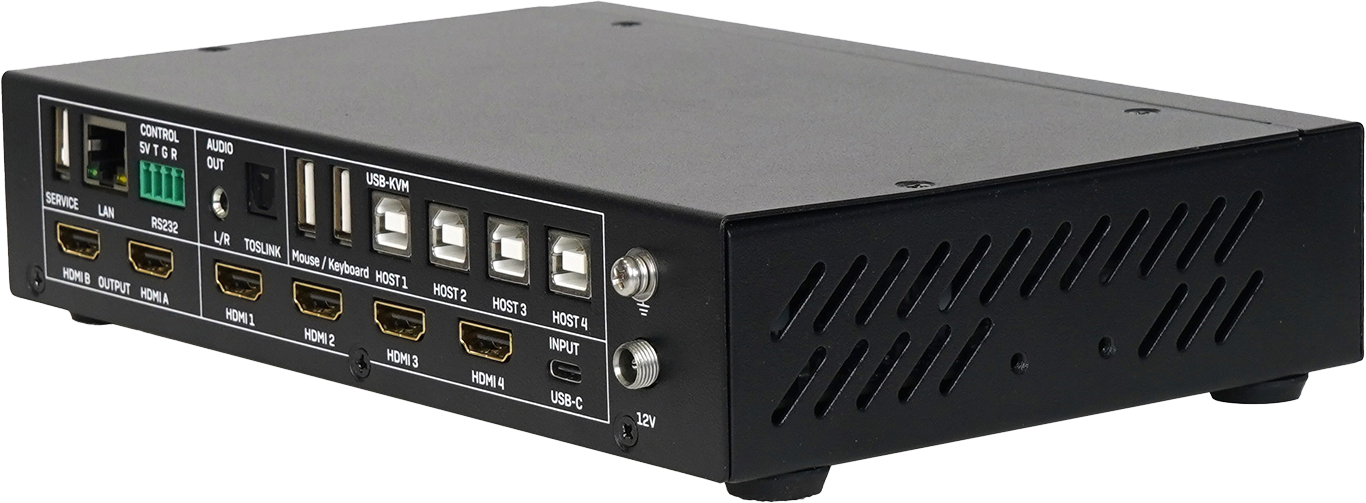

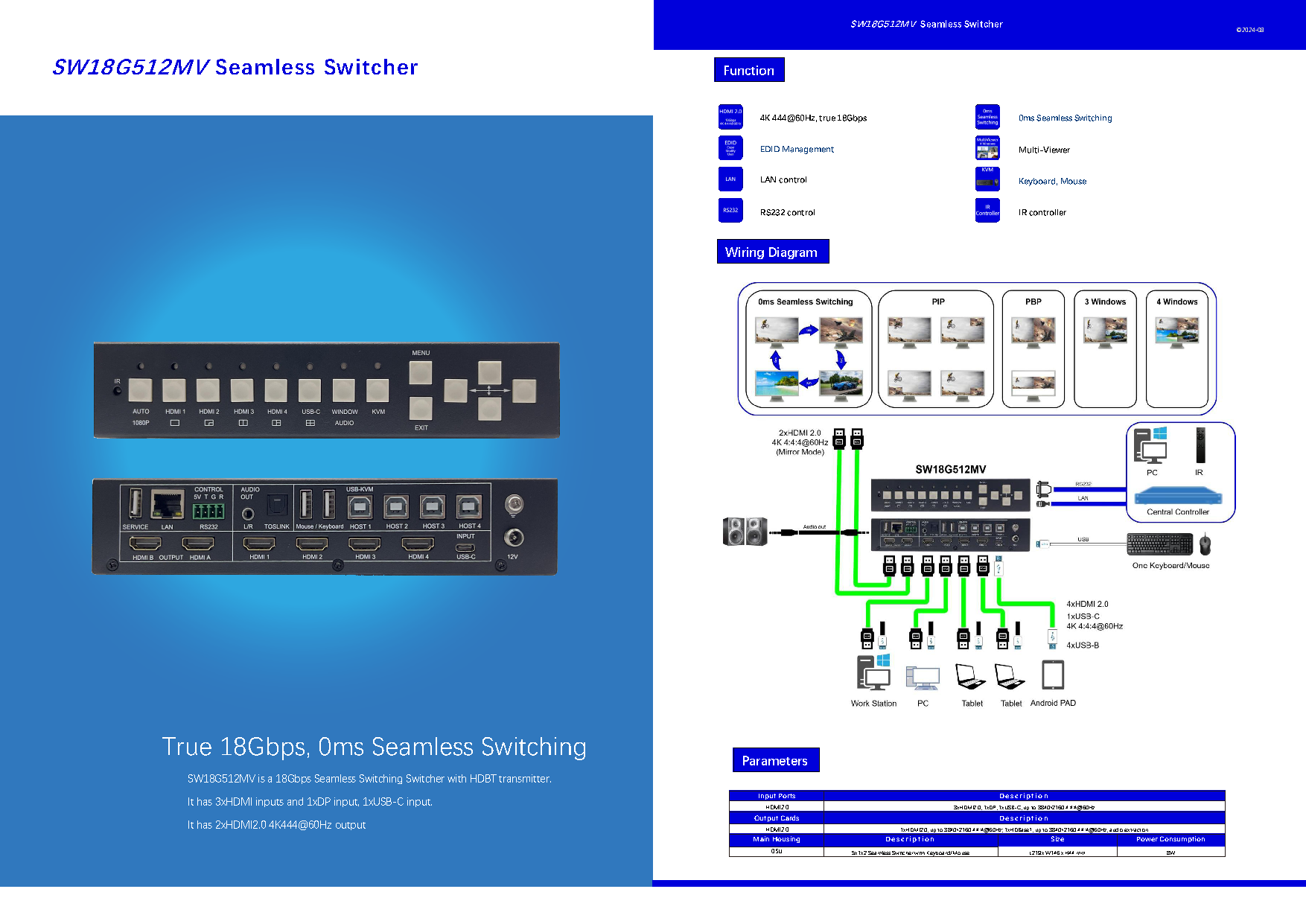

SW18G512MV: 5x1x2 User Manual: SW18G512MV 1. Inputs: 4xHDMI 2.0, 1xUSB-C 2. Outputs: 2x HDMI 2.0 in mirror mode 3. USB-B: 4 ports to PC 4. USB-A: 2 ports for Keyboard/Mouse with Roaming
|
|

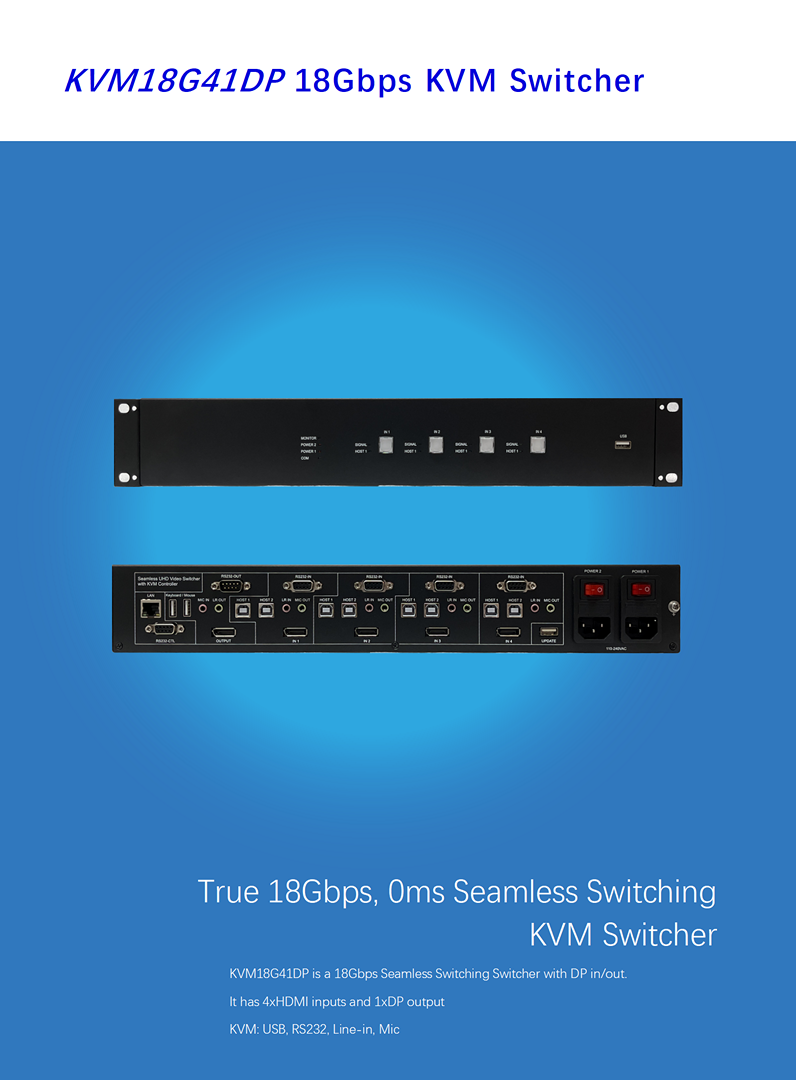

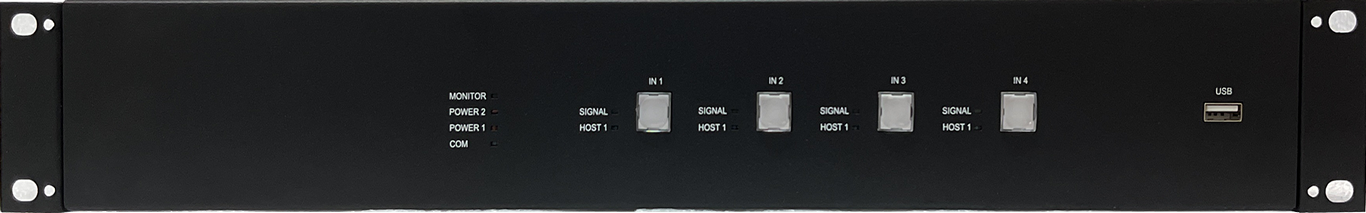

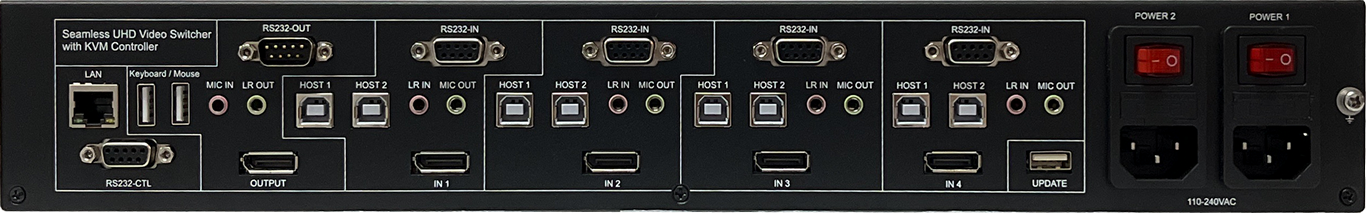

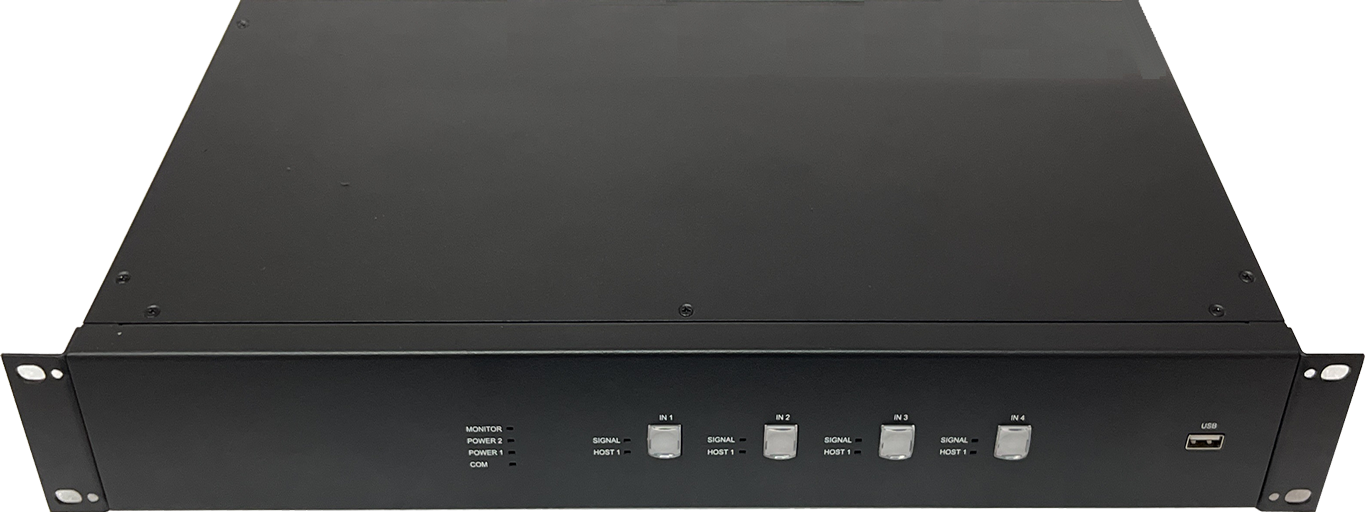

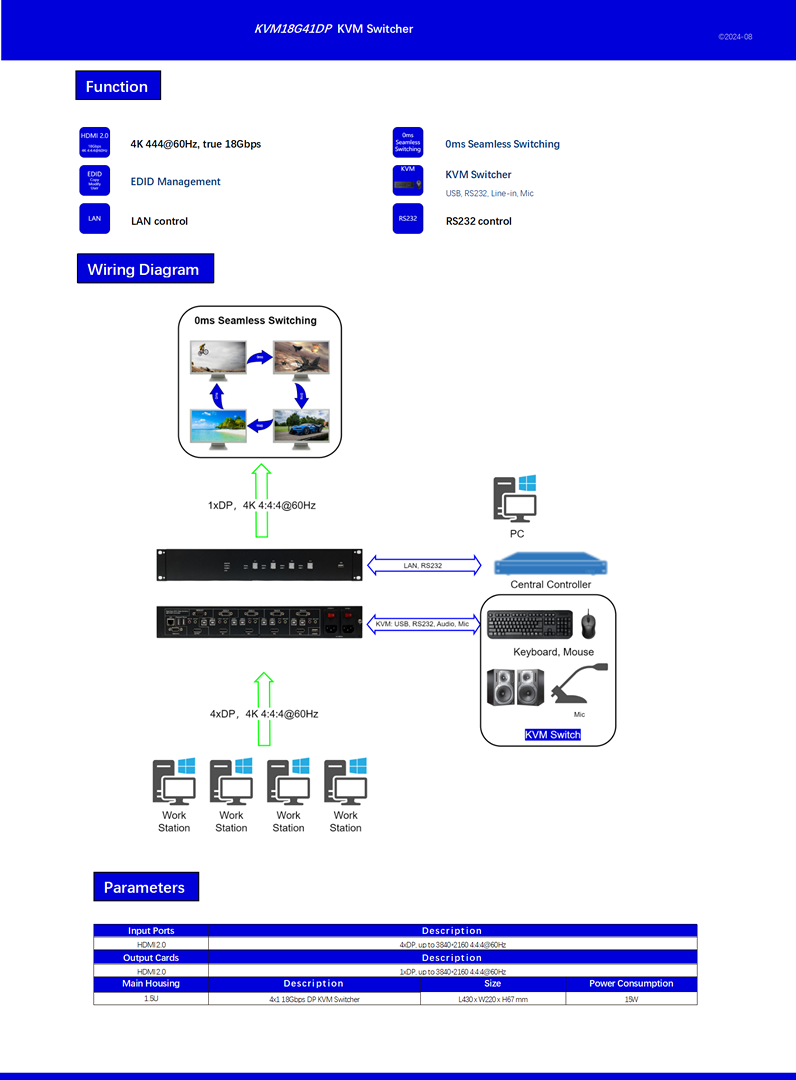

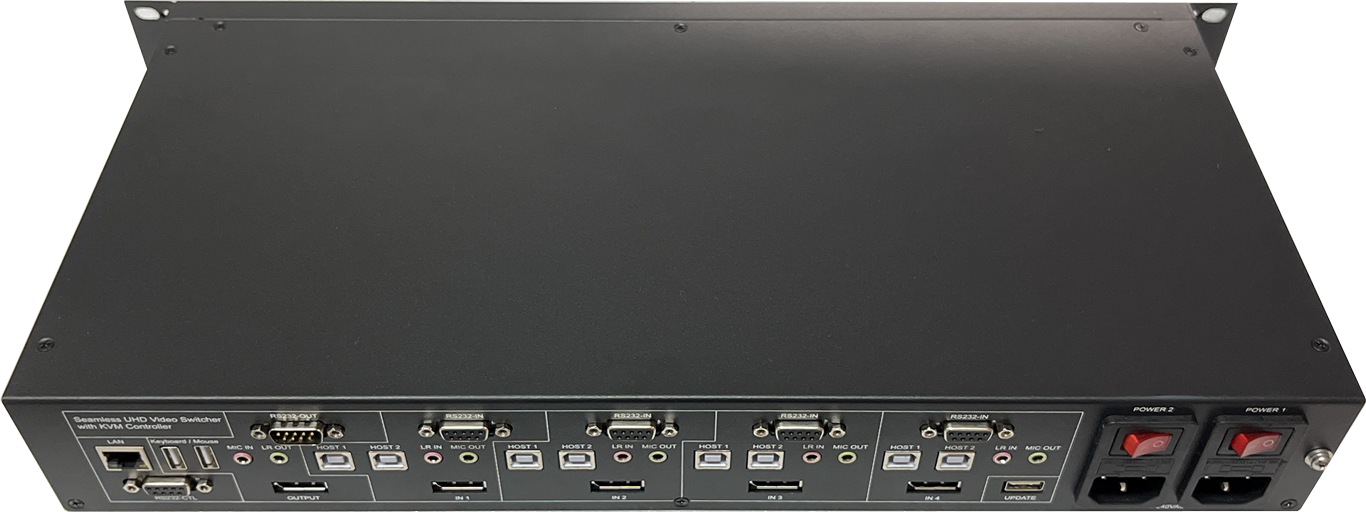

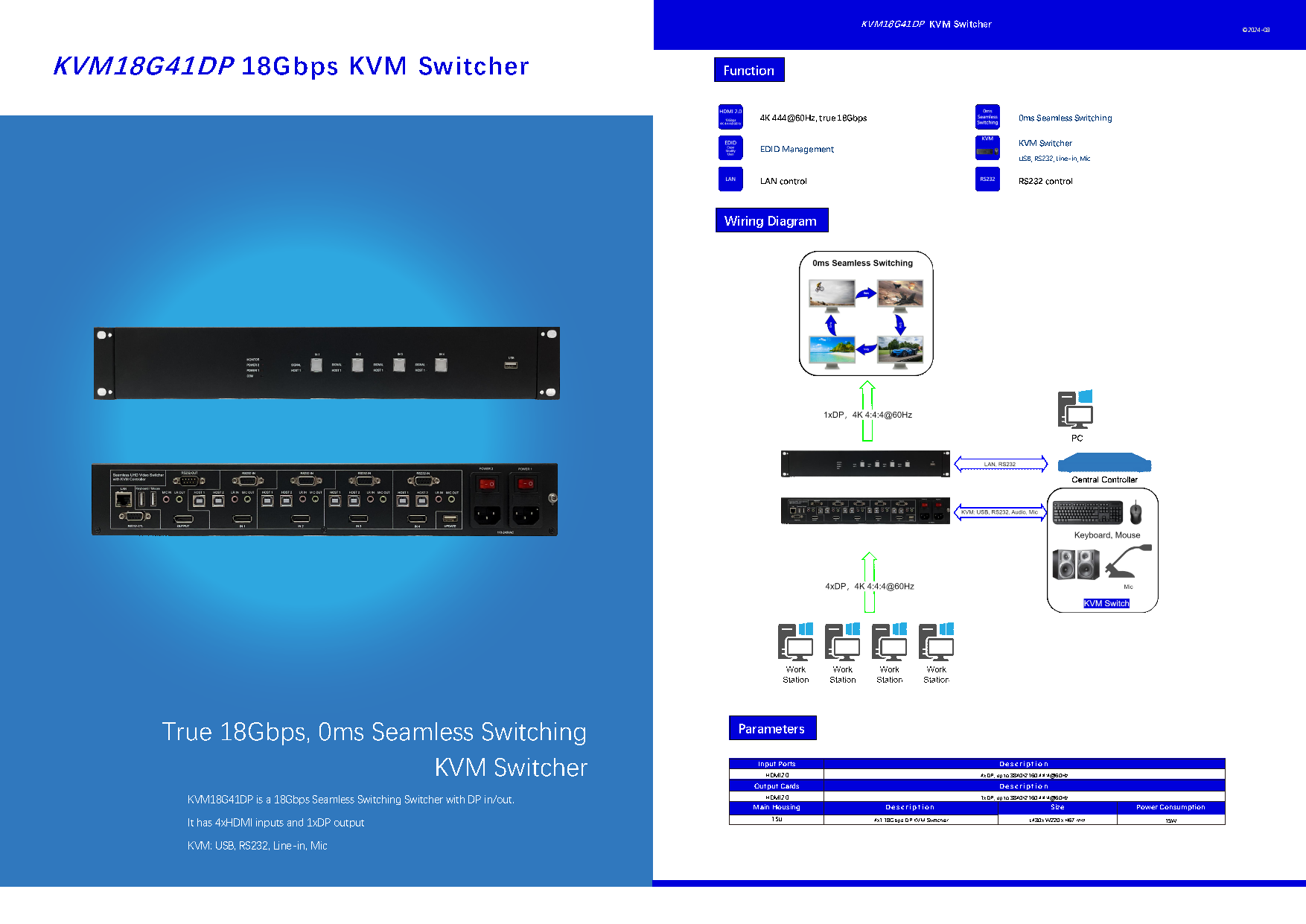

KVM18G41DP: 4x1 4K60Hz User Manual: KVM18G41DP 1. Inputs: 4x(DP+USB2.0+RS232+L/R+MIC) 2. Outputs: DP+USB2.0+RS232+L/R+MIC 3. Redundant PSU 4. 1.5U housing
|
KVM18G41DP: Application
|

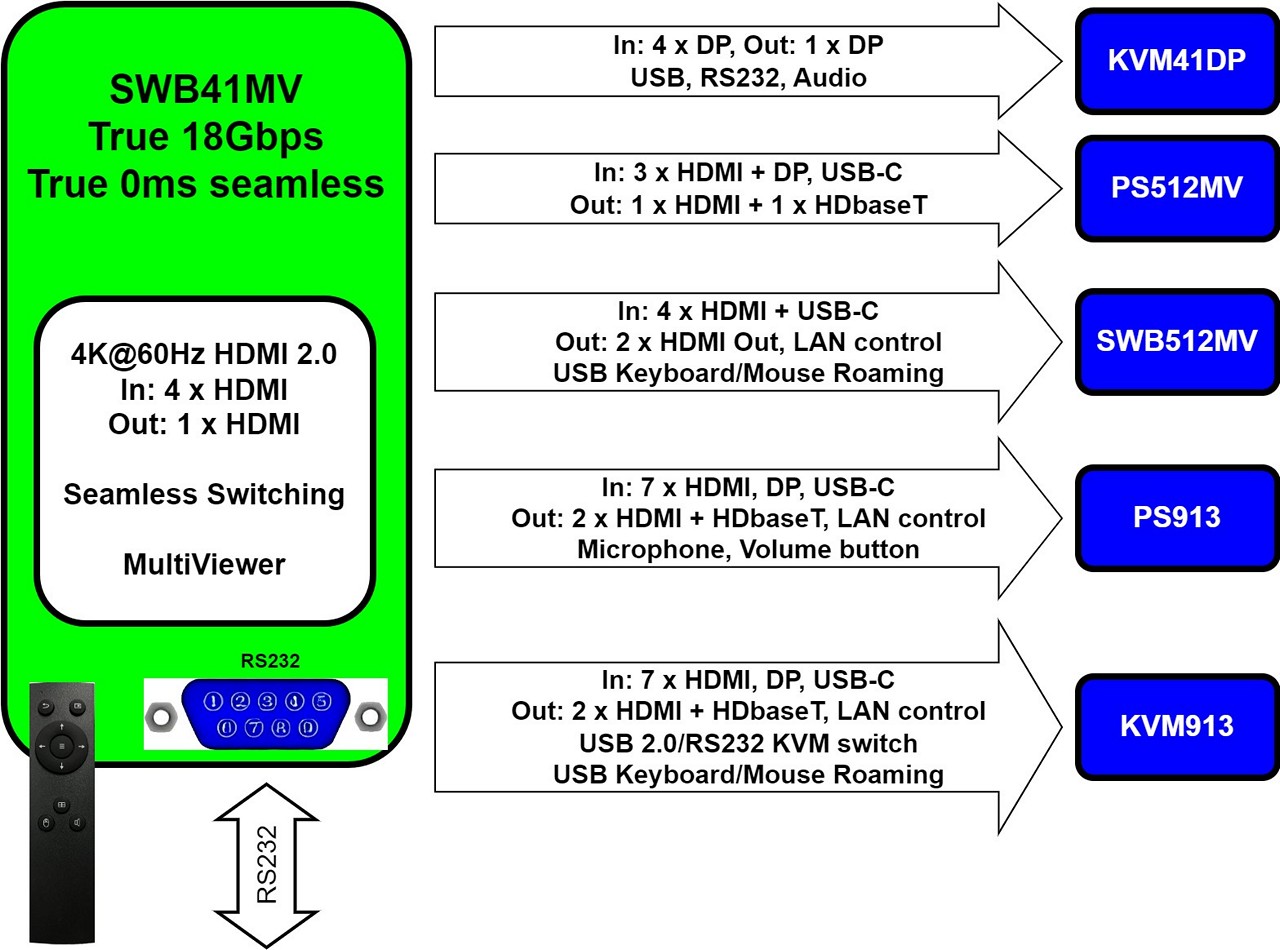

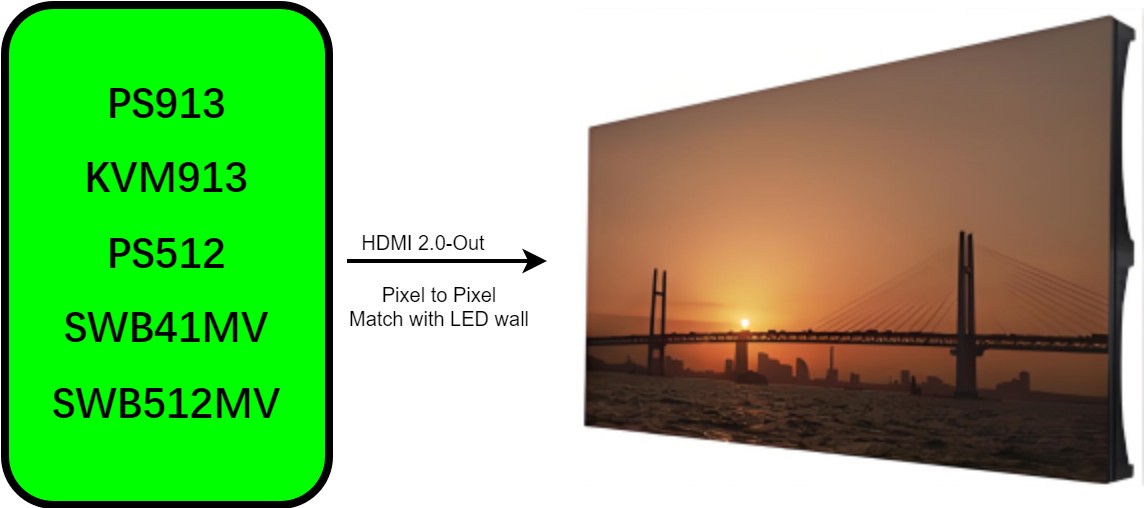

True 18Gbps, 444 color space, lossless Q18G/Q0ms modular matrix VM4K88H/4K44H PS913/KVM913 PS512/SWB512MV/SWB41MV
|
