QVM series: Quad-Ch Seamless Switching Matrix with Video Processor |
||
| ¡¾Main Housing¡¿ | ||

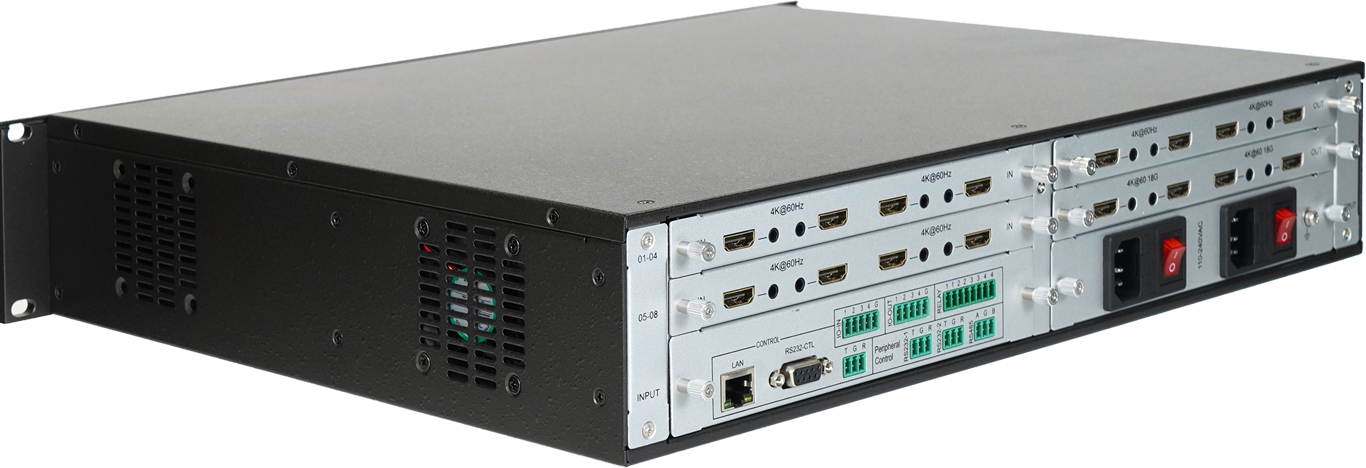

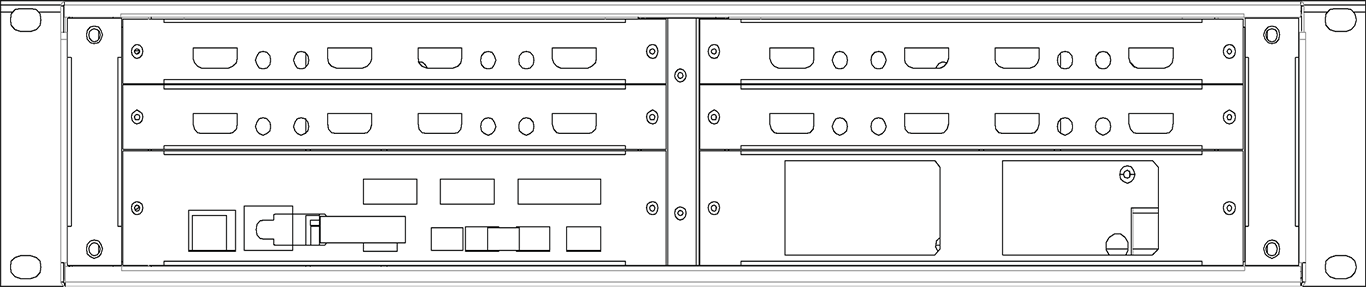

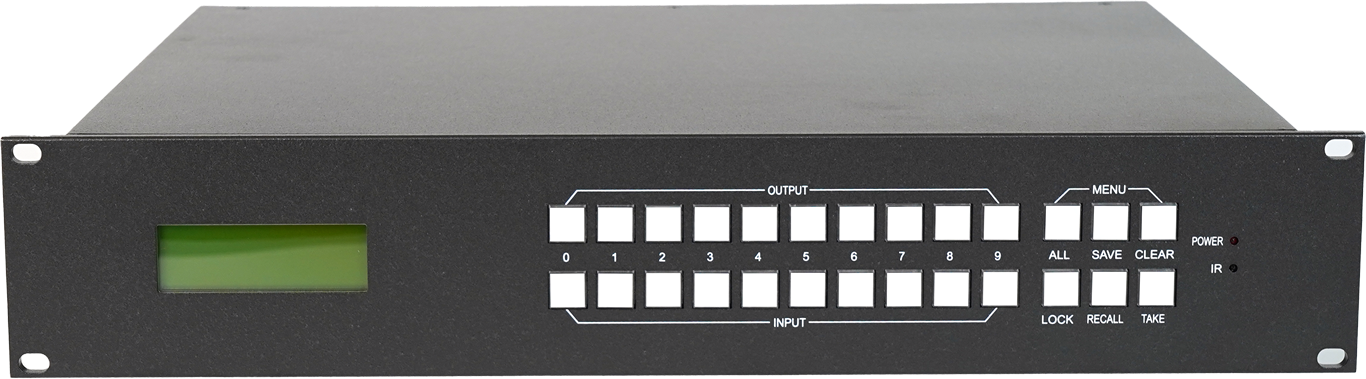

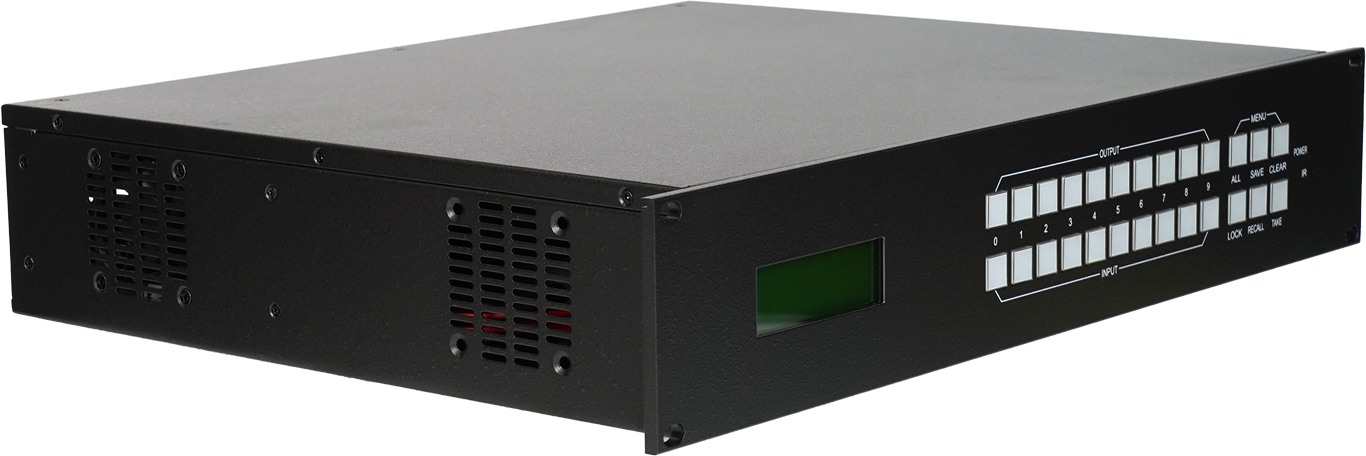

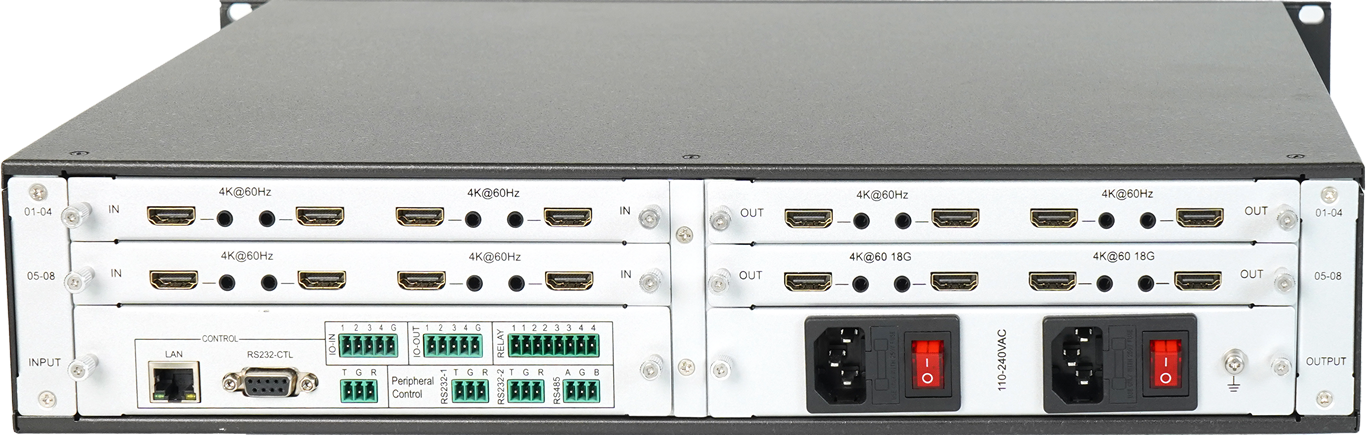

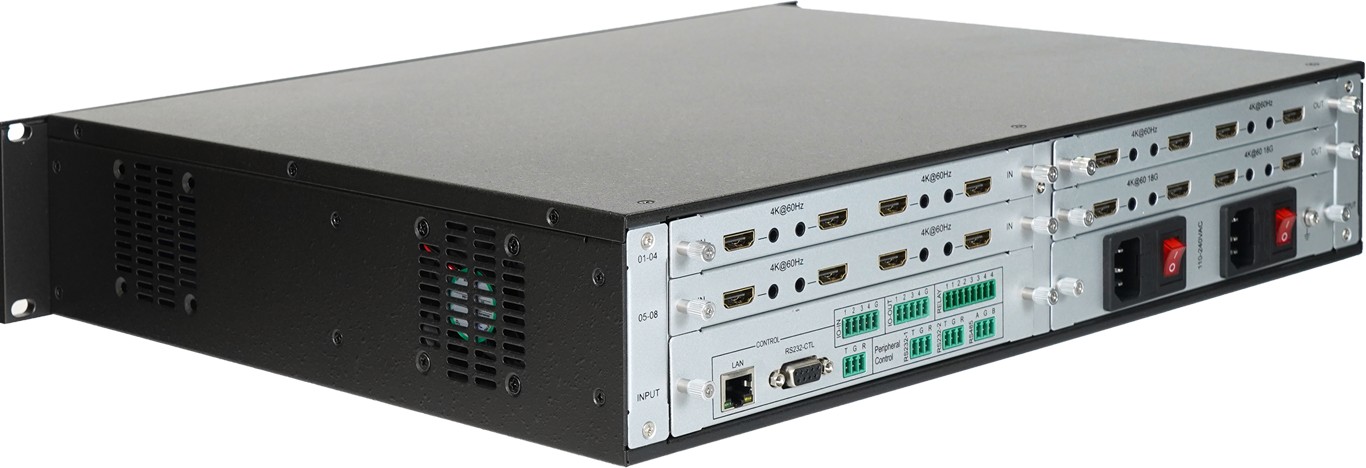

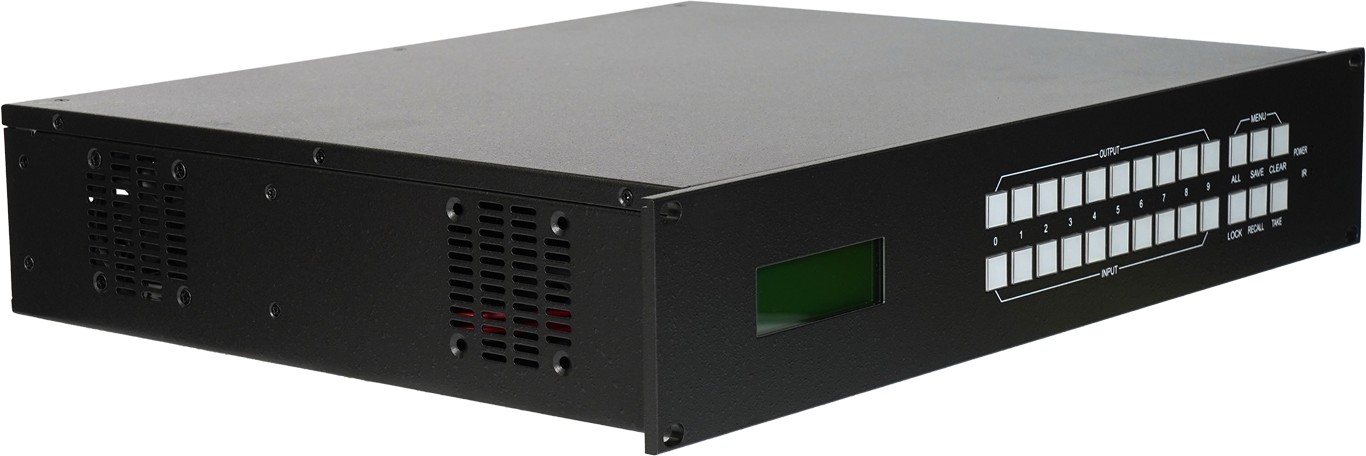

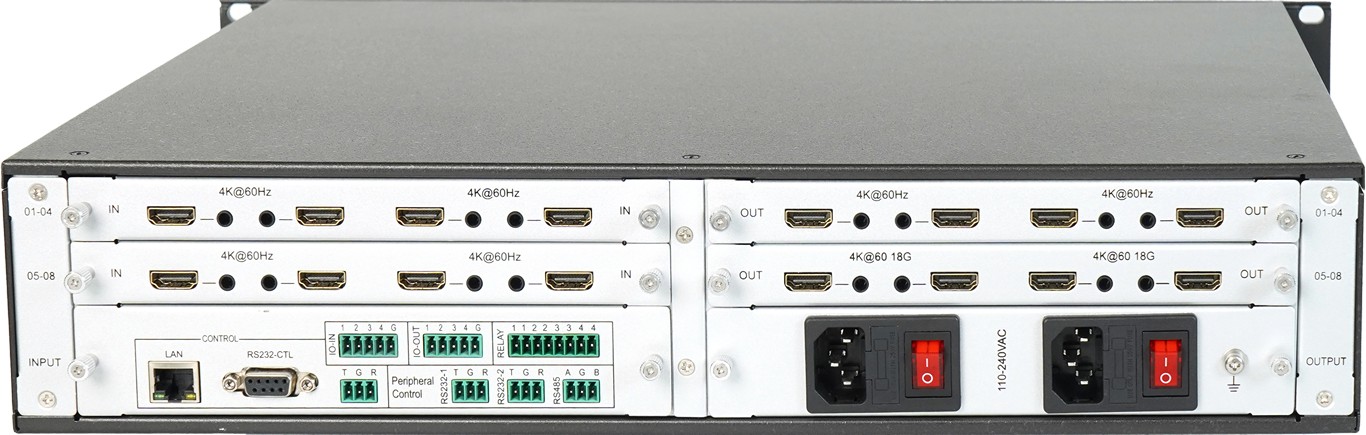

QVM0808£º8x8 2U Housing
 |

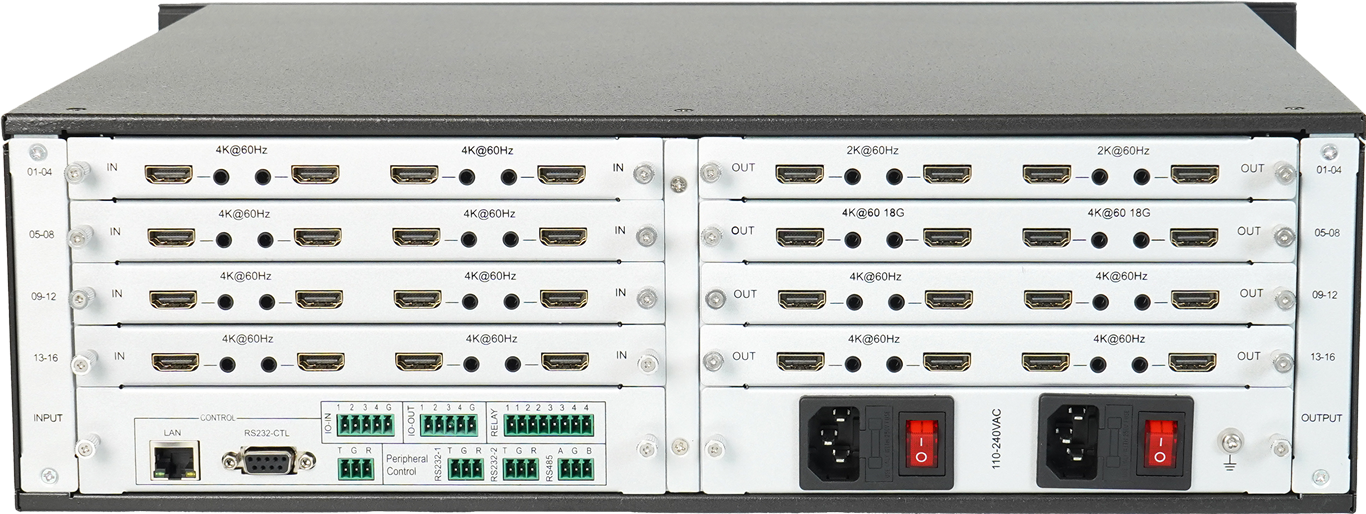

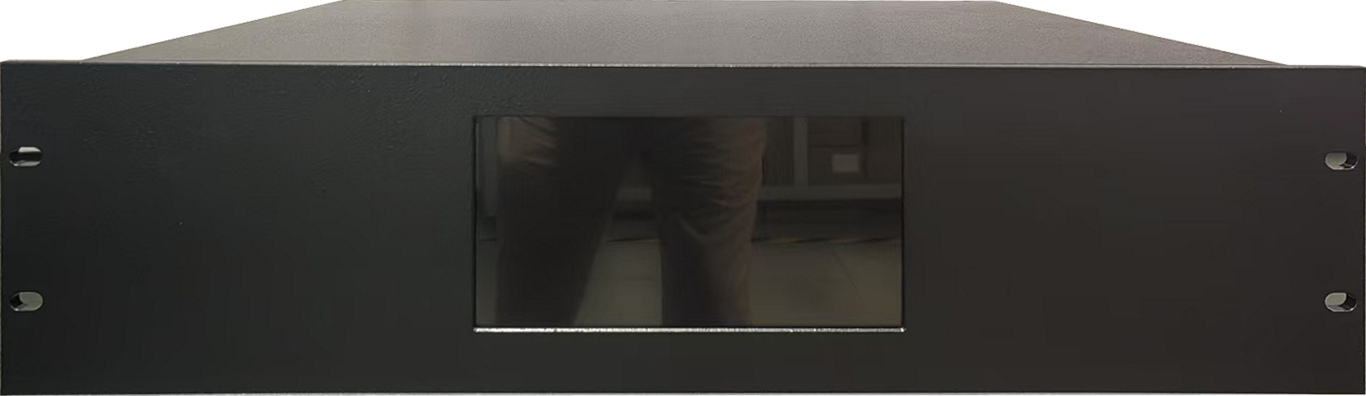

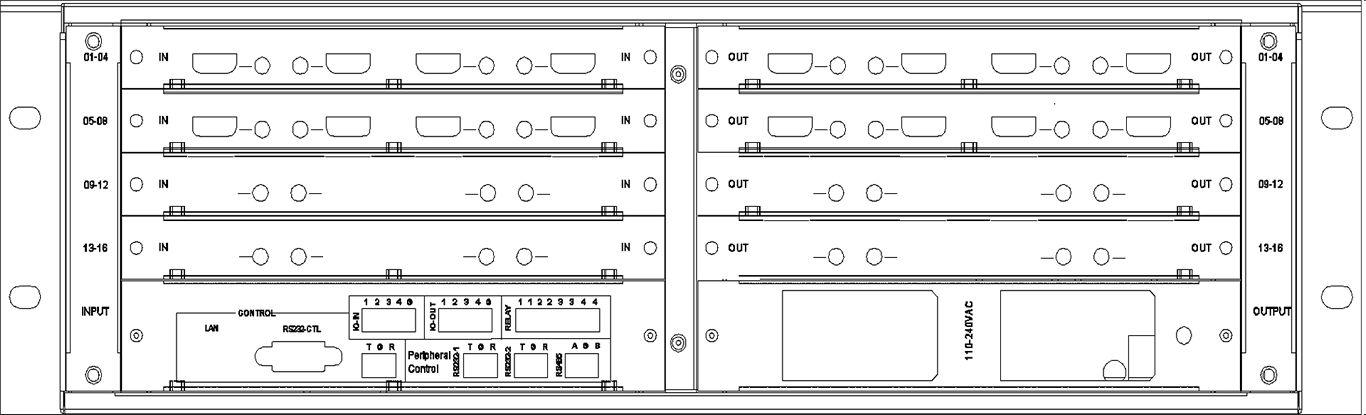

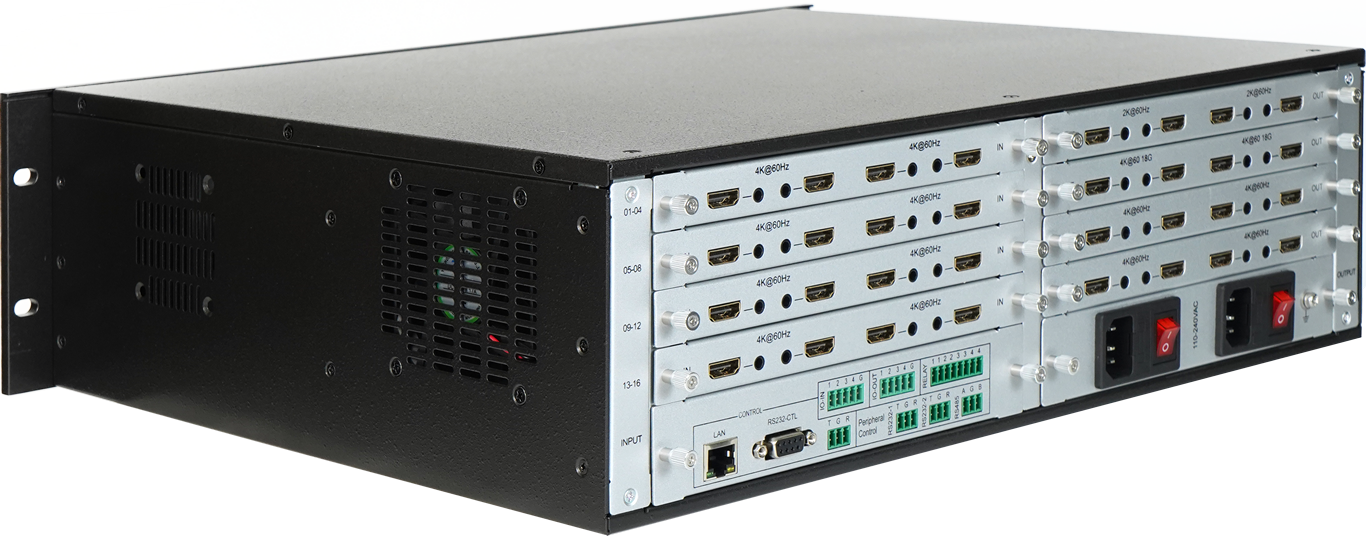

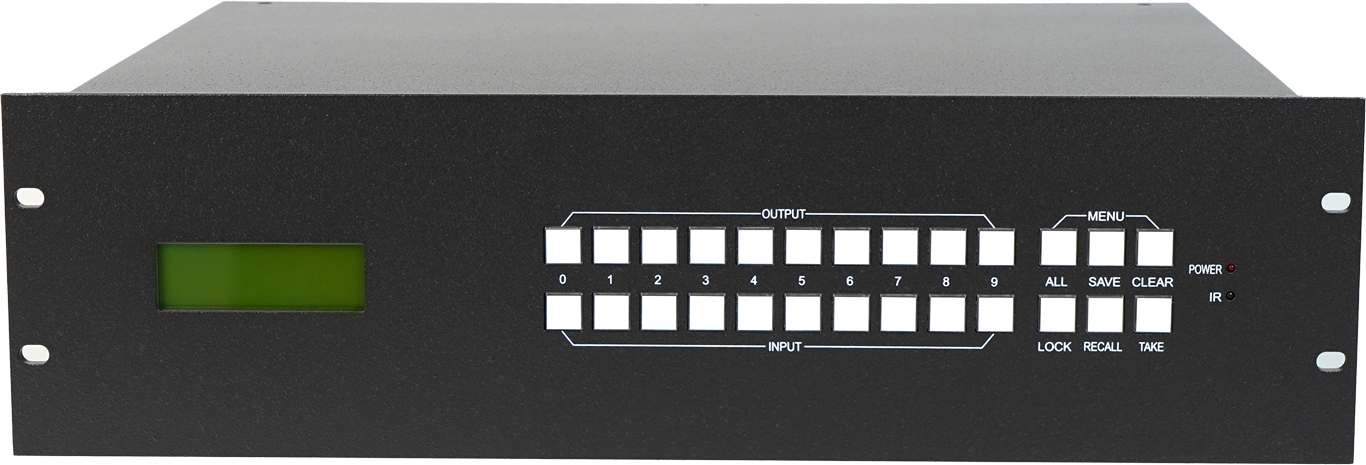

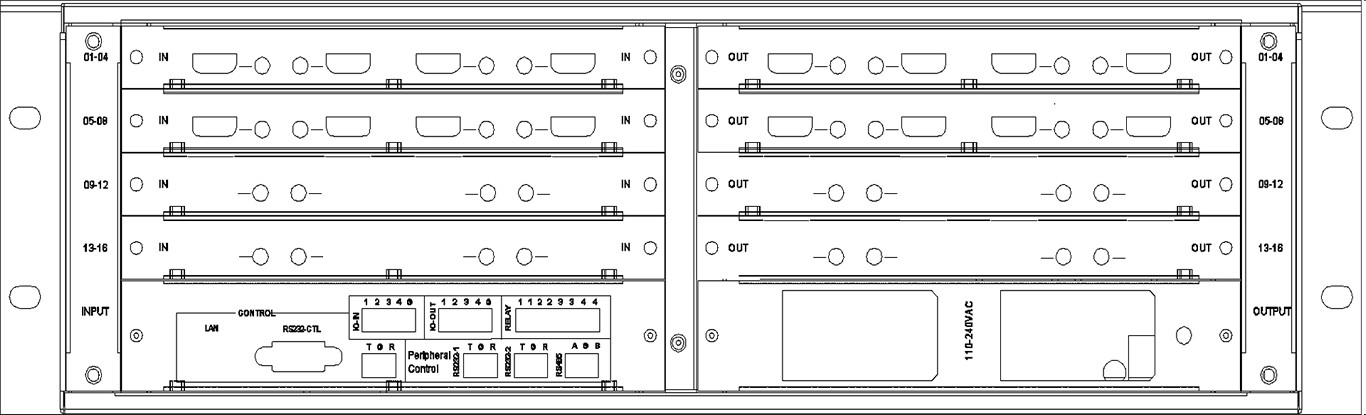

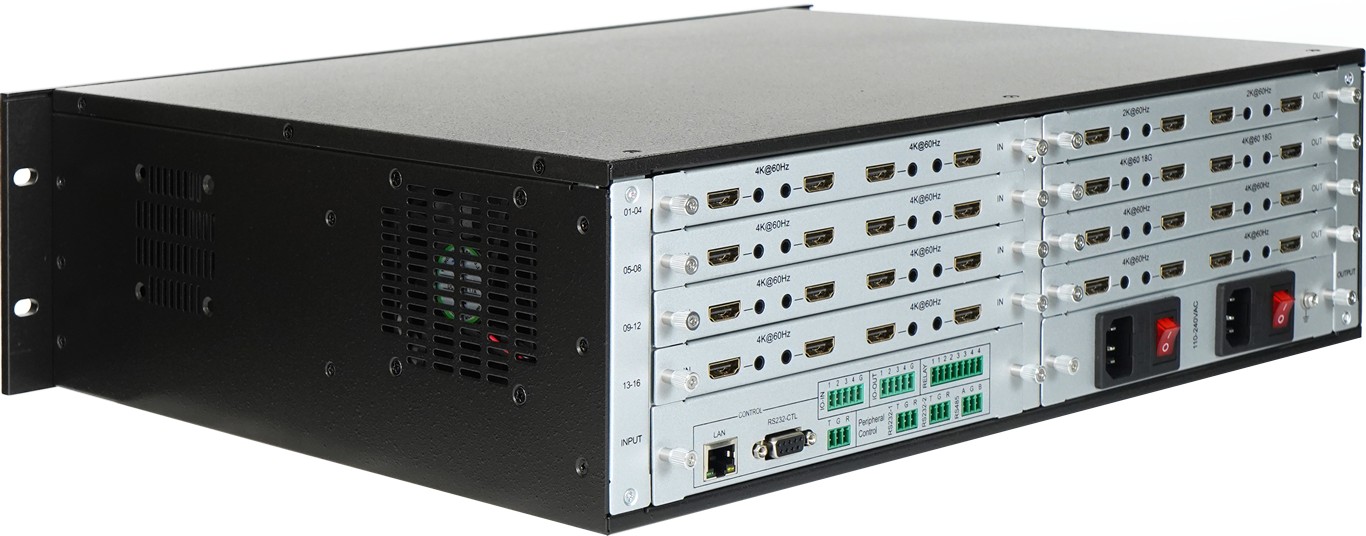

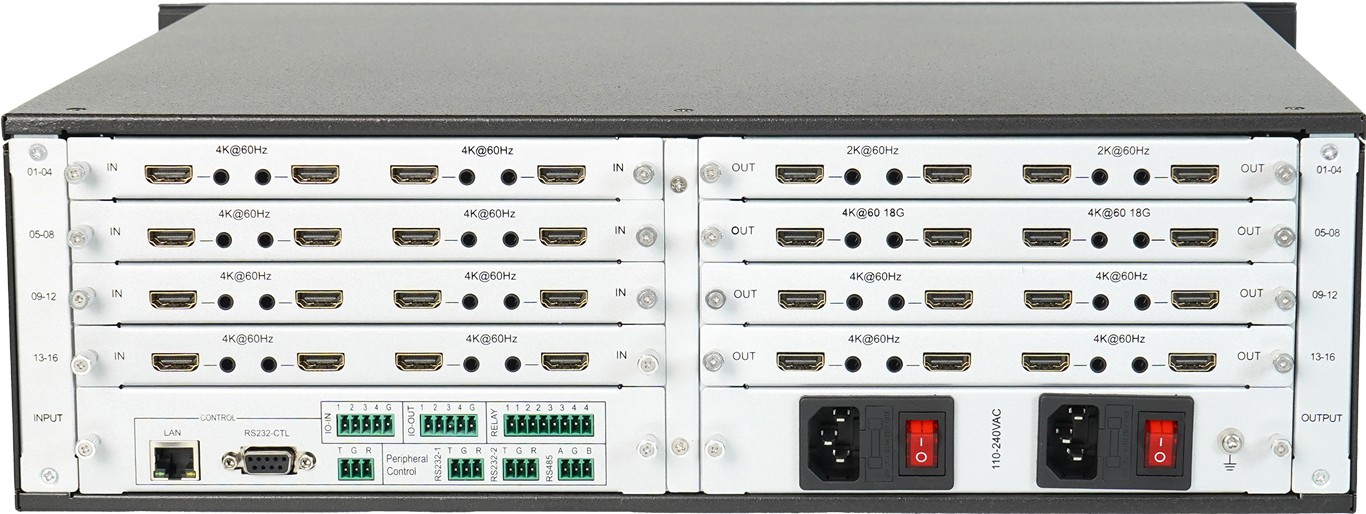

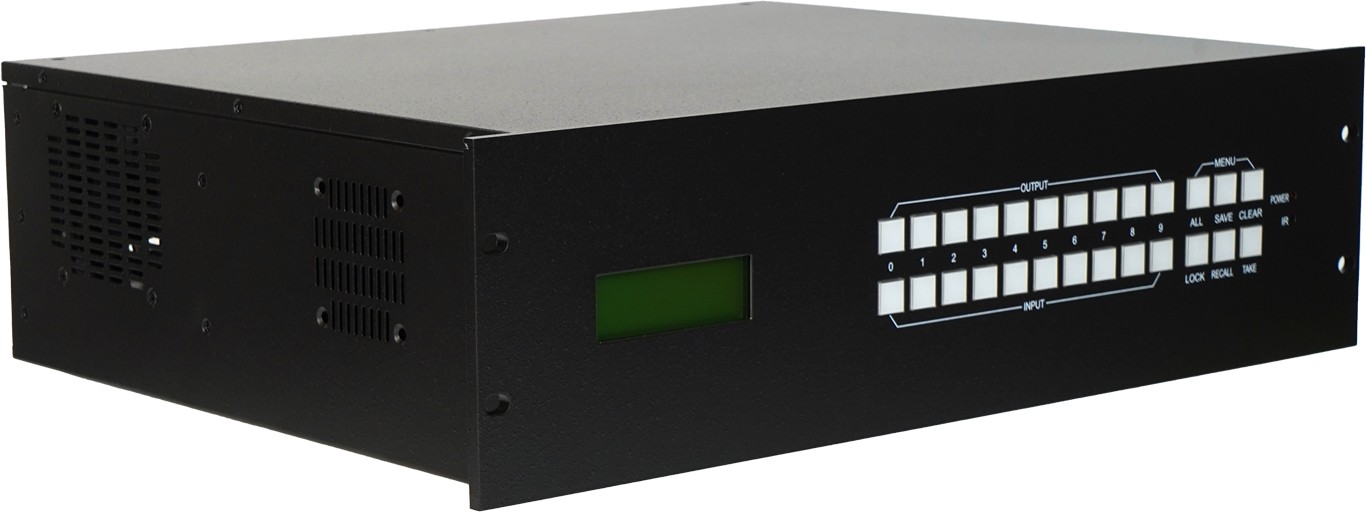

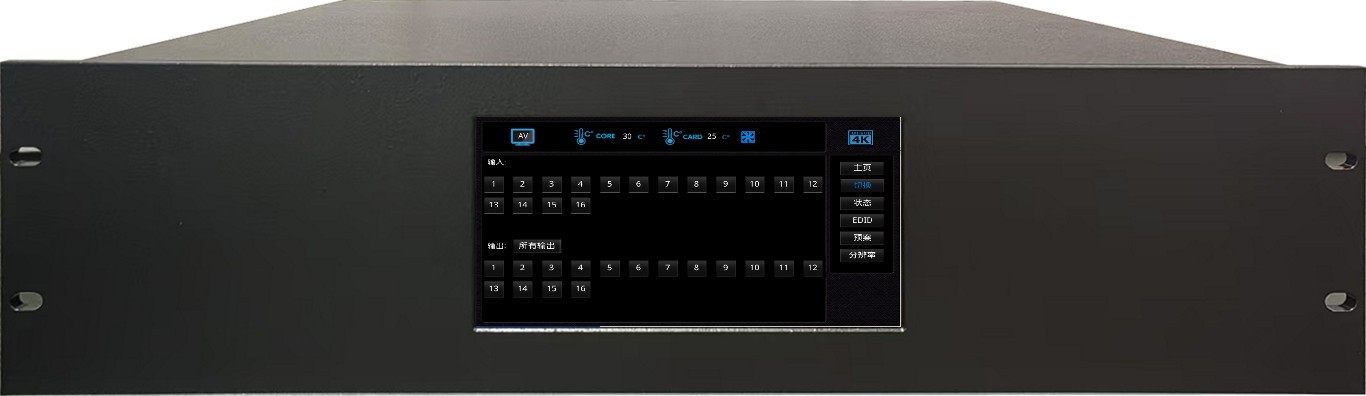

QVM1616£º16x16 3U Housing
|

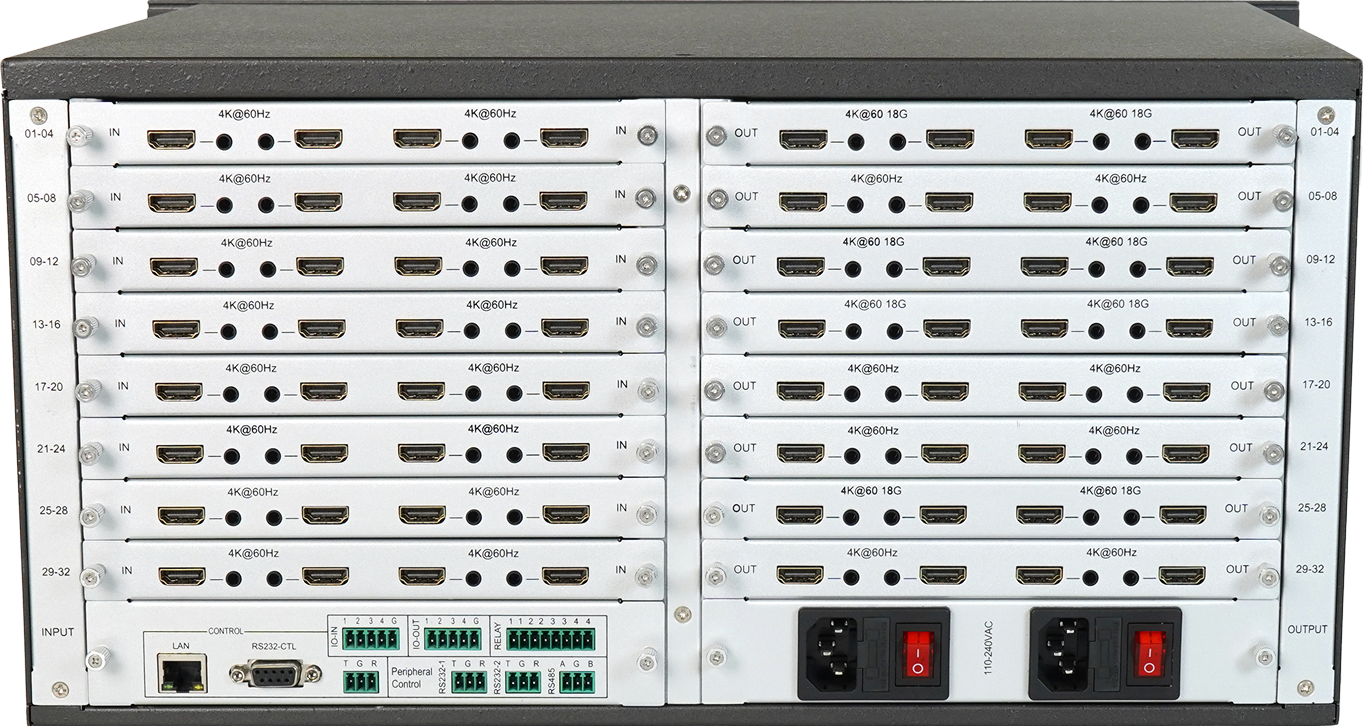

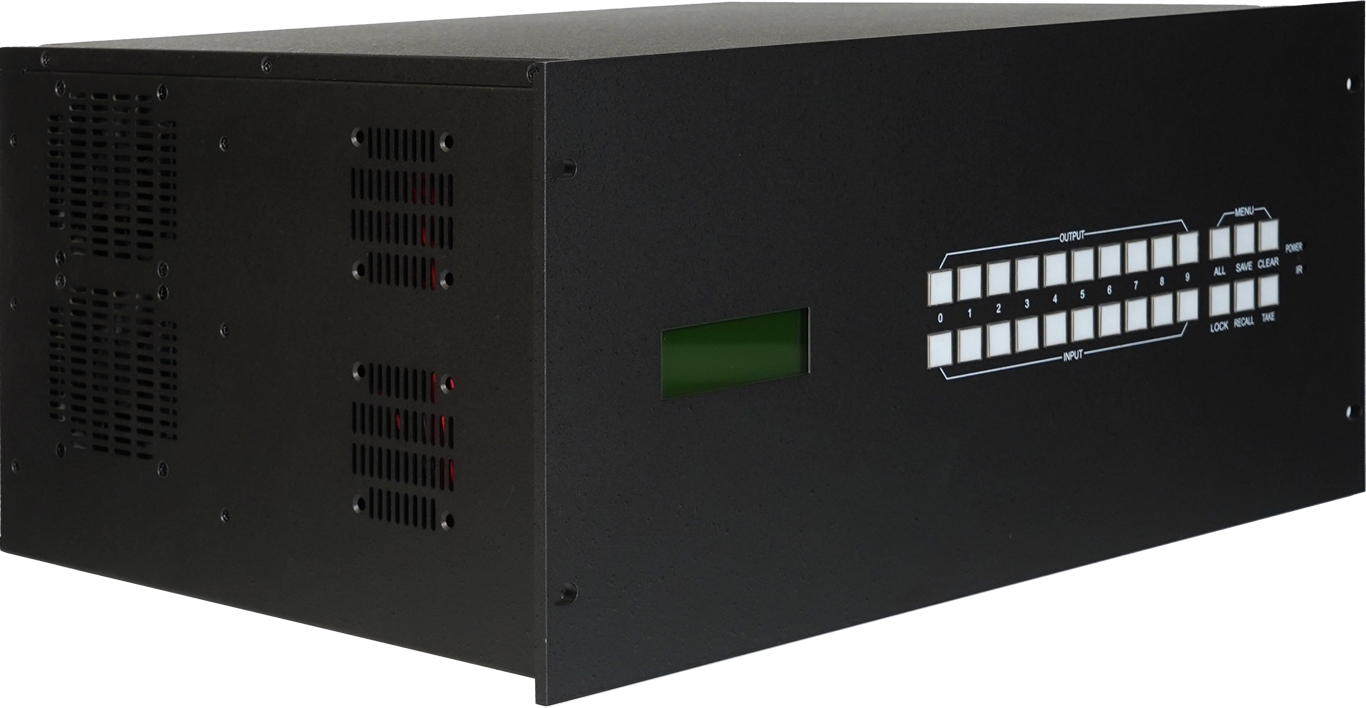

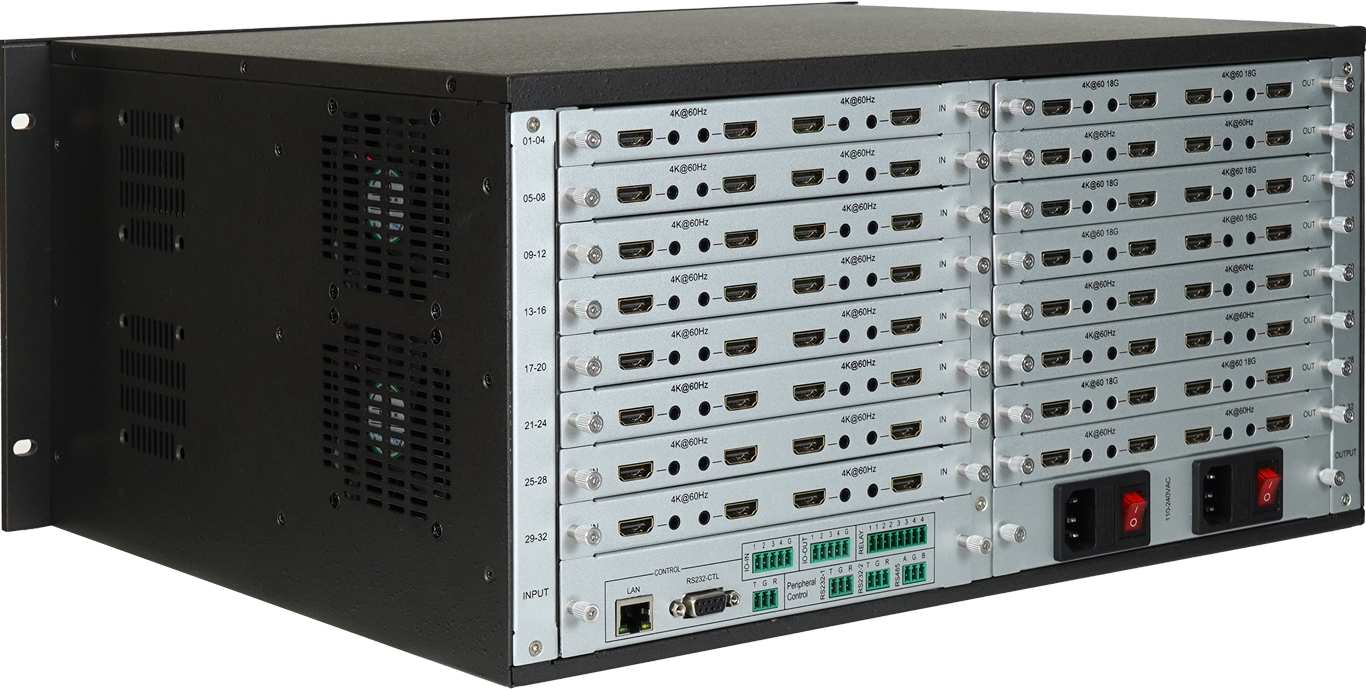

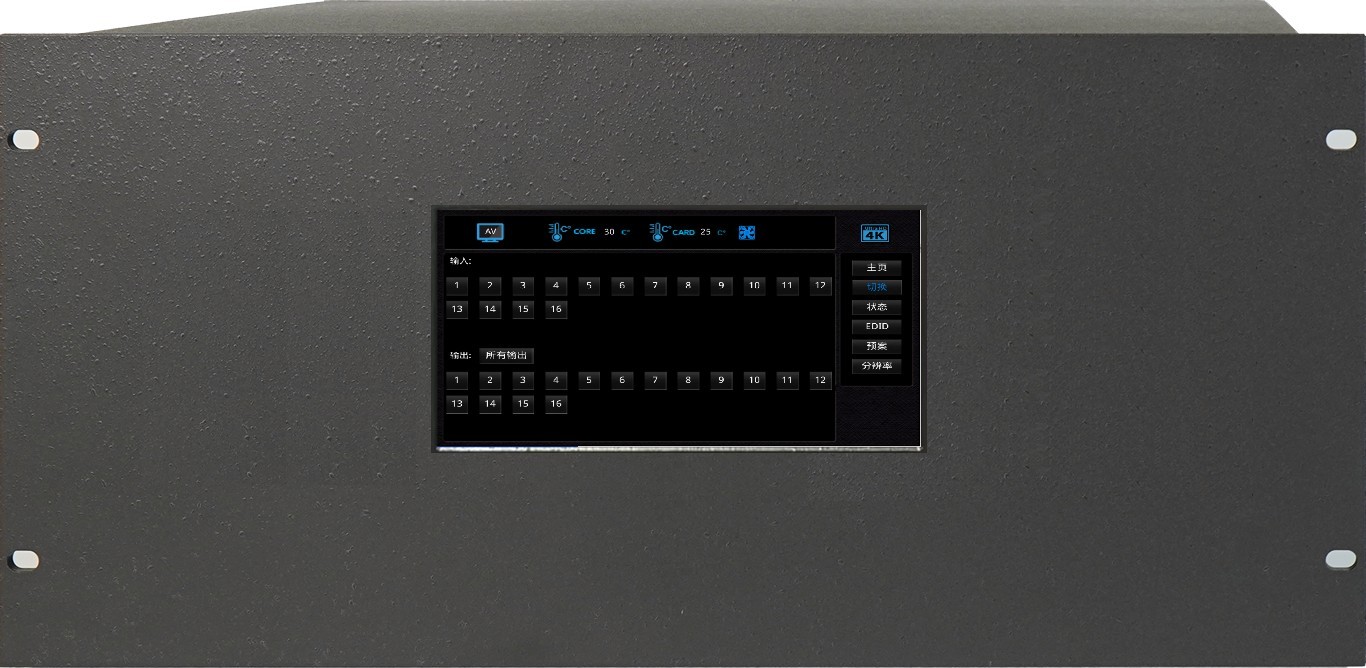

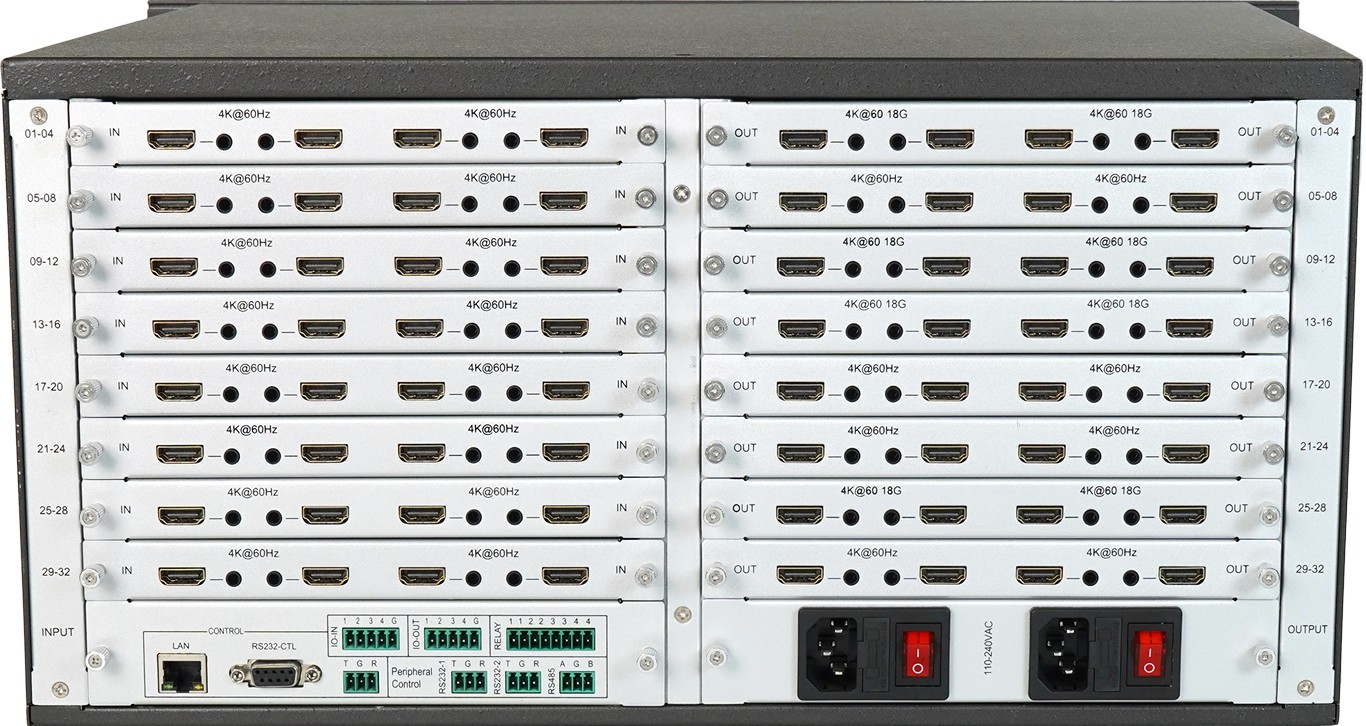

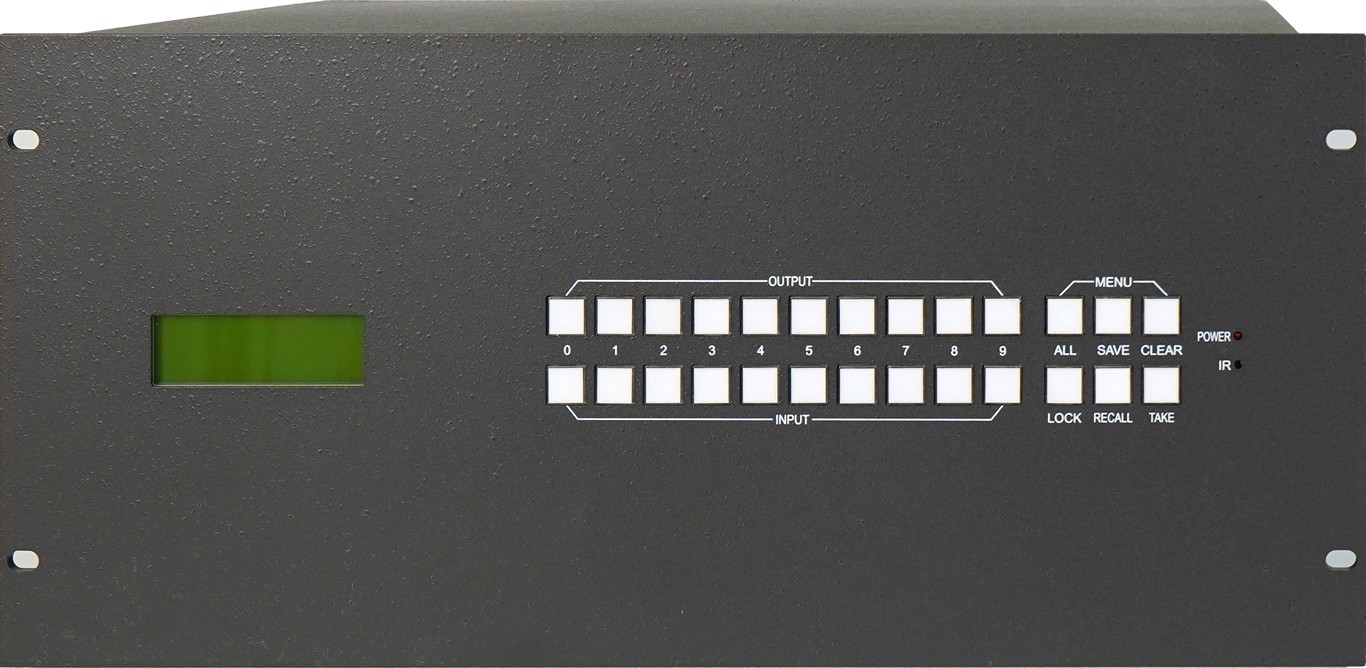

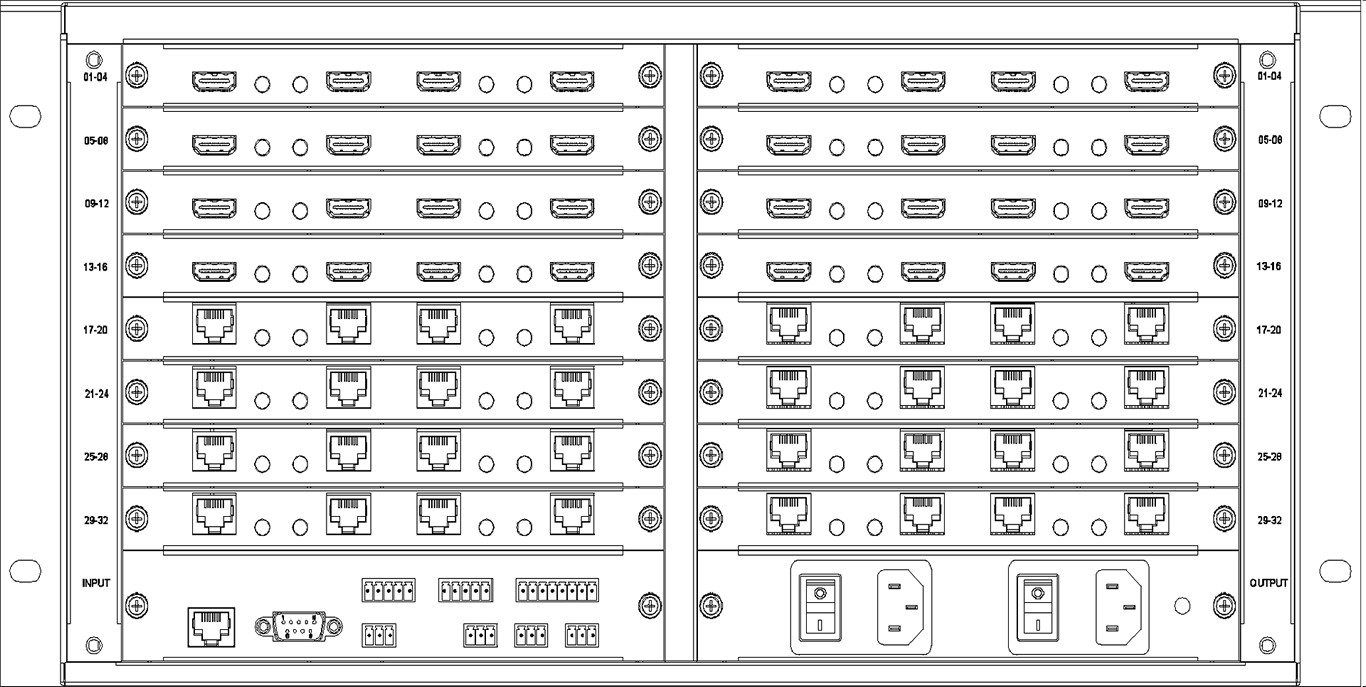

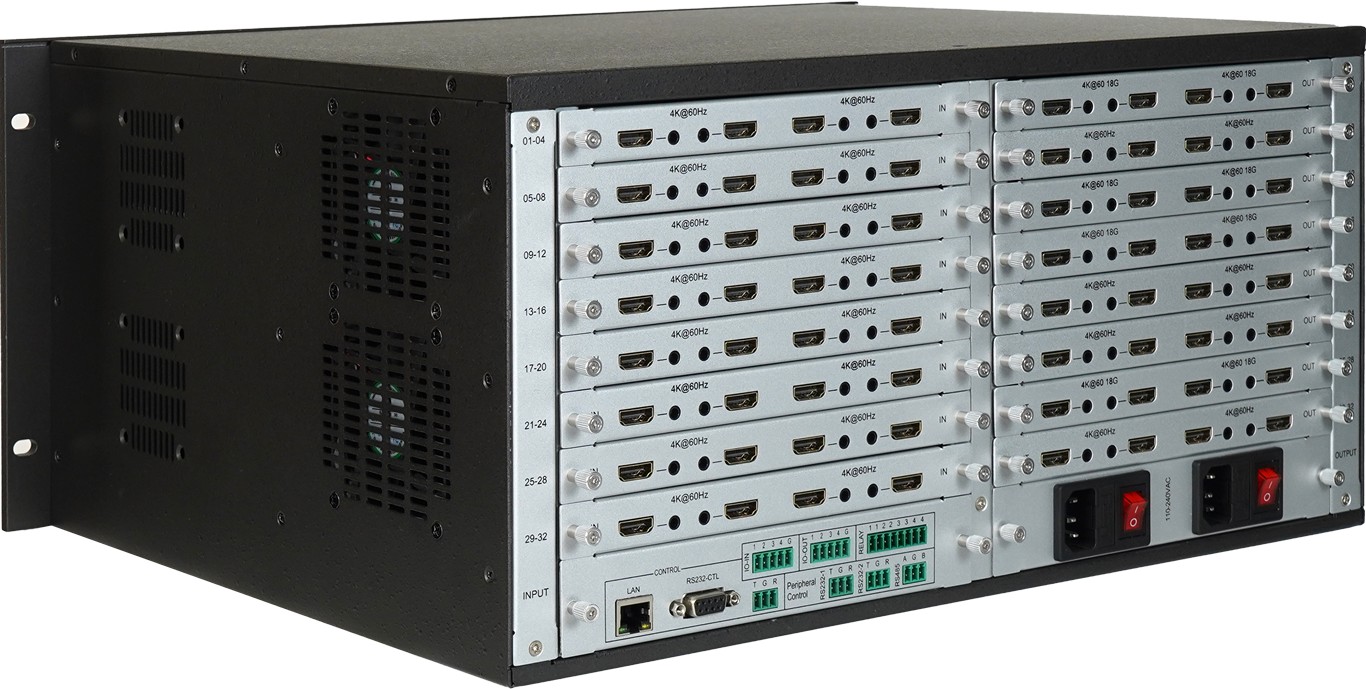

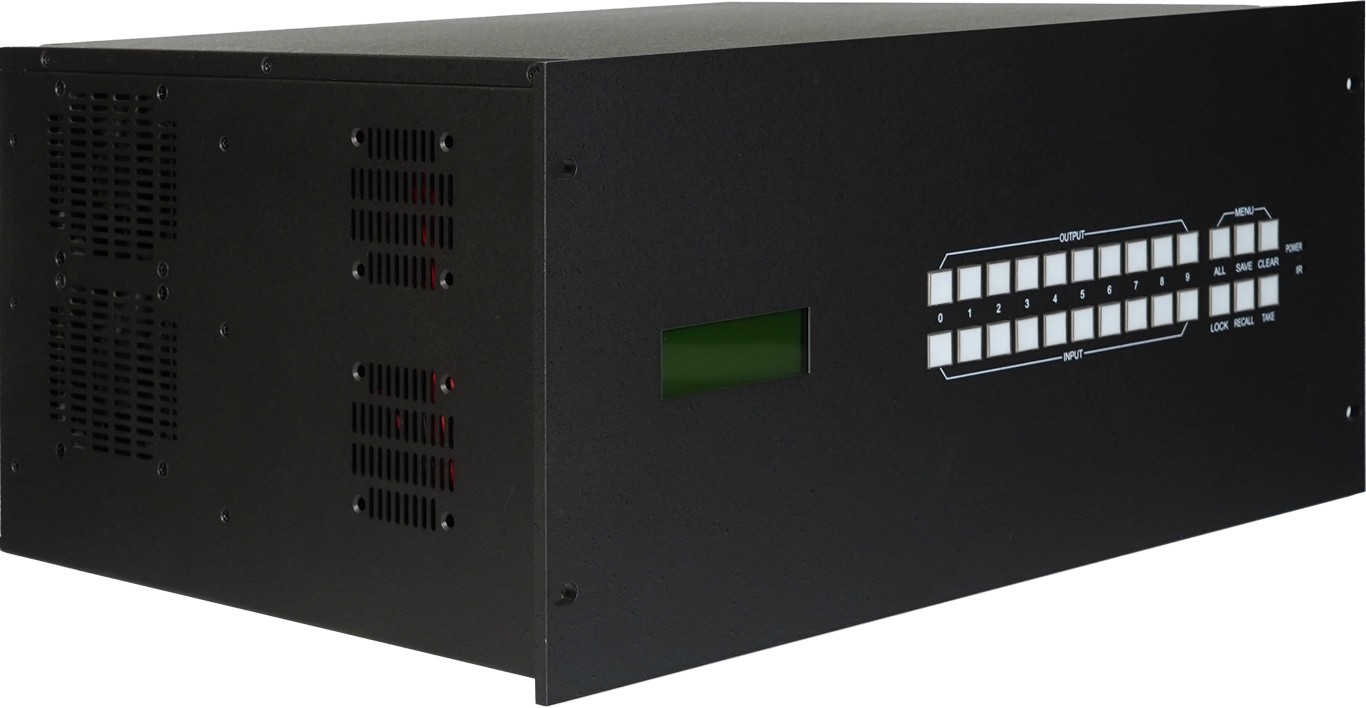

QVM3232£º32x32 5U Housing
|

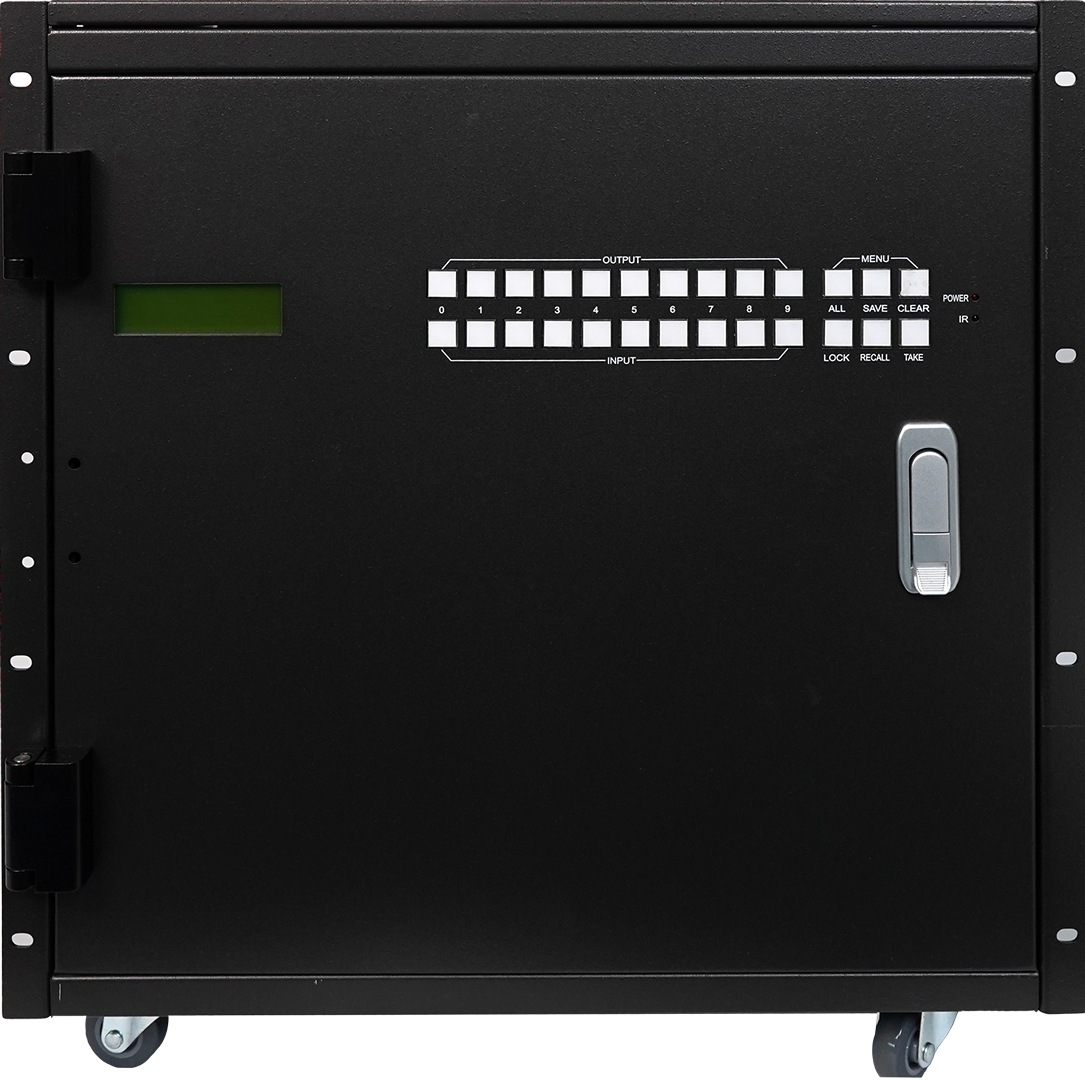

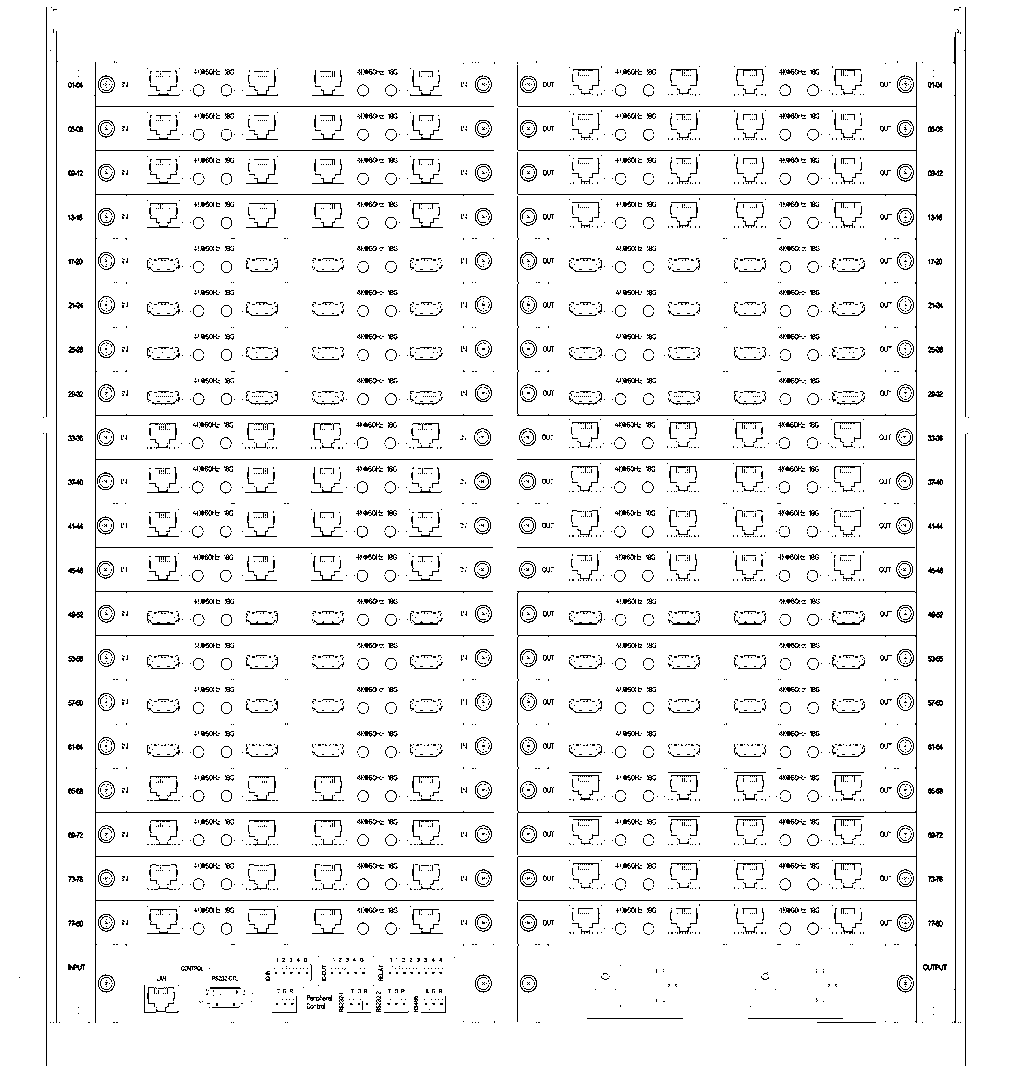

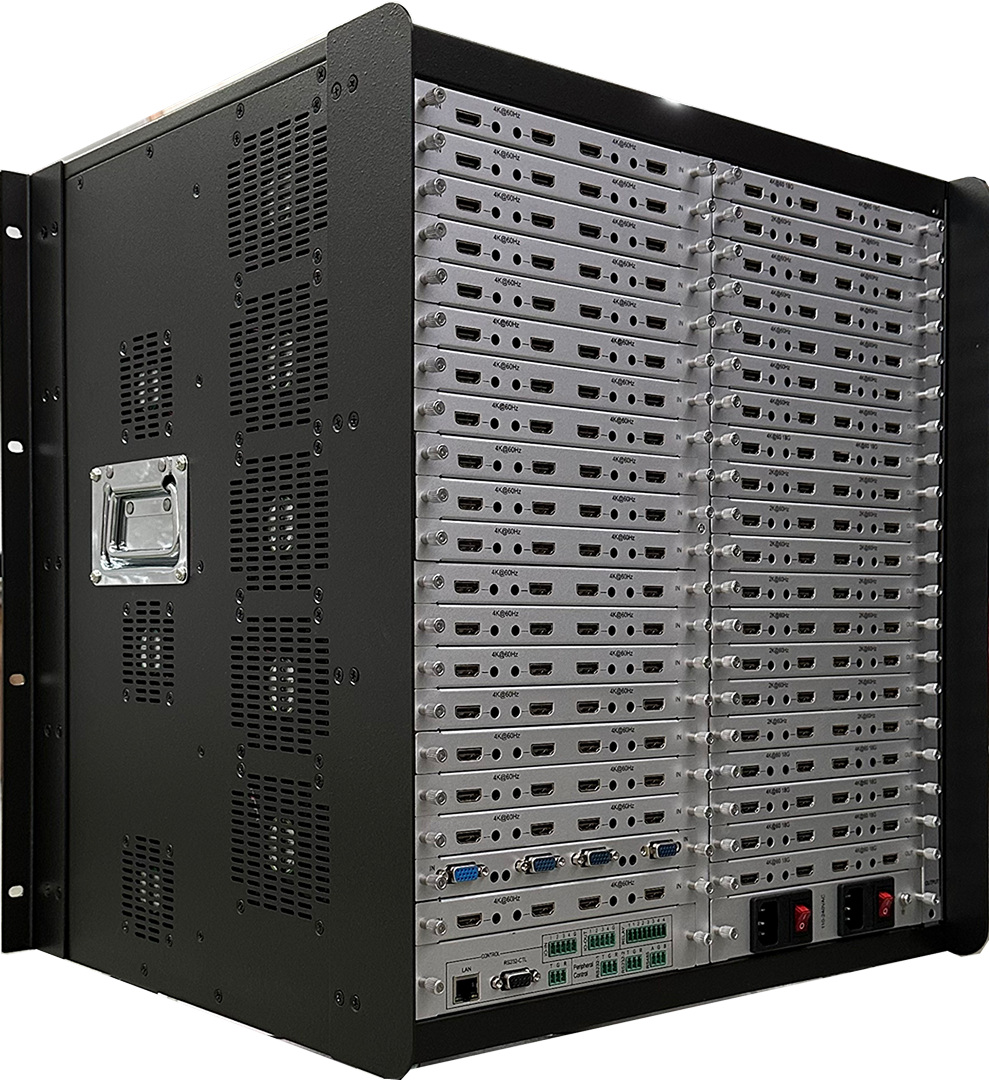

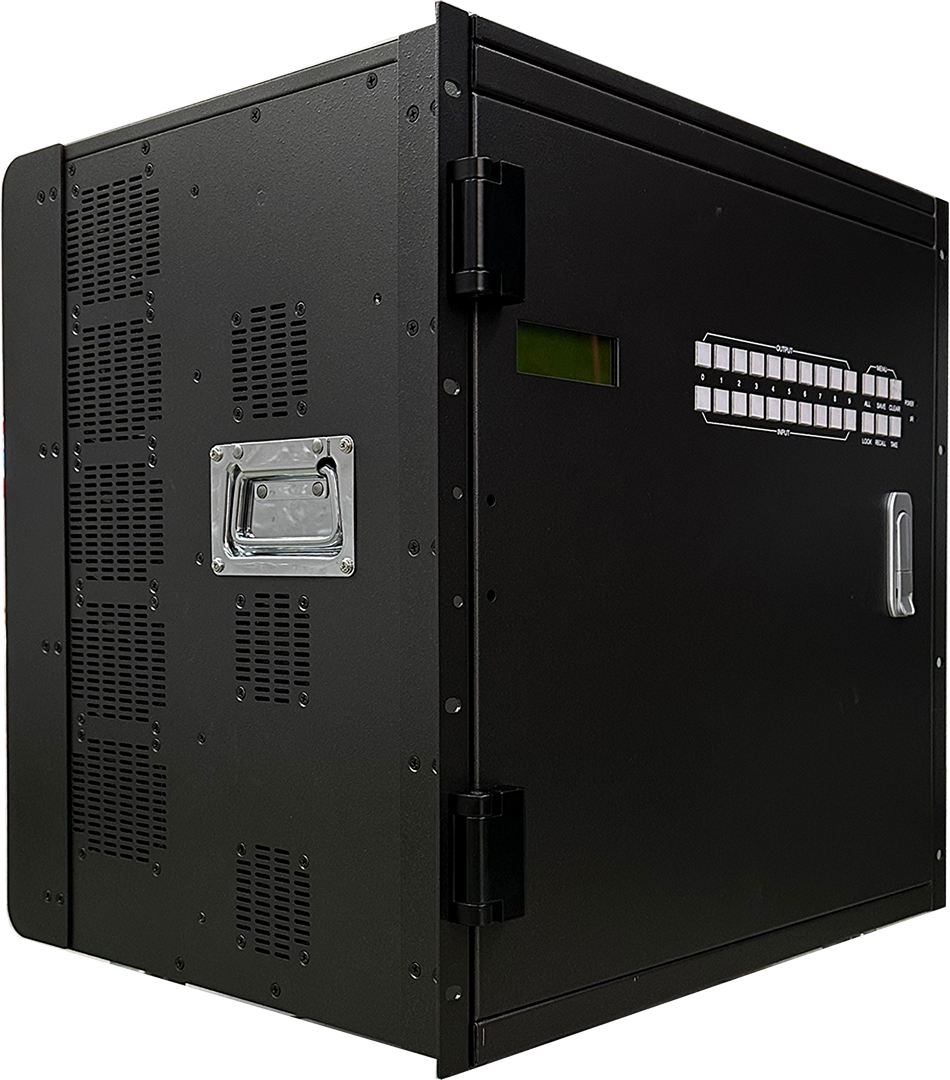

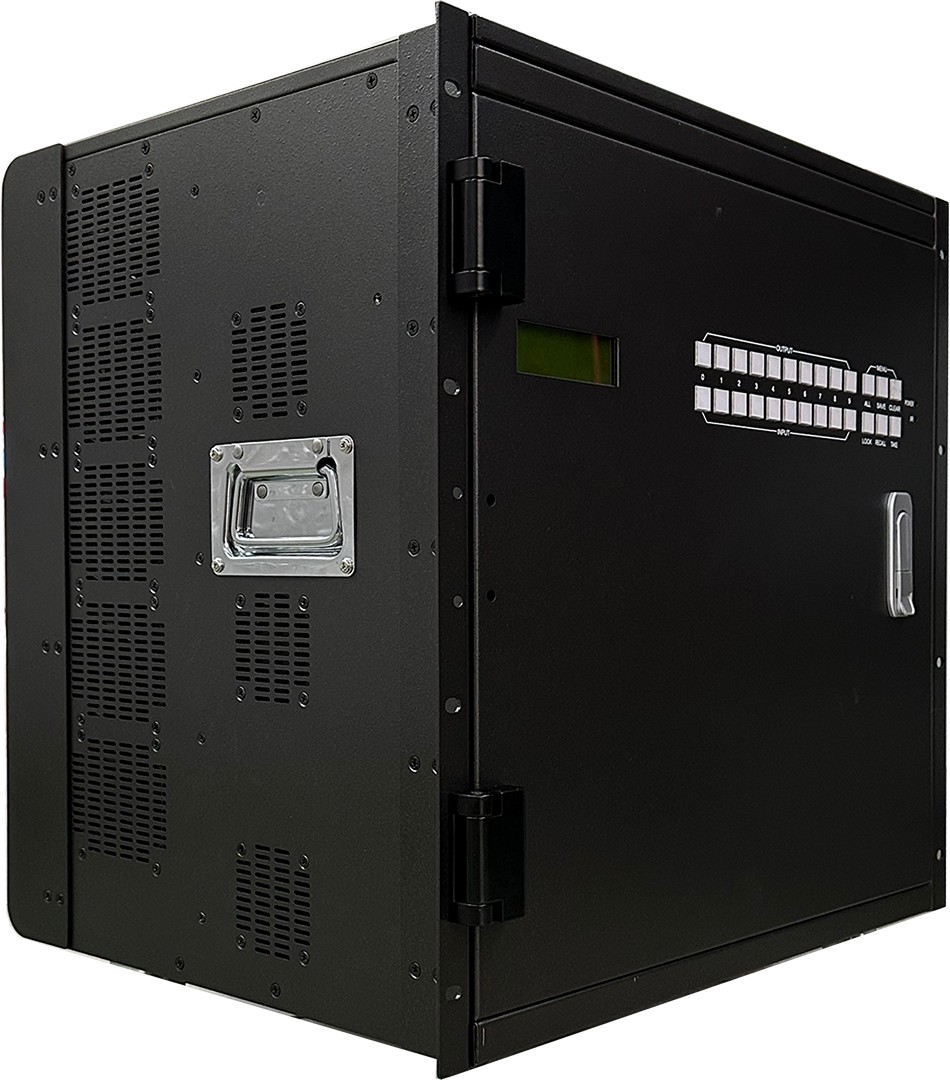

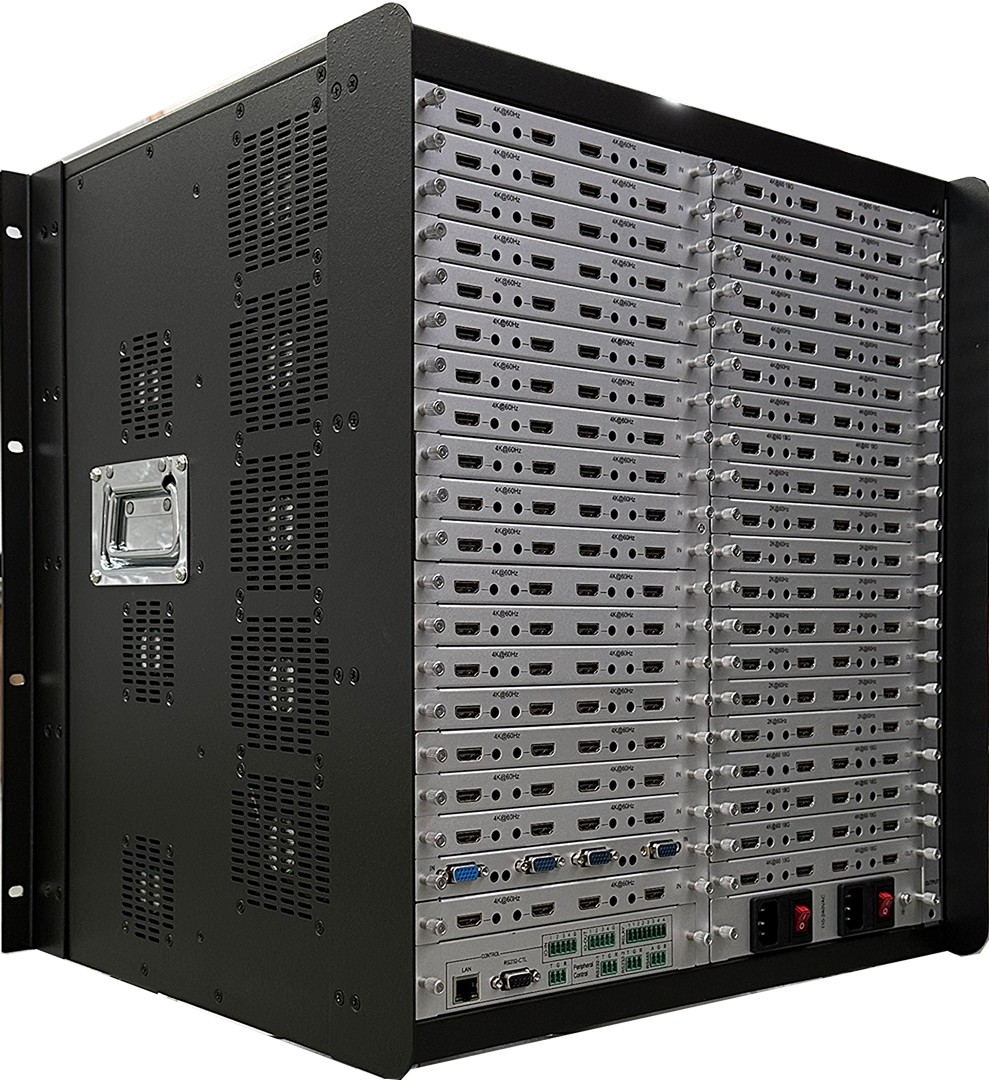

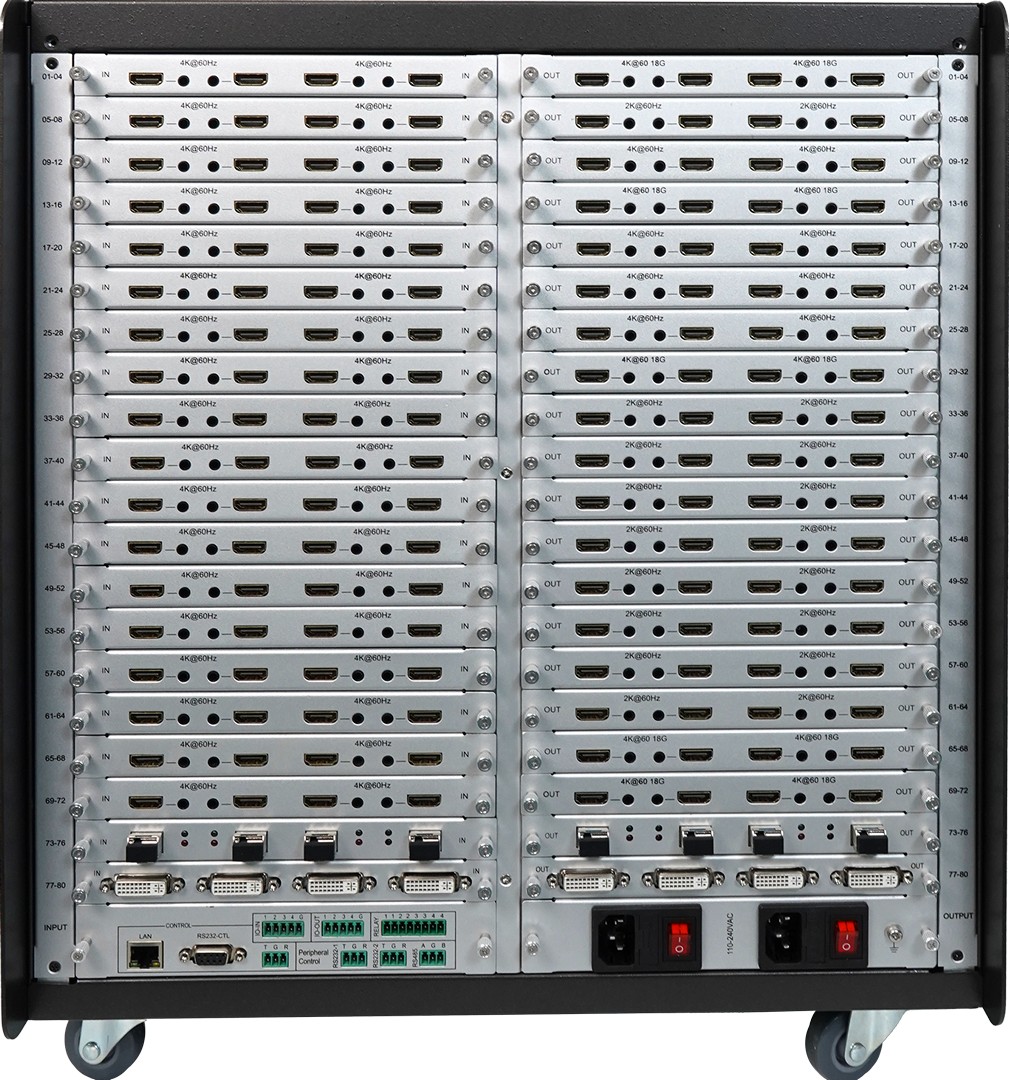

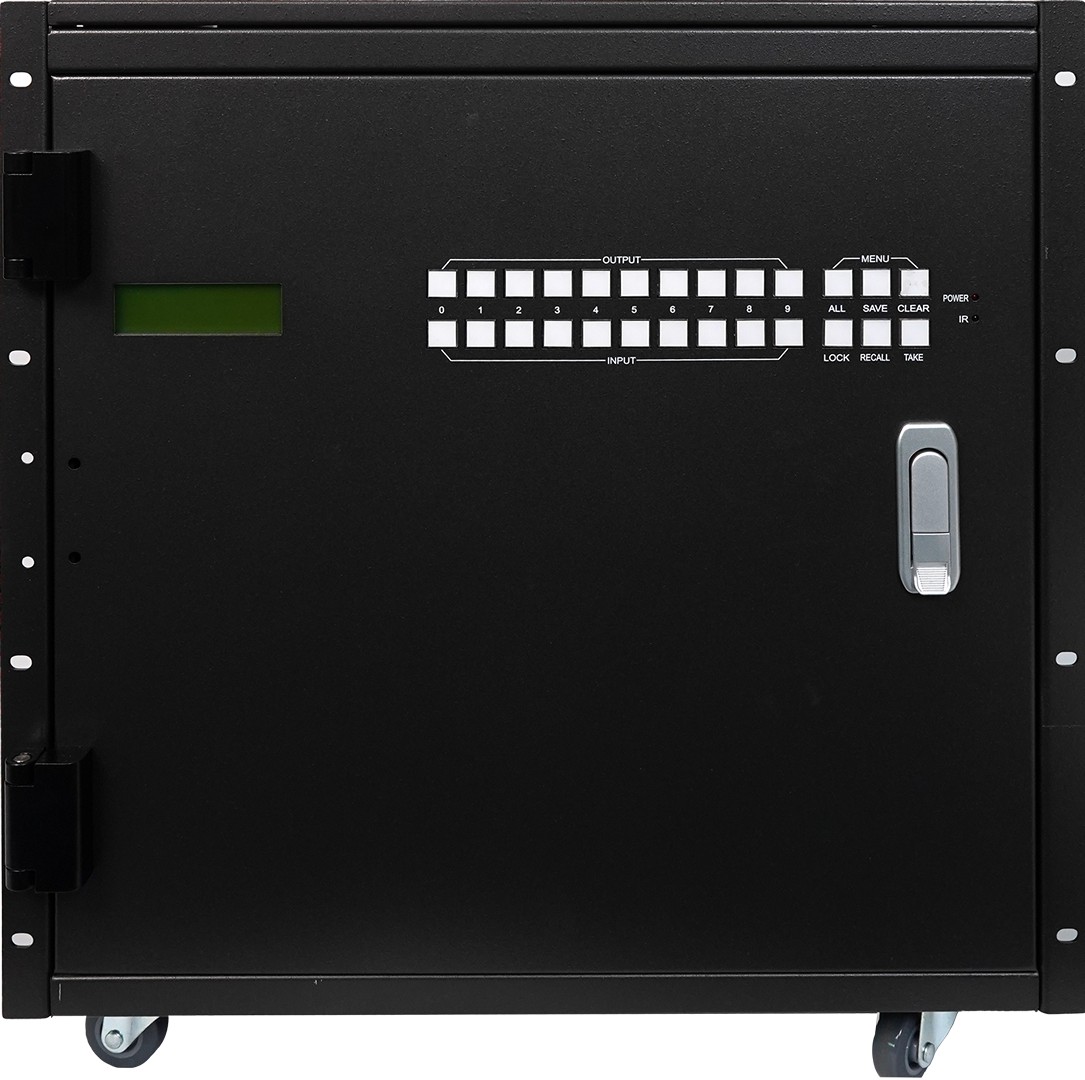

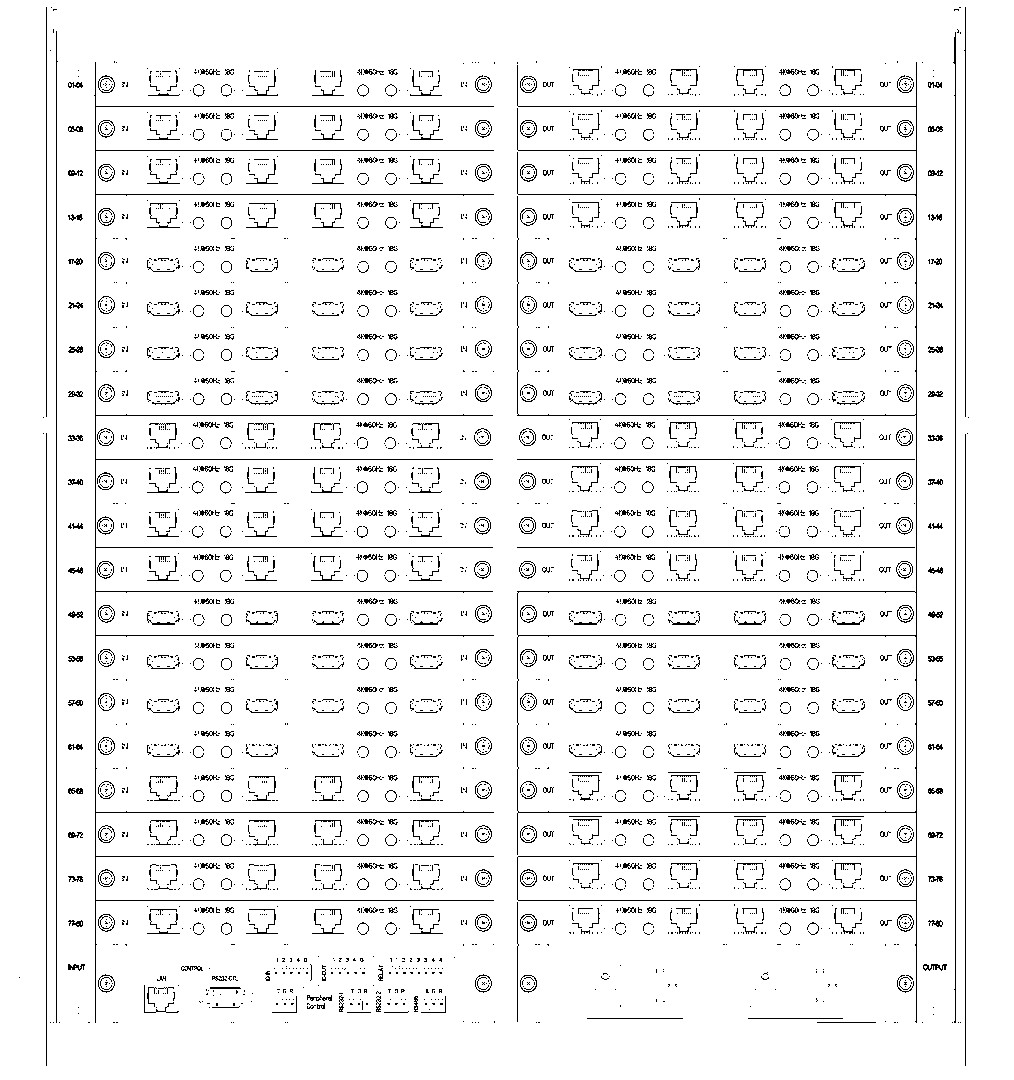

QVM8080£º80x80 11U Housing
|
QVM160£º160x160 22U Housing |
|

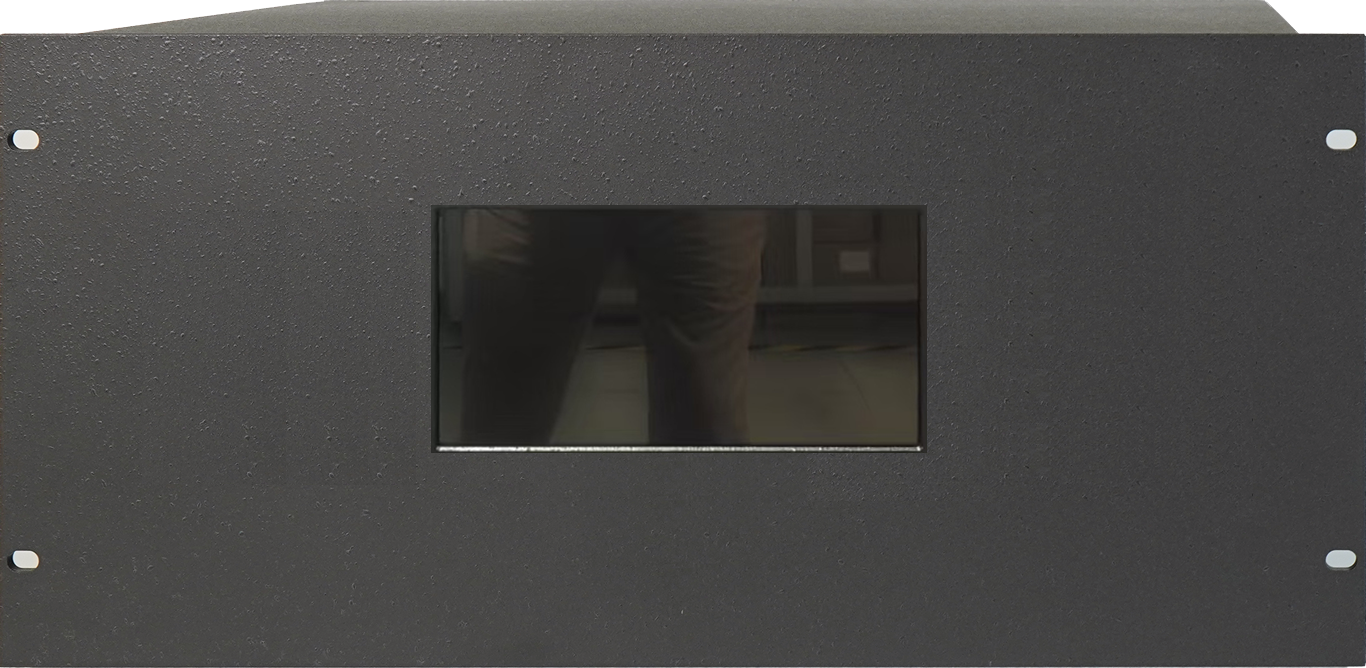

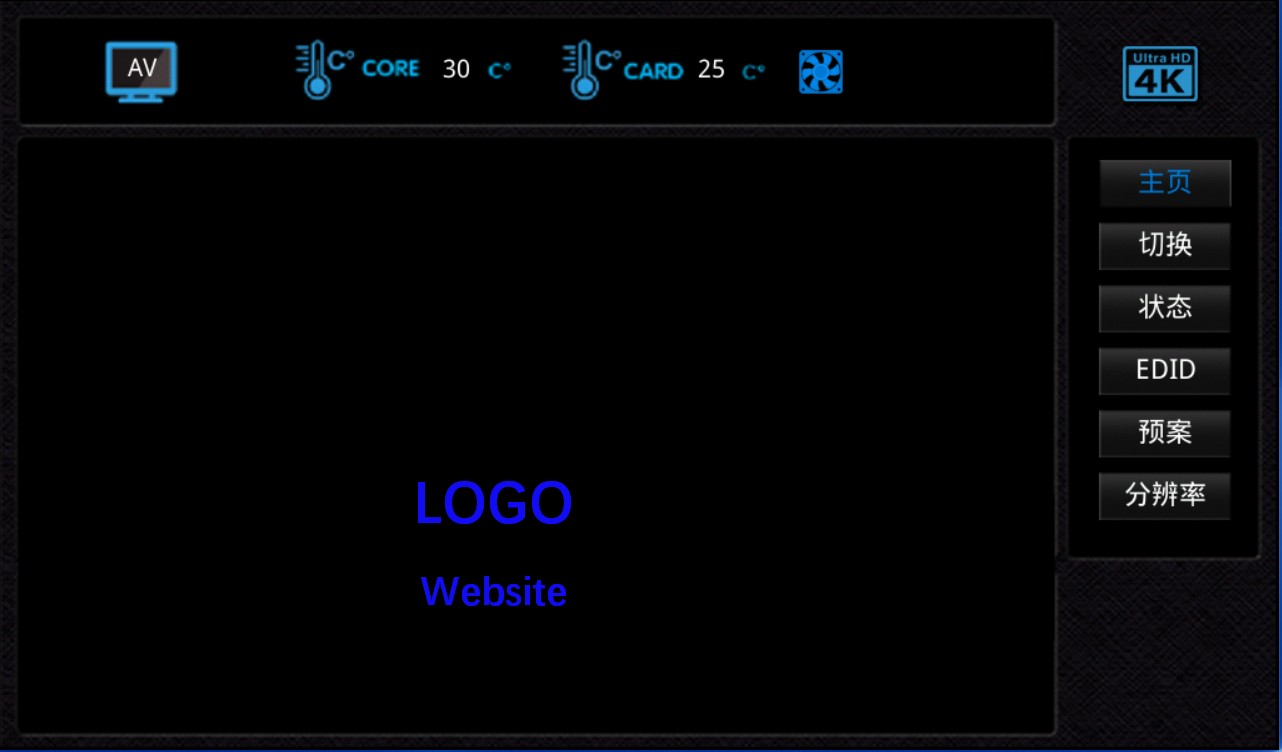

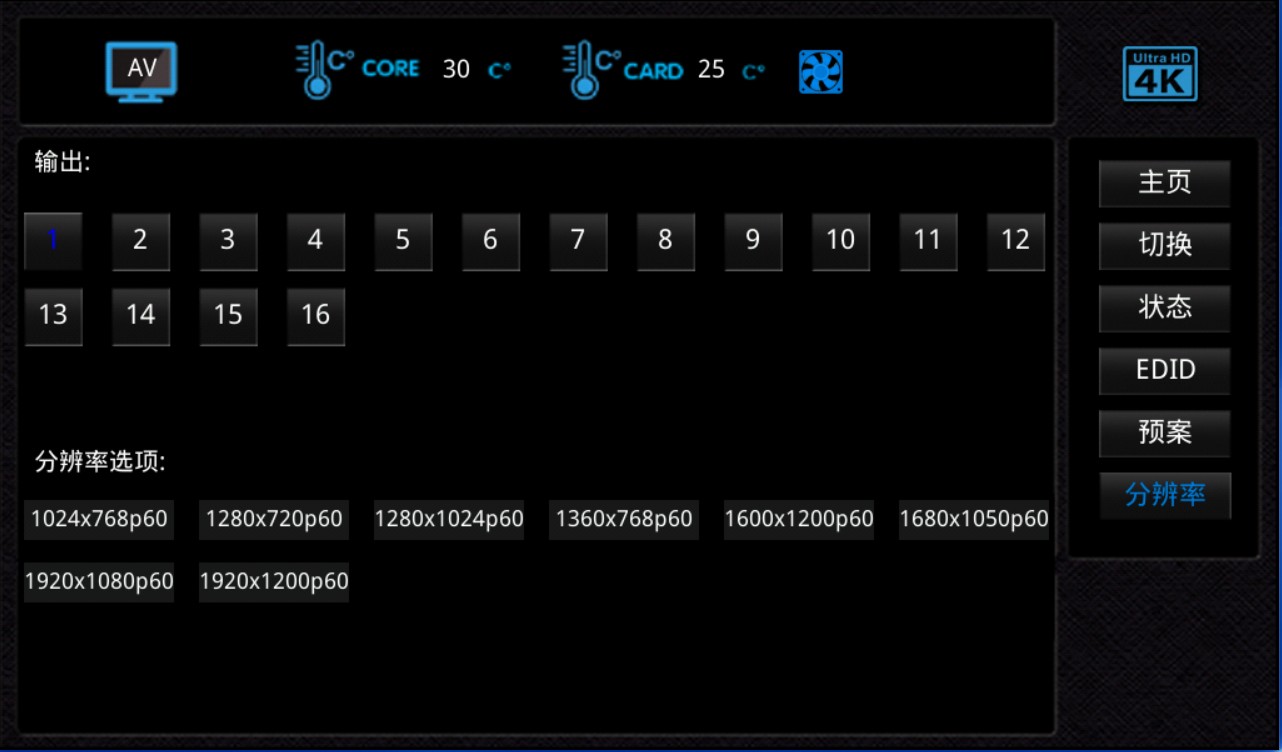

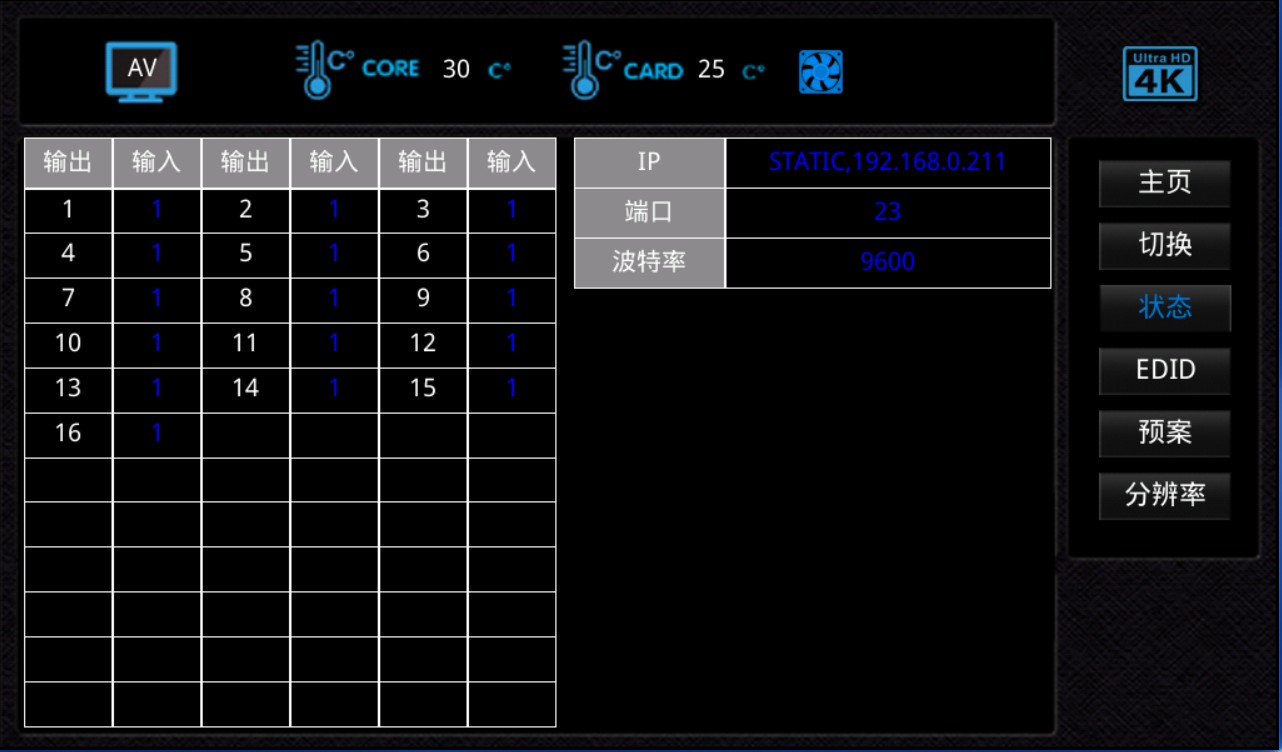

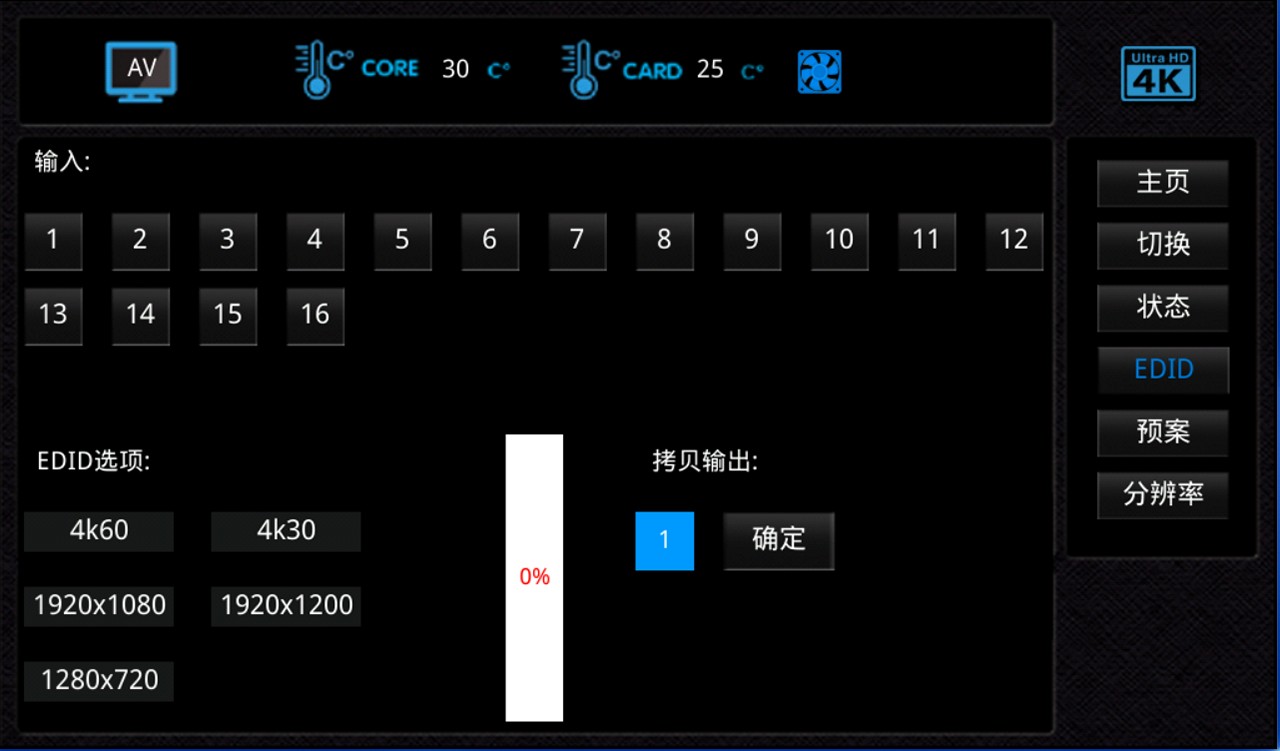

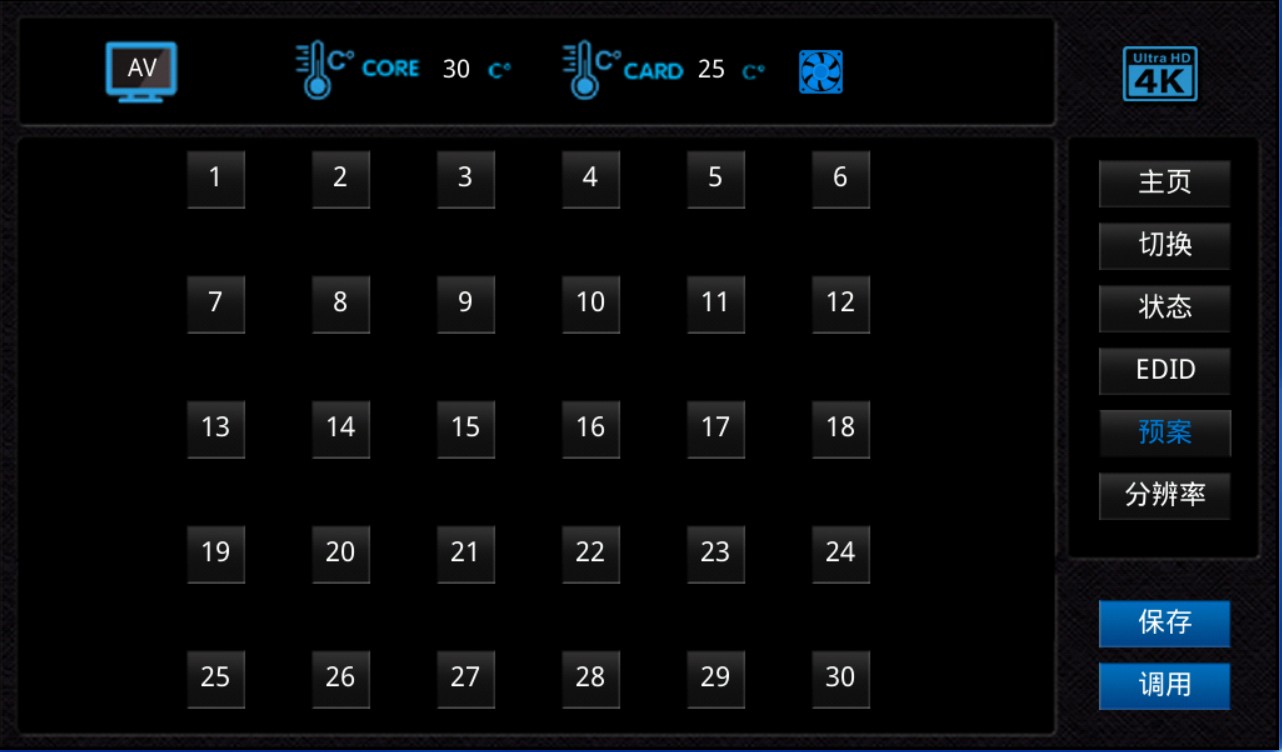

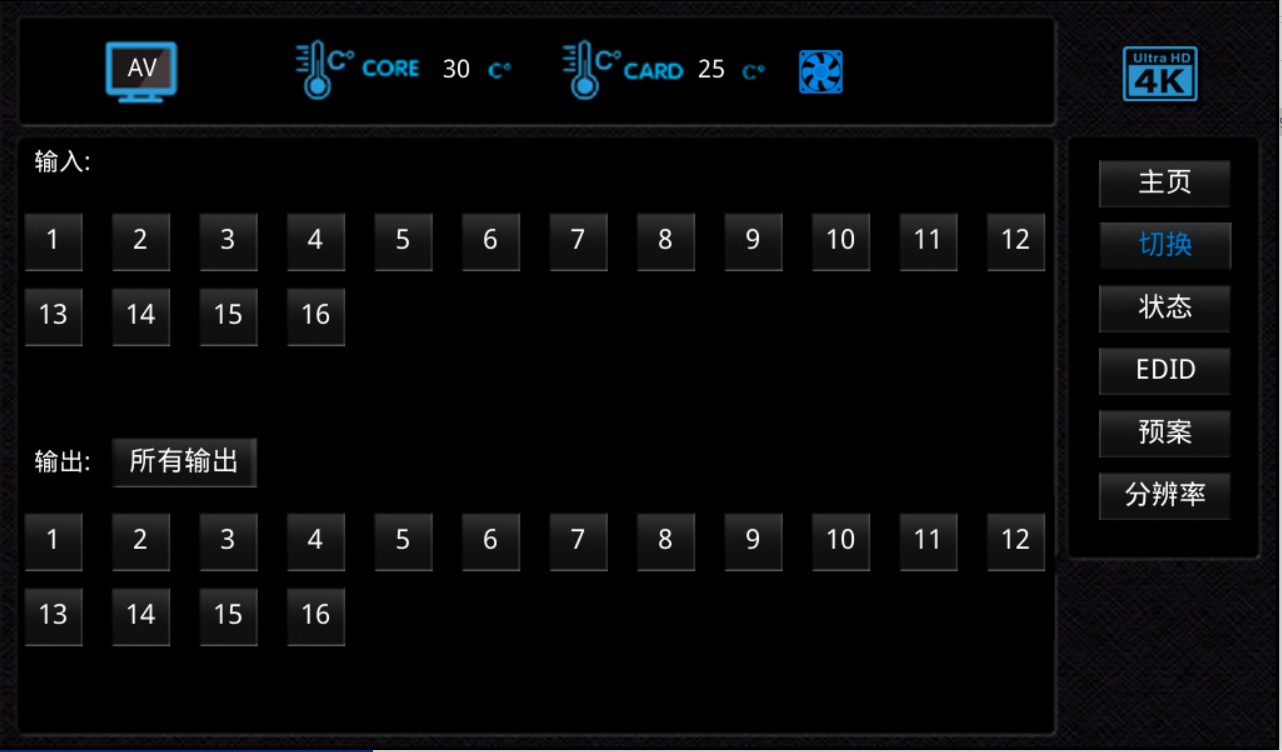

Option: 7" touch screen

|
||
| ¡¾Input Cards¡¿ | ||
|

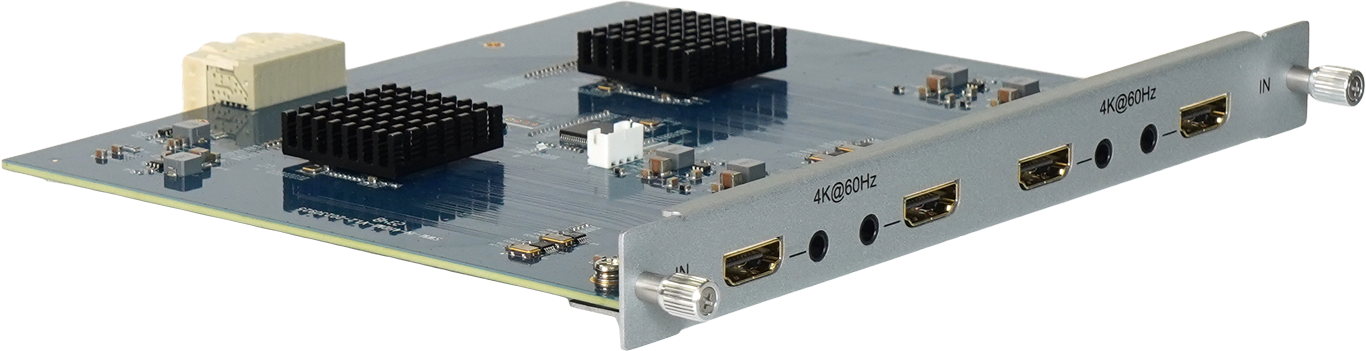

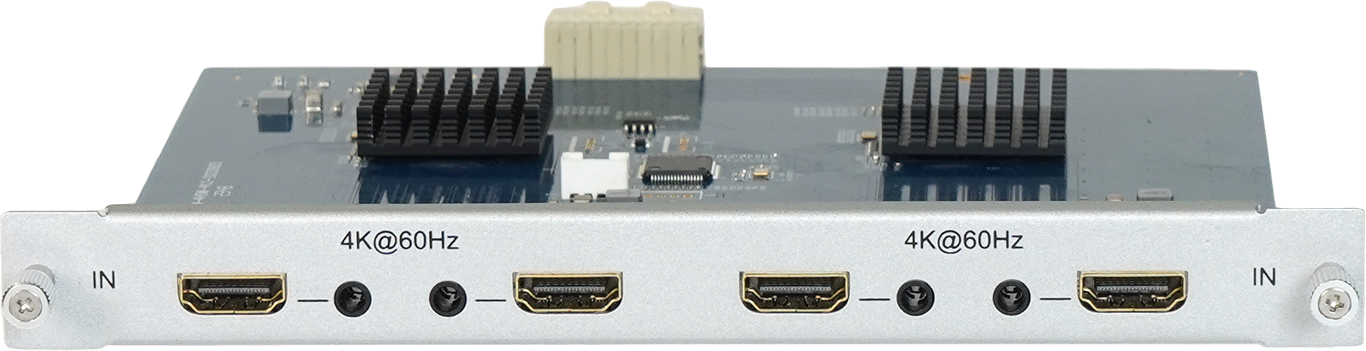

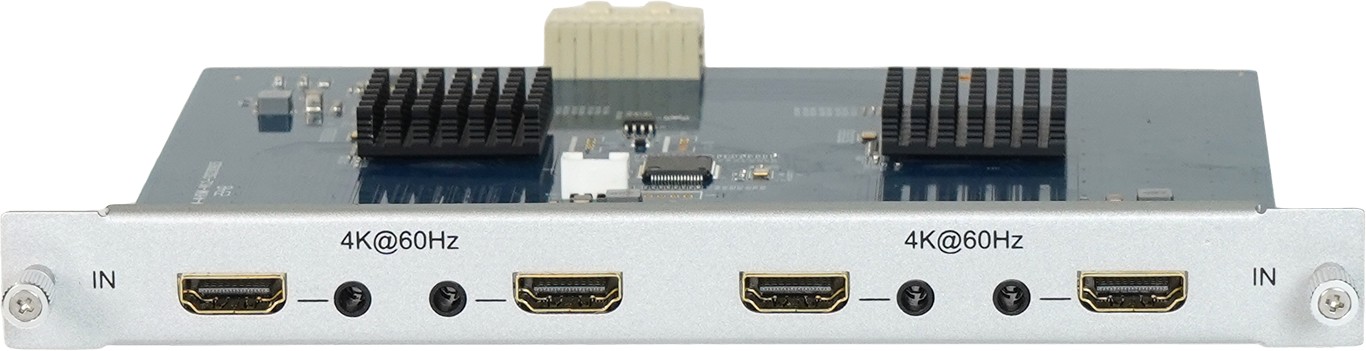

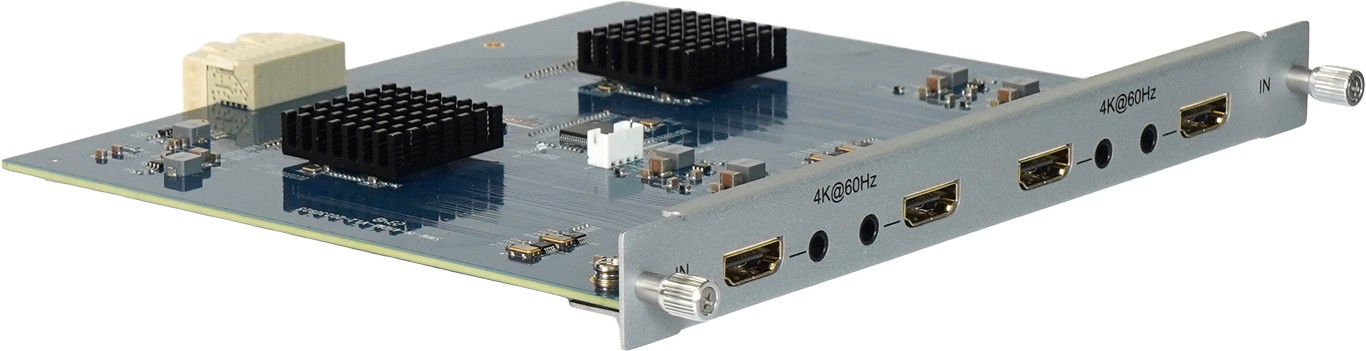

QVM-IN-HDMI Quad-Ch Input-HDMI Up to 4K@60Hz
  |

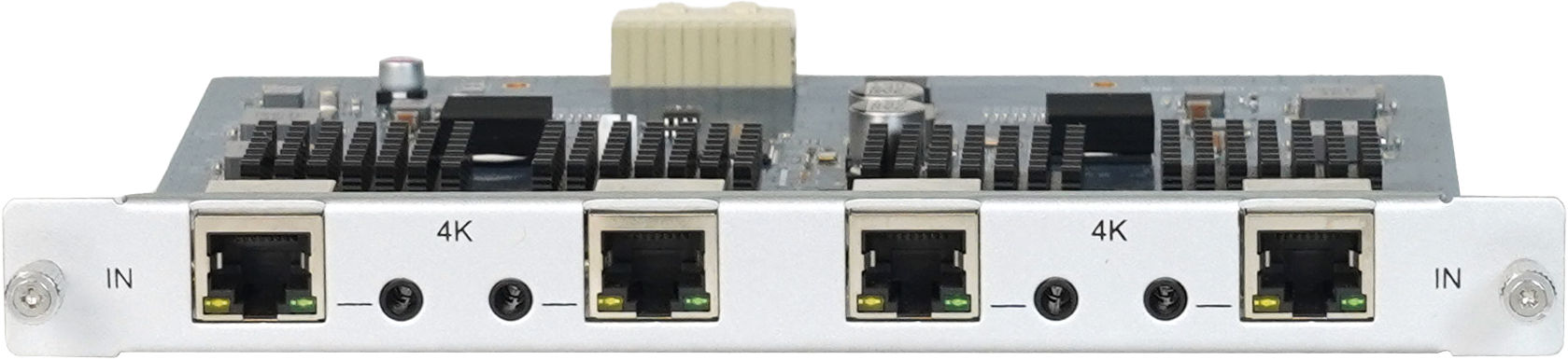

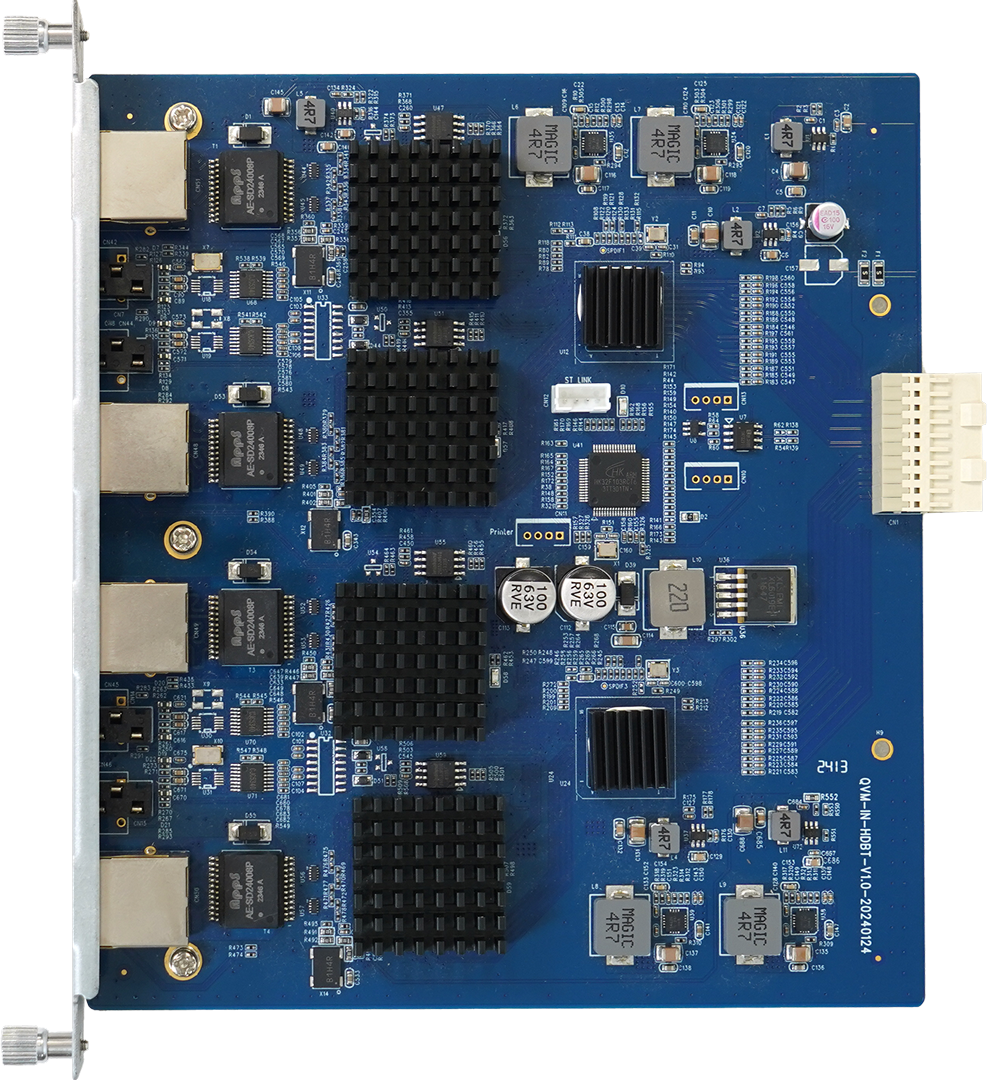

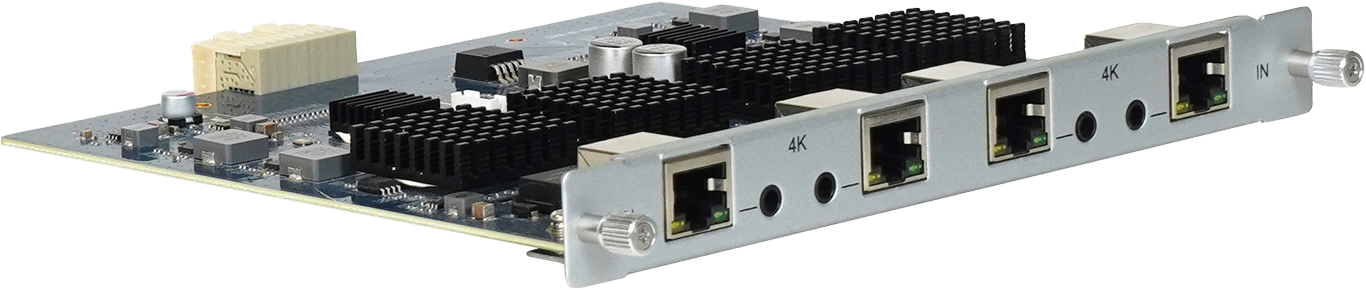

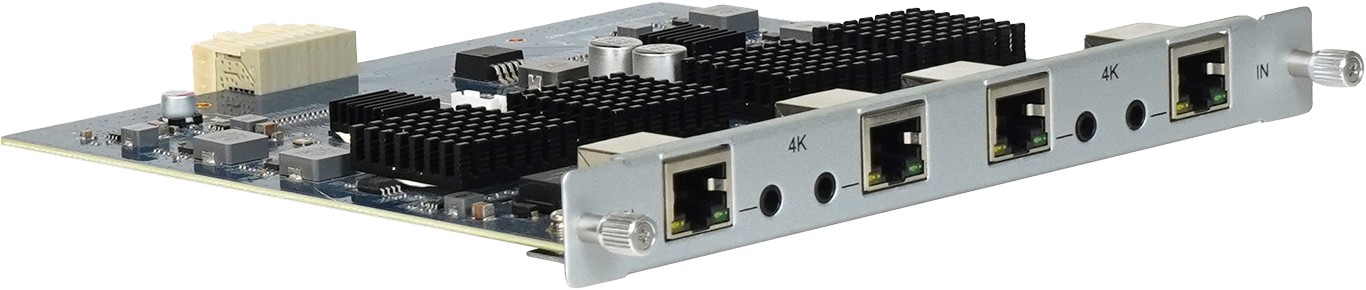

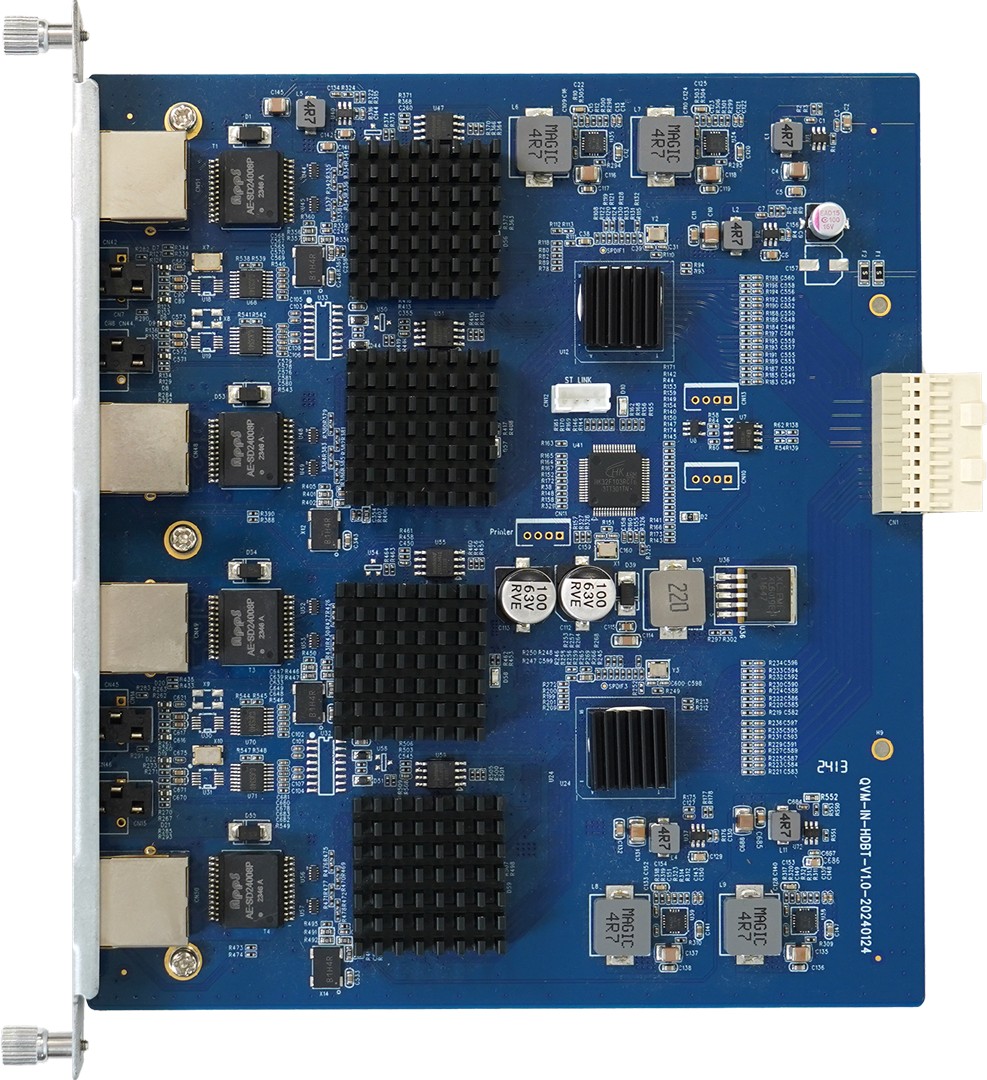

QVM-IN-HDBT-4K60 Quad-Ch Input-HDBaseT HDbaseT 1.0, up to 4K420@60Hz
  |

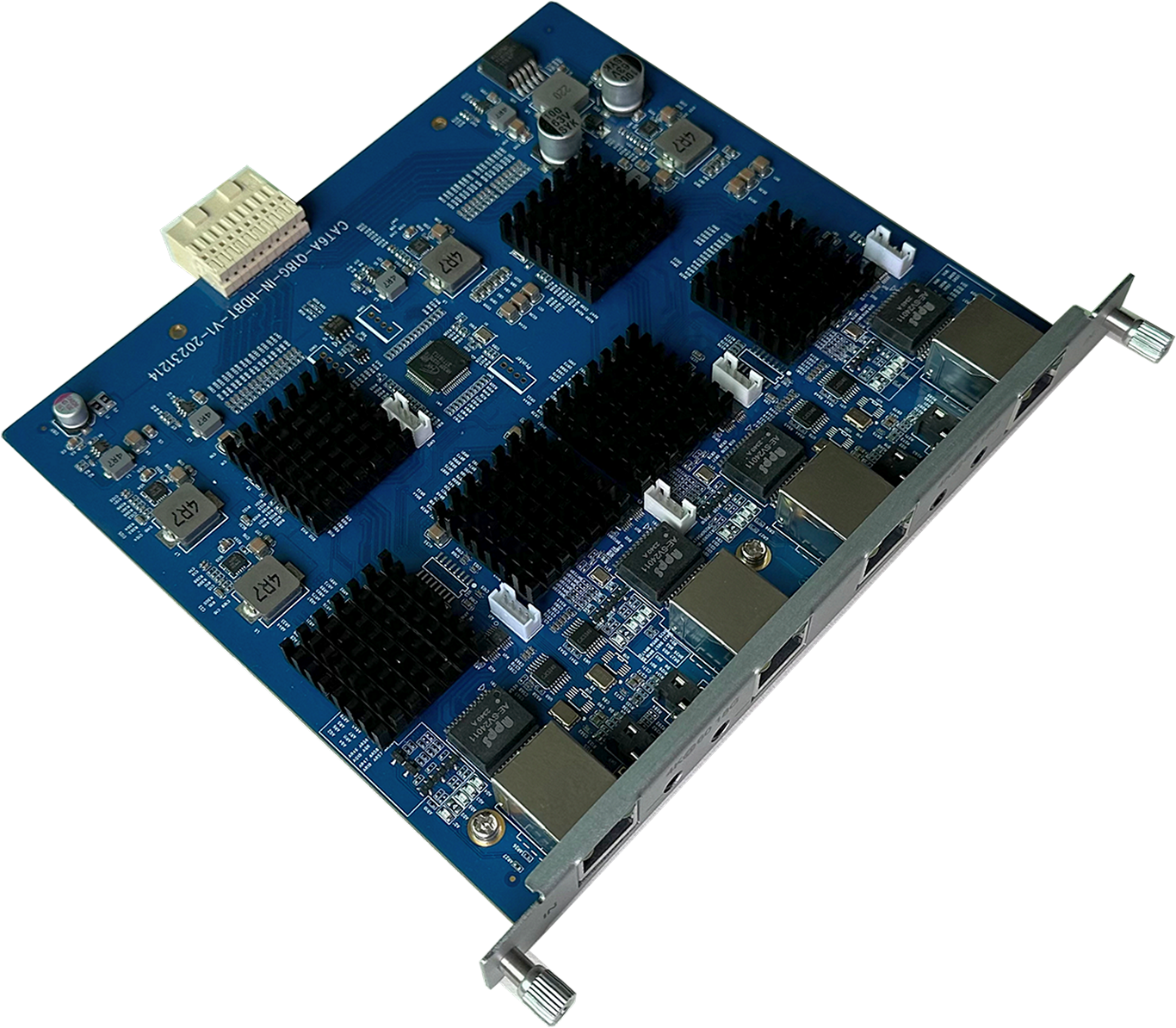

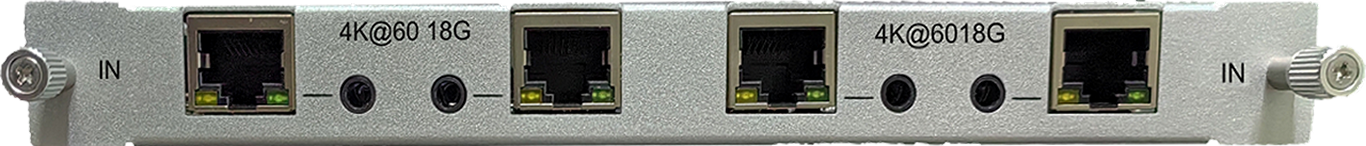

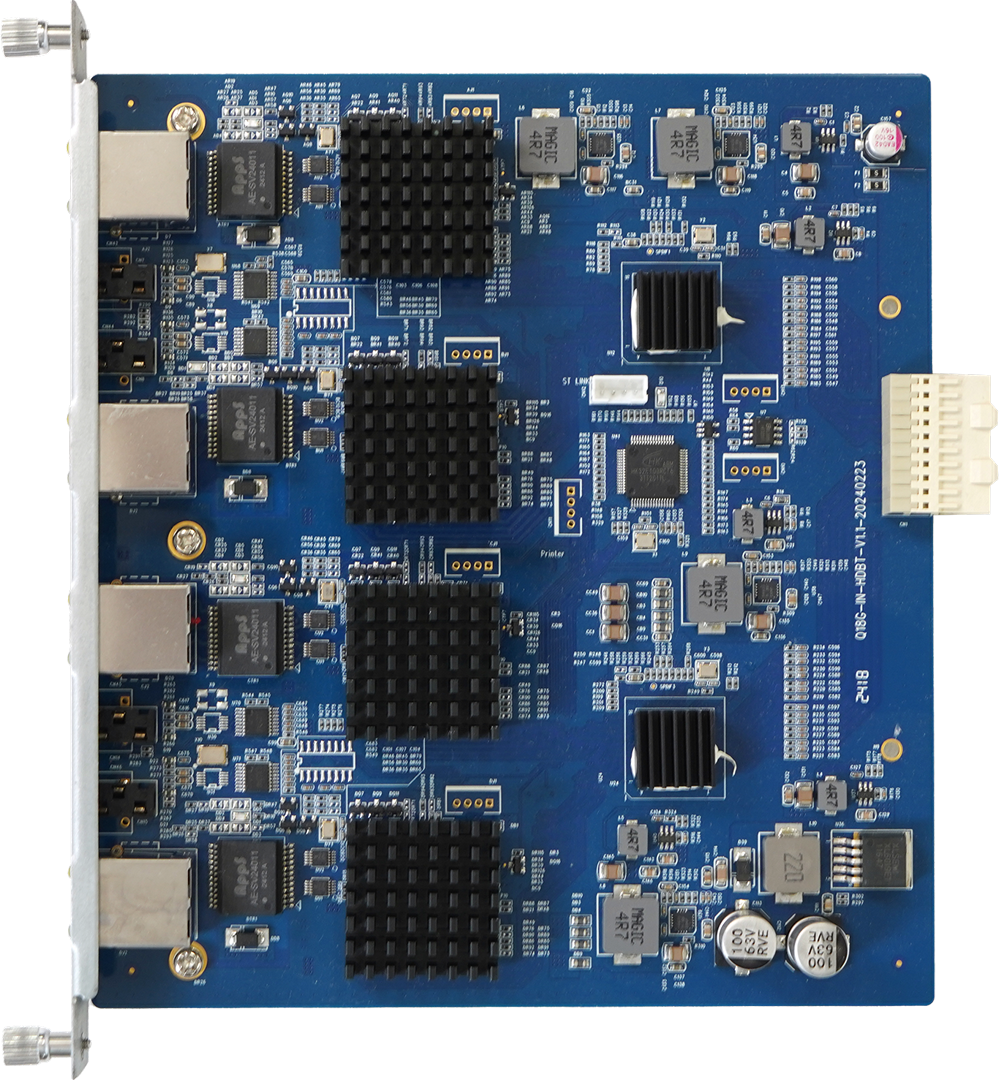

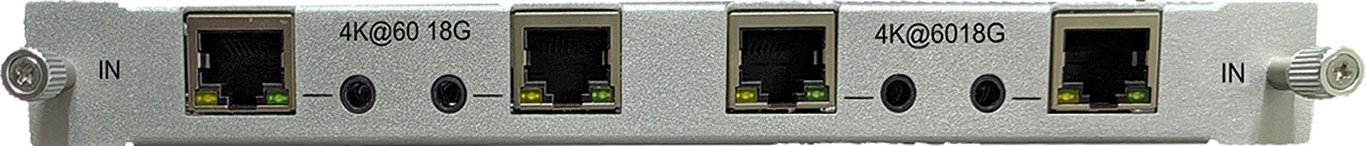

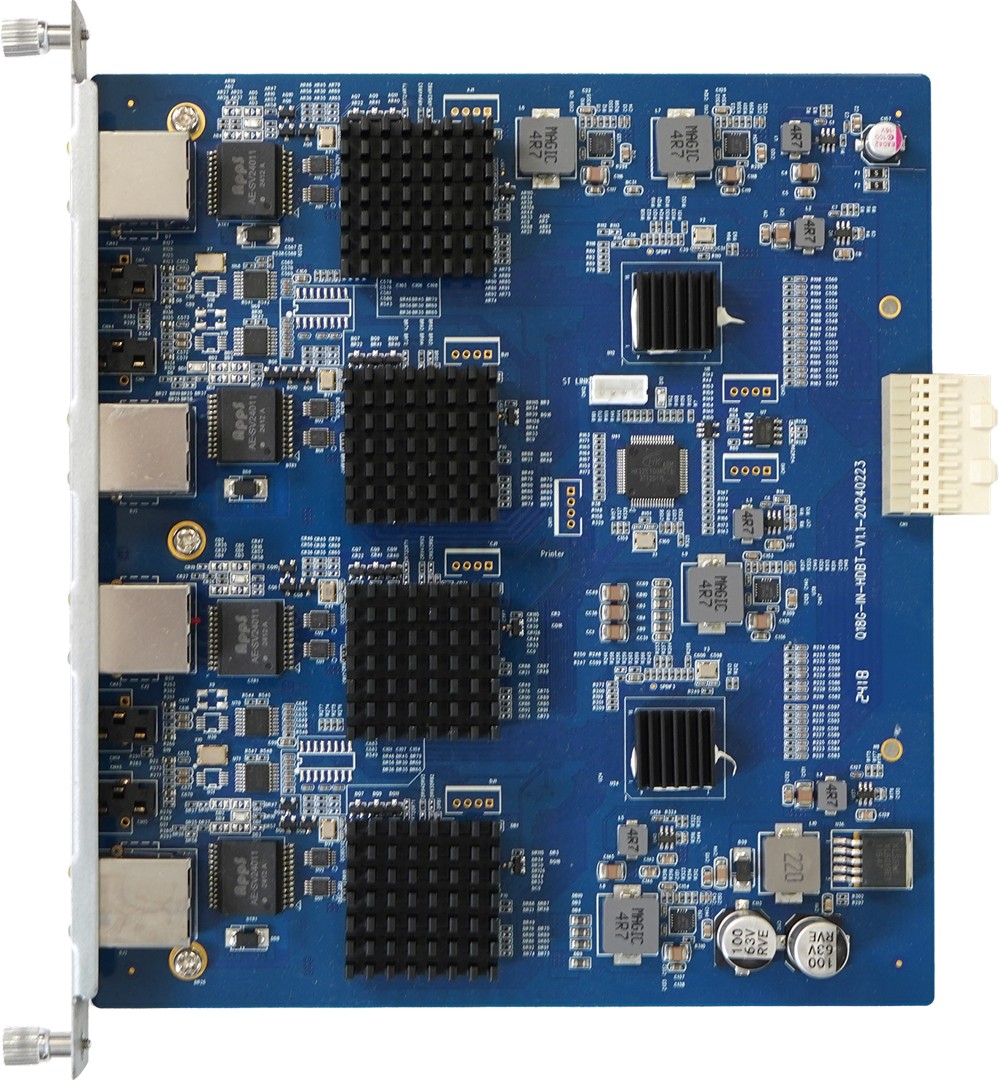

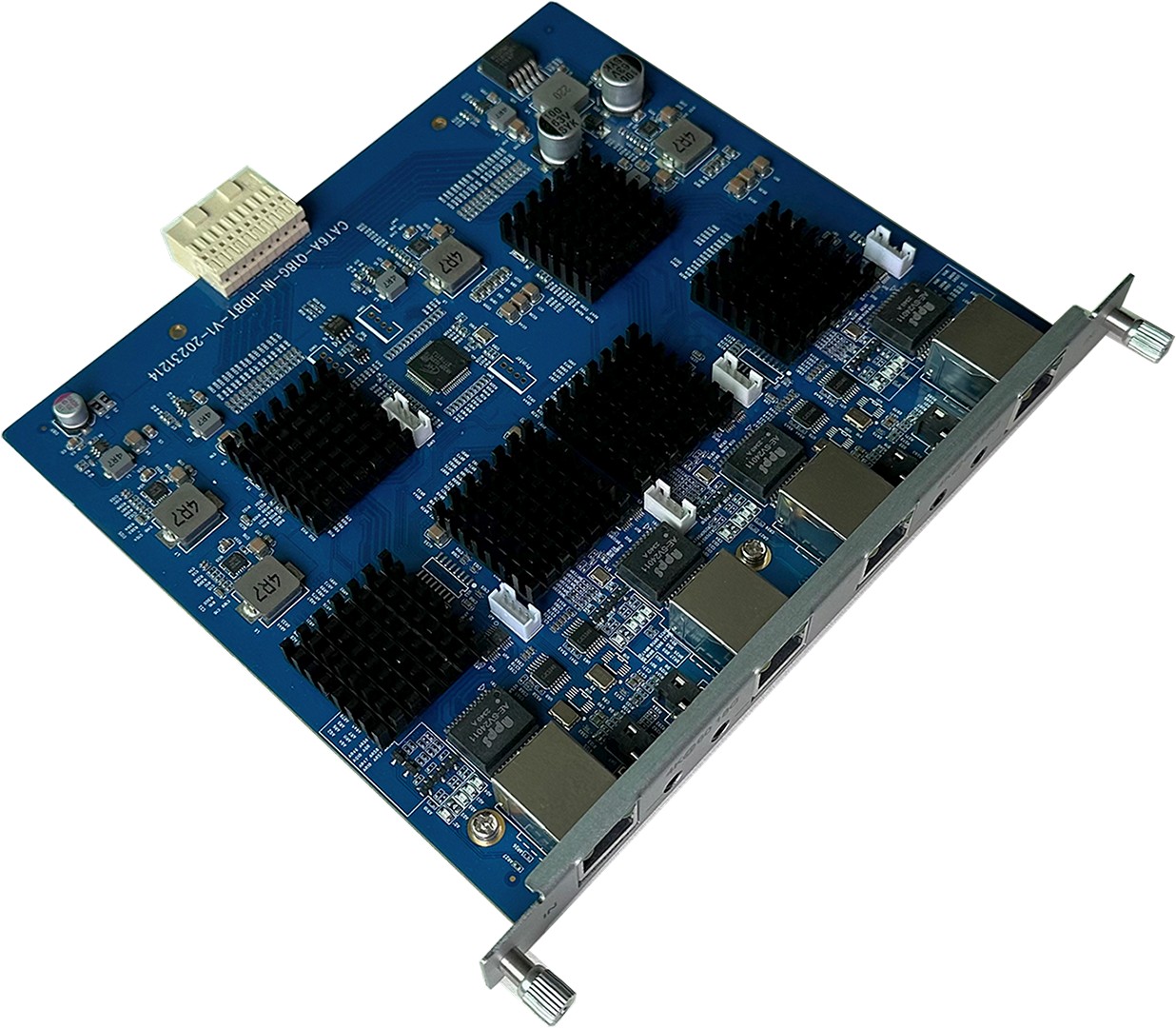

QVM-IN-HDBT-18G Quad-Ch Input-HDBaseT HDbaseT 3.0, up to 4K444@60Hz, 18Gbps
  |
|

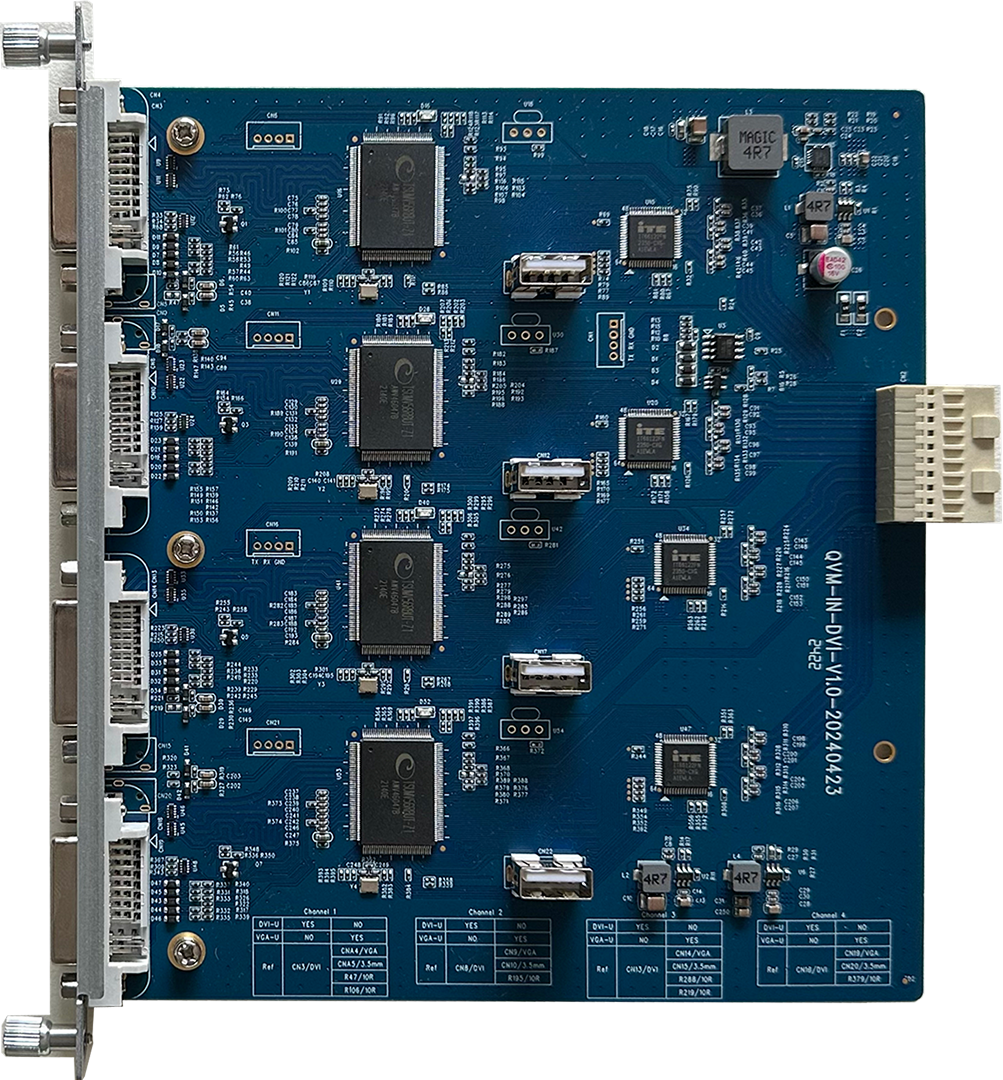

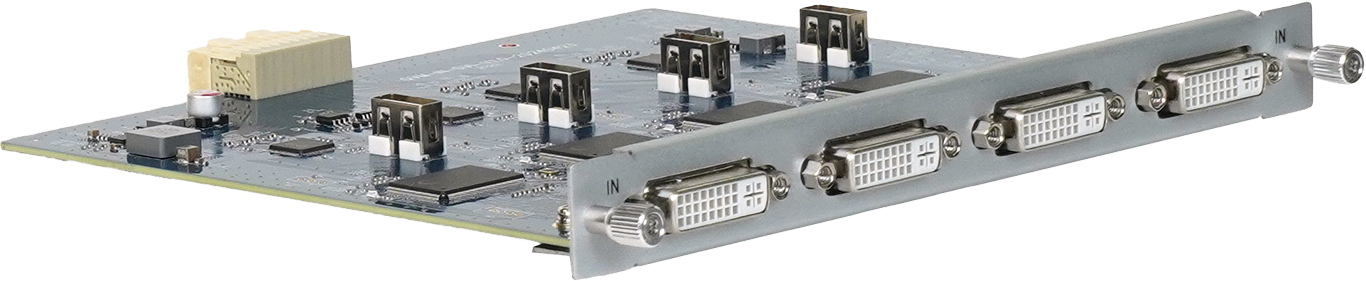

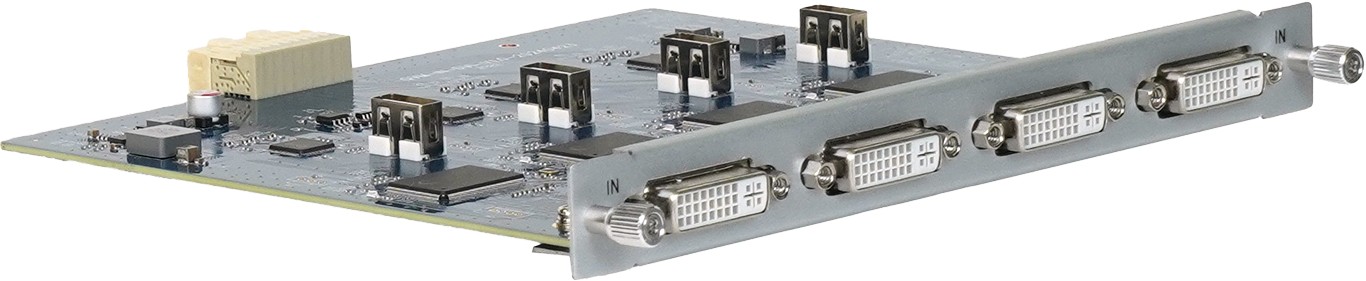

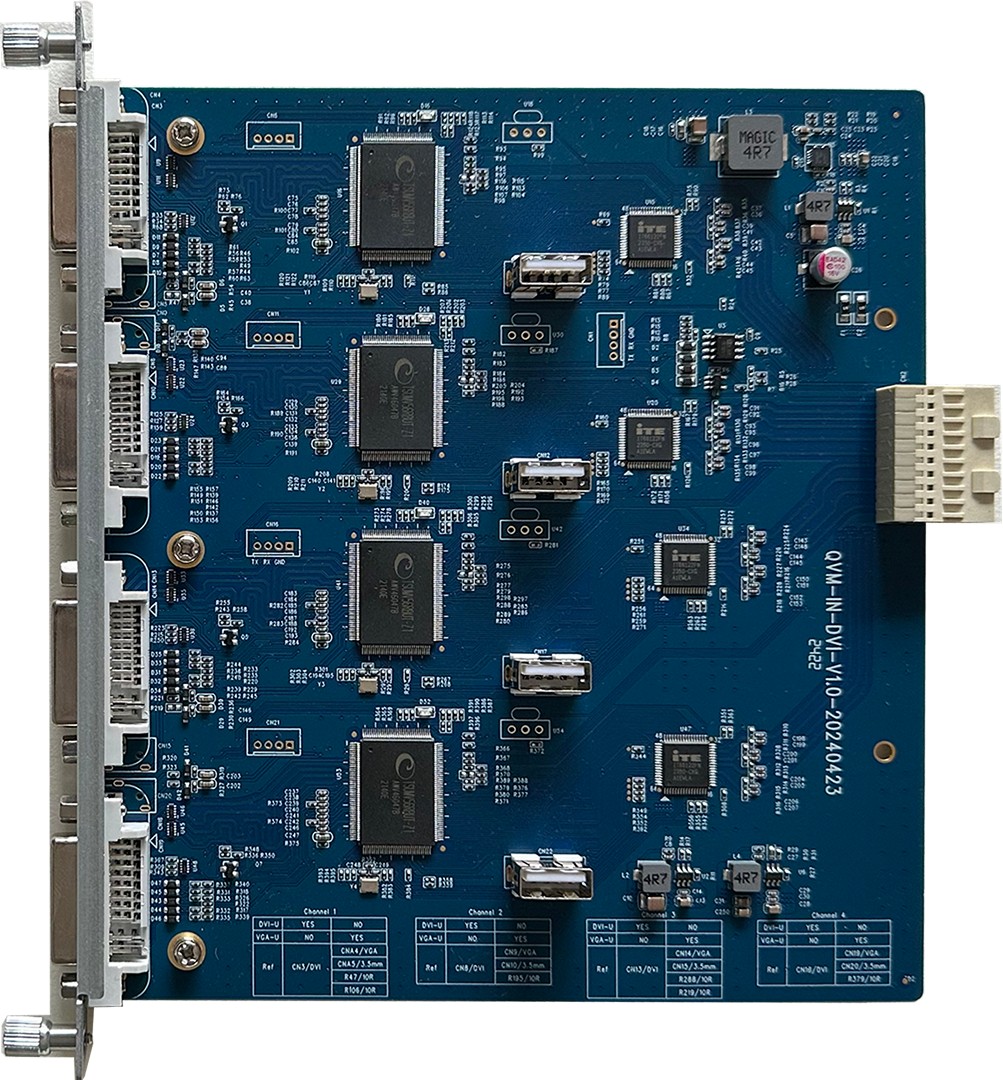

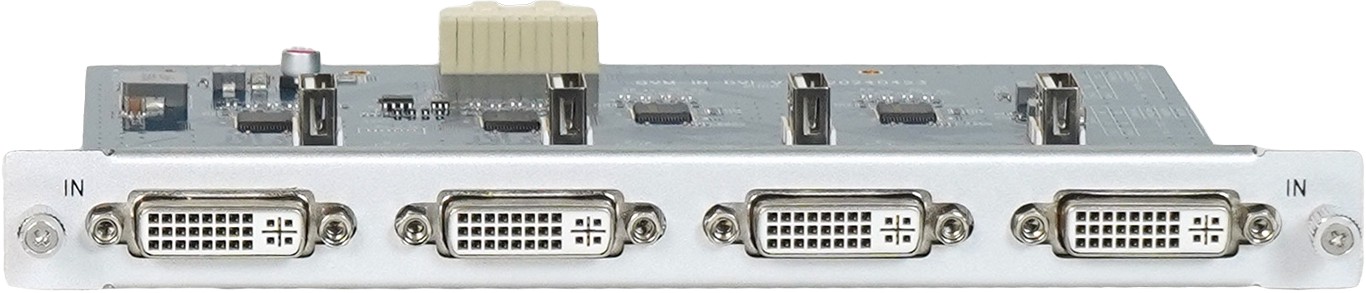

QVM-IN-DVI Quad-Ch Input-DVI Up to 1920x1200

|

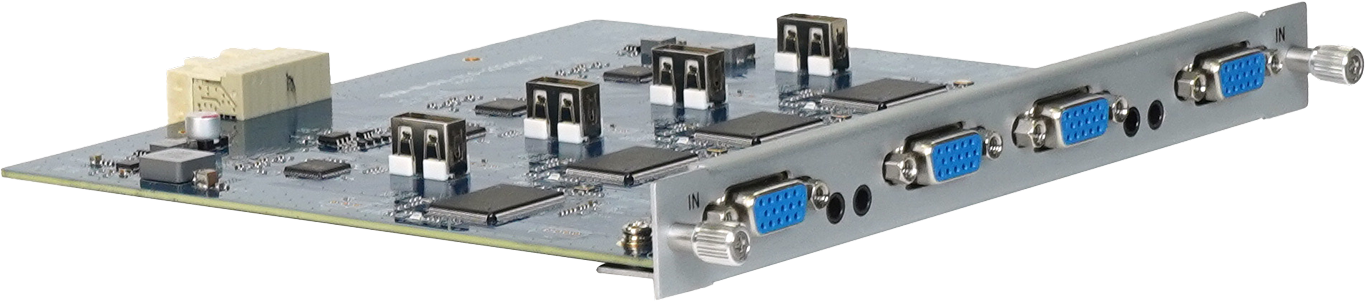

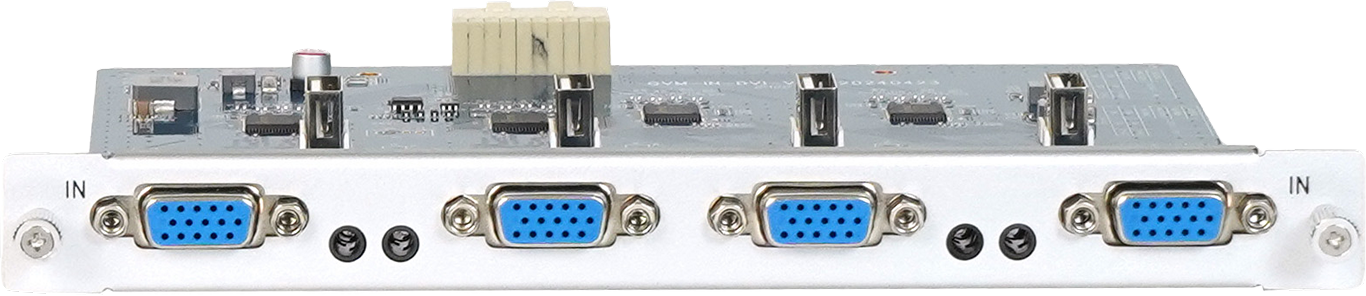

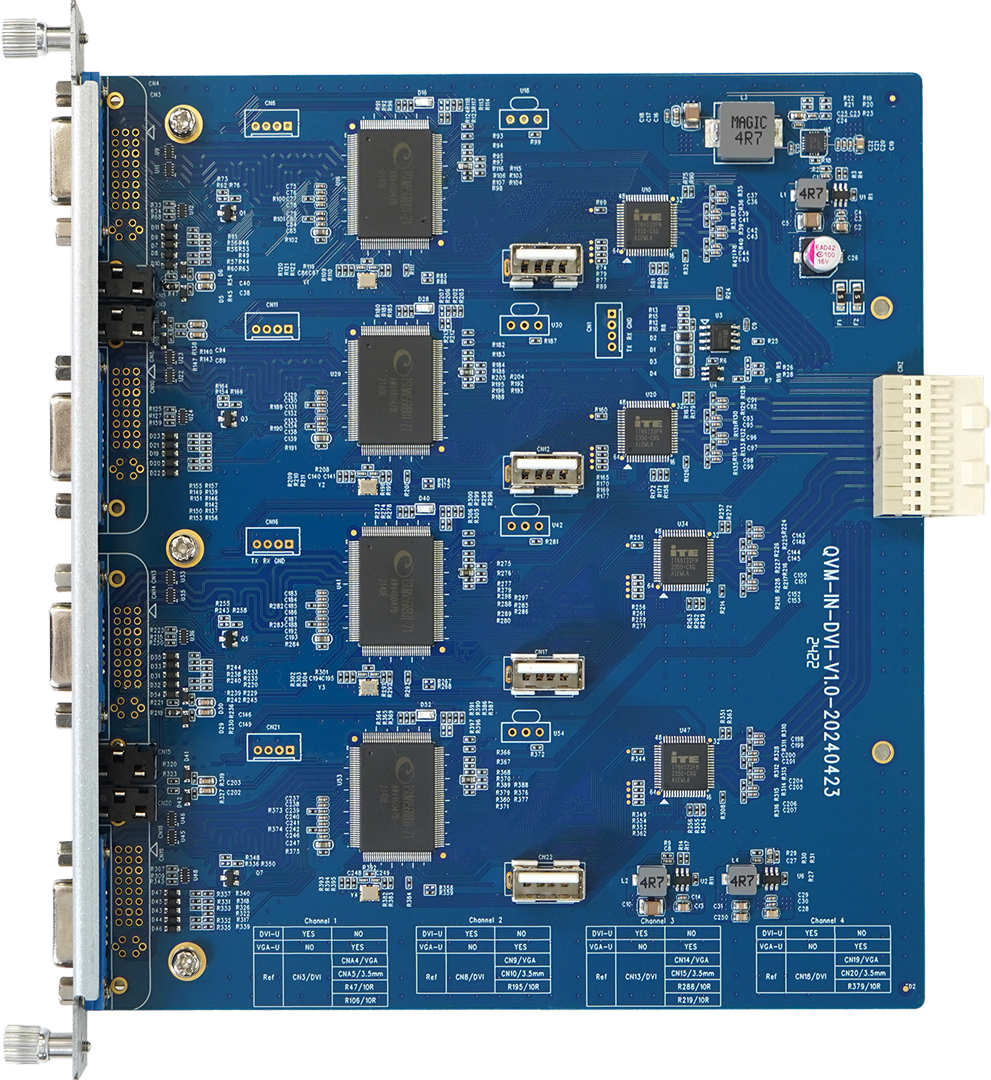

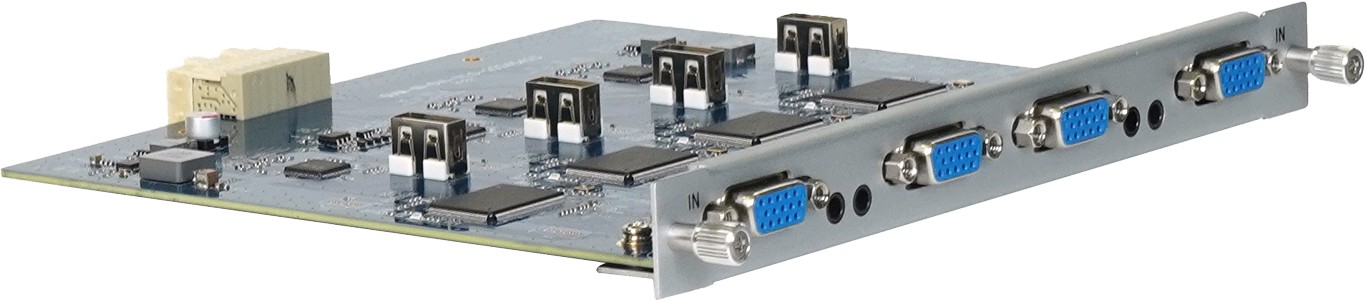

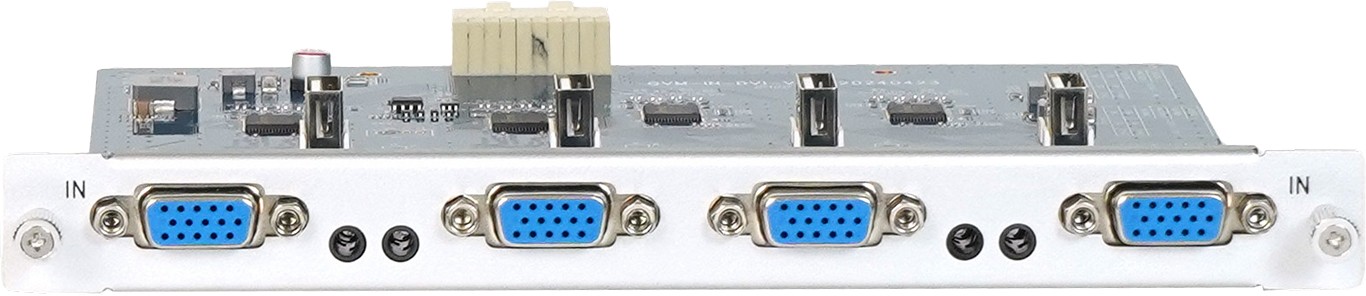

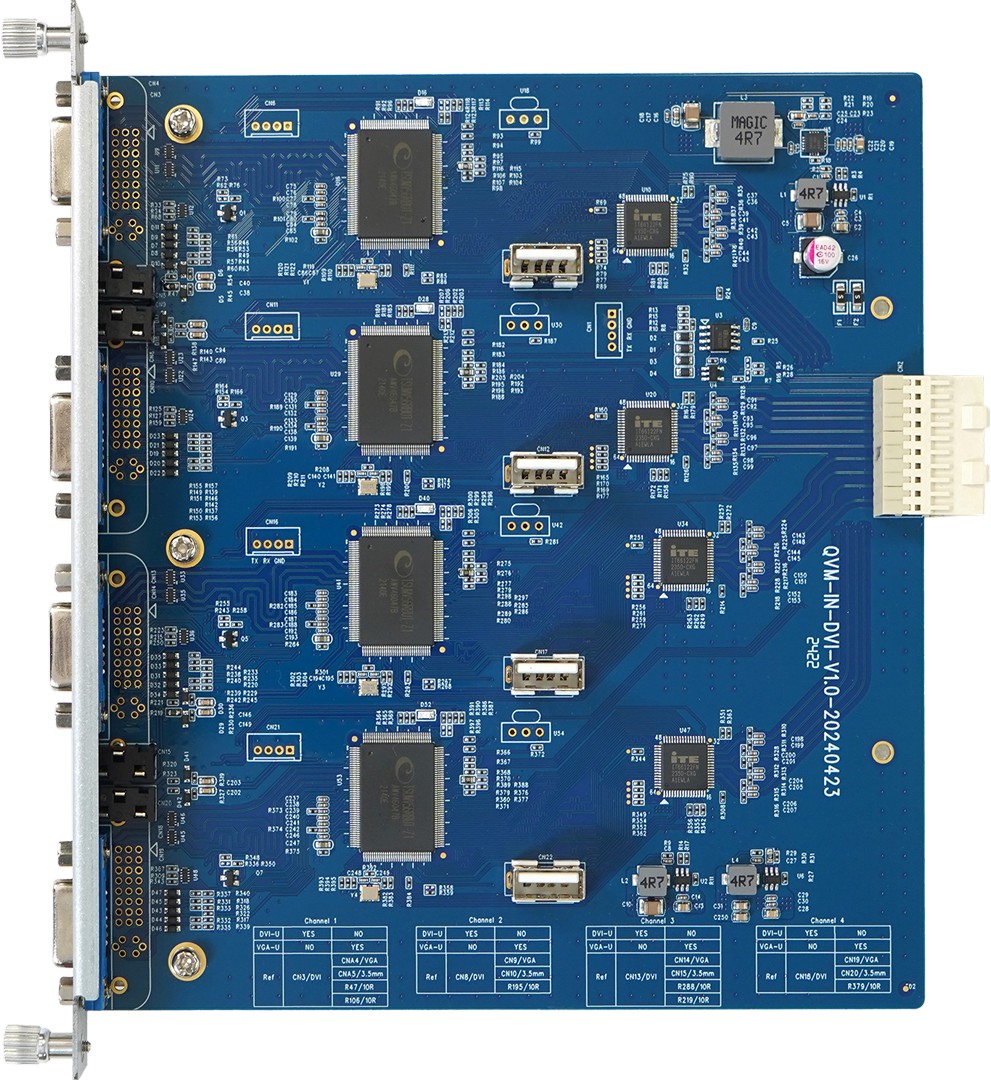

QVM-IN-VGA Quad-Ch Input-VGA Up to 1920x1200

|

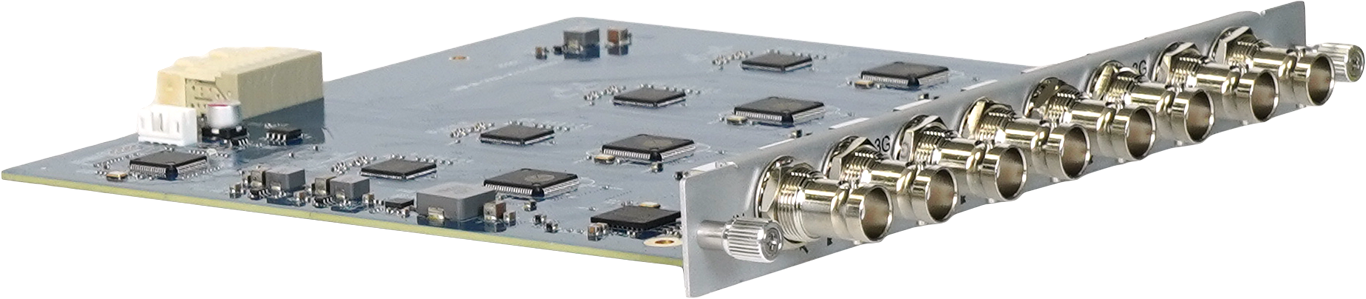

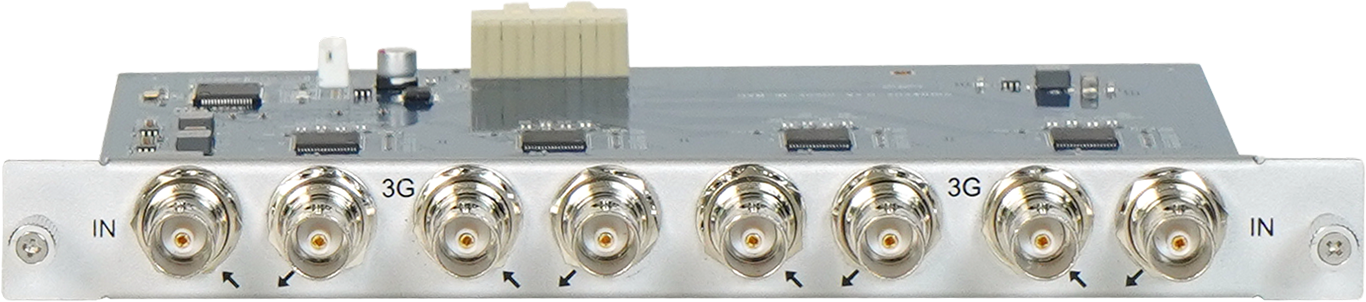

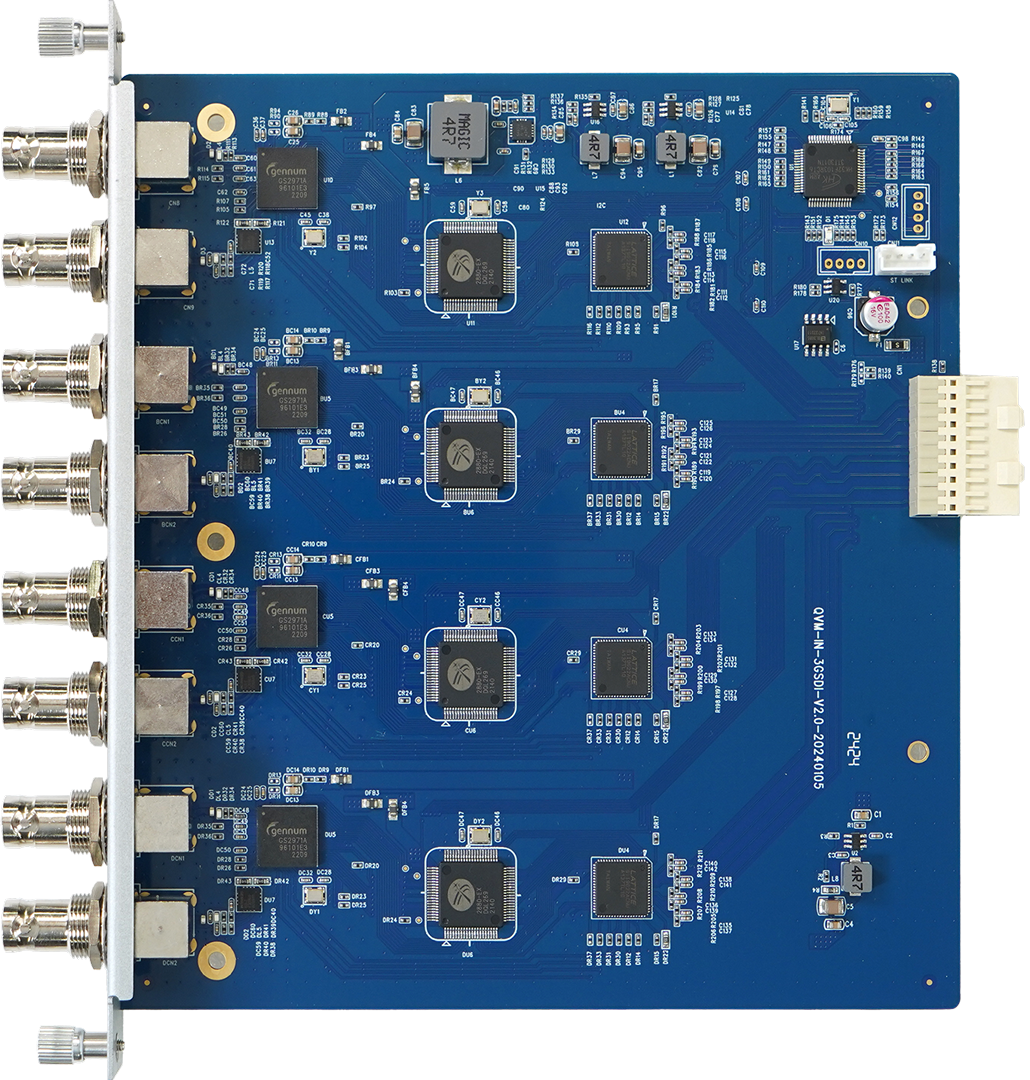

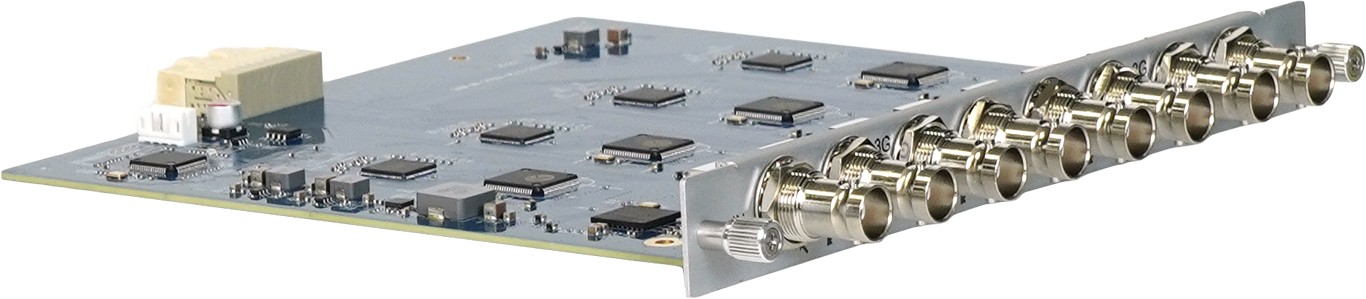

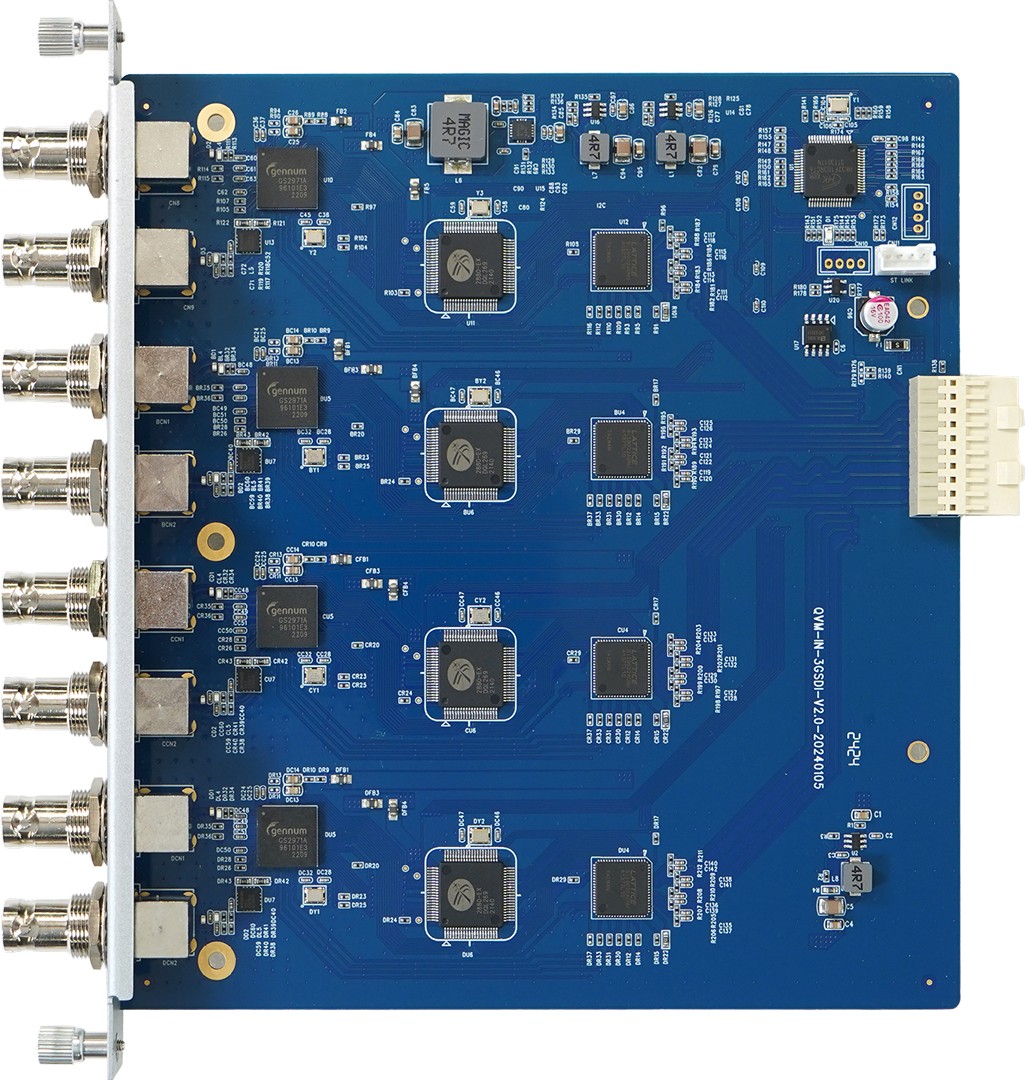

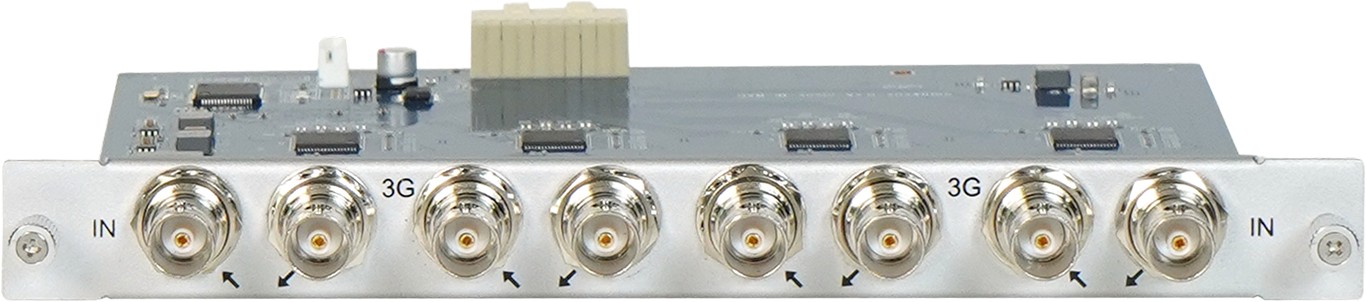

QVM-IN-SDI Quad-Ch Input-SDI SD/HD/3G-SDI
  |
|

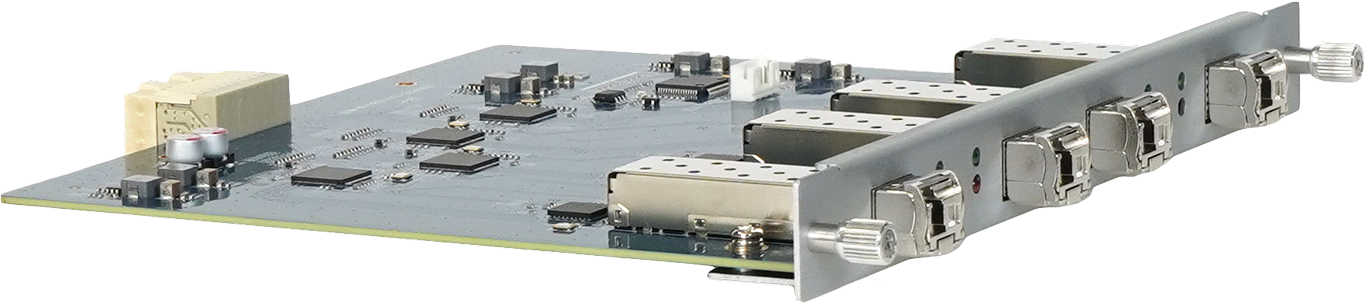

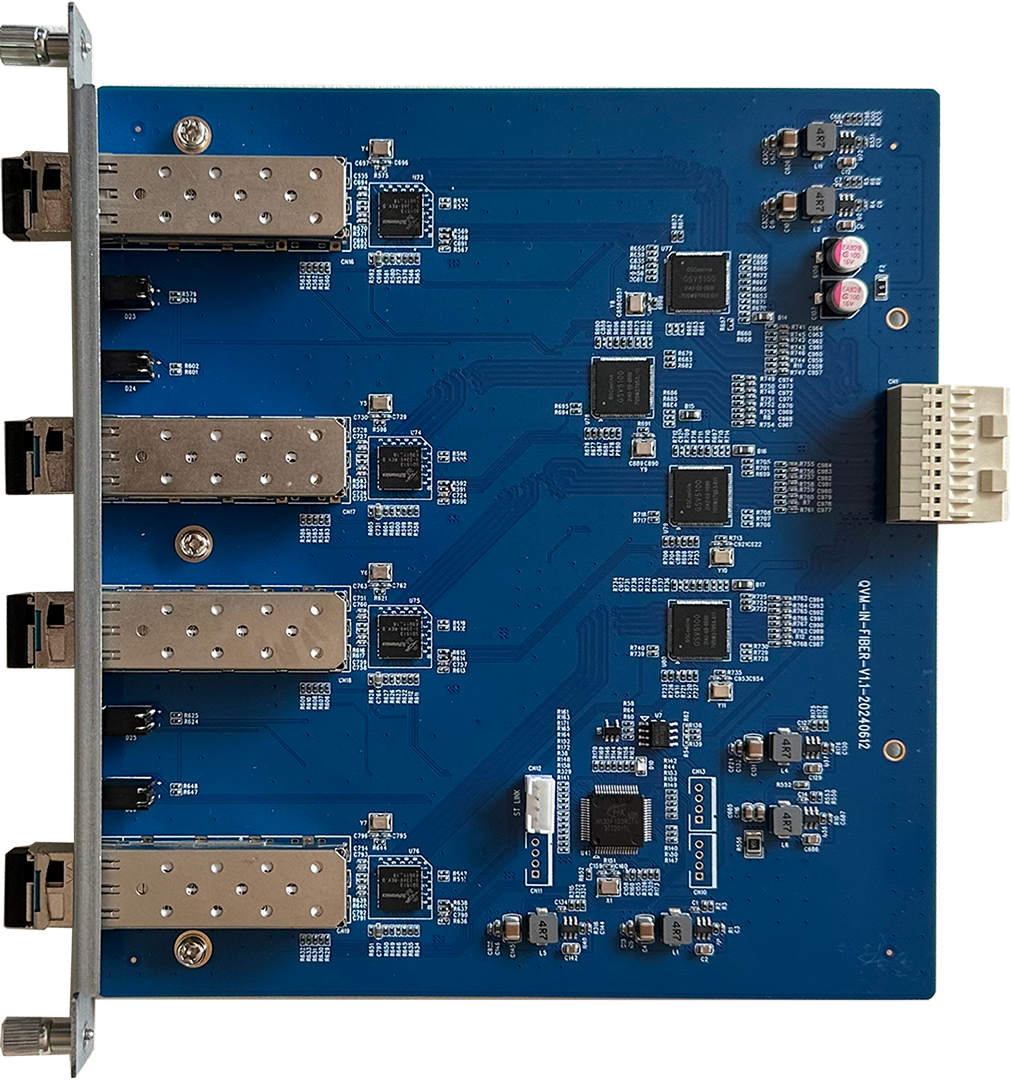

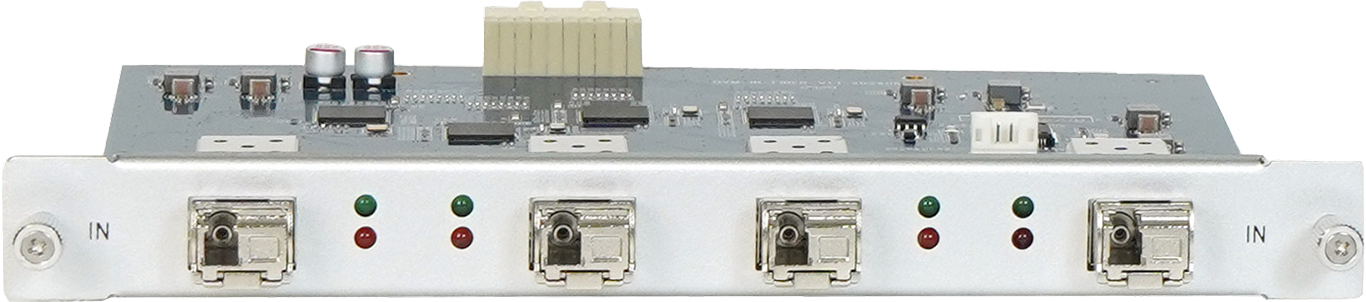

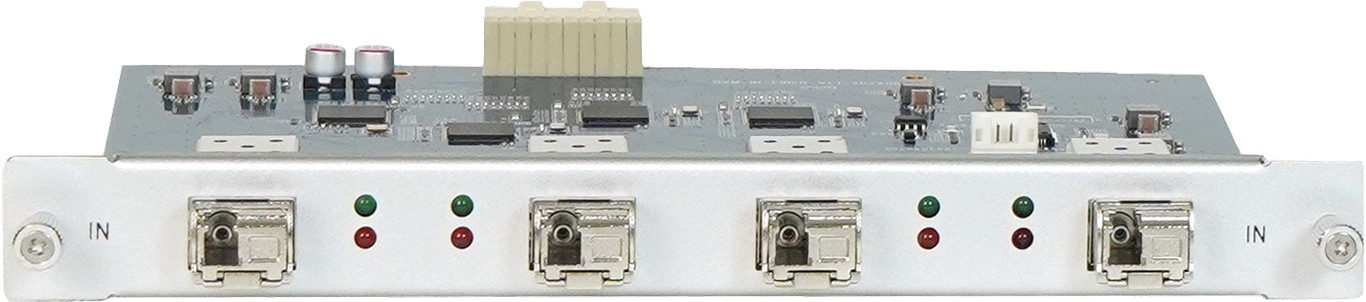

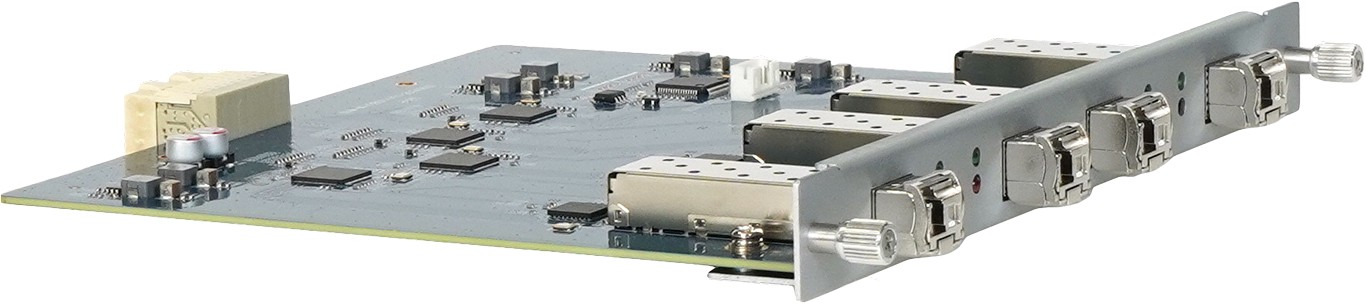

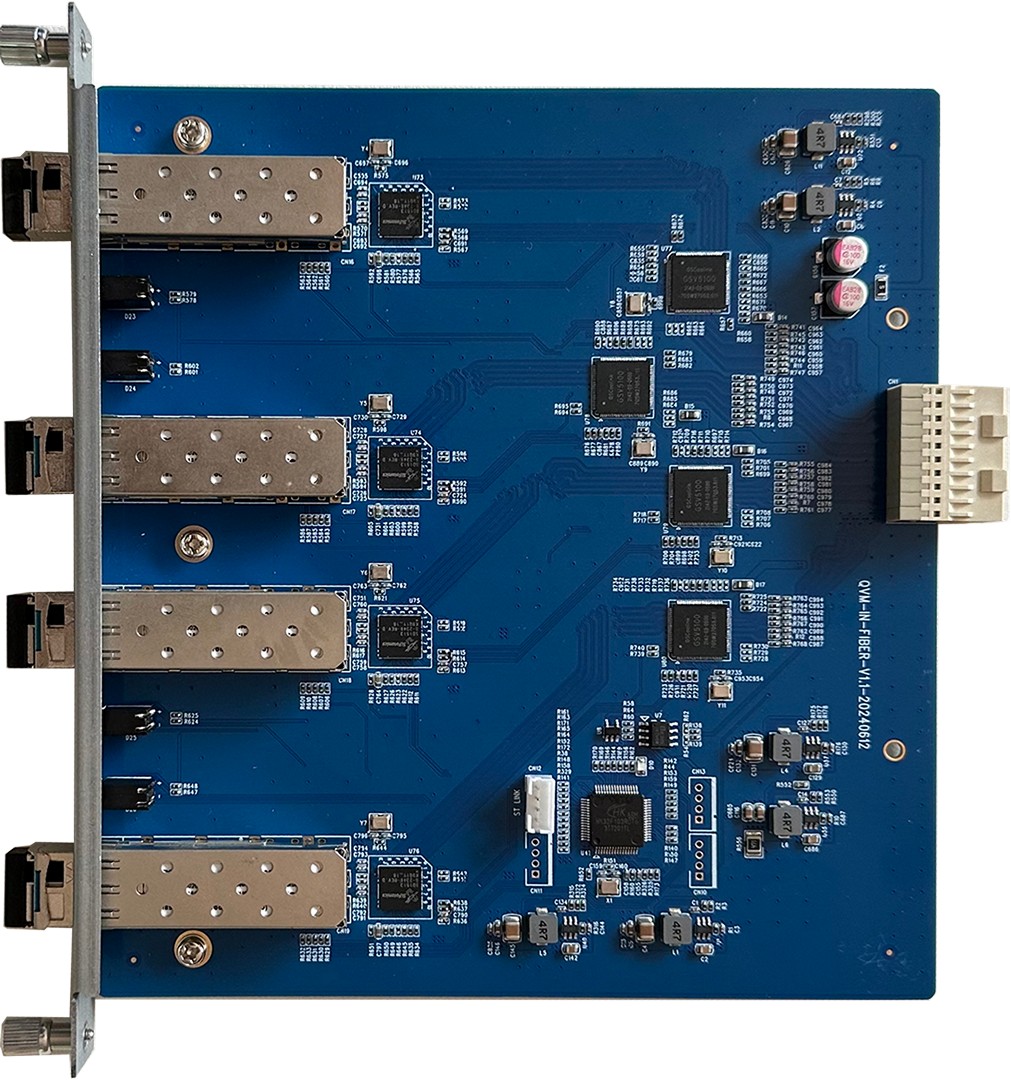

QVM-IN-FIBER Quad-Ch Input-Fiber Up to 4K@60Hz

Option: SMF4K60D-TX, Fiber transmitter
Up to 4K444@60Hz HDMI2.0 |

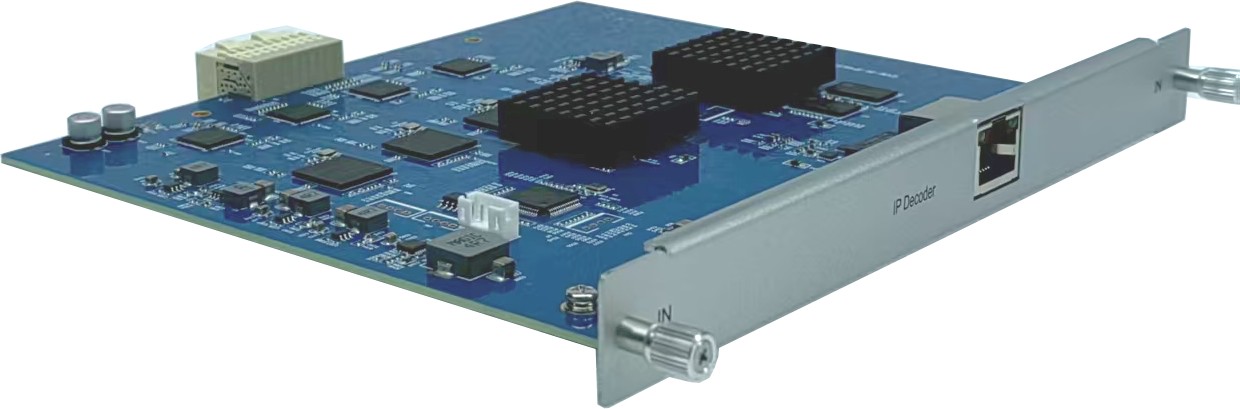

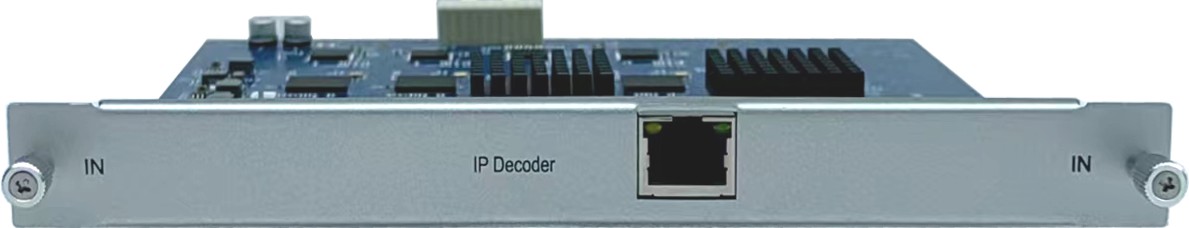

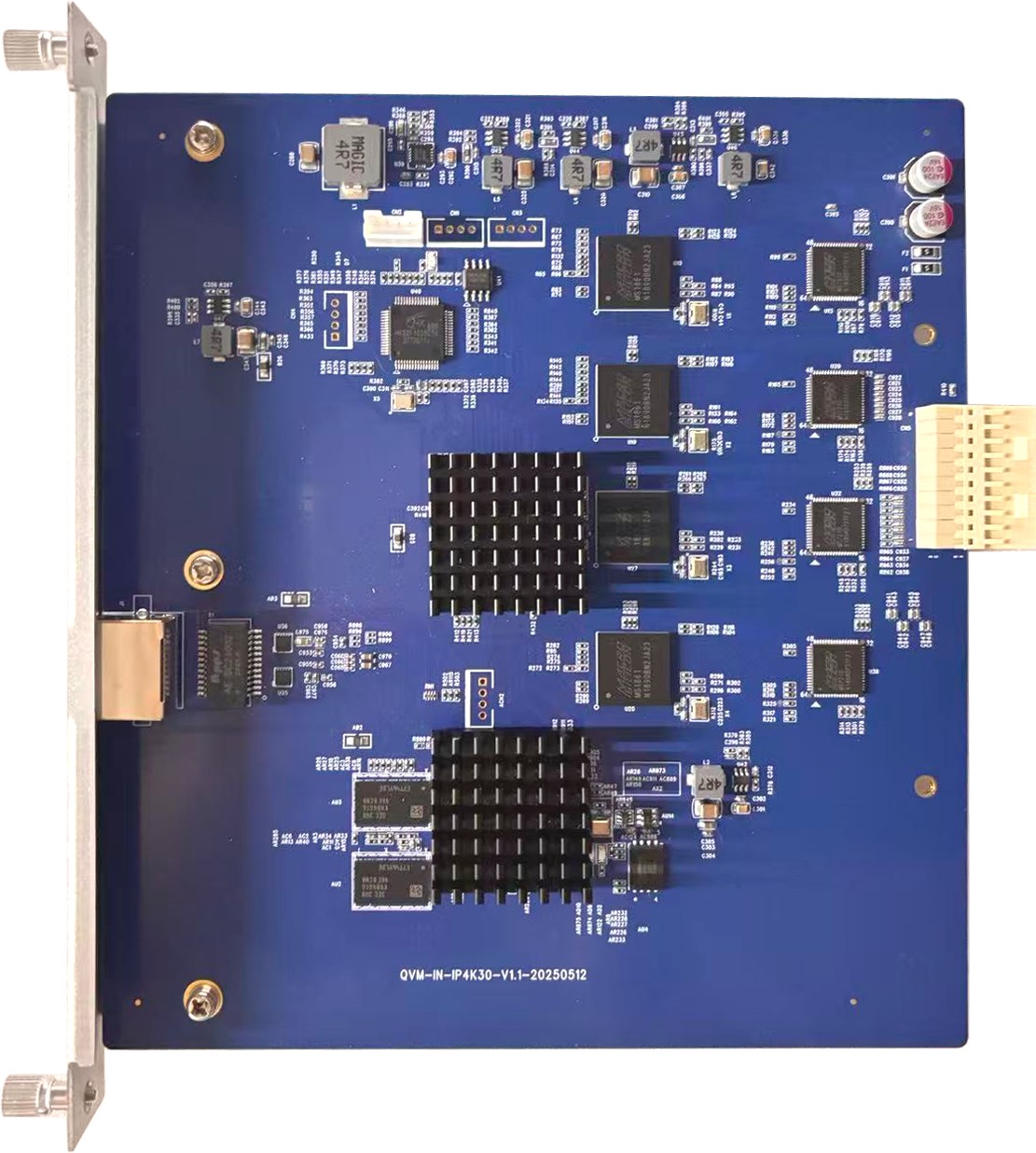

QVM-IN-IP4K30 Quad-Ch Input-H264/H265 Decoder Up to 4K@60Hz

|
|
| ¡¾Output Cards¡¿ | ||
|

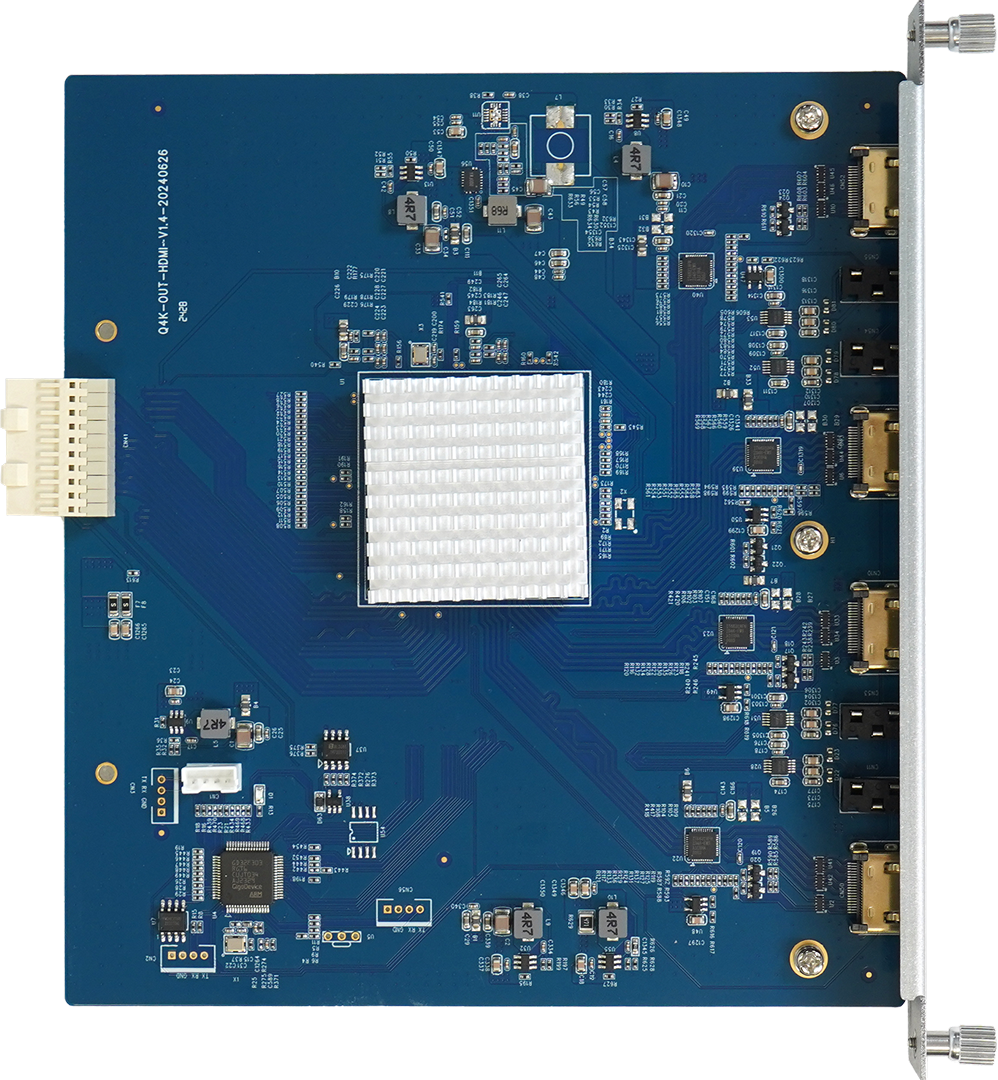

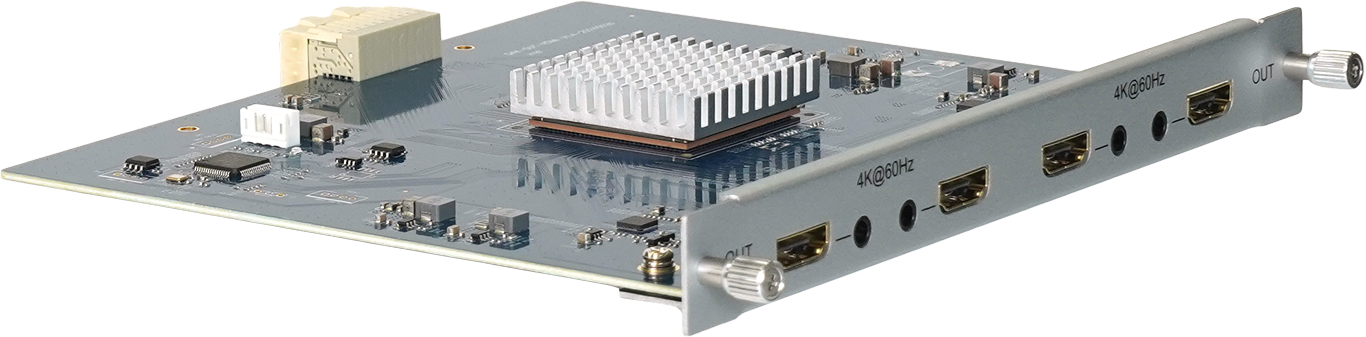

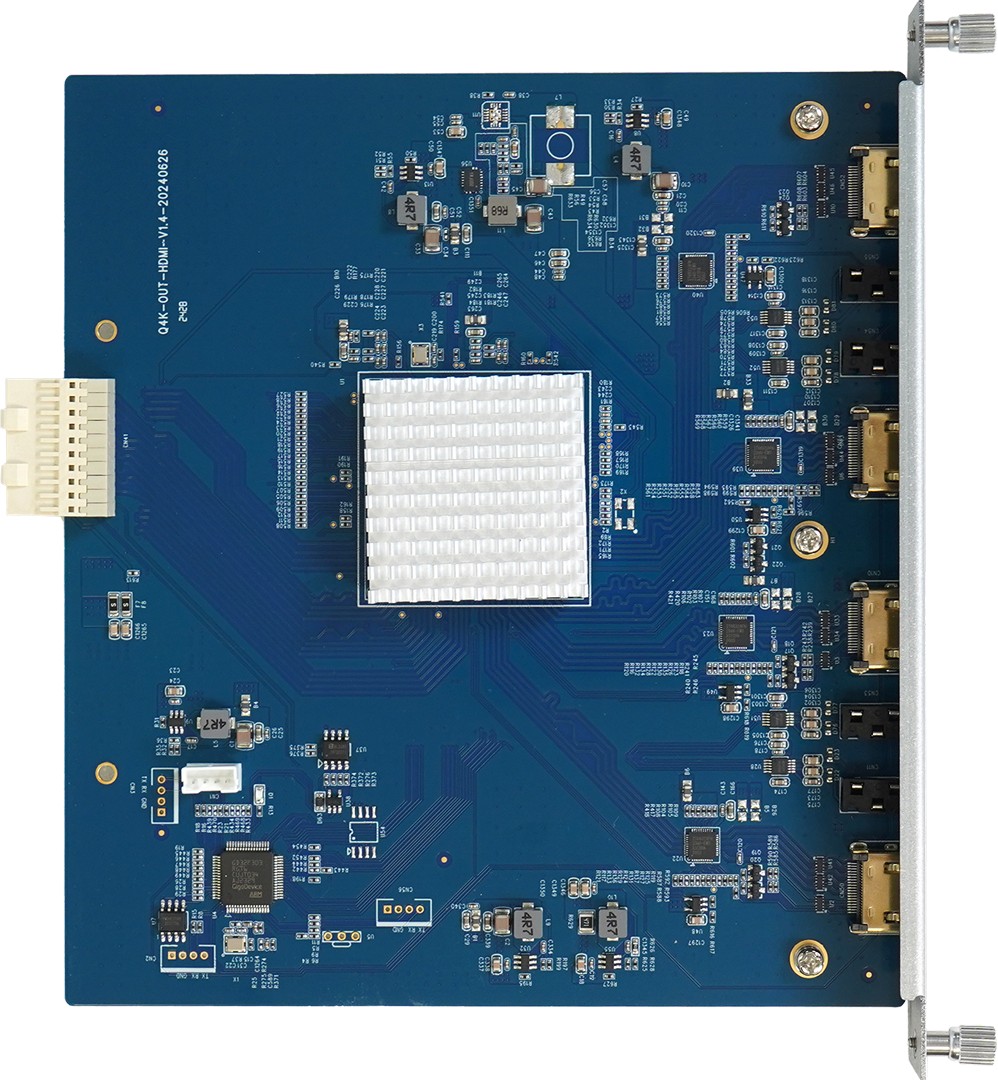

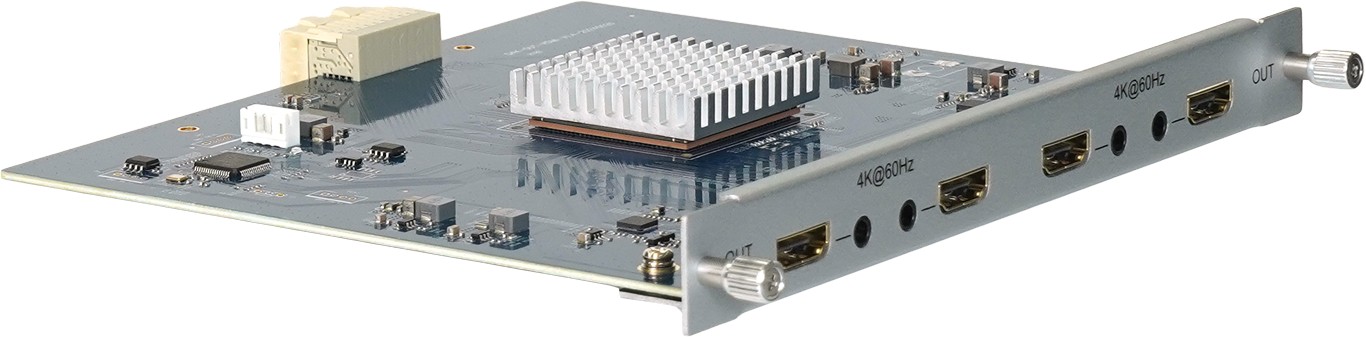

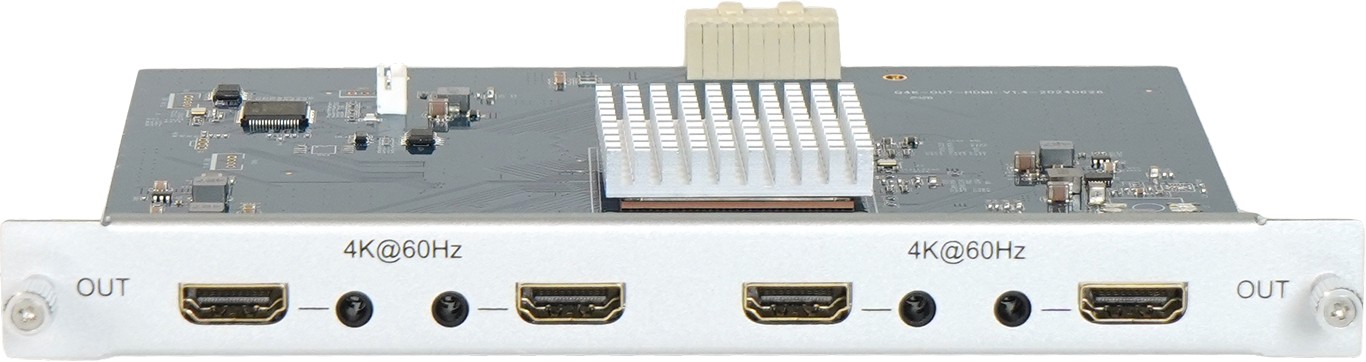

QVM-OUT-HDMI-4K60 Quad-Ch Output-HDMI up to 4K@60Hz, 4 Free Windows
  |

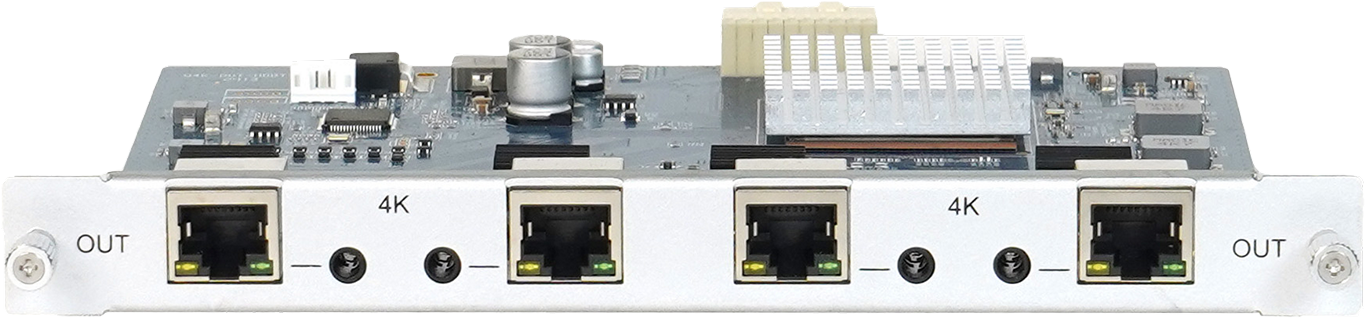

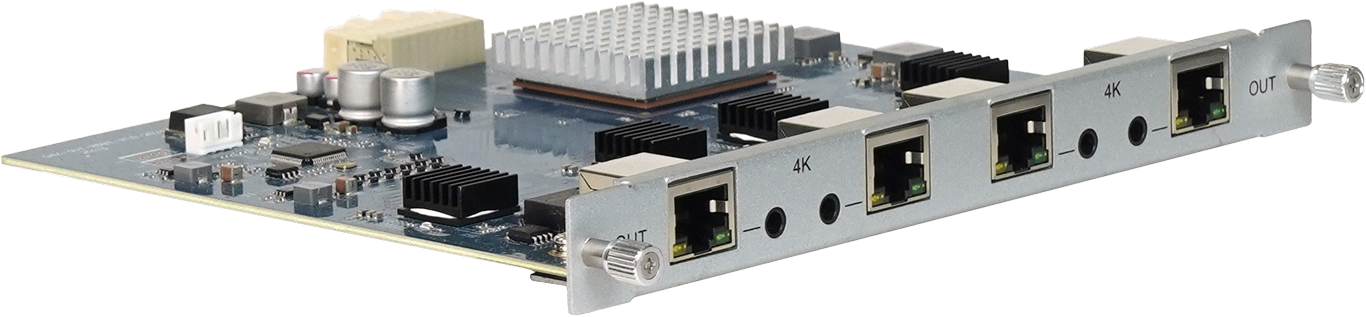

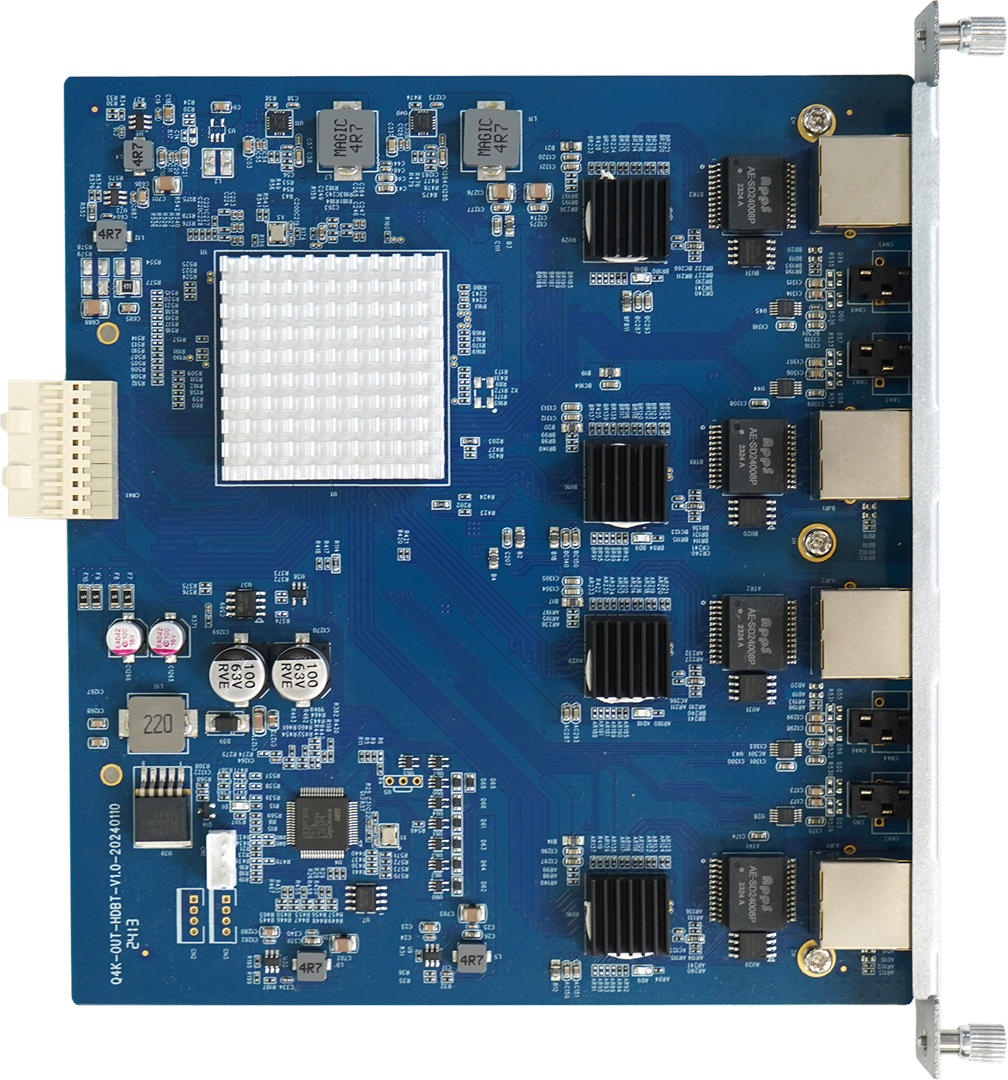

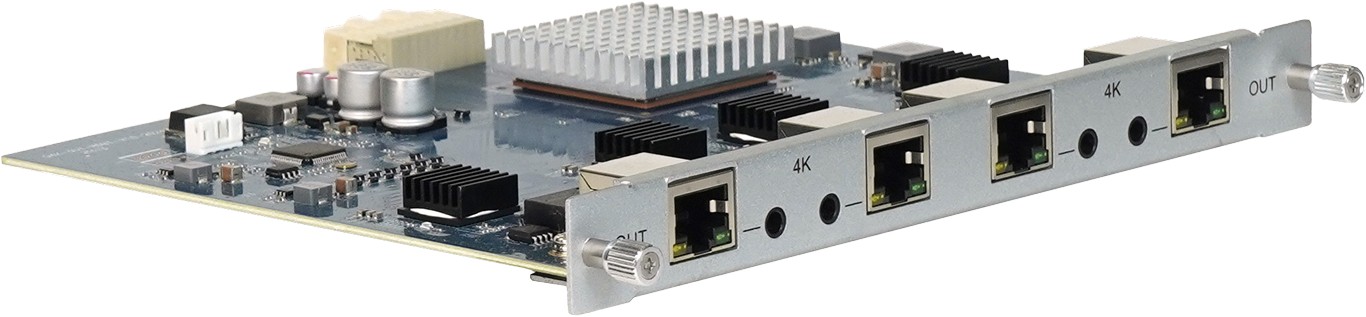

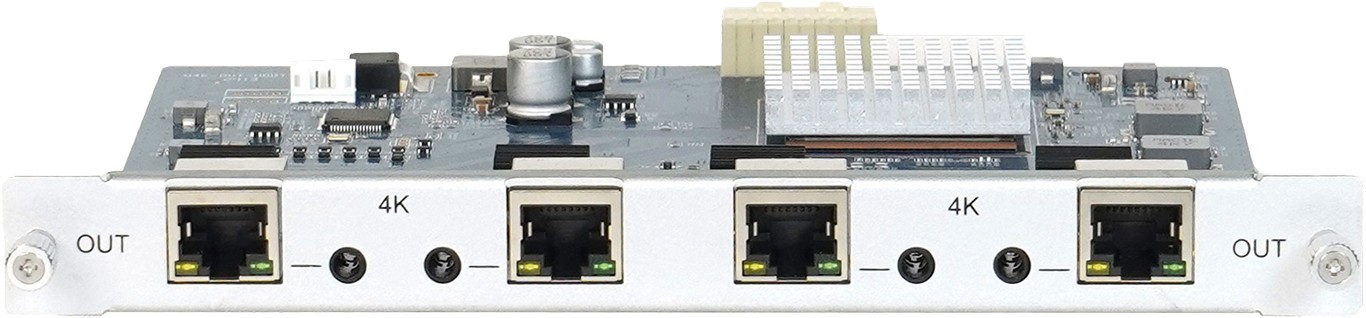

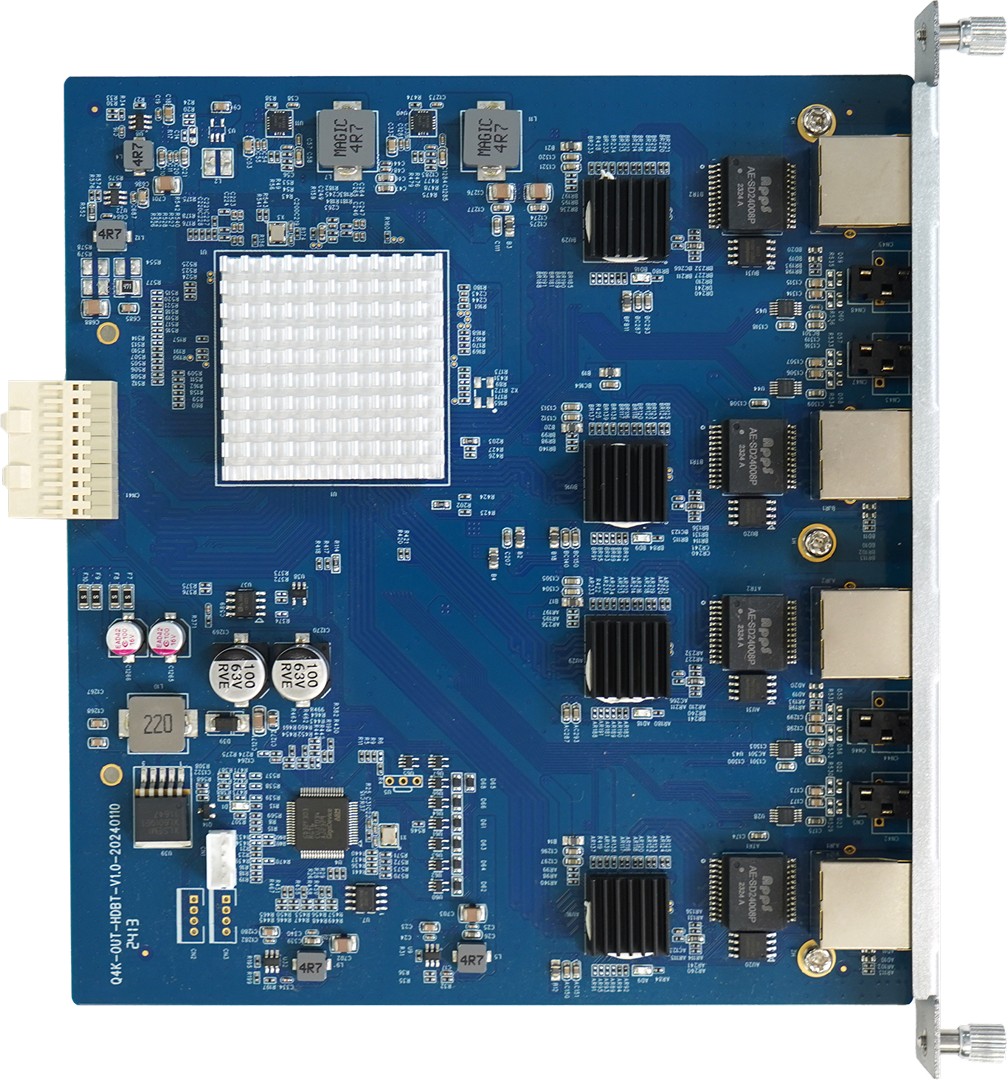

QVM-OUT-HDBT-4K60 Quad-Ch Output-HDBaset HDbaseT 1.0, up to 4K420@60Hz
  |
|
|

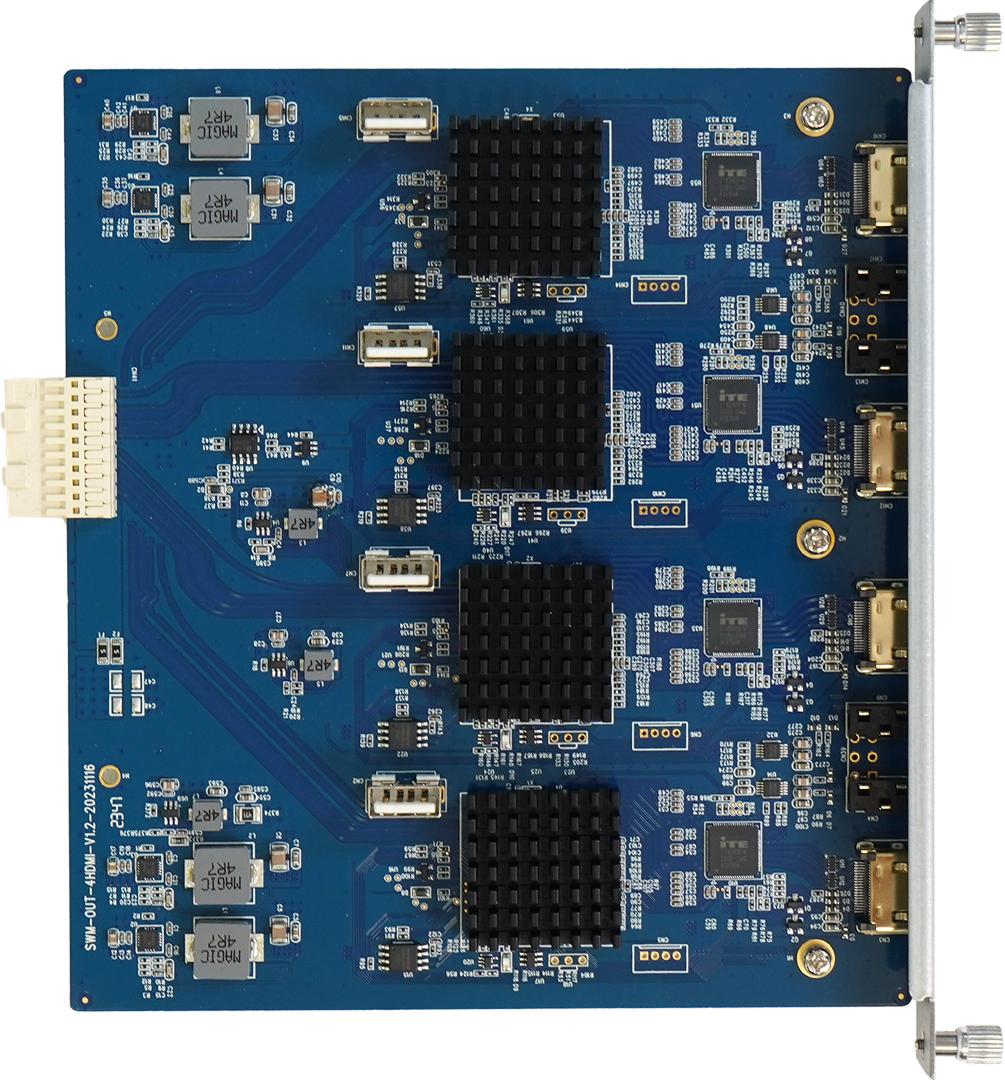

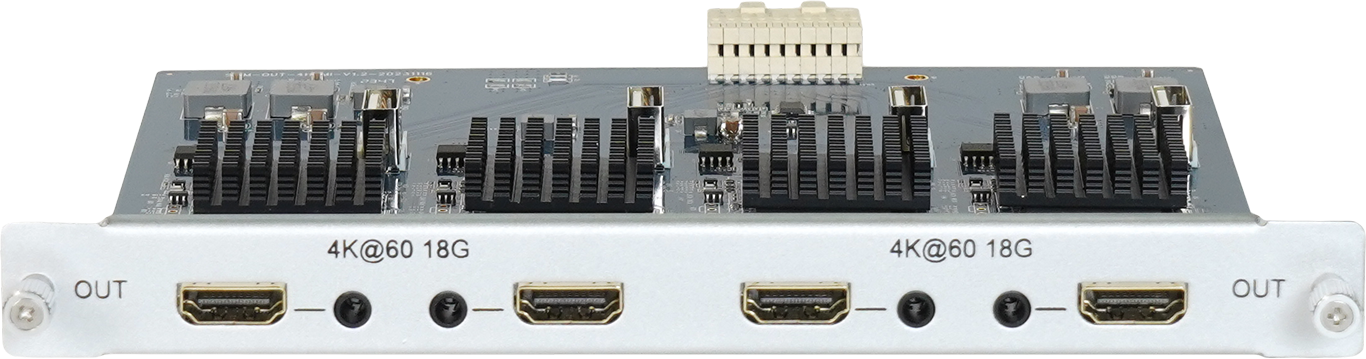

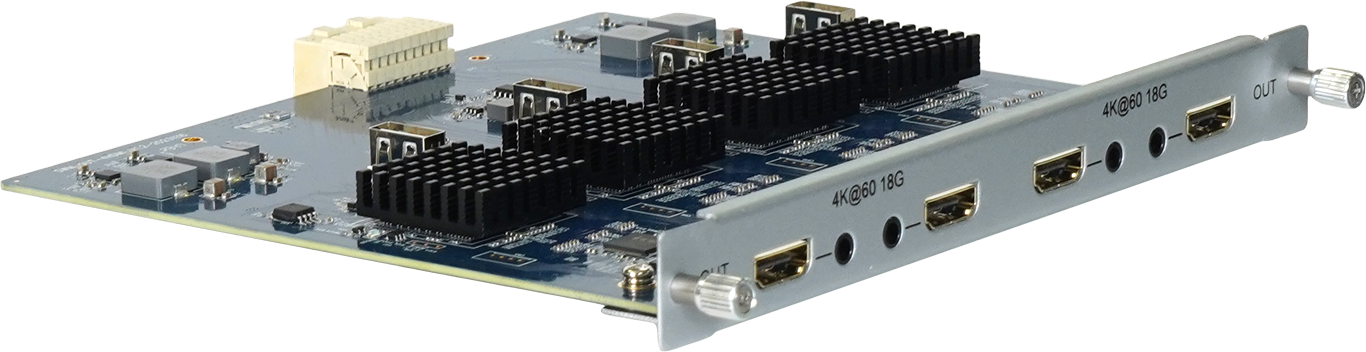

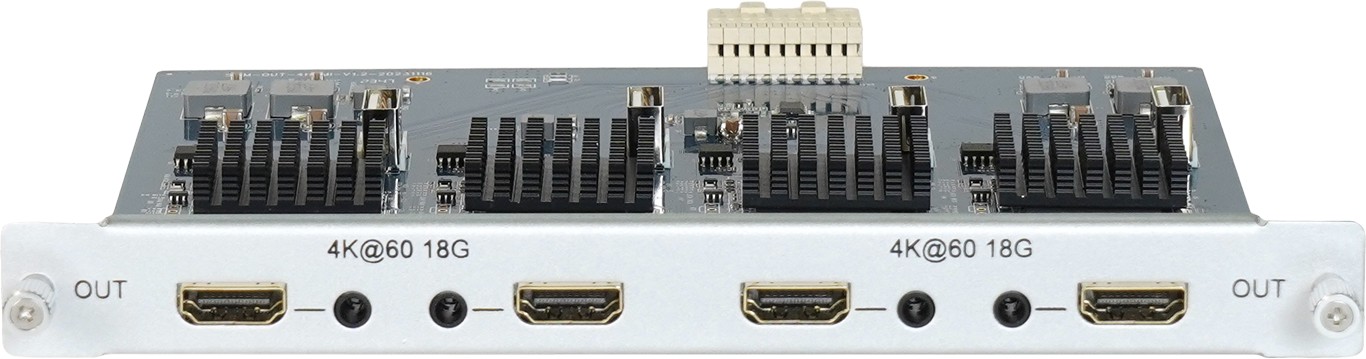

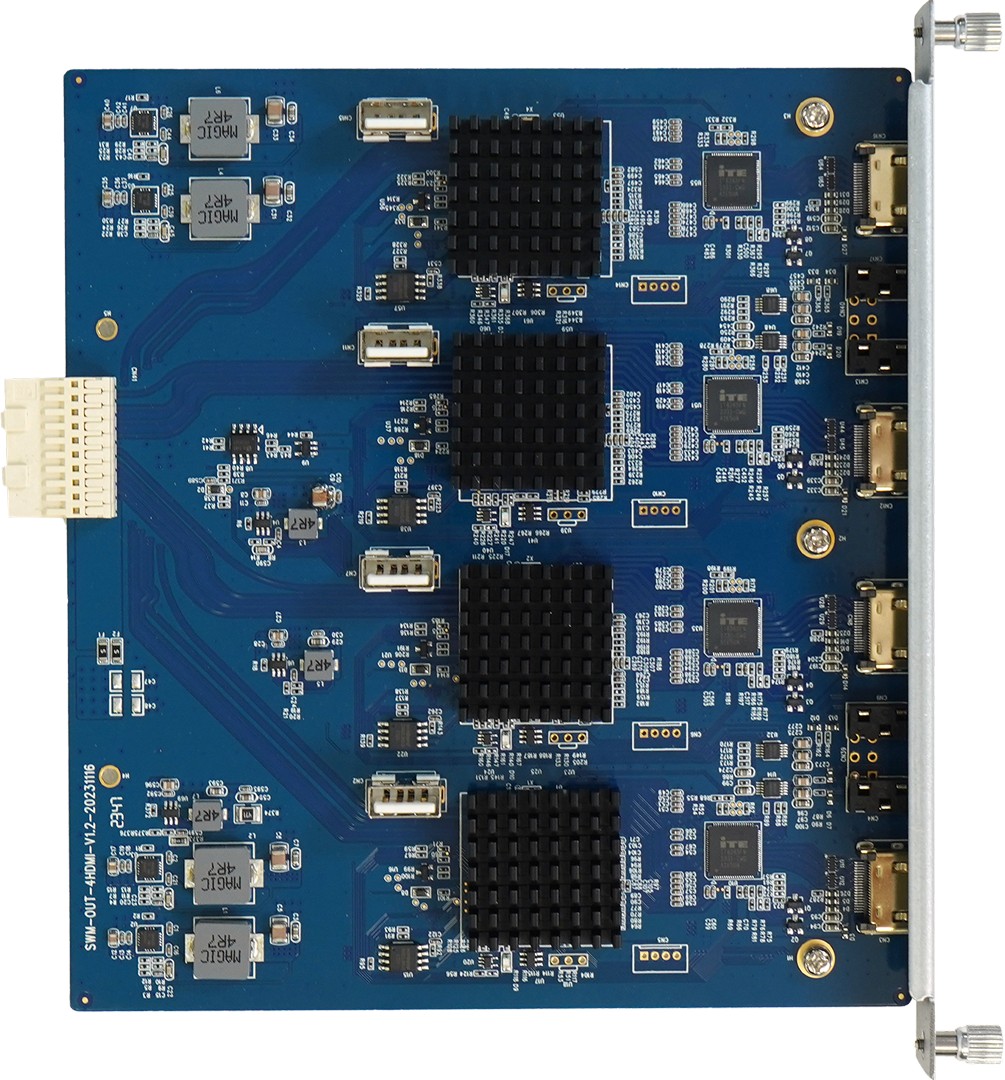

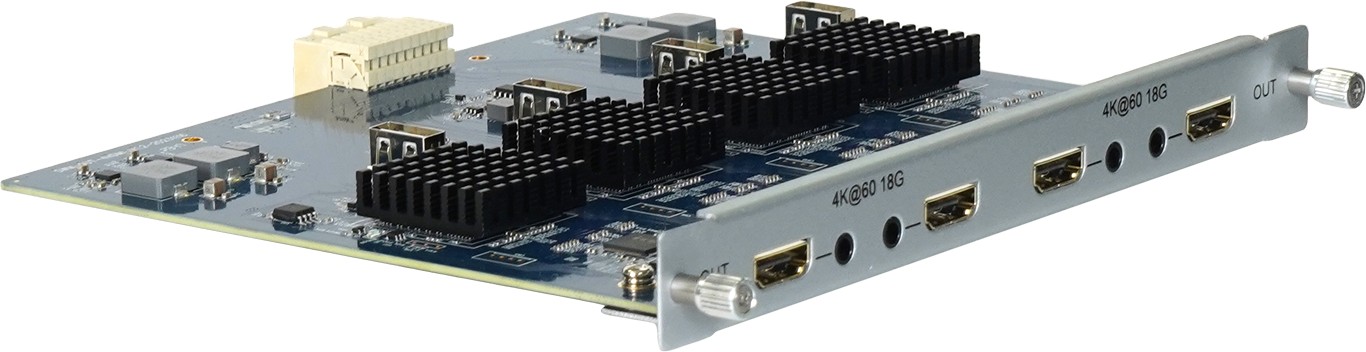

QVM-OUT-HDMI-18G Quad-Ch Output-HDMI up to 4K444@60Hz, 18Gbps
  |

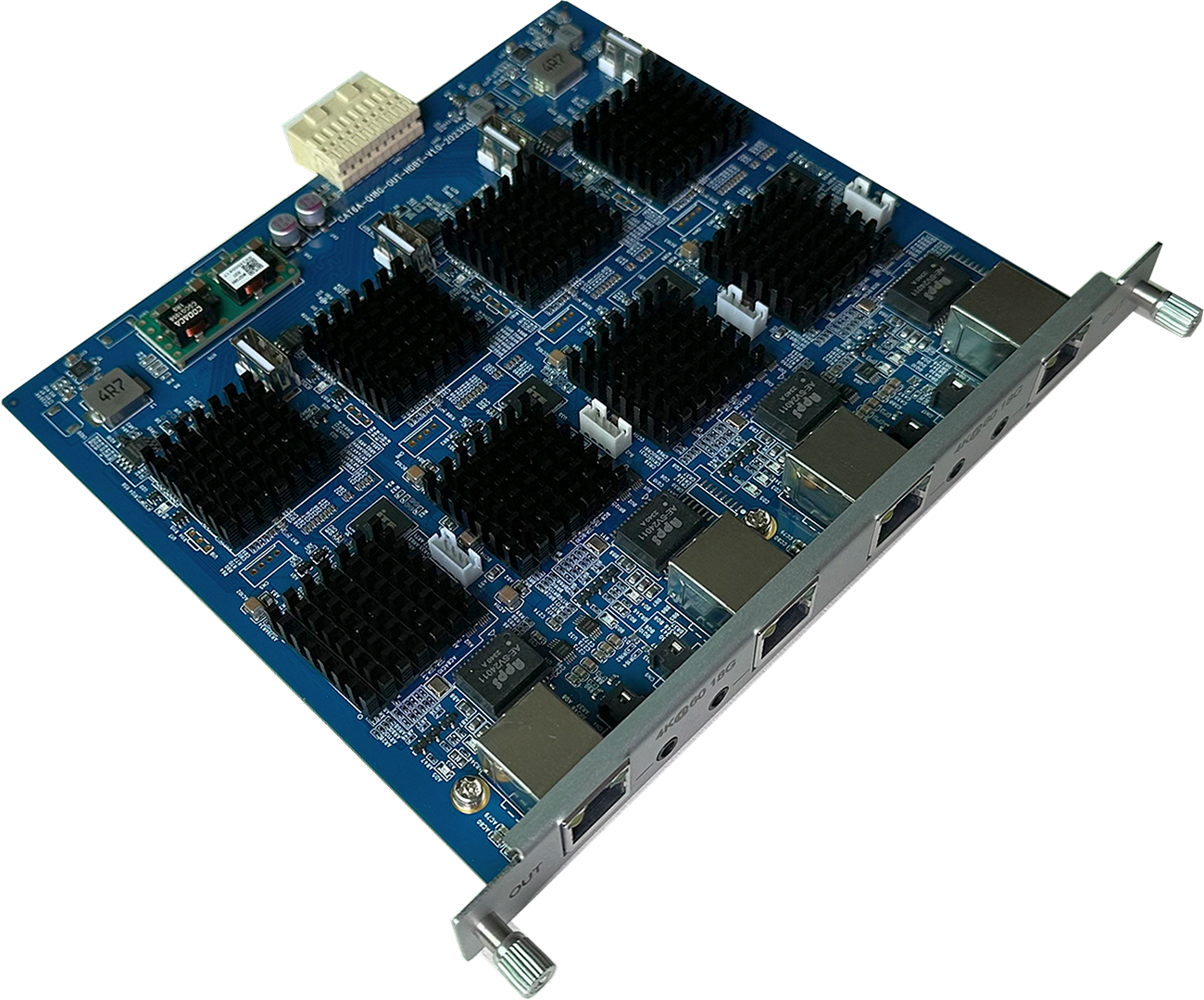

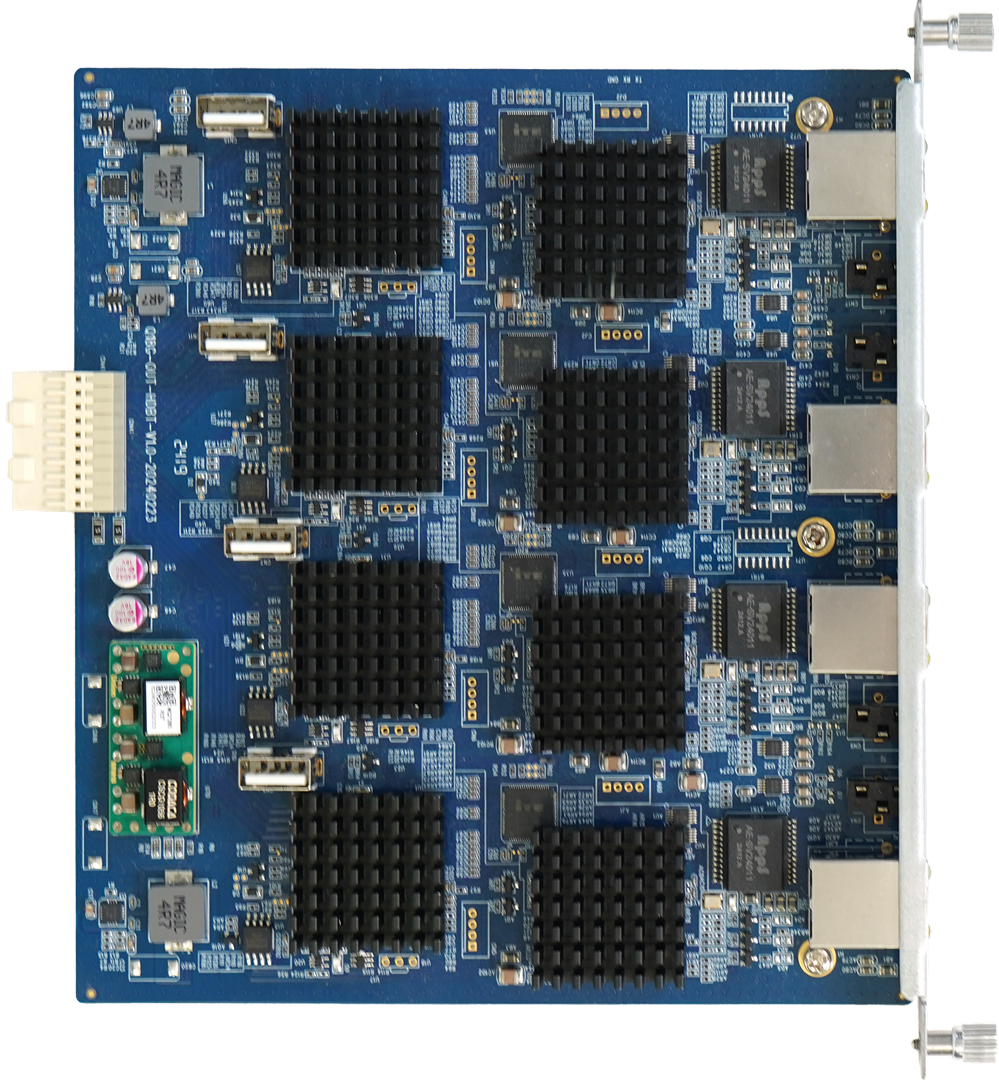

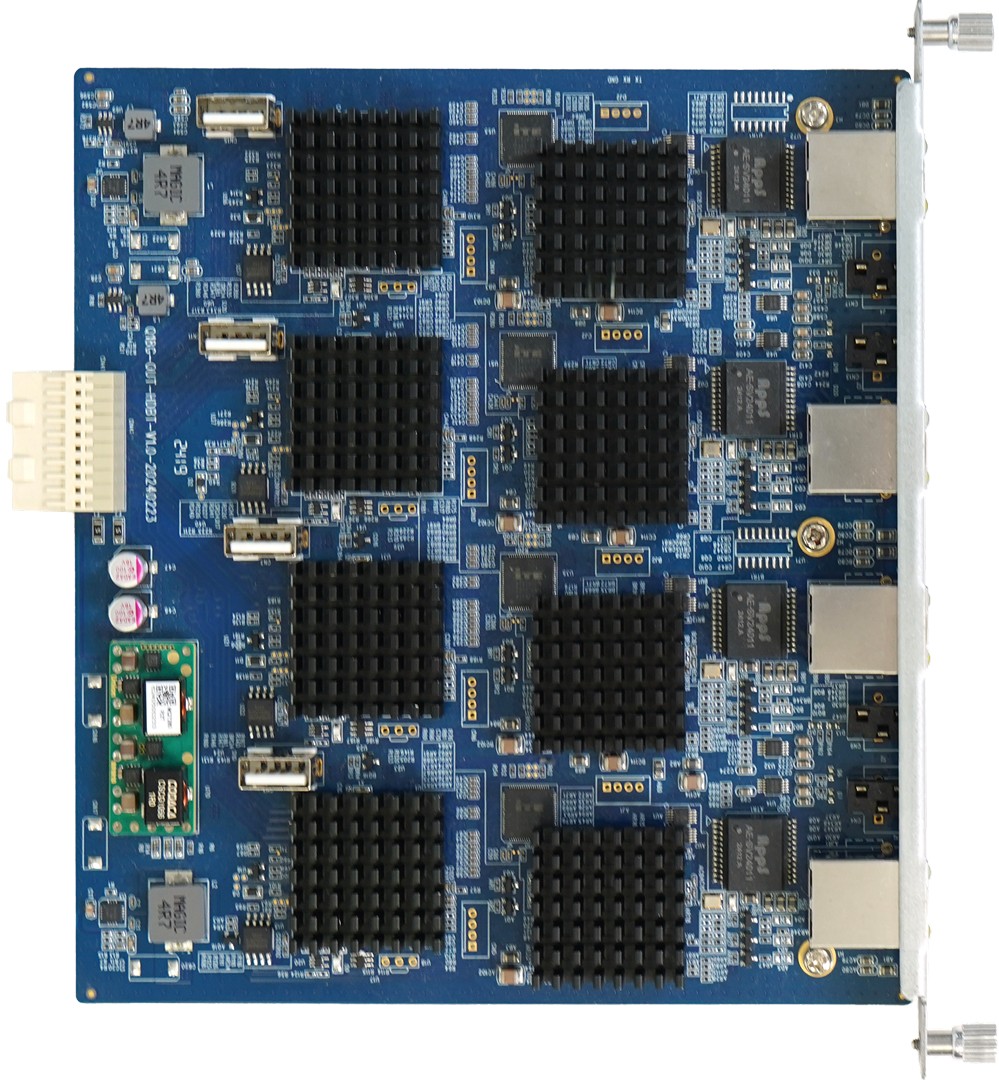

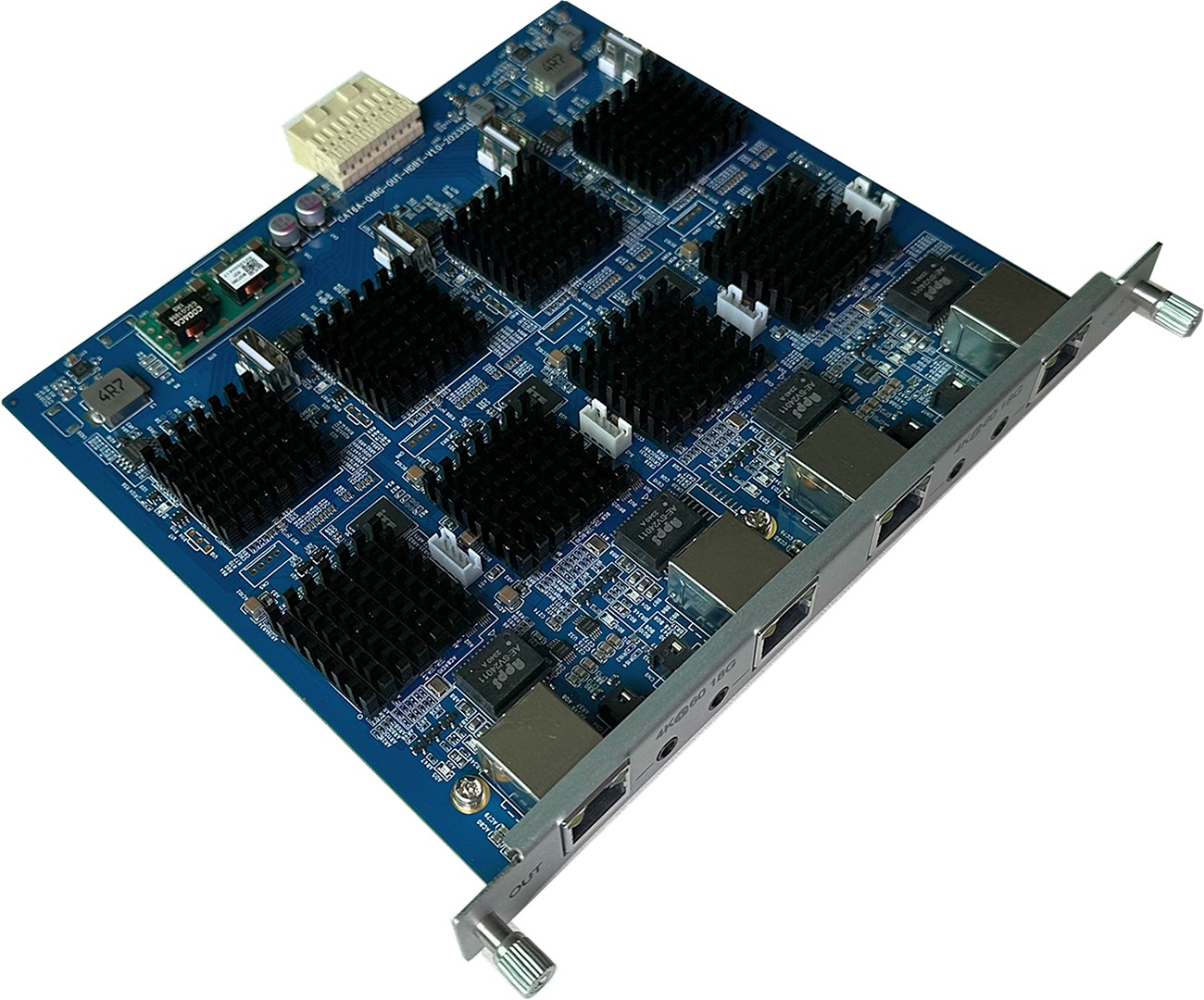

QVM-OUT-HDBT-18G Quad-Ch Output-HDBaseT HDbaseT 3.0, up to 4K444@60Hz, 18Gbps
  |
|
|

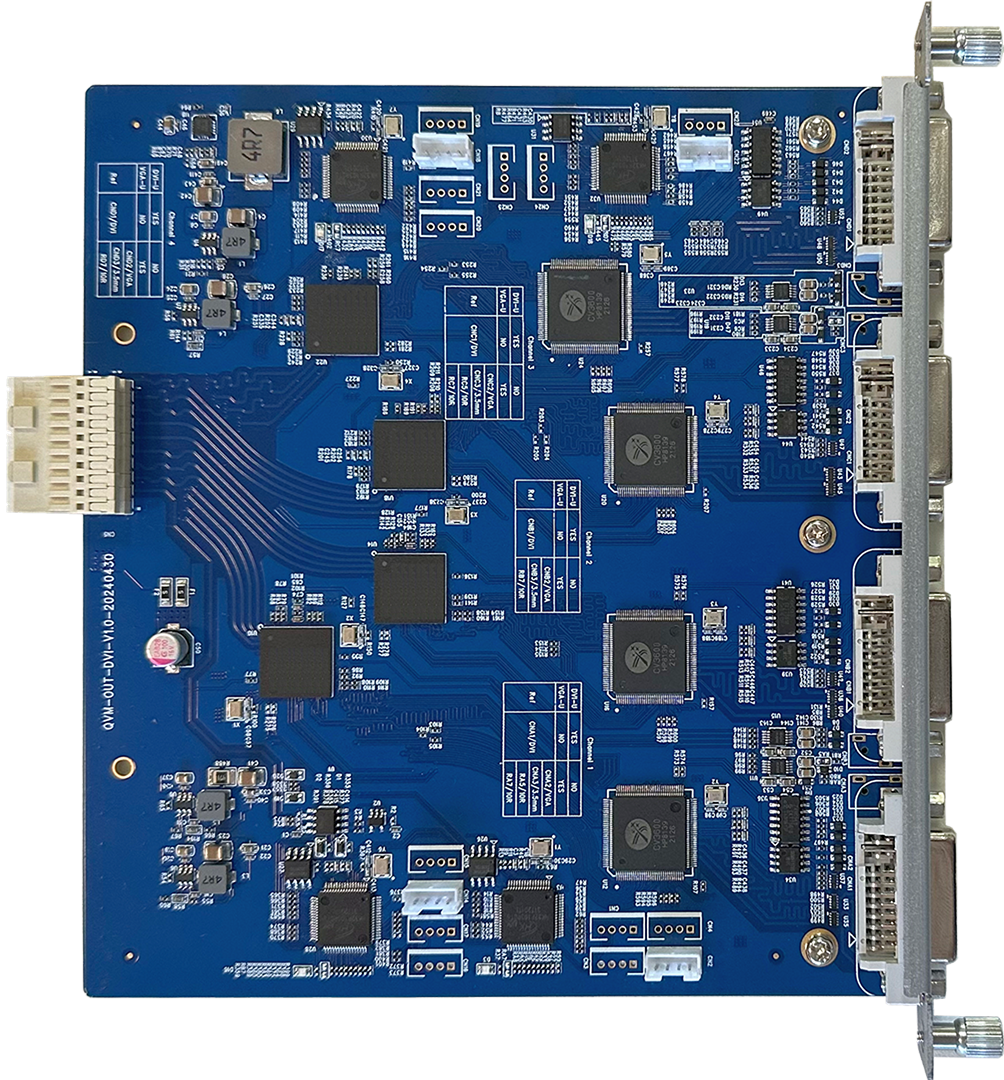

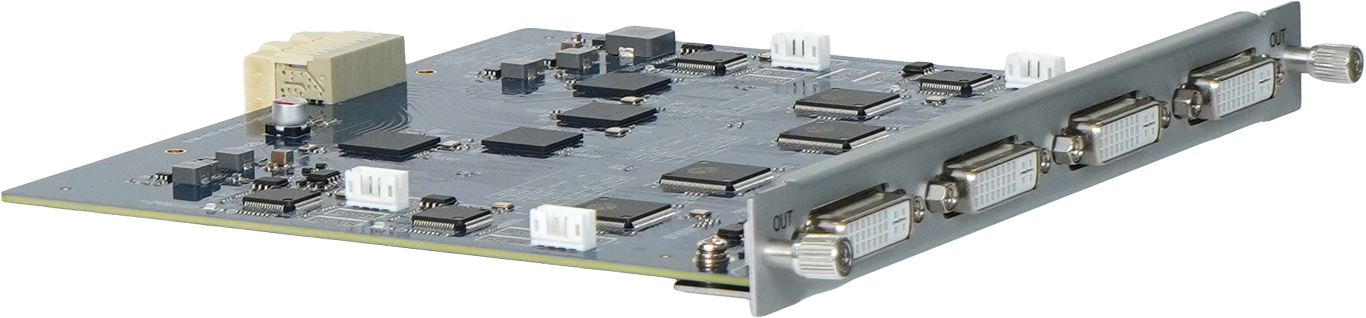

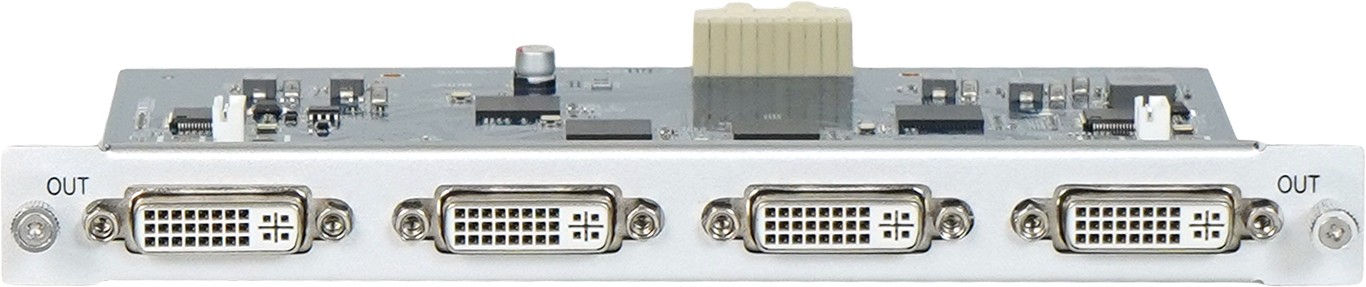

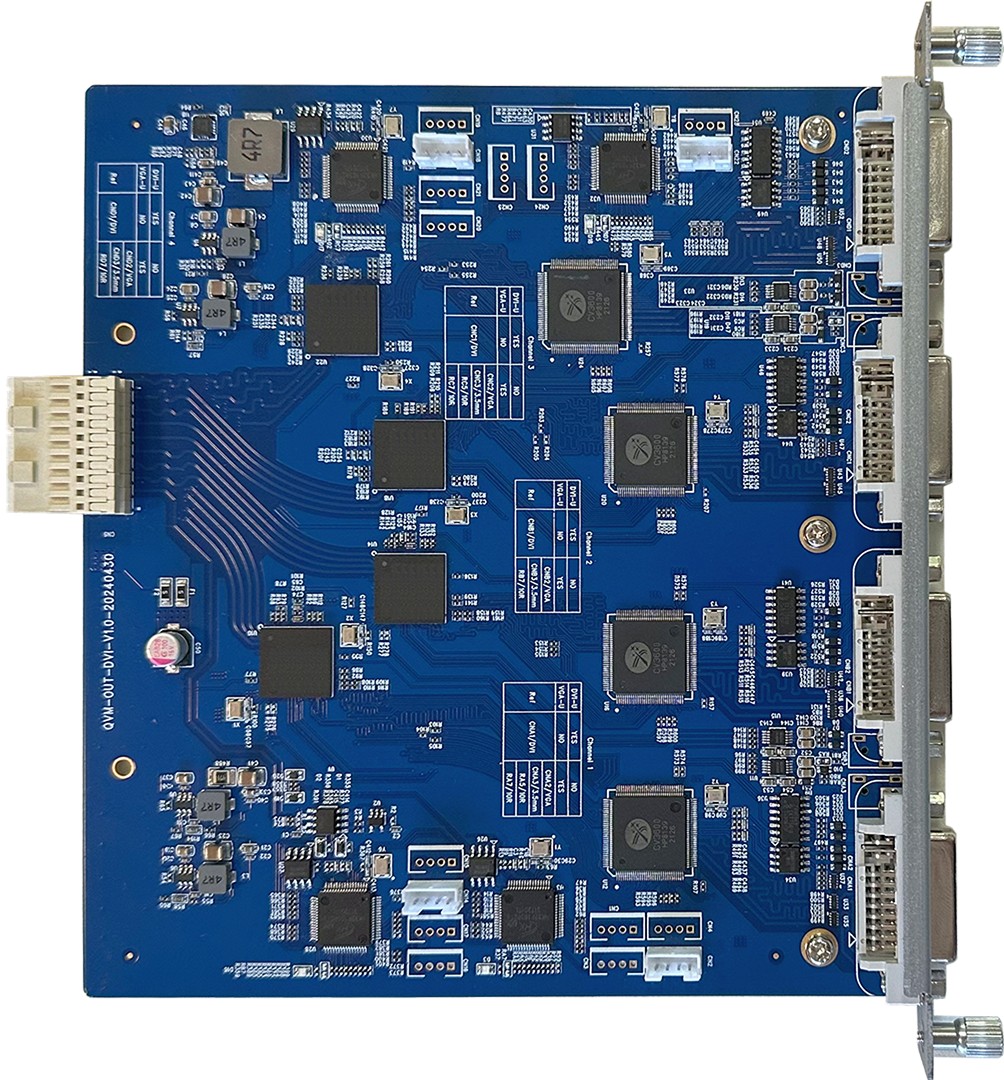

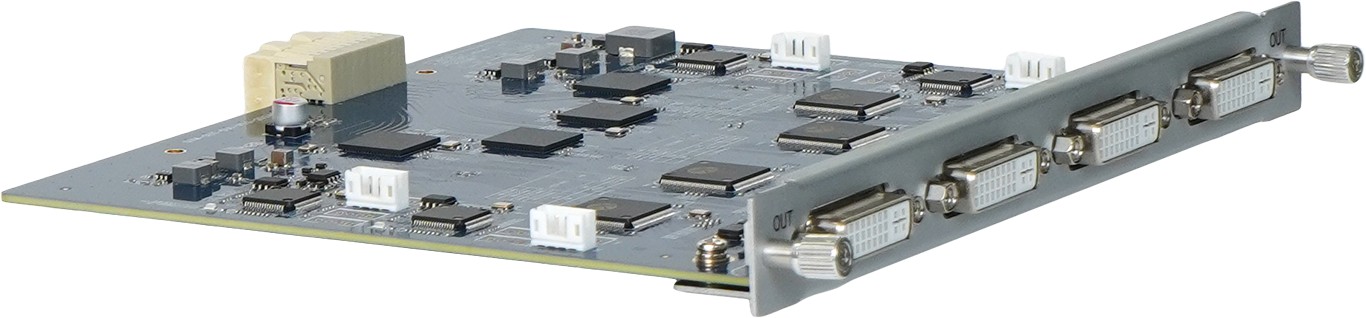

QVM-OUT-DVI Quad-Ch Output-DVI Up to 1920x1200

|

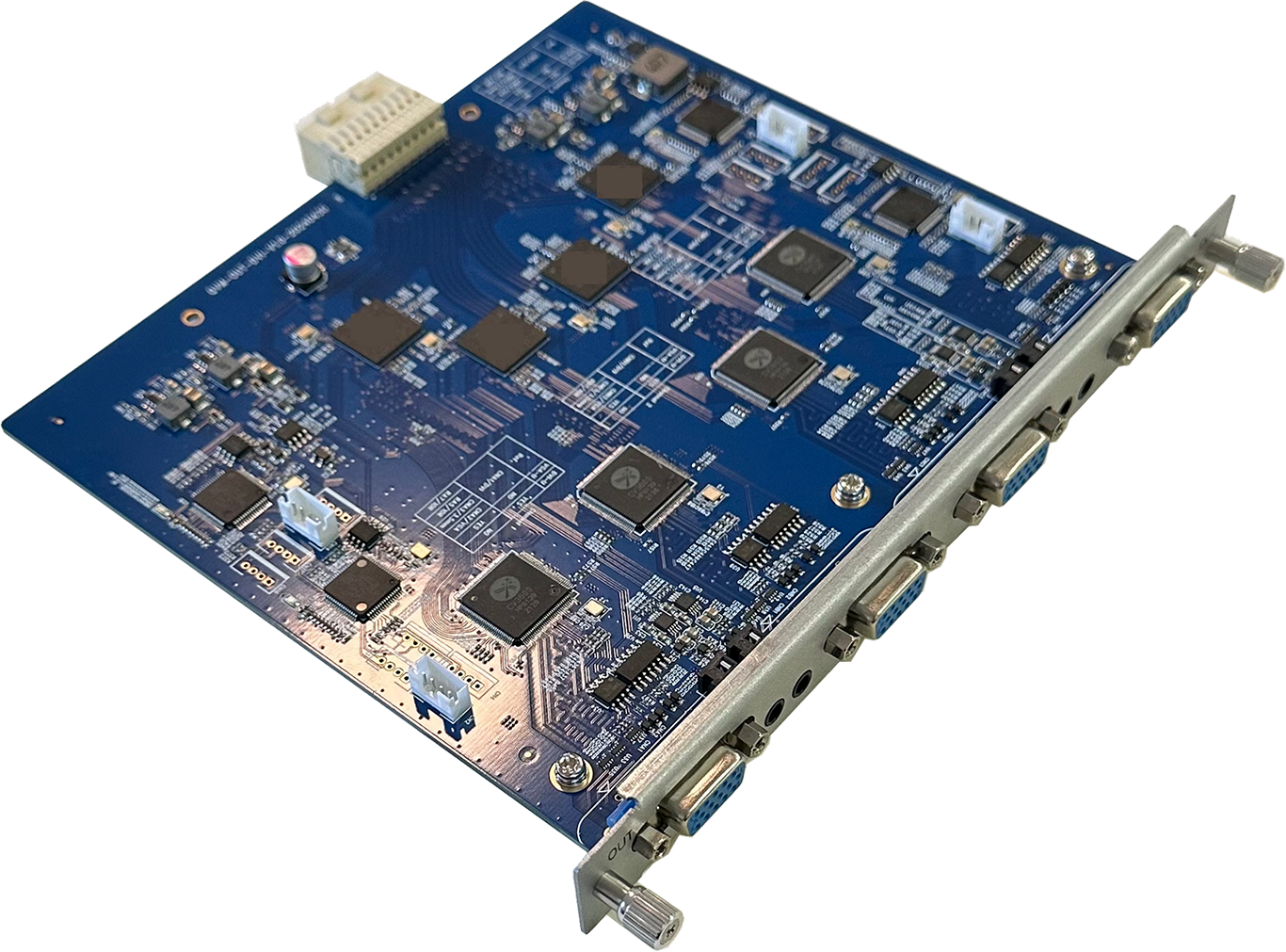

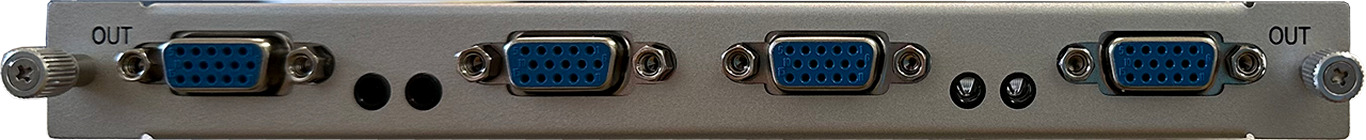

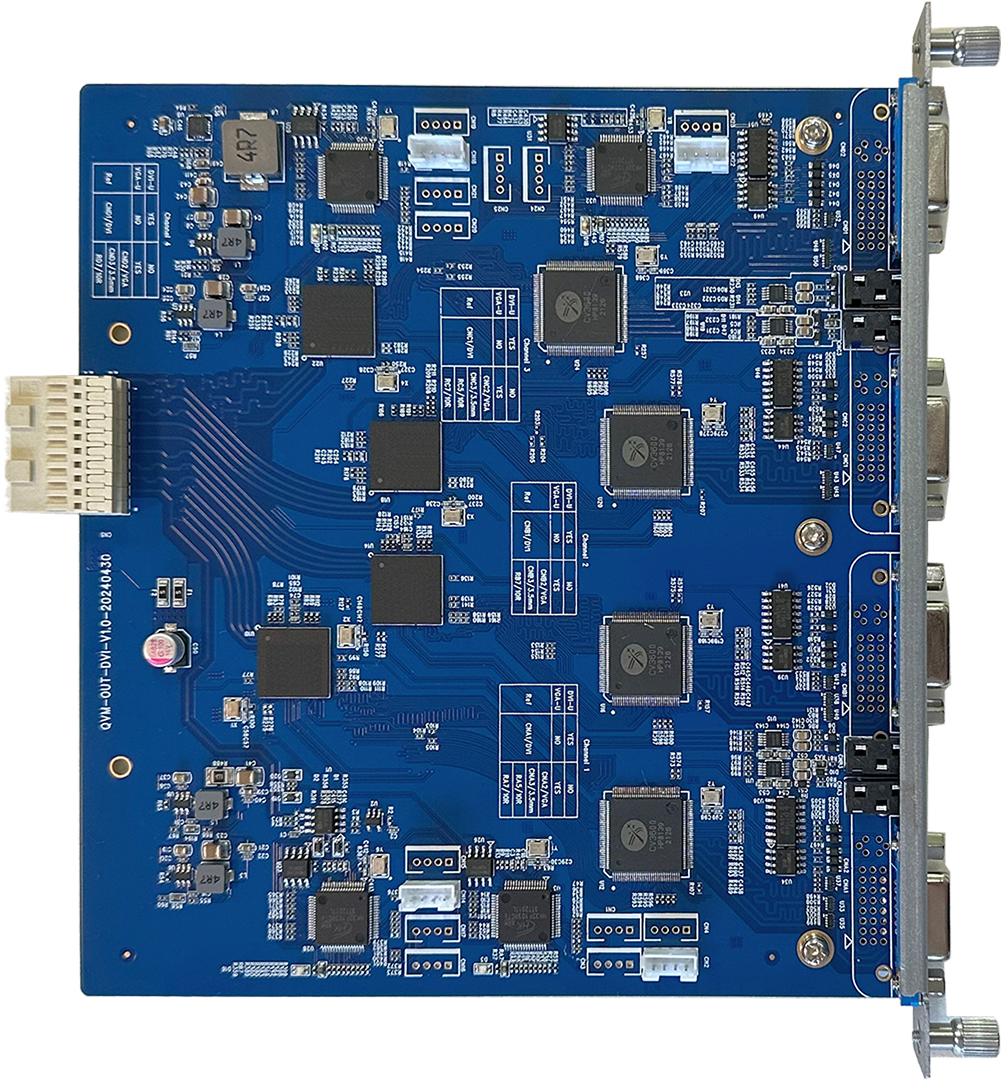

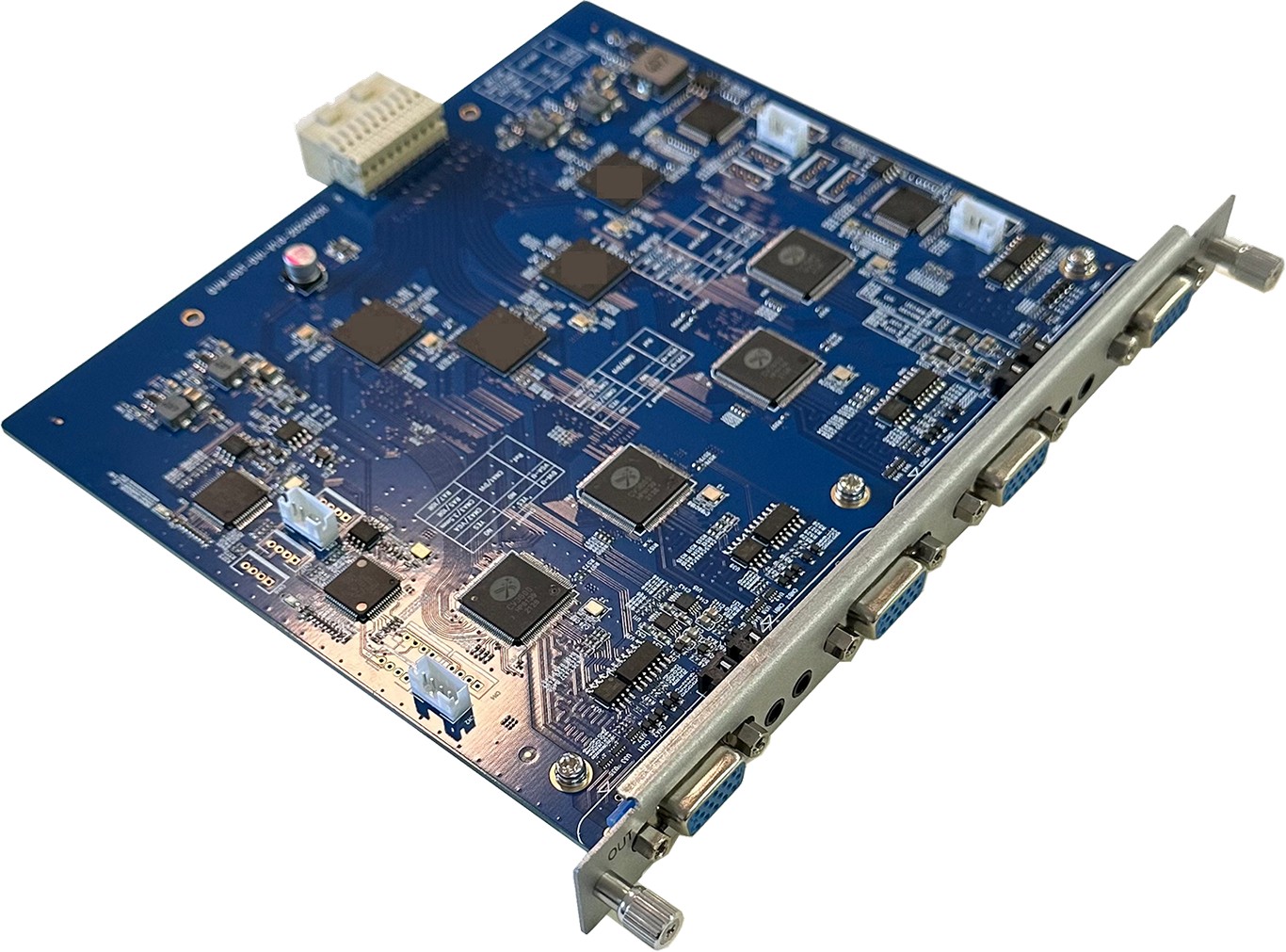

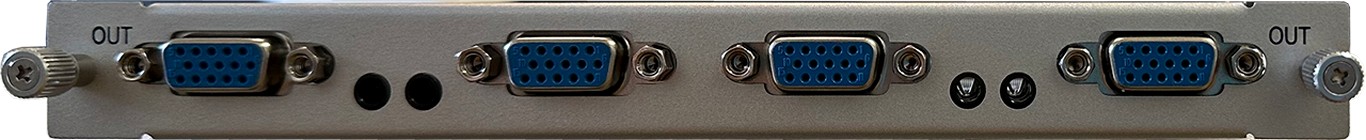

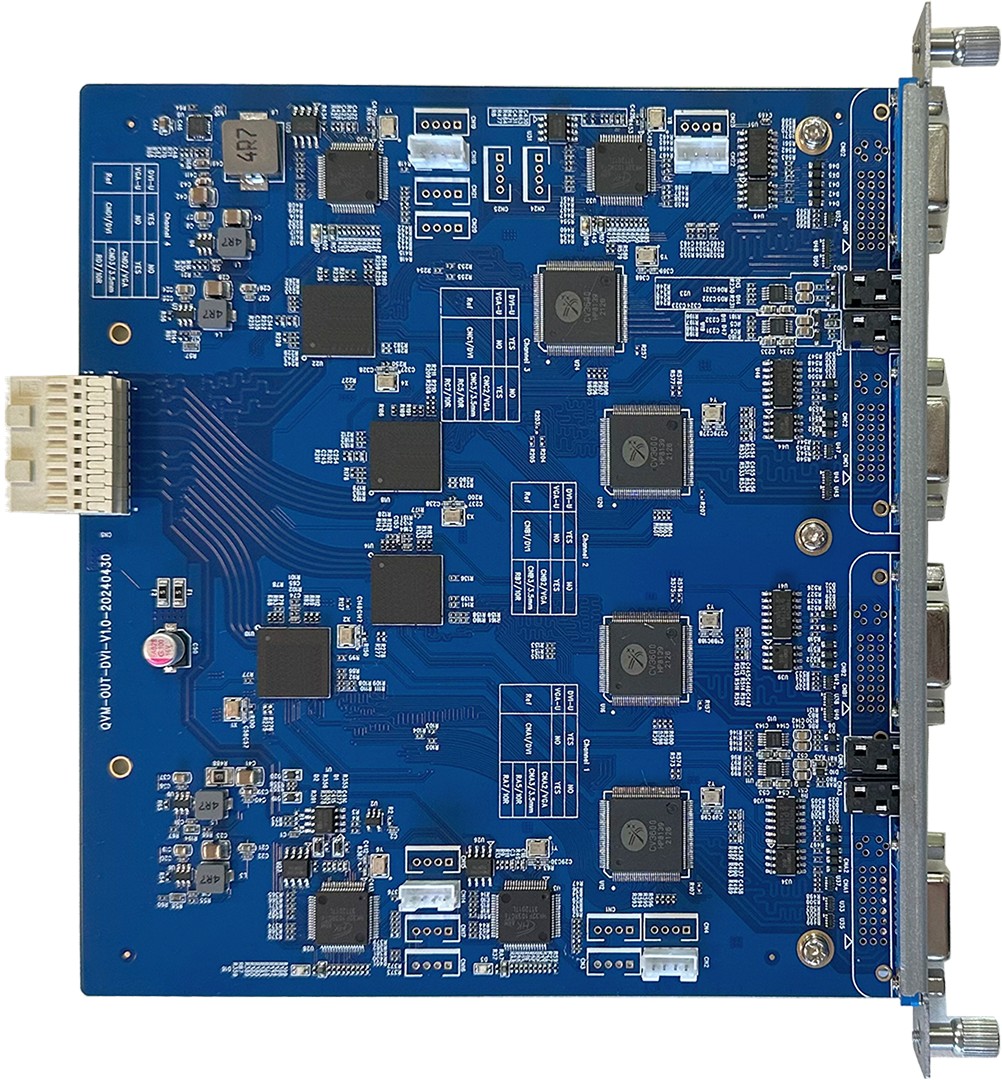

QVM-OUT-VGA Quad-Ch Output-VGA Up to 1920x1200

|

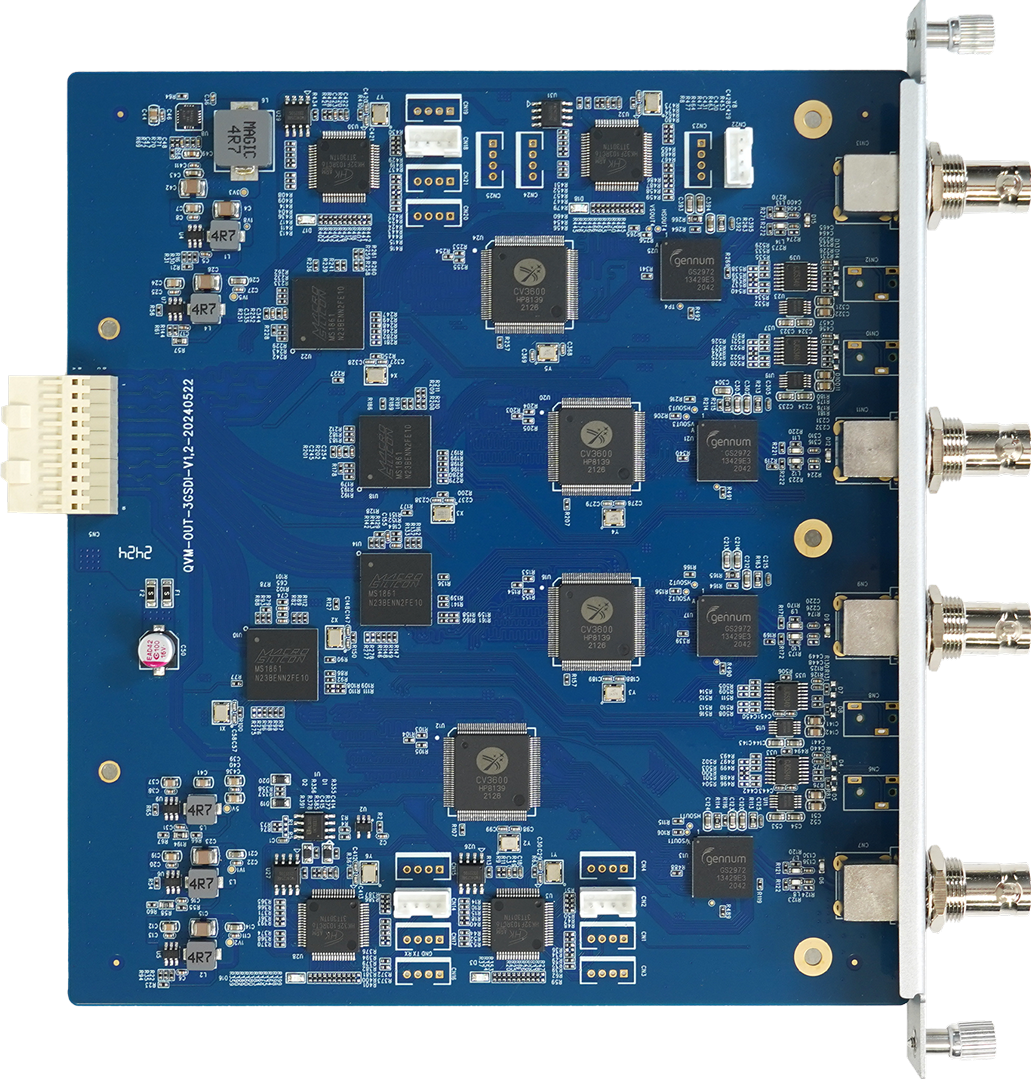

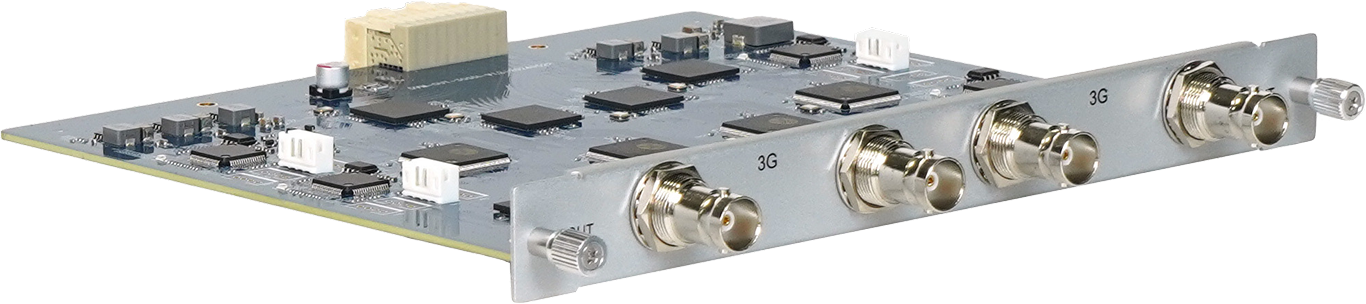

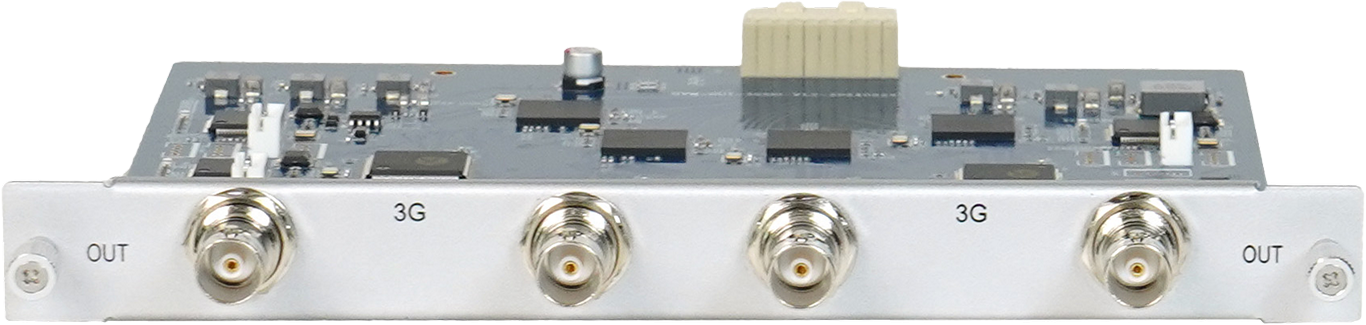

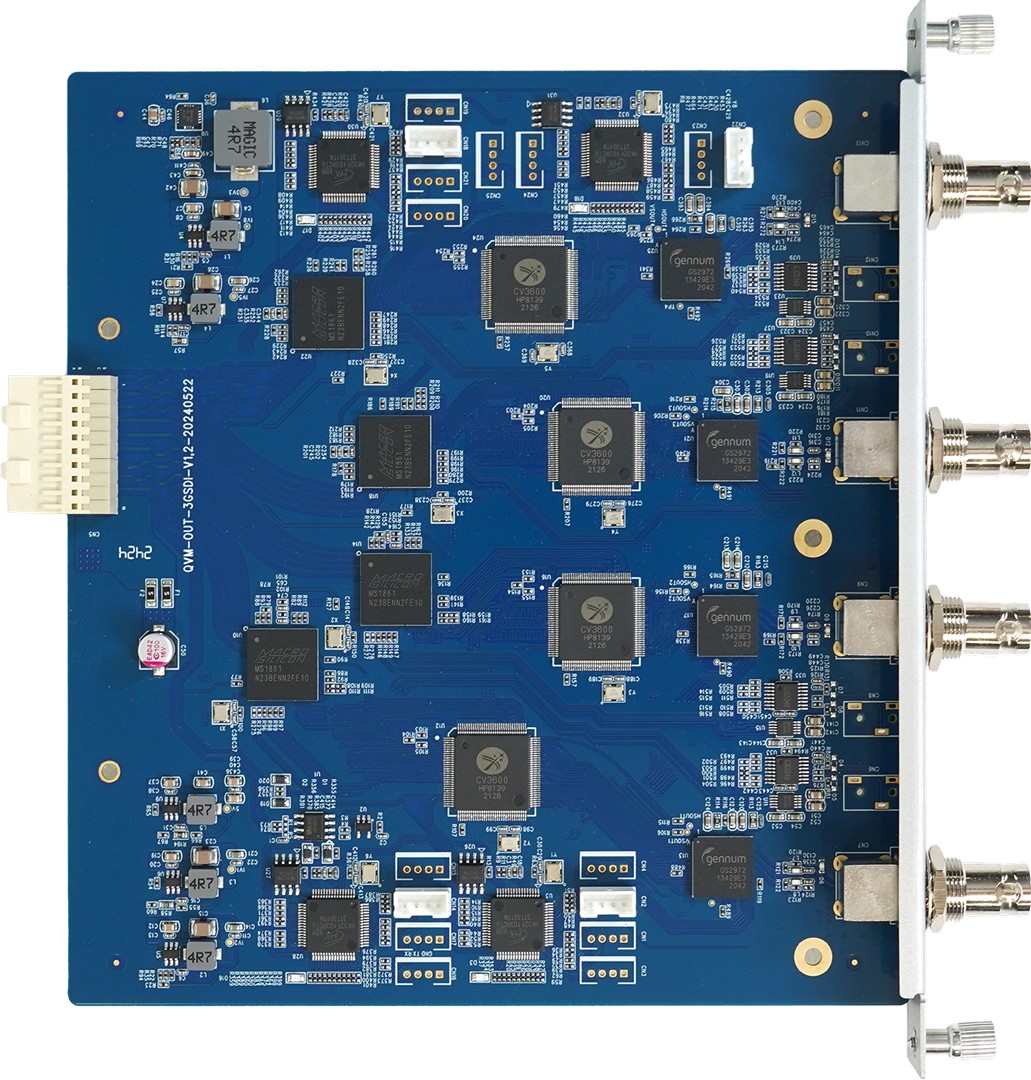

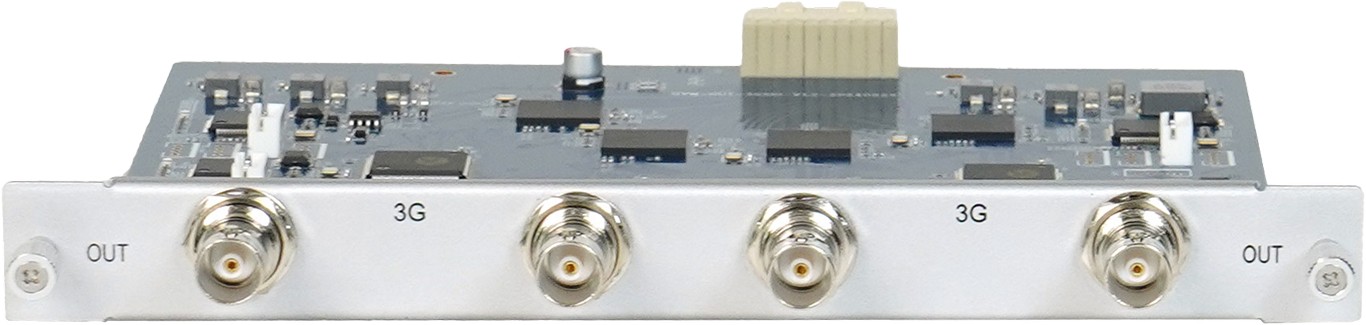

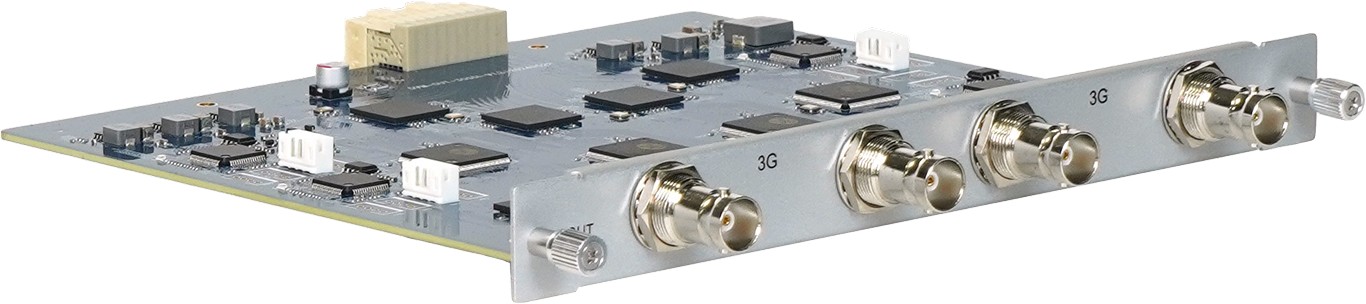

QVM-OUT-SDI Quad-Ch Output-SDI SD/HD/3G-SDI

|
|

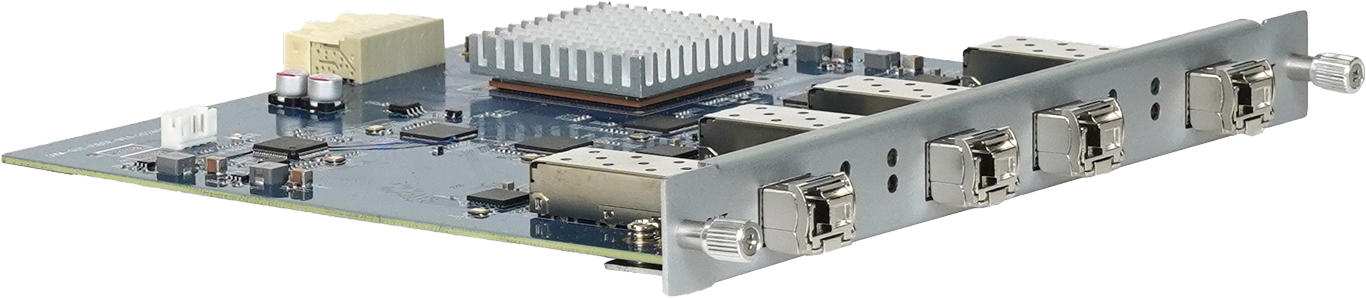

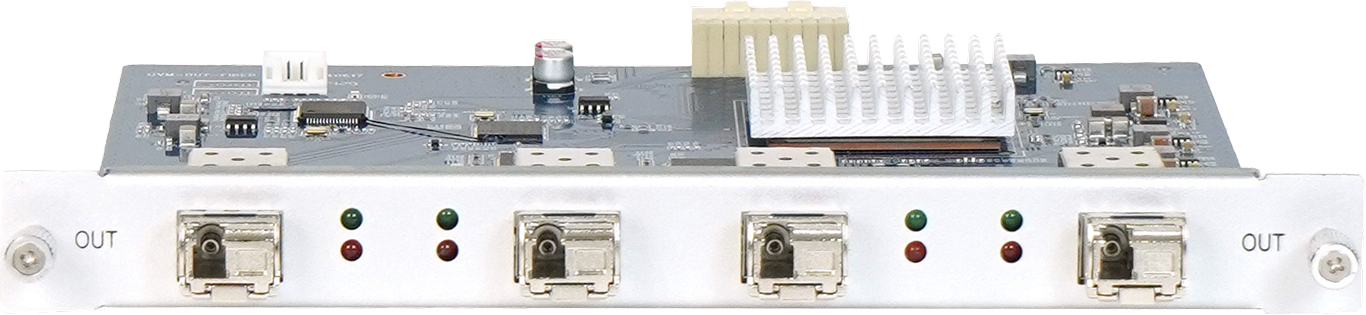

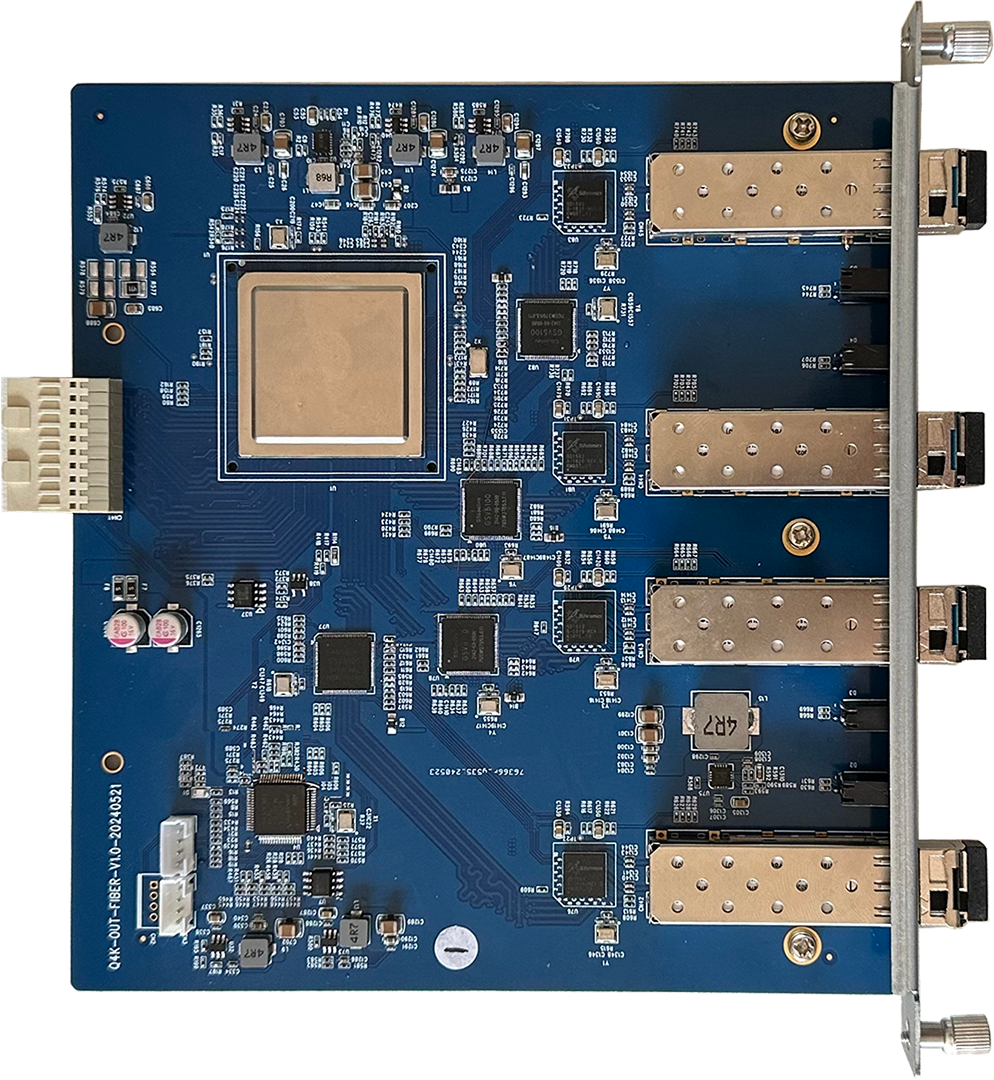

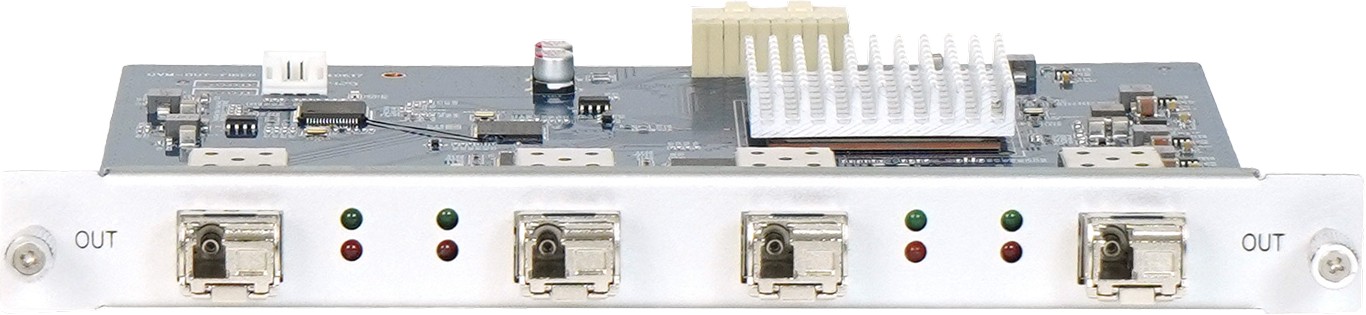

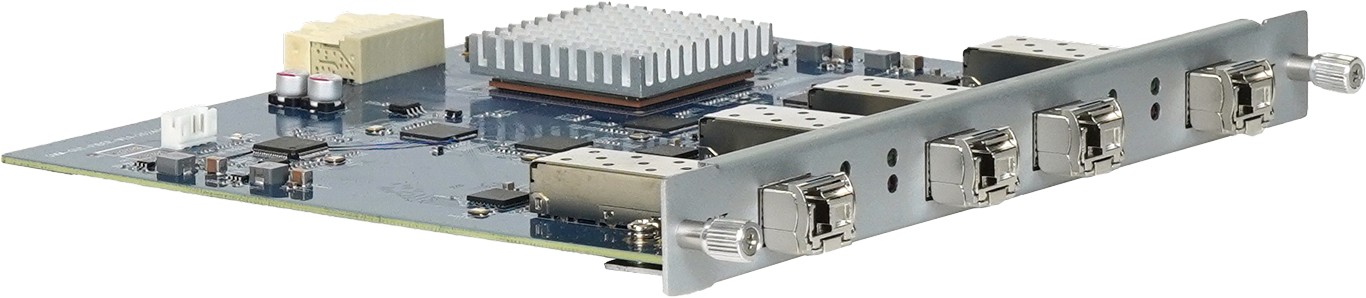

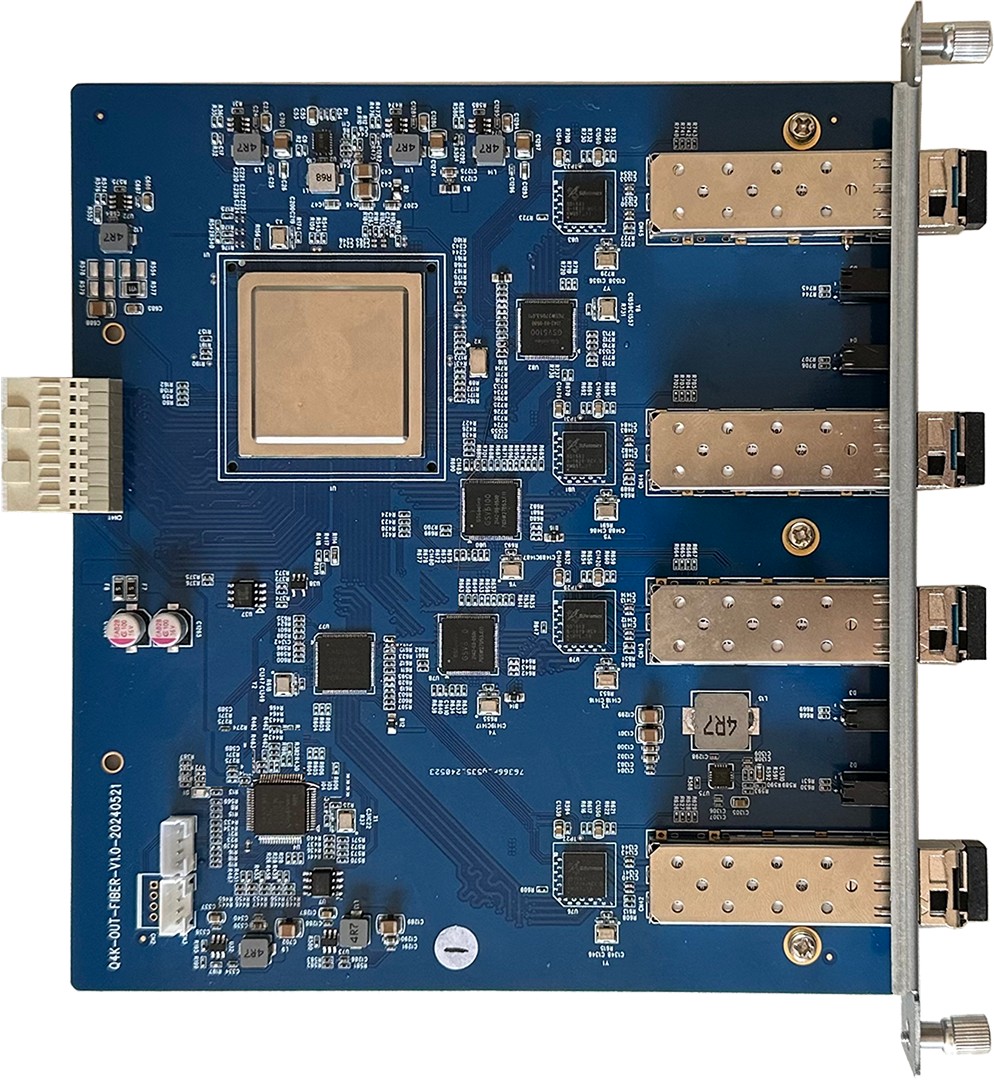

QVM-OUT-FIBER Quad-Ch Output-Fiber Up to 4K@60Hz

Option: SMF4K60D-RX, Fiber receiver
Up to 4K444@60Hz HDMI2.0 |
QVM-OUT-IP2K60 Quad-Ch Output-H264/H265 Encoder Up to 1080p |

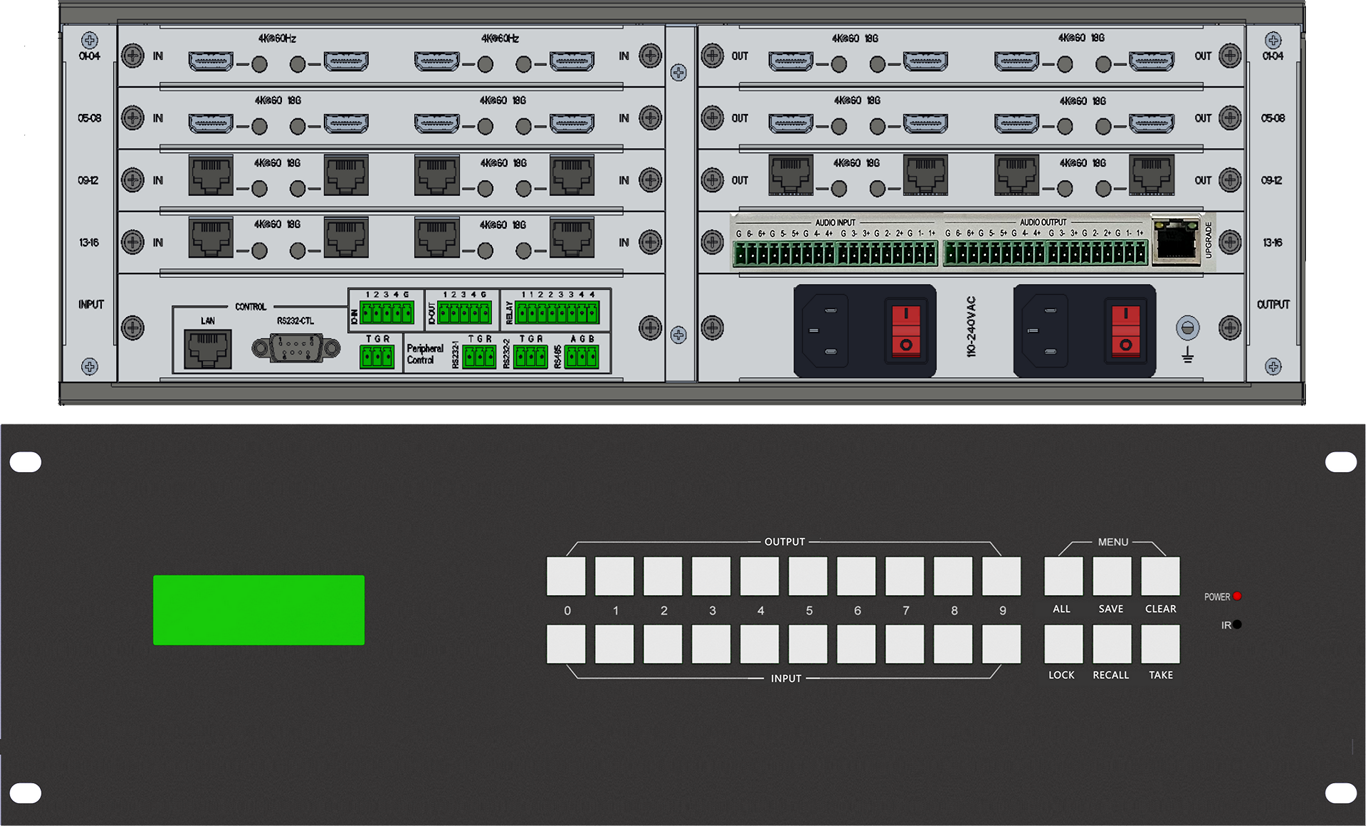

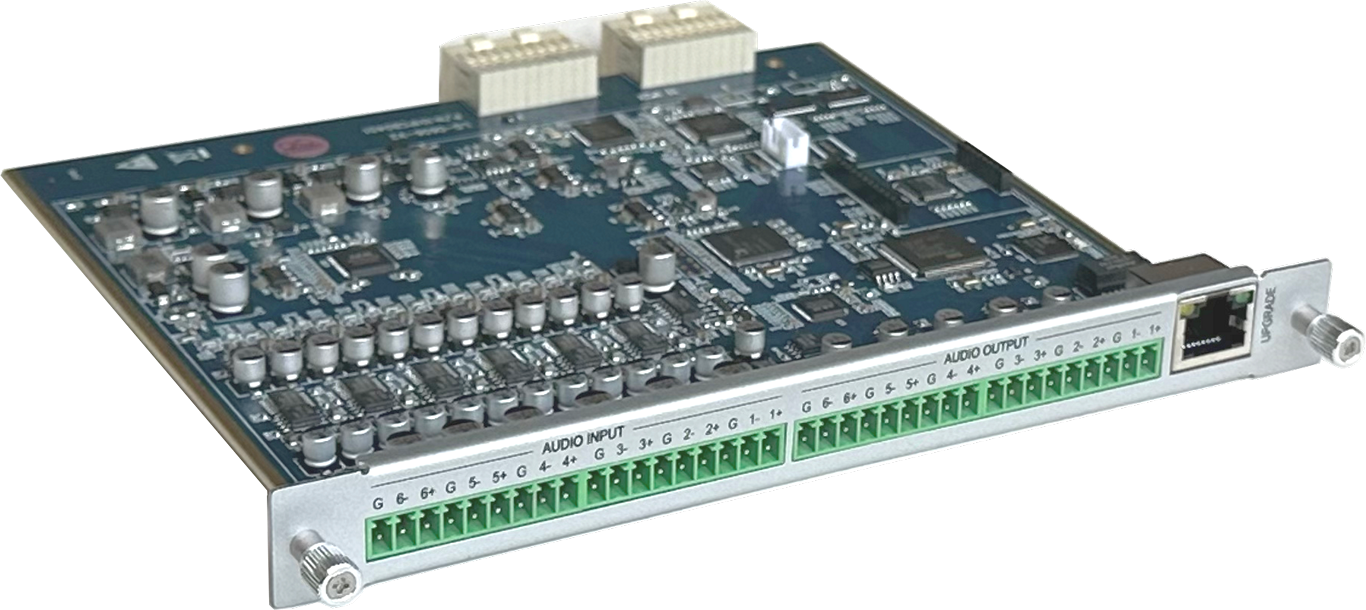

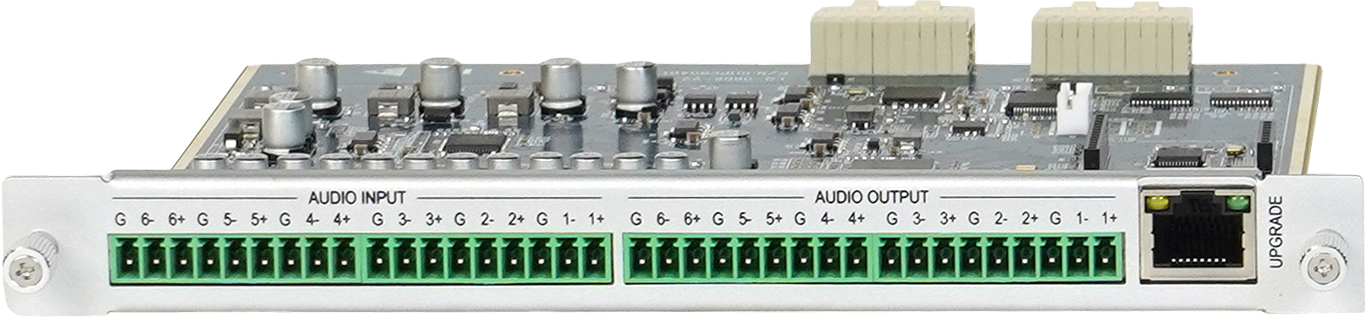

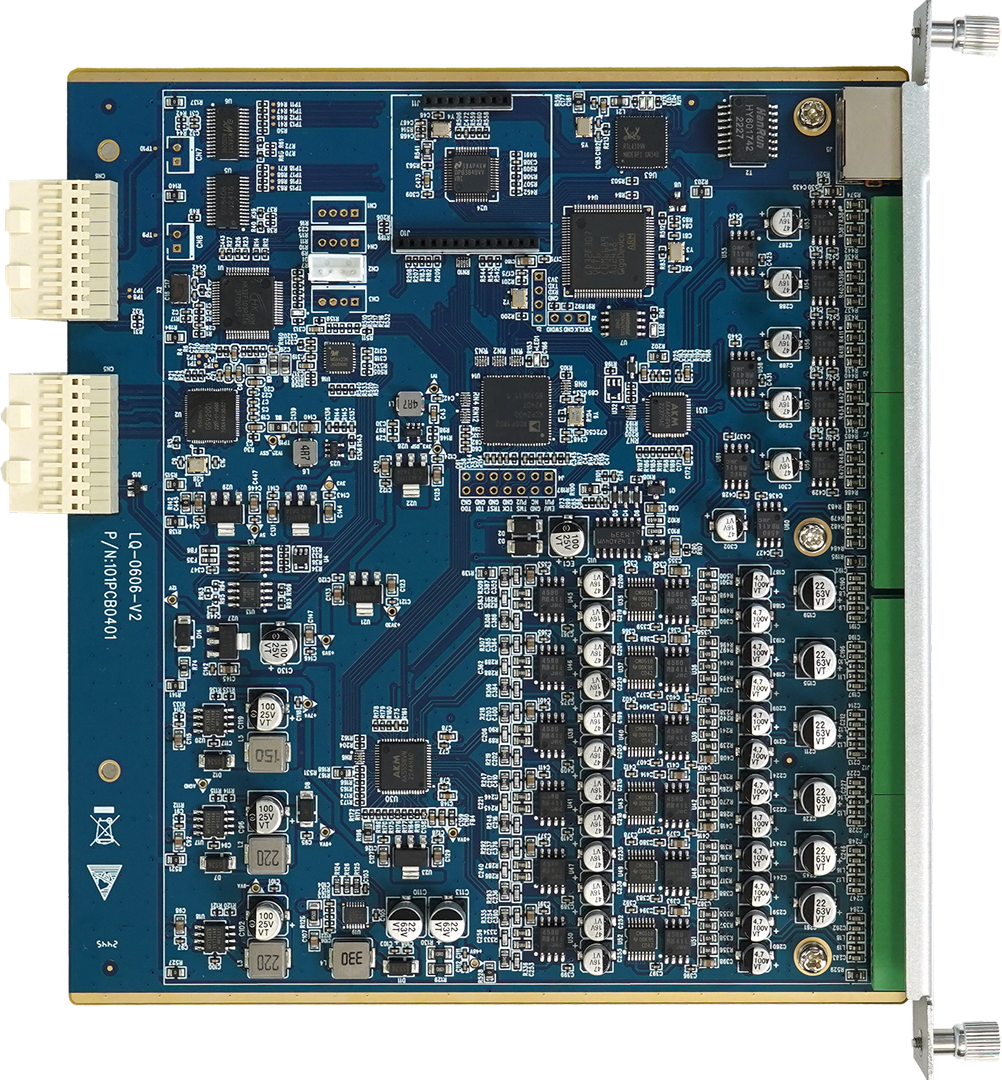

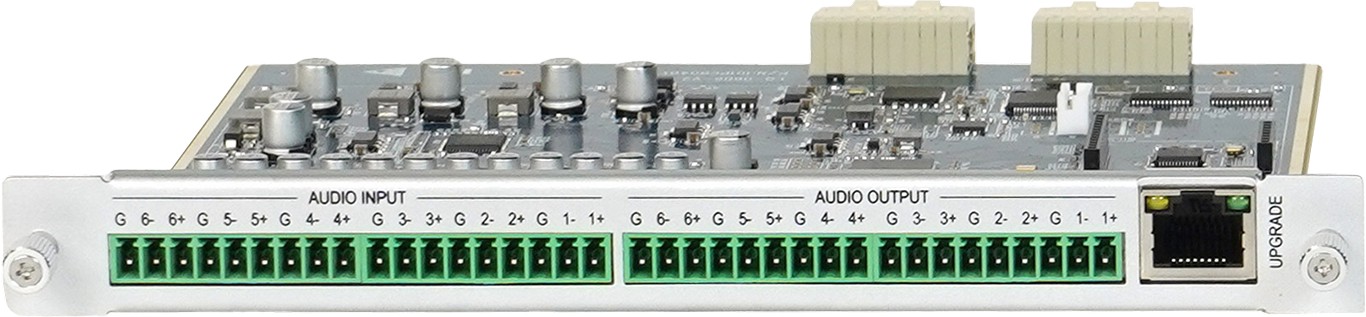

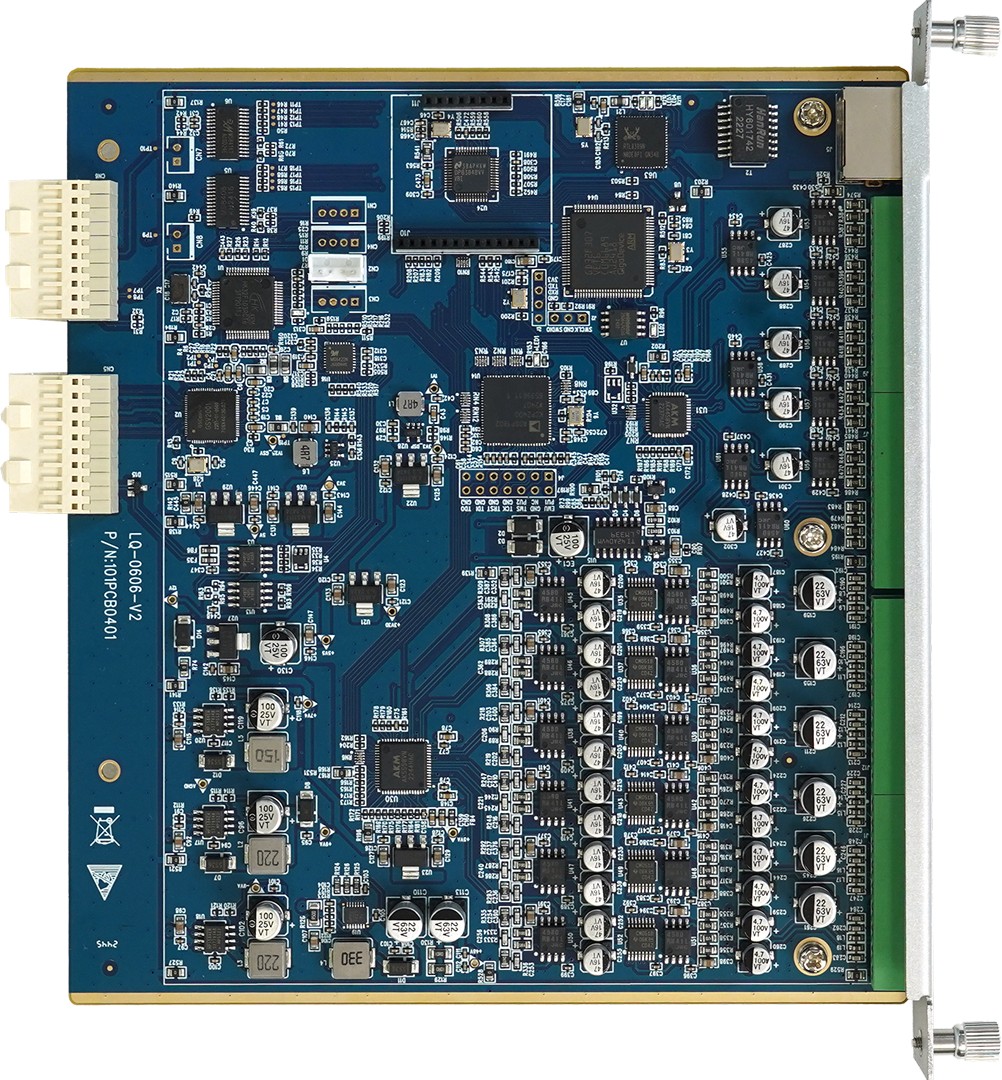

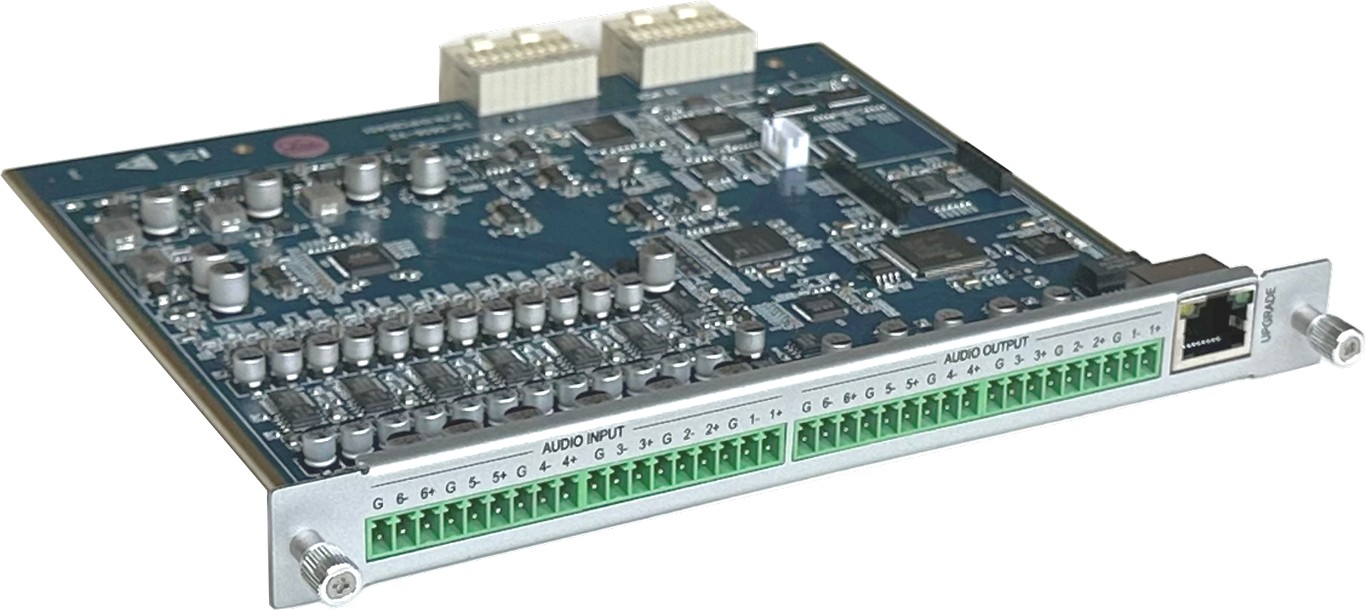

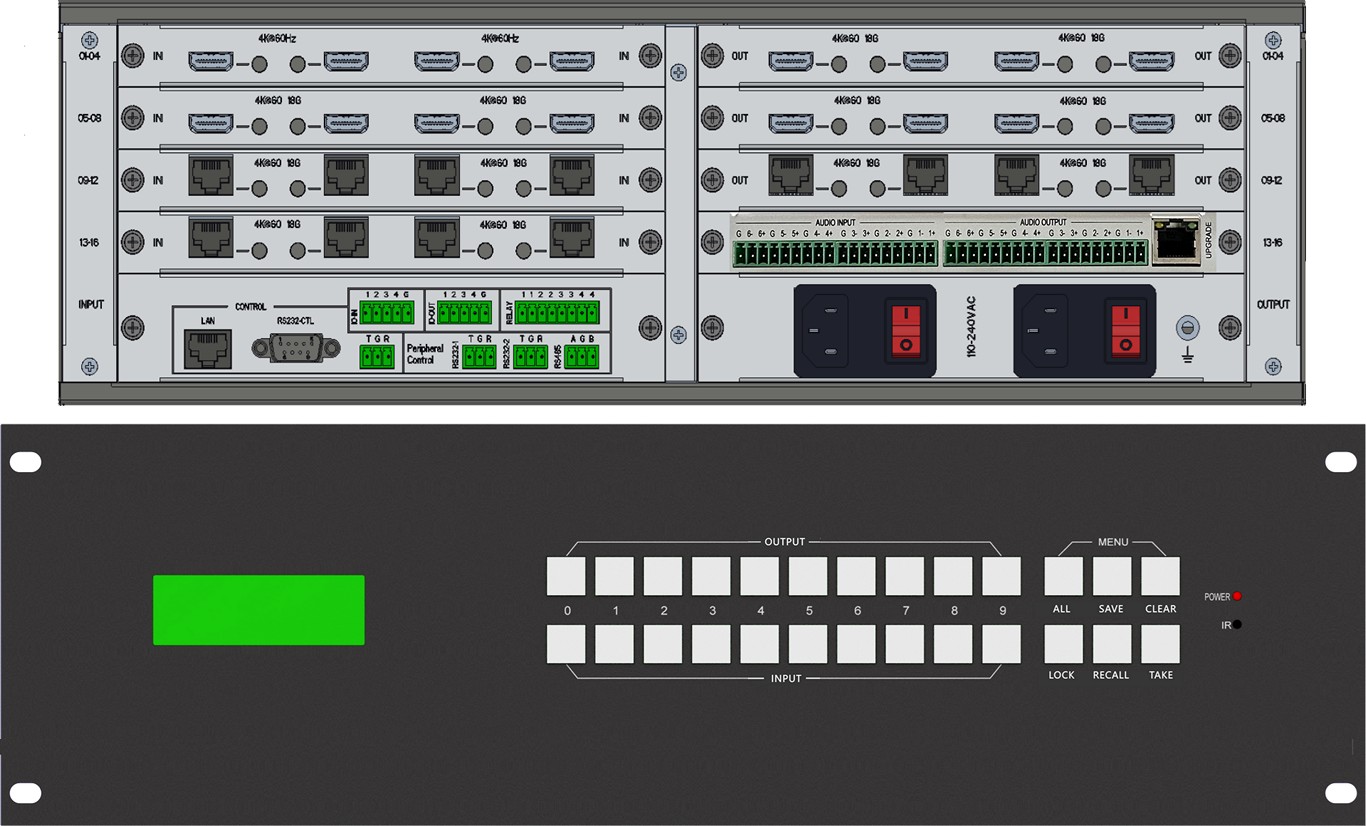

QVM-OUT-AudioProcessor Audio Processor

|
| ¡¾Accessory¡¿ | ||

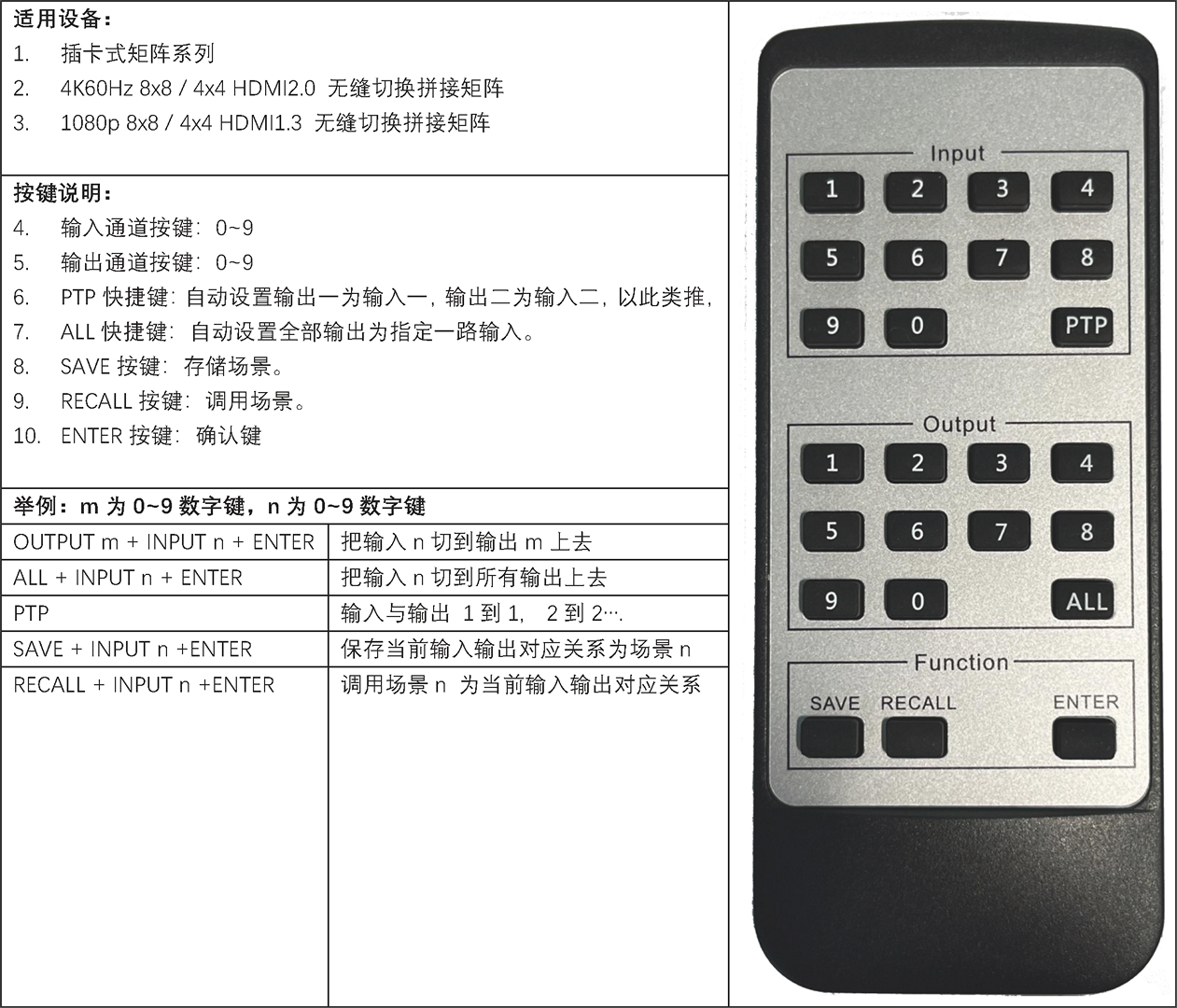

IR controller: QVM, VM4K88H2/44H2, VM2K88H/44H |

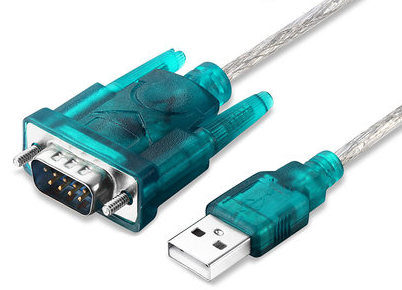

USB to RS232 Driver
PL2303
CH340E |

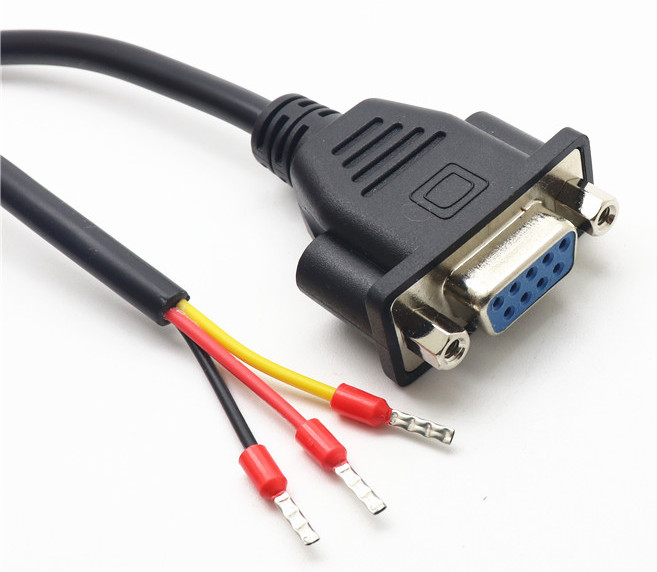

RS232 to Phonix Cable |
