Vtrix-Introduction and Plan of new products |
Catalog: Modular Matrix, Seamless Switcher, AVIP |
|
QVM: Quad-Ch Seamless Matrix |
DM3: Dual-Ch Seamless Matrix |
Video Wall Video Processor |
Seamless Switcher KVM Switcher |
AV Over IP H264/H265 |
|
What's new: QVM, Quad-Channels |
||
|
Products in design, coming soon! |
||
|
USB to RS232, driver: PL2303 CH340E |
WebGUI, modify color / language (zip) |
PC software: Modify LCM, UI to any language |
|
【988VM: 8x8~140x140 Modular Seamless Switching Matrix】 【VM4K88H3, VM4K44H3, VM4K44MV】
|
||
|
988VM series: 4K/2K Modular Matrix User Manual: 988VM series Parameter (Excel) Photo, Picture, etc.
7" Programmable Touch Panel
|
PC tool, FAQ Matrix-PC-tool Released/Test Version, Release Note PC software: ASCII Protocol Password: 111111 Network Disconnect Error HDbaseT products of VTRIX PoC of HDbaseT products Fiber products
|
VM4K88H3: 8x8, VM4K44H3: 4x4 User Manual: VM4K88H3 User Manual: VM4K44H3 ASCII Protocol：VM4K44H3/88H3 PC Tool: VM4K44H2, update 230713 H3 replace H2: New chipset, 7.1ch audio H2 replace H: changed HDMI Transmitter
|
【4K60 seamless switching matrix with multiviewer: VM4K44MV】
|
||
|
VM4KxxMV features 1. Input/output: 4K@60Hz HDMI 2.0, 18Gbps 2. Single-Window Mode: 0ms Seamless switching 3. Multi-Window Mode: fast switching 4. Multiviewer: 1/2/3/4 windows 5. Audio out-HDMI: Up to 7.1ch 6. Audio out-SPDIF: Up to 5.1ch 7. Audio out-L/R: input with PCM format |
VM4K44MV: 4x4 4K60Hz seamless matrix with multiviewer User Manual: VM4K44MV PC tool：VM4K44MV 1. Input: 4xHDMI 2.0 2. Output: 4xHDMI 2.0 3. Control: LAN, RS232, BUTTON, IR
|
VM4K44MV: display mode
|
| 【HDMI2.0 / HDMI1.4 MediaHub】 | ||
|
4K@60Hz Seamless Media Hub DMH32T: HDMI out + HDbaseT out DMH32H: 2 x HDMI 2.0 out User Manual: DMH32T 1. Input/output: 4K@60Hz HDMI2.0 2. 0ms Seamless switching 3. Inputs-front: 2xHDMI2.0, 1xUSB-C 4. Input-rear: 1xBYOD port Input: HDMI2.0 Power Supply: USB 5V/2A 5. DMH32T output: 1xHDMI2.0+1xHDbaseT 4K@40m 6. DMH32H output: 2xHDMI2.0 7. LAN pass through，USB charger |
DMH32T: EU type, white
DMH32T: GE type, black  |
DMH32T: wiring diagram
|
| 【Extenders】 | ||
|
Super Slim HDbaseT 1.0 Extender 1. Super slim, 11mm only 2. In/out: HDMI 2.0 4K444@60Hz 3. Transmit with CSC for lower cost 4. Built-in FAN 5. Built-in test pattern 6. Two versions: 4K@40m or 4K@70m HDbaseT 3.0 Extender 1. In/out: HDMI 2.0 4K444@60Hz 2. Two versions: 4K@40m or 4K@100m |
HDV-F02P：4K60Hz Fiber Extender User Manual: F02P Single-Mode, Single-Fiber with LC In/out: 4K444@60Hz HDMI 2.0 Distance: >10Km Support HDCP/EDID
F88：HDMI1.4 Fiber Extender User Manual: F88 Multi-Mode, Single-Fiber with LC In/out: 4K@30Hz/4K420@60Hz HDMI 1.4 Distance: >300m Doesn't support HDCP/EDID
|

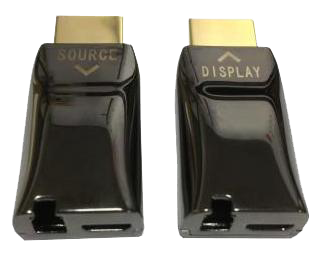

AOC multi-mode cable AOC cable: HDMI2.1-8K
AOC cable: HDMI2.0-4K
AOC cable: DP1.4
|
