988VM：8x8 2U Housing

 |
916VM：16x16 4U Housing

 |
|
936VM：36x36 8U Housing

 |
980VM：80x80 16U Housing |
9140VM：140x140 29U Housing |
| 【988 series: Input Card - 1920x1080p】 | ||
Input-HDMI: Up to 4K@30Hz  |
Input-VGA: Up to 1920x1200  |
Input-SDI: SD/HD/3G-SDI  |
Input-DVI: Up to 4K@30Hz  Adaptor: Male DVI to Female HDMI/VGA/YPbPr/AV
 |
Input-HDbaseT: Up to 1920x1200  |
Input-Fiber: Up to 1920x1200 (Single-Mode Fiber)  |
| 【988 series: Output Card - 1920x1080p】 | ||
Output-HDMI: Up to 1920x1200  |
Output-VGA: Up to 1920x1200  |
Output-SDI: SD/HD/3G-SDI  |
Output-DVI: Up to 1920x1200  Adaptor: Male DVI to Female HDMI/VGA/YPbPr/AV
|

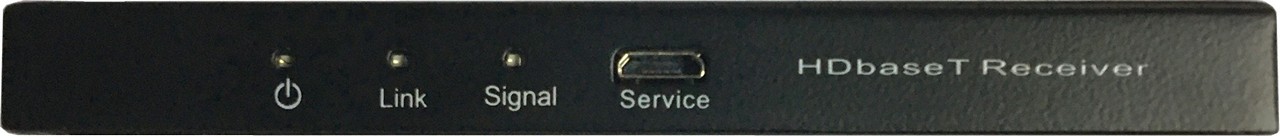

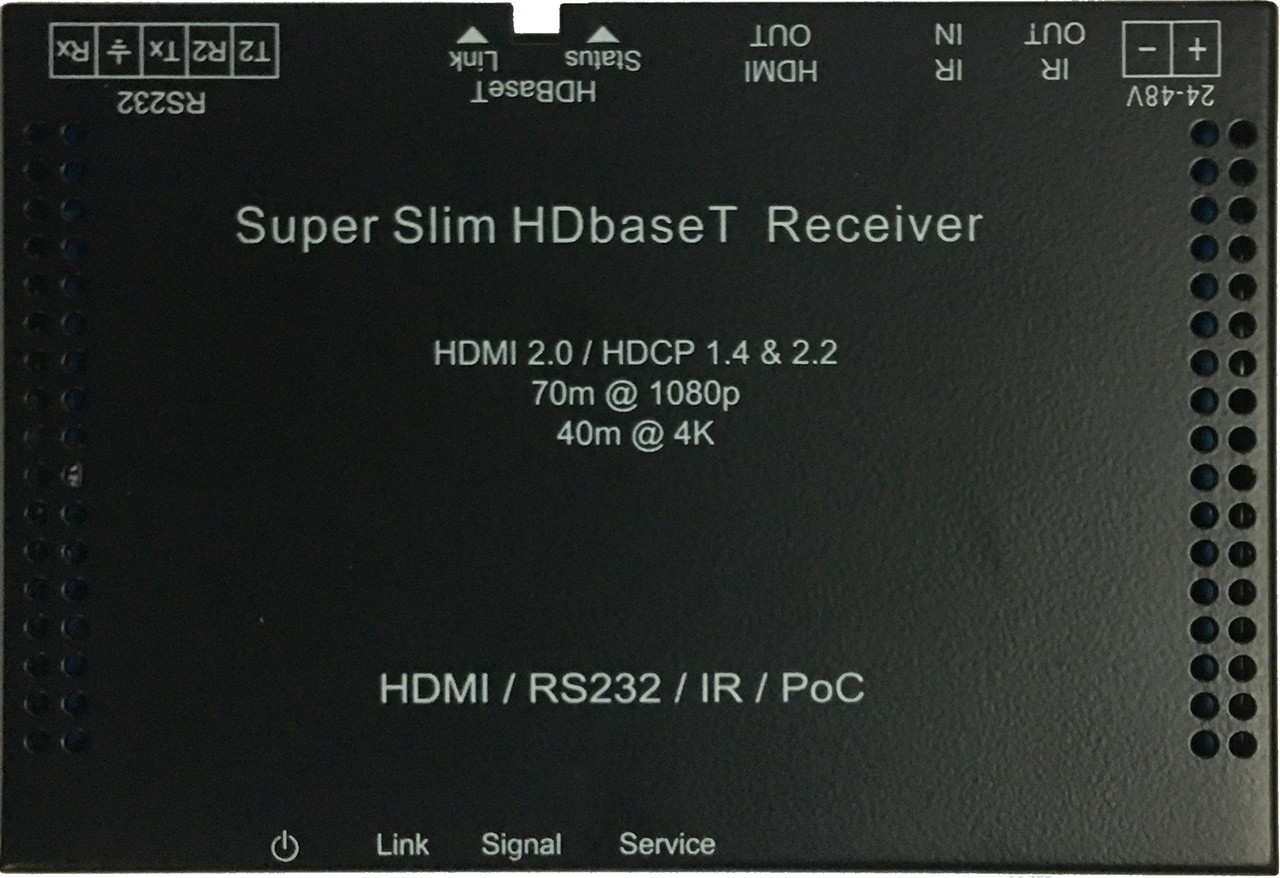

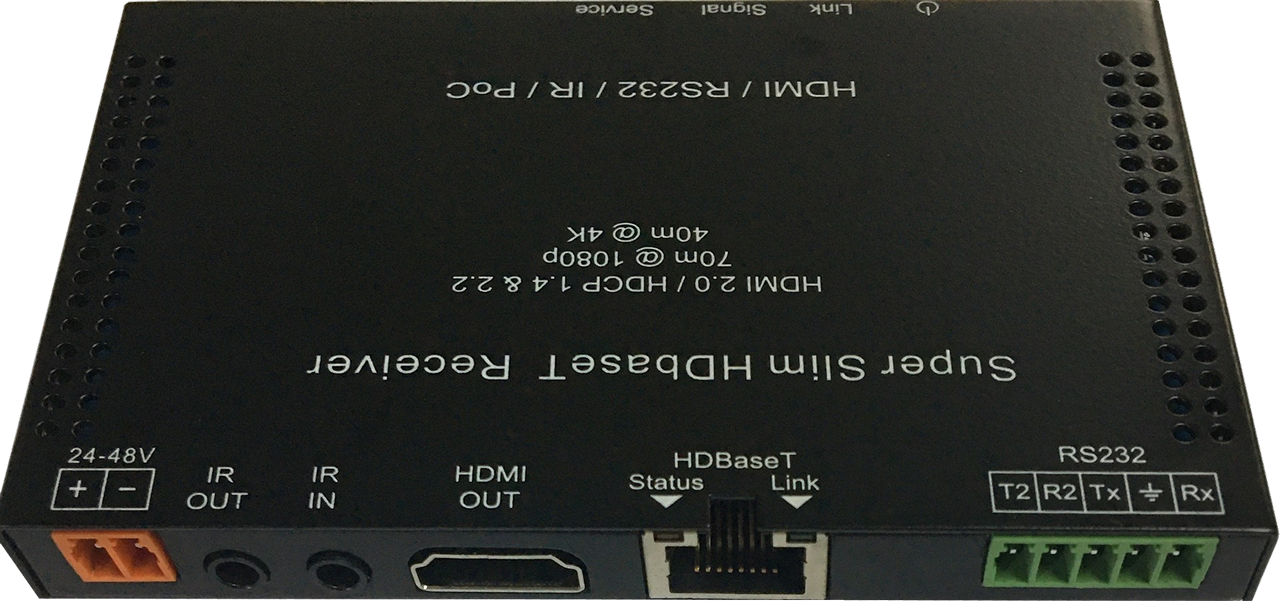

Output-HDbaseT: Up to 1920x1200  HDbaseT RX：SSH70/100-RX
  |
Output-Fiber: Up to 1920x1200 (Single-Mode Fiber)  |
| 【988 series: Output Card - 1080i out】 | ||
Output-HDMI: 1080i |
Output-DVI: 1080i Adaptor: Male DVI to Female HDMI/VGA/YPbPr/AV
|
|
| 【988 series: Input Card - 4K@60Hz】 | ||
Input-HDMI-4K: HDMI2.0  |
Input-HDbaseT-4K: HDMI2.0 |
Input-Fiber-4K: HDMI2.0 (Multi-Mode Fiber) |
| 【988 series: Output Card - 4K@60Hz】 | ||
Output-HDMI-4K: HDMI2.0  |
Output-HDbaseT-4K: HDMI2.0 |
Output-Fiber-4K: HDMI2.0 (Multi-Mode Fiber) |
| 【Accessory】 | ||
IR controller: 988VM, VM4K88H2/44H2, VM2K88H/44H |
USB to RS232 cable Driver PL2303 CH340E  |
RS232 to Phoenix Cable |
988VM：8x8 2U Housing |
916VM：16x16 4U Housing |
|
936VM：36x36 8U Housing |
980VM：80x80 16U Housing |
9160VM：140x140 29U Housing |
